About the cable labels for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable.
Attach the cable label corresponding to each speaker to each speaker cable.
Speaker terminals |
Color |
---|---|
FRONT R |
Red |
FRONT L |
White |
CENTER |
Green |
SURROUND R |
Blue |
SURROUND L |
Light blue |
SUBWOOFER |
Black |

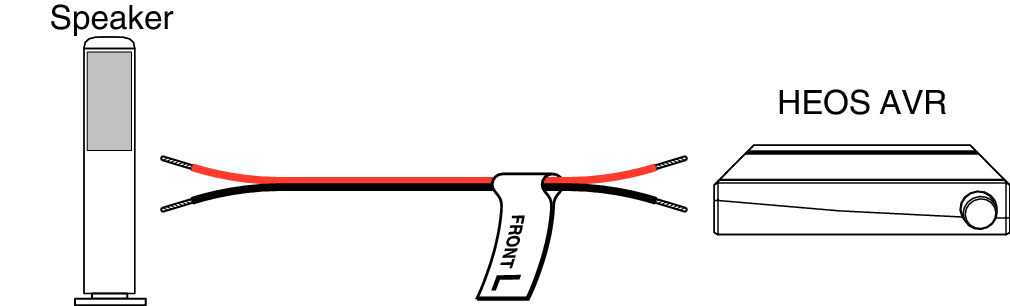

Attach the cable label for each channel to its speaker cable as shown in the diagram.
Refer to the table and attach the label to each speaker cable.
Then, make connection so that the color of the speaker terminal matches that of the cable label.
