Status LED table

Power indicator

Device Operation

Description

Front LED Action

OFF

No AC power, Master Power Switch OFF, Deep Standby

LED Drive Power off

(off)

ON

Power ON

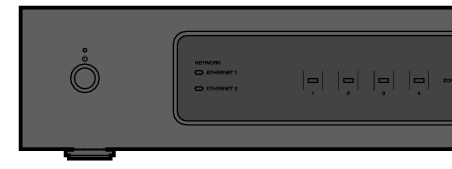

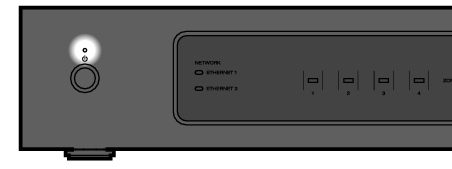

LED Drive Power wt

(solid)

Power Management

Quick Start Mode-When all Zone enter Quick Start Mode

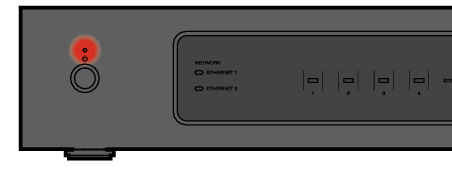

LED Drive Power rd

(solid)

Error

Hardware protection - Refer to BASIC TROUBLESHOOTINGlink

LED Drive Power rd br

(blink)

Network indicators

Device Operation

Description

Front LED Action

OFF

Not Connected to your network

LED Drive Ether off

(off)

Connect

Connected to your network

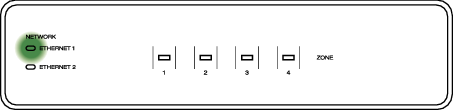

LED Drive Ether gn

(blink)

Zone indicators

Device Operation

Description

Front LED Action

OFF

No AC Power, Master Power Switch OFF, Deep Standby

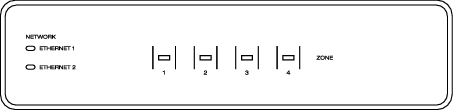

LED Drive Off

(off)

Master Power Switch ON

Booting

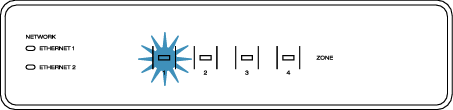

LED Drive Bl Bl

(blink)

ON

Ready-Configured and connected to your network

LED Drive Bl So

(solid)

Not Connected to your network

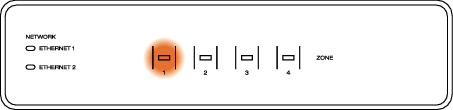

LED Drive Or So

(solid)

Update

Updating

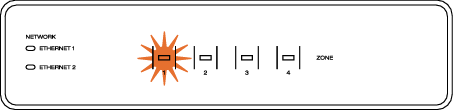

LED Drive Or Bl

(blink)

Rebooting

LED Drive Bl Bl

(blink)

Ready-Configured and connected to your network

LED Drive Bl So

(solid)

Reset

Soft reset - Clear user settings

LED Drive Or Bl

(fast blink)

Hard reset - Factory restore

LED Drive Or Bl

(blink)

Rebooting

LED Drive Bl Bl

(blink)

Ready-Not Configured

LED Drive Or So

(solid)

Errors

Firmware Error

LED Drive Re Bl

(slow blink (NOT fade))

Hardware Error

LED Drive Re Bl

(fast blink)

Network Error

LED Drive Or So

(solid)

Volume Change



LED Drive Bl Bl

(quick blink)

Mute



LED Drive Bl Bl

(slow blink)

Power Management

Quick Start mode-When all Zone enter Quick Start Mode

LED Drive Bl So

(solid)

Deep Standby

LED Drive Off

(off)
