Specifications

Audio section

THD+N:

ANALOG IN: 0.004 %(1 kHz)

S/N ratio:

ANALOG IN: 90 dB (Audible Range)

Frequency response:

20 Hz to 20 kHz: ±0.5 dB

Wireless LAN section

Network type:

Conforming to IEEE 802.11a/b/g/n

Used frequency range:

2.4 GHz, 5 GHz

General

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 120 V, 60 Hz (for North America)

AC 220 - 240 V, 50/60 Hz (for Europe)

Power consumption:

20 W

Power consumption in Network Standby mode:

4 W

Power consumption in Deep Standby mode:

0.3 W

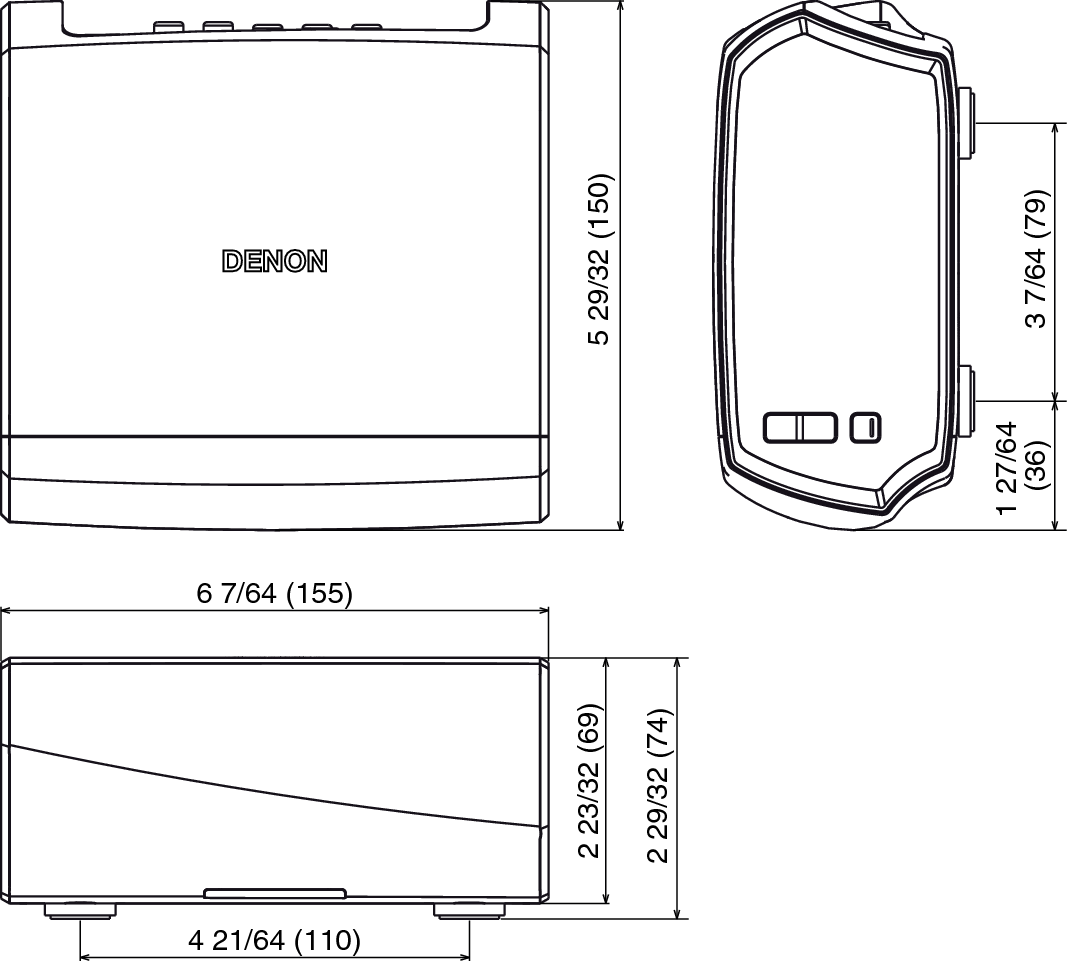

Dimensions (Unit : in. (mm))

Unit size Link

Weight : 2 lbs 13.9 oz (1.3 kg)

For the purpose of improvement, the specifications and design are subject to change without notice.
