Dimensions / Weight

Dimensions / Weight

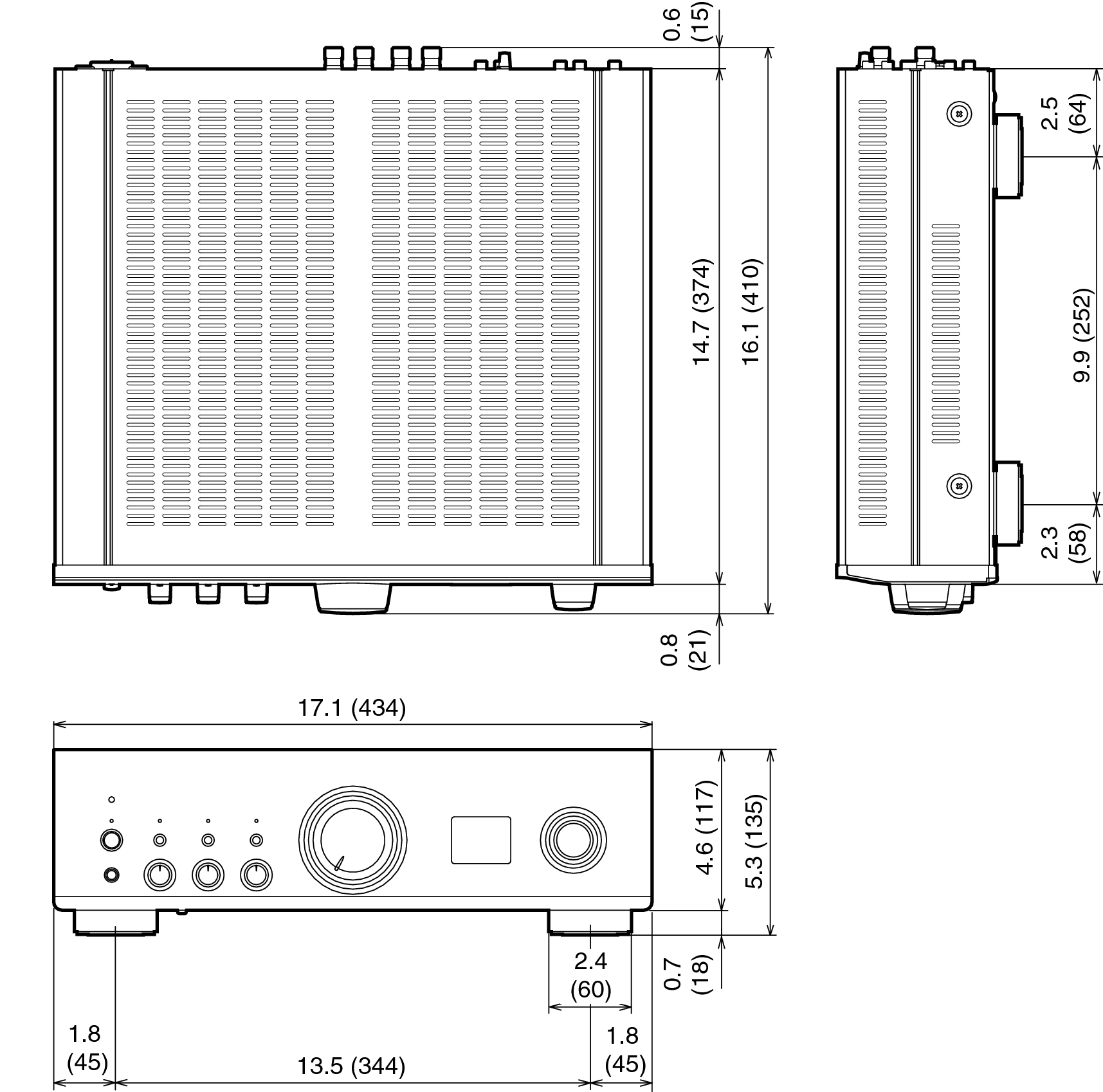

Dimensions (Unit : in. (mm))

Size PMA1700NEE3

Weight : 38 lb 13 oz (17.6 kg)
