Dimensions / Weight

Dimensions / Weight

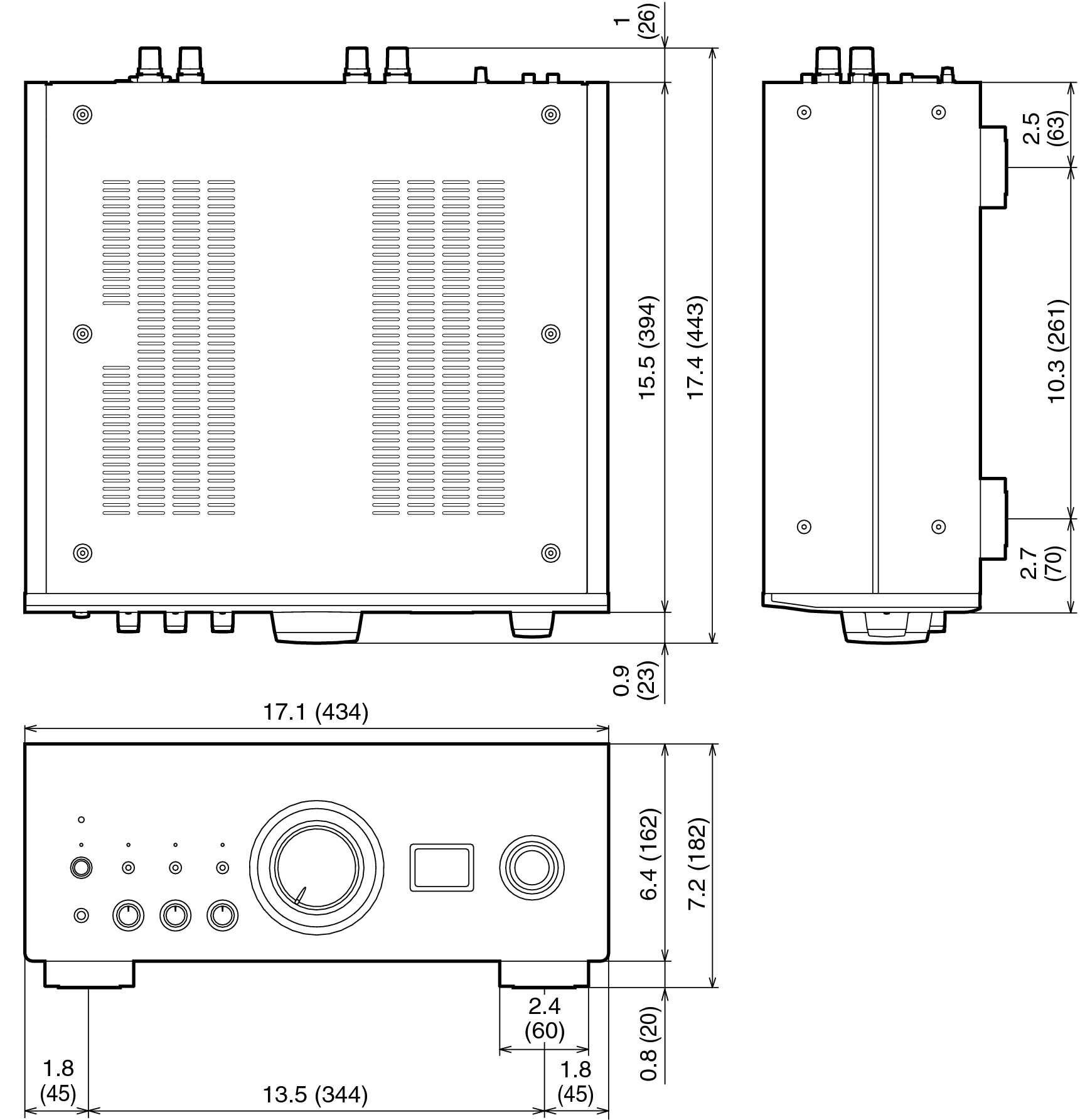

Dimensions (Unit : in. (mm))

Size PMA3000NEE3

Weight : 54 lbs 4 oz (24.6 kg)
