Connecting the speaker cables

Connect the speaker cable with a rubber tube (red) to the + speaker terminal (red), and the other cable to the - speaker terminal (black).

Peel off about 10 mm of sheathing from the tip of the speaker cable, then twist the core wire tightly.
Conne spCable1

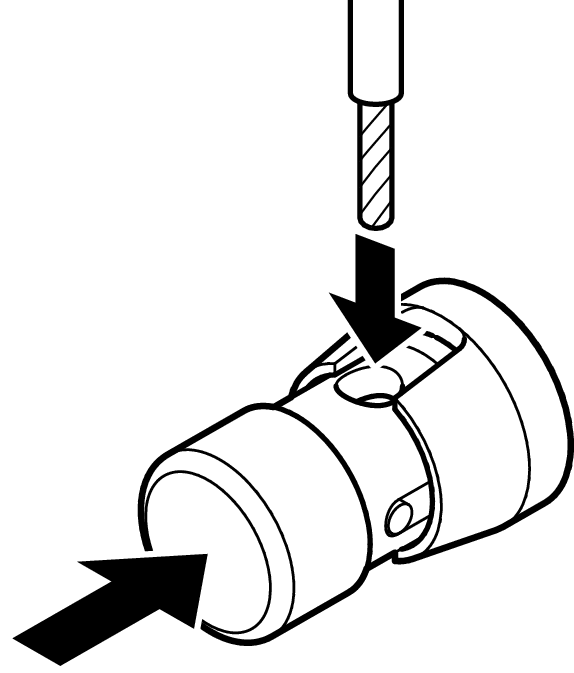

Push the speaker terminal and insert the speaker cable into the cable insertion slot.
Conne spCable2

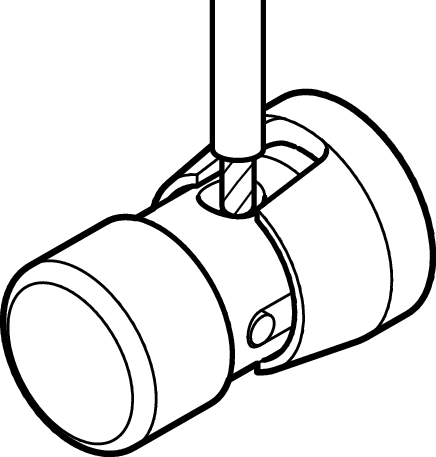

Release your finger from the speaker terminal to fix the speaker cable.
Conne spCable3

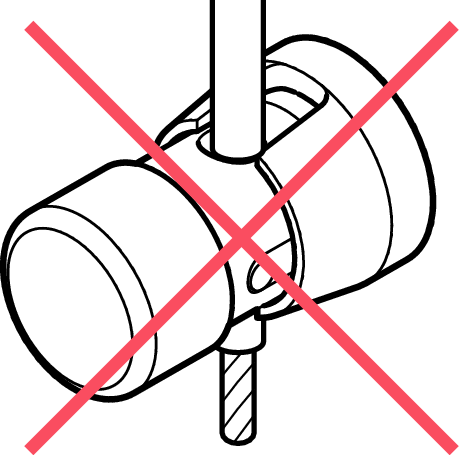

Ensure that only the core wire part of the speaker cable is inserted. Sound cannot be heard if it is inserted all the way to the protective coating.

Conne spCable3_NG
