Video Flow V1-11

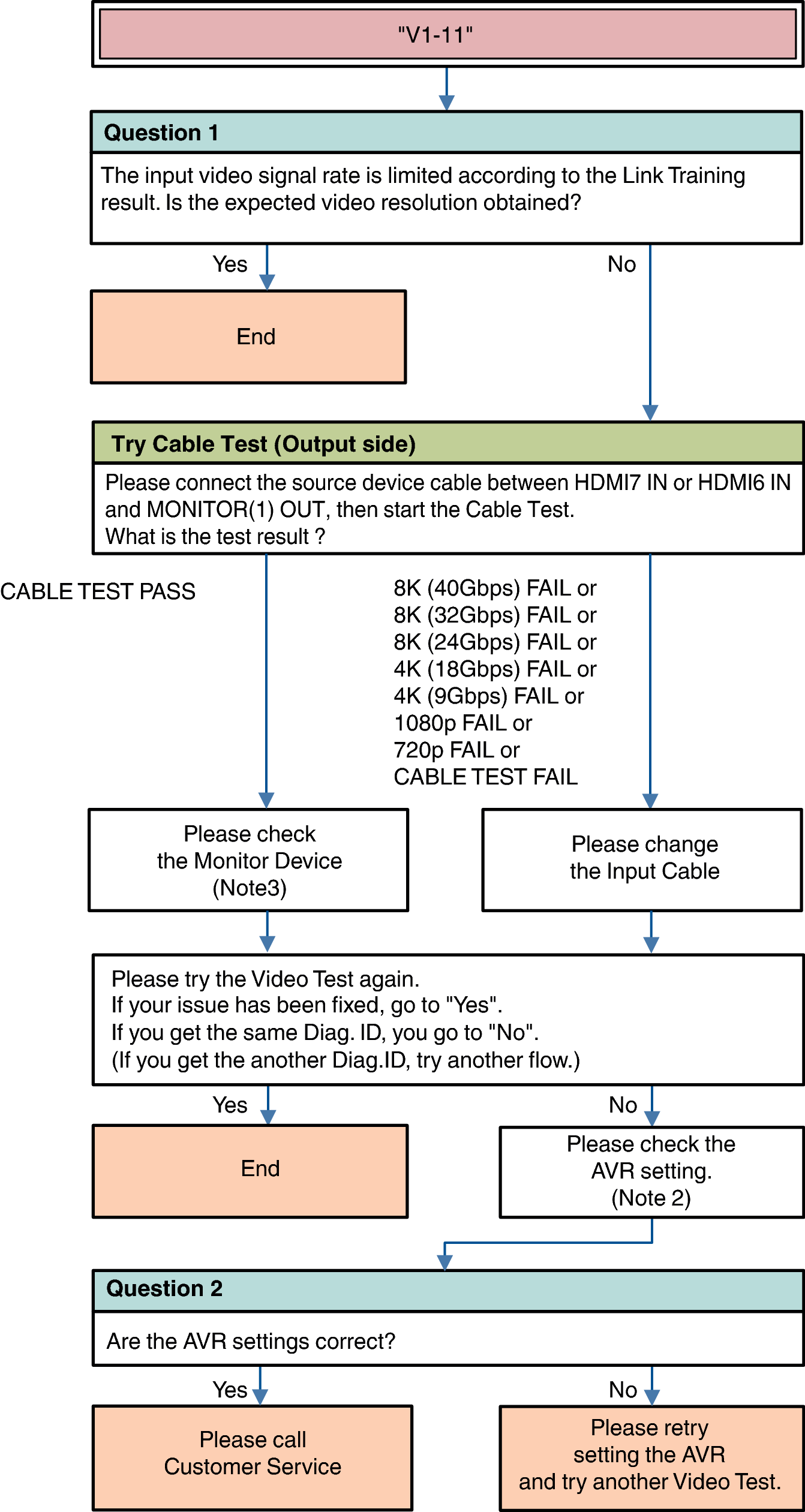

Flow V1-11y_2

Description “V1-11”: FRL Link Training failed and Video signal format is limited to TMDS.

Try ***

:AVR operation





Question *

:Question for user to answer





Note 2: AVR check item

Menu Setting

Video Right Arrow HDMI Setup Right Arrow HDMI Audio Out

Video Right Arrow 4K/8K Signal Format

Video Right Arrow Output Settings Right Arrow HDMI Video Output

Video Right Arrow Output Settings Right Arrow HDMI Upscaler

Video Right Arrow TV Format

Inputs Right Arrow Input Assign

Connection [Source device / AVR / Monitor device]

Note3: Monitor Device check item

(Try) AC Off/On

(Try) Standby/Power On

(Check or change) HDCP Ver. setting

(Check or change) EDID (4K/8K Limitation) setting

(Check or change) limit of each HDMI input terminal

Video check (connect the HDMI cable from Source device to the Monitor directly without AVR.)
