Audio Flow A1-02

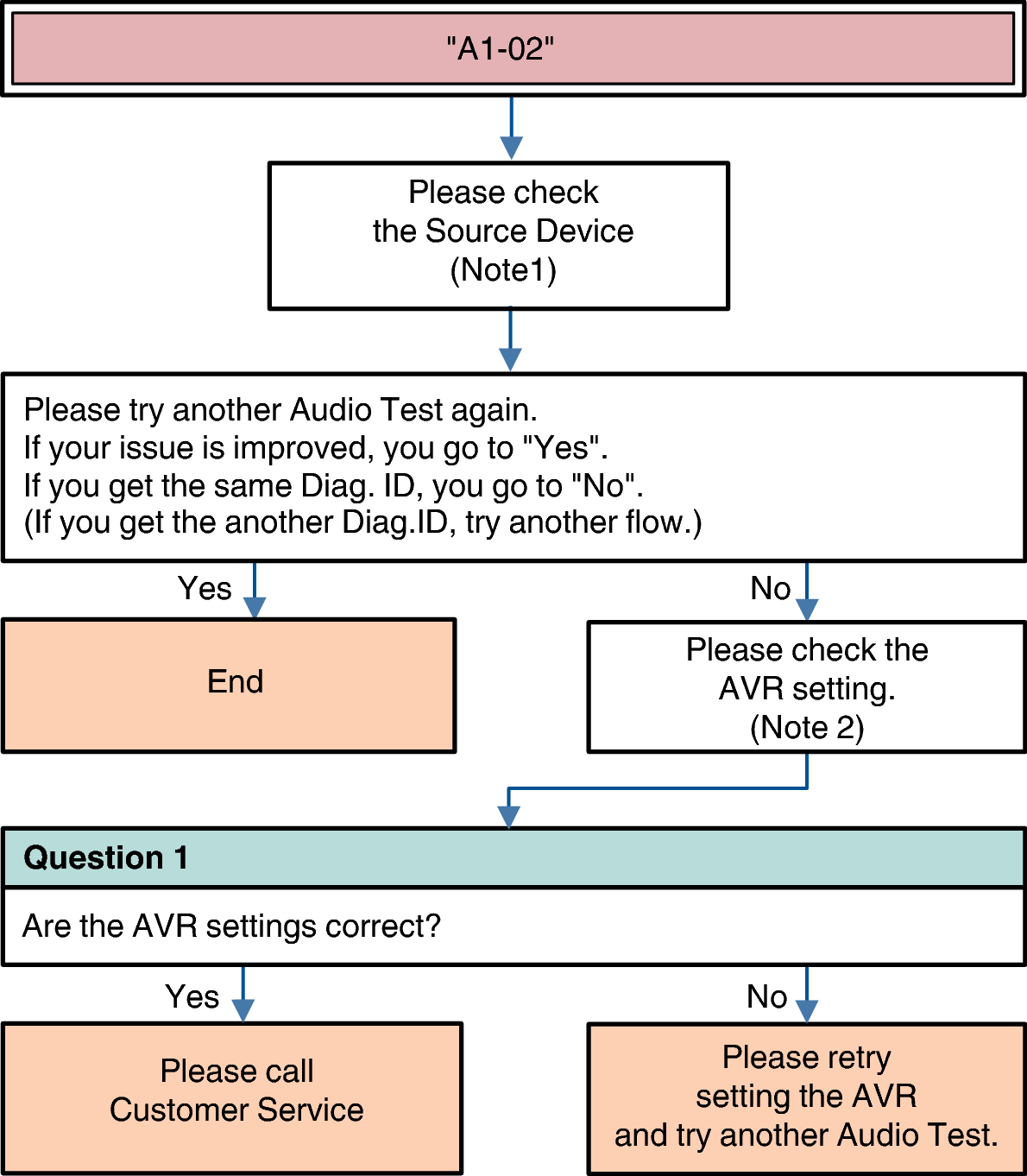

Flow A1-02y

Description “A1-02”: HDMI Rx Information is not correct.

Question *

:Question for user to answer





Note1: Source Device check item

(Try) AC Off/On

(Try) Standby/Power On

(Check or change) Video setting (Resolution, etc...)

(Check or change) Output Terminal setting (case of Dual output source device)

Video check (connect the HDMI cable from Source device to the Monitor directly without the AVR.)

Note 2: AVR check item

Menu Setting

Video Right Arrow HDMI Setup Right Arrow HDMI Audio Out

Video Right Arrow 4K/8K Signal Format

Video Right Arrow Output Settings Right Arrow HDMI Video Output

Video Right Arrow Output Settings Right Arrow HDMI Upscaler

Video Right Arrow TV Format

Inputs Right Arrow Input Assign

Connection [Source device / AVR / Monitor device]
