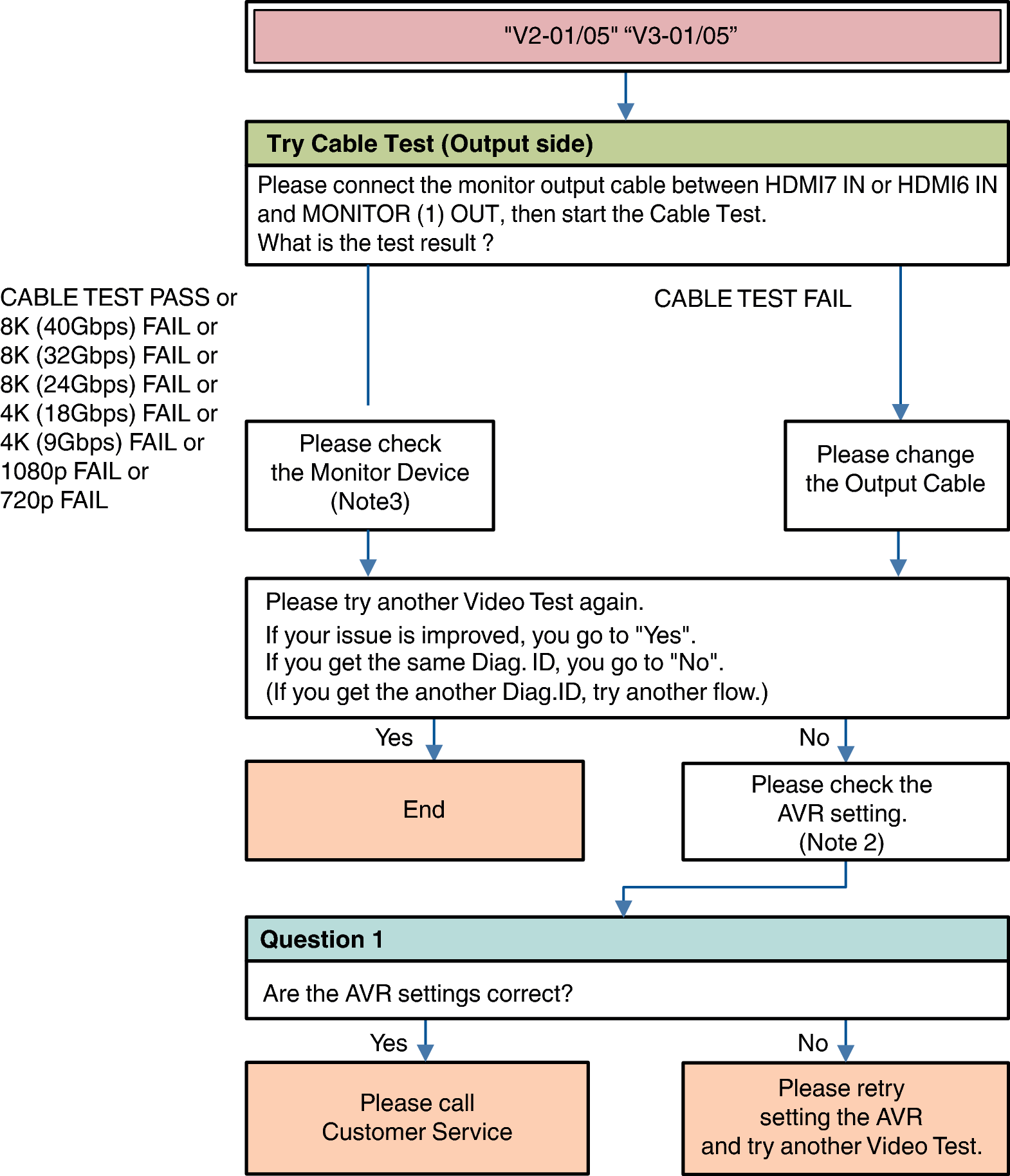

Video Flow V2-01/05 V3-01/05

Description “V*-01”: Miscommunication with Monitor at output terminal (HPD always low).

Description “V*-05”: Cannot get Monitor information (EDID from Monitor).

Try ***	:AVR operation	V2-**	: Monitor1 error
Question *	:Question for user to answer	V3-**	: Monitor2 error

Note 2: AVR check item

Menu Setting

Video Right Arrow HDMI Setup HDMI Audio Out

Video Right Arrow 4K/8K Signal Format

Video Right Arrow Output Settings HDMI Video Output

Video Right Arrow Output Settings HDMI Upscaler

Video Right Arrow TV Format

Inputs Right Arrow Input Assign

Connection [Source device / AVR / Monitor device]

Note3: Monitor Device check item

(Try) AC Off/On

(Try) Standby/Power On

(Check or change) HDCP Ver. setting

(Check or change) EDID (4K/8K Limitation) setting

(Check or change) limit of each HDMI input terminal

Video check (connect the HDMI cable from Source device to the Monitor directly without AVR.)
