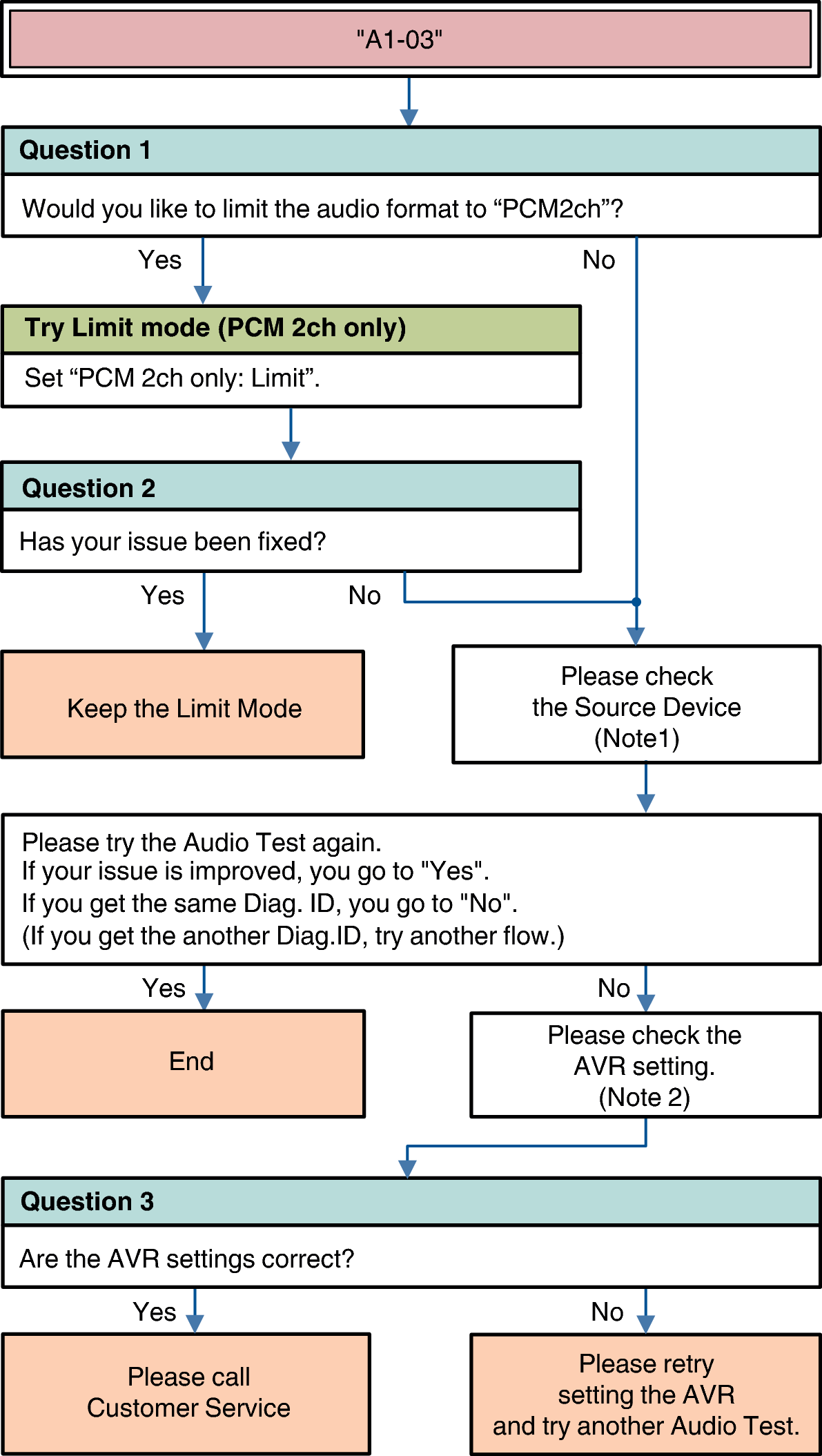

Audio Flow A1-03

Description “A1-03”: Information mismatch HDMI device and DSP device (N, CTS, Channel Status, Audio Info, Layout).

Try ***	:AVR operation
Question *	:Question for user to answer

Note1: Source Device check item

(Try) AC Off/On

(Try) Standby/Power On

(Check or change) Video setting (Resolution, etc...)

(Check or change) Output Terminal setting (case of Dual output source device)

Video check (connect the HDMI cable from Source device to the Monitor directly without the AVR.)

Note 2: AVR check item

Menu Setting

Video Right Arrow HDMI Setup HDMI Audio Out

Video Right Arrow 4K/8K Signal Format

Video Right Arrow Output Settings HDMI Video Output

Video Right Arrow Output Settings HDMI Upscaler

Video Right Arrow TV Format

Inputs Right Arrow Input Assign

Connection [Source device / AVR / Monitor device]
