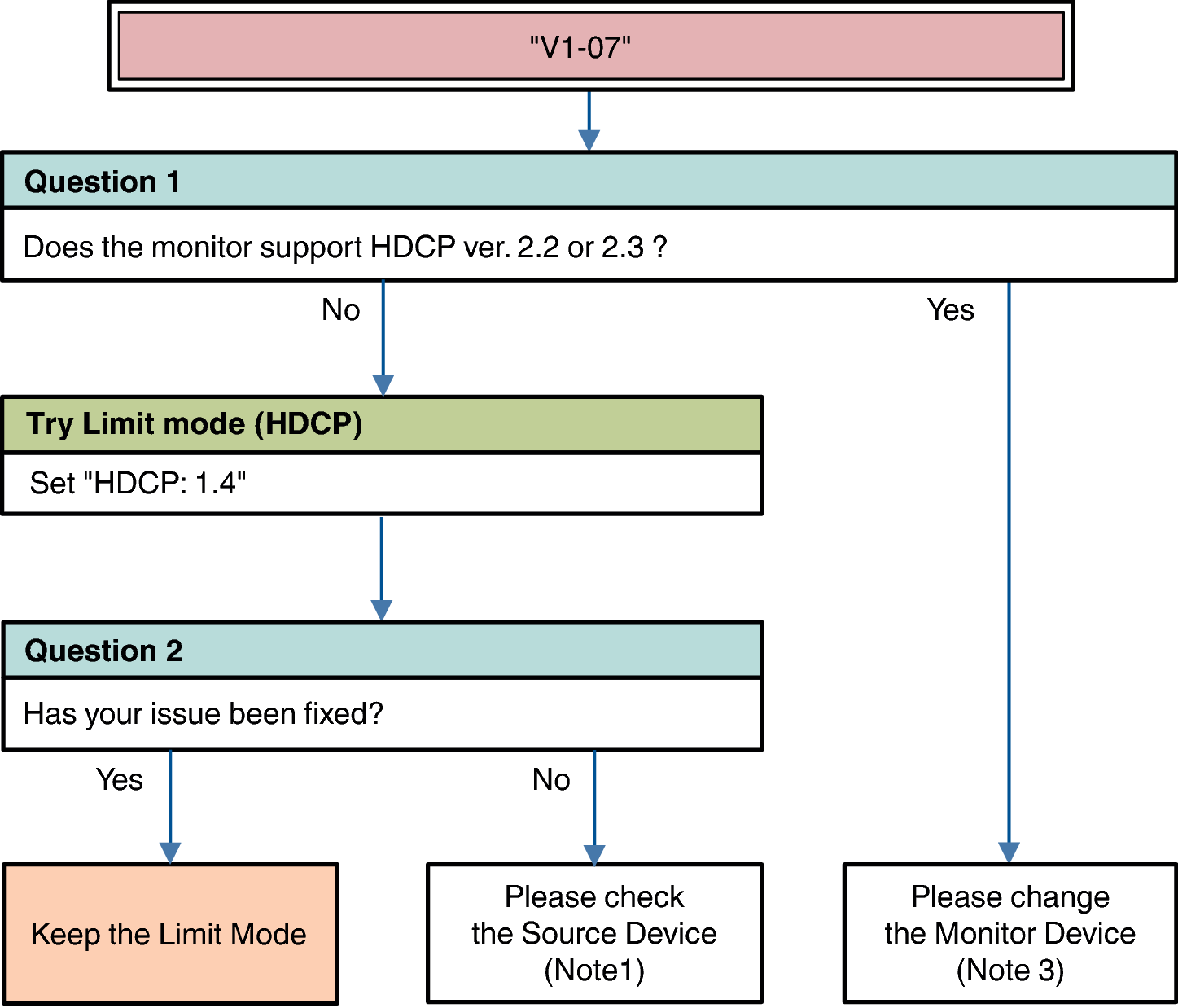

Video Flow V1-07

Description “V1-07”: HDCP2.2 or 2.3/Stream ID Type mismatch (ie. Stream ID = 1, but Monitor's HDCP = V1.4).

Try ***	:AVR operation
Question *	:Question for user to answer

Note1: Source Device check item

(Try) AC Off/On

(Try) Standby/Power On

(Check or change) Video setting (Resolution, etc...)

(Check or change) Output Terminal setting (case of Dual output source device)

Video check (connect the HDMI cable from Source device to the Monitor directly without the AVR.)

Note3: Monitor Device check item

(Try) AC Off/On

(Try) Standby/Power On

(Check or change) HDCP Ver. setting

(Check or change) EDID (4K/8K Limitation) setting

(Check or change) limit of each HDMI input terminal

Video check (connect the HDMI cable from Source device to the Monitor directly without AVR.)
