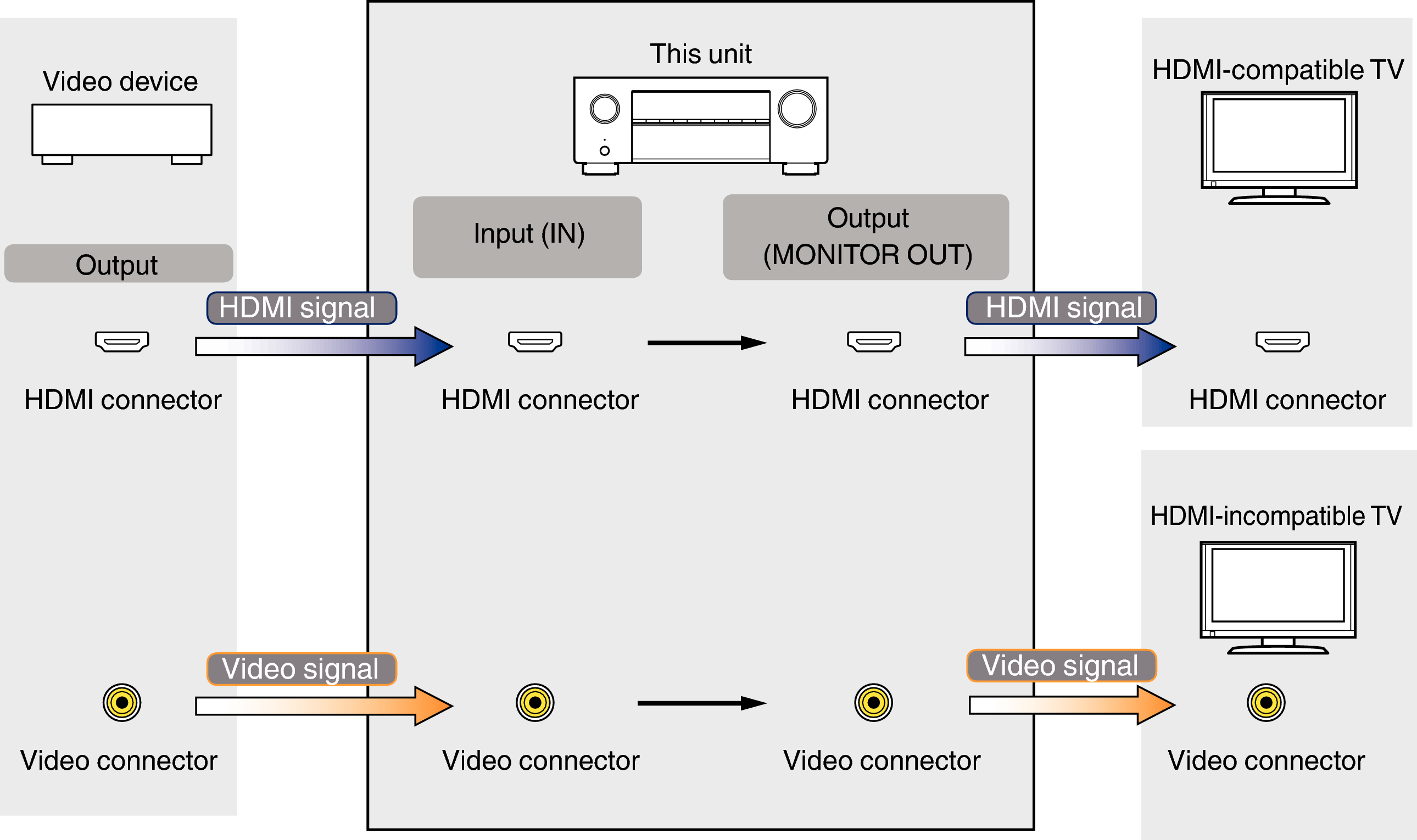

Relationship between video signals and monitor output
![Pict VideoSignal S76](fig/Pict VideoSignal S76_DRDZILdanuqppz.png)

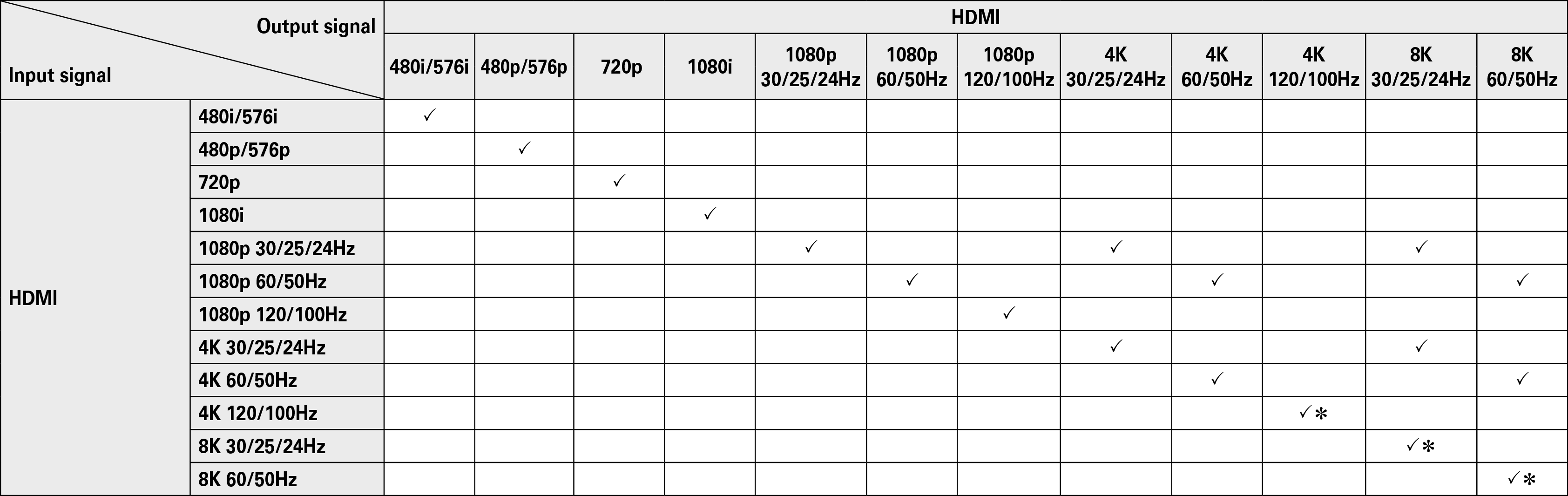

When “HDMI Upscaler” in the menu is set to “On”, this unit upscales the input HDMI video signal and then outputs it to the TV.link
![Pict VideoTable S76](fig/Pict VideoTable S76_DRDZILgrtrthns.png)
Supported by the HDMI 4, 5 and 6 connectors.
