Speaker configuration and “Amp Assign” settings
This unit has a built-in 7-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 5.1-channel systems and 2-channel systems for multi-zone playback. link
Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. link
Playback speaker and zone |
“Amp Assign” settings |
Connection page |
|
---|---|---|---|
MAIN ZONE |
ZONE2 |
||
5.1-channel |
Not used |
Can be set in all “Amp Assign” modes. |
|
7.1-channel (surround back) |
Not used |
Surround Back |
|
7.1-channel (front height) |
Not used |
Front Height |
|
7.1-channel (top front) |
Not used |
Top Front |
|
7.1-channel (top middle) |
Not used |
Top Middle |
|
7.1-channel (front Dolby Atmos Enabled speaker) |
Not used |
Front Dolby |
|
7.1-channel (surround Dolby Atmos Enabled speaker) |
Not used |
Surround Dolby |
|
5.1-channel |
2-channel
|
ZONE2 (Default) |
The sound mode that can be selected varies according to the speaker configuration. See “Relationship between sound modes and channel output” link for the sound modes that are supported.
Standard configuration and connection
5.1-channel
This serves as a basic 5.1-channel surround system.
![Pict AmpAssign 5.1](fig/Pict AmpAssign 5.1_OBAOILvkrqbqis.png)
![Conne SP 5.1 S710WE3](fig/Conne SP 5.1 S710WE3_DRDZILxhorvxmq.png)
7.1-channel (surround back)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.
![Pict SurrBack SP Layout X2200](fig/Pict SurrBack SP Layout X2200_ZHOBILhdygfbof.png)
![Conne SP 7.1 SB S710WE3](fig/Conne SP 7.1 SB S710WE3_DRDZILybonsdab.png)
When using a single surround back speaker, connect it to the SURROUND BACK L terminal.
7.1-channel (front height)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.
![Pict FrontHeight SP Layout X2200](fig/Pict FrontHeight SP Layout X~_ZHOBILpnupsqdk.png)
![Conne SP 7.1 FH S710WE3](fig/Conne SP 7.1 FH S710WE3_DRDZILlpizdkoq.png)
7.1-channel (top front)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with top front speakers.
![Pict TopFront SP Layout X2200](fig/Pict TopFront SP Layout X2200_ZHOBILqbykmyvy.png)
![Conne SP 7.1 TF S710WE3](fig/Conne SP 7.1 TF S710WE3_DRDZILblpzgciu.png)
7.1-channel (top middle)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with top middle speakers.
![Pict TopMiddle SP Layout X2200](fig/Pict TopMiddle SP Layout X22~_ZHOBILoxiedqie.png)
![Conne SP 7.1 TM S710WE3](fig/Conne SP 7.1 TM S710WE3_DRDZILcycwjotf.png)
7.1-channel (front Dolby Atmos Enabled)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby Atmos Enabled speakers.
![Pict FrontDolby SP Layout X2200](fig/Pict FrontDolby SP Layout X2~_ZHOBILybeyhvxo.png)
![Conne SP 7.1 FD S710WE3](fig/Conne SP 7.1 FD S710WE3_DRDZILlncmpnjm.png)
7.1-channel (surround Dolby Atmos Enabled)
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround Dolby Atmos Enabled speakers.
![Pict SurrDolby SP Layout X2200](fig/Pict SurrDolby SP Layout X22~_ZHOBILnzgiwqvo.png)
![Conne SP 7.1 SD S710WE3](fig/Conne SP 7.1 SD S710WE3_DRDZILpblbdopc.png)
Applied configuration and connection

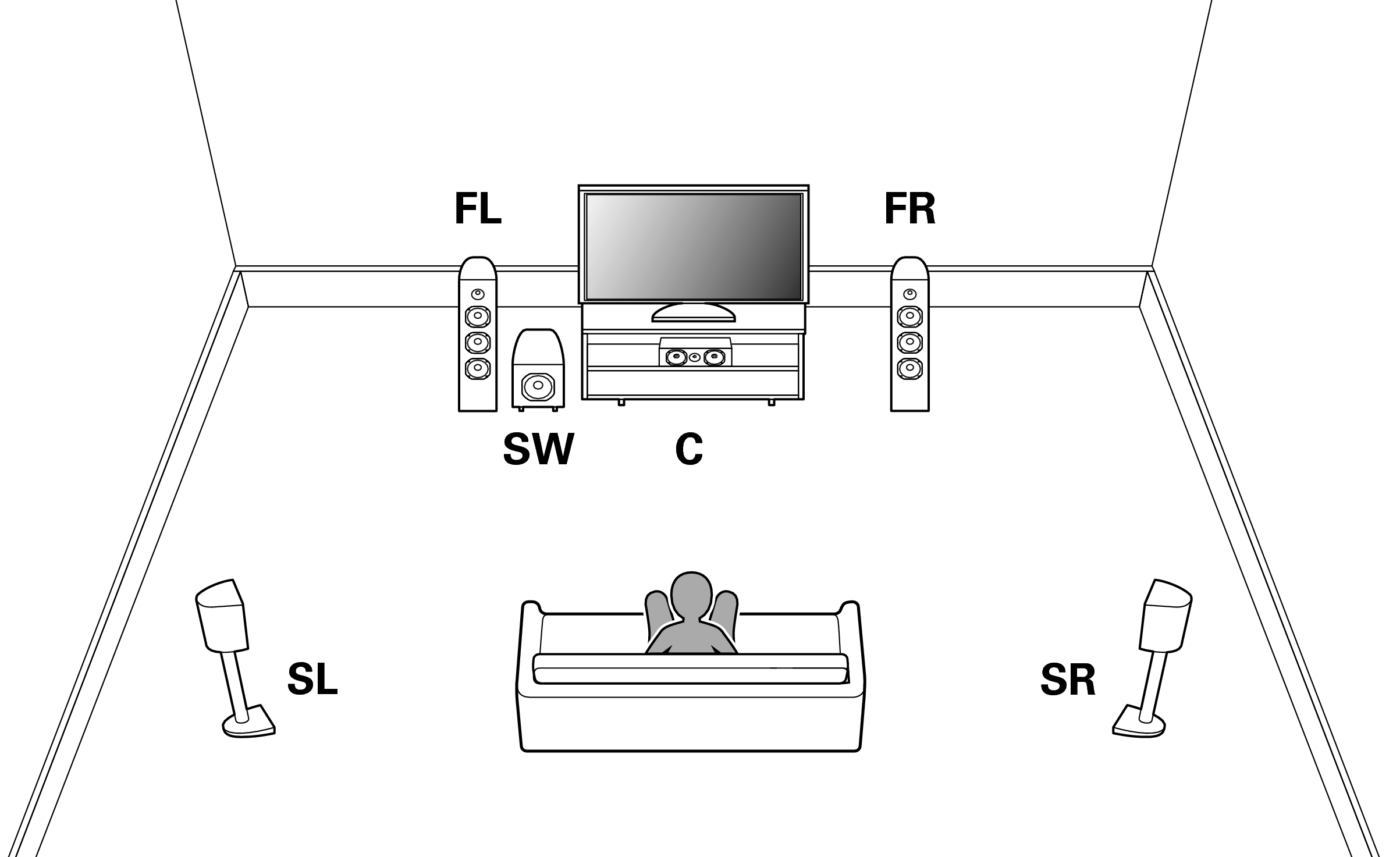

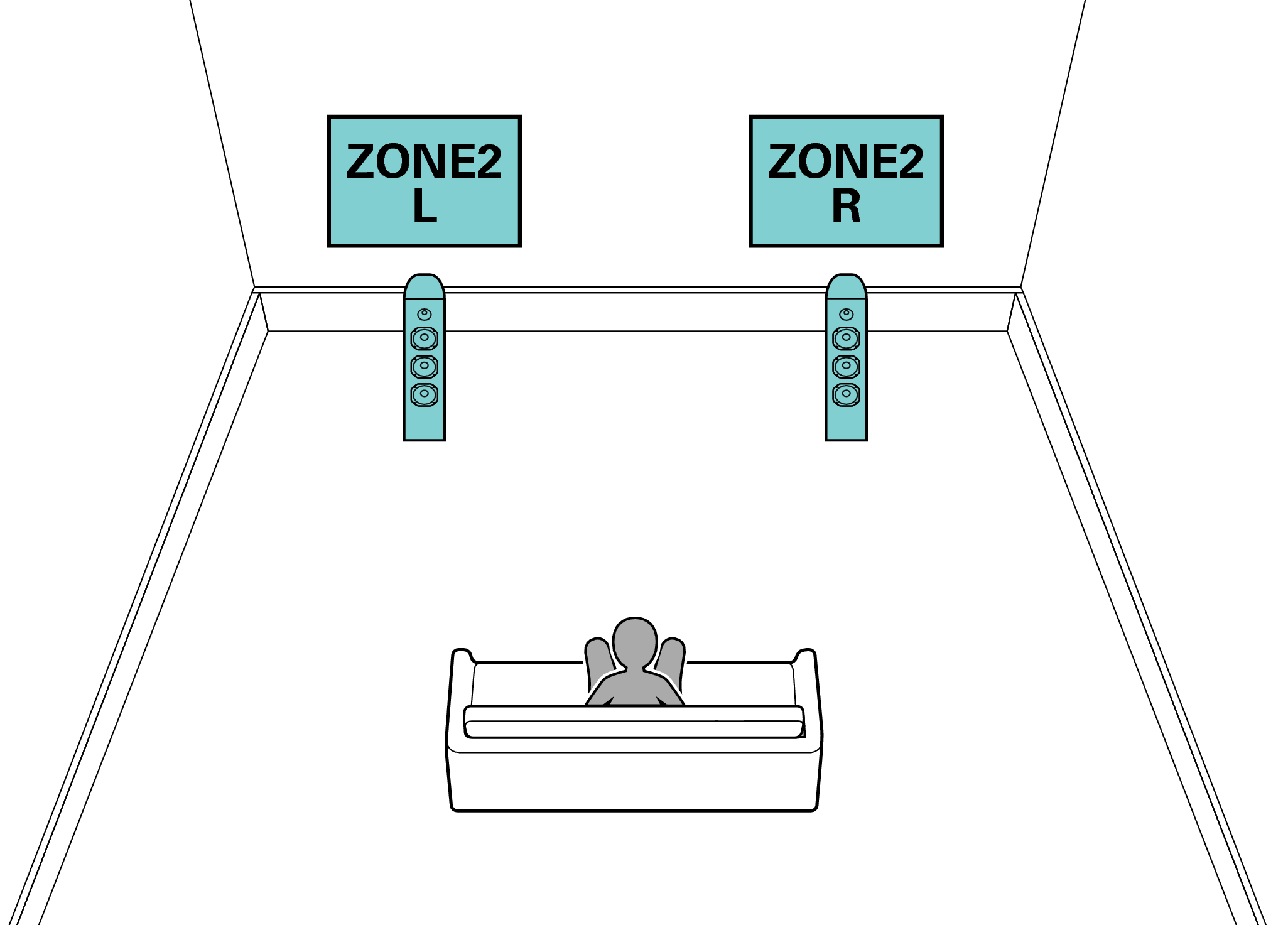

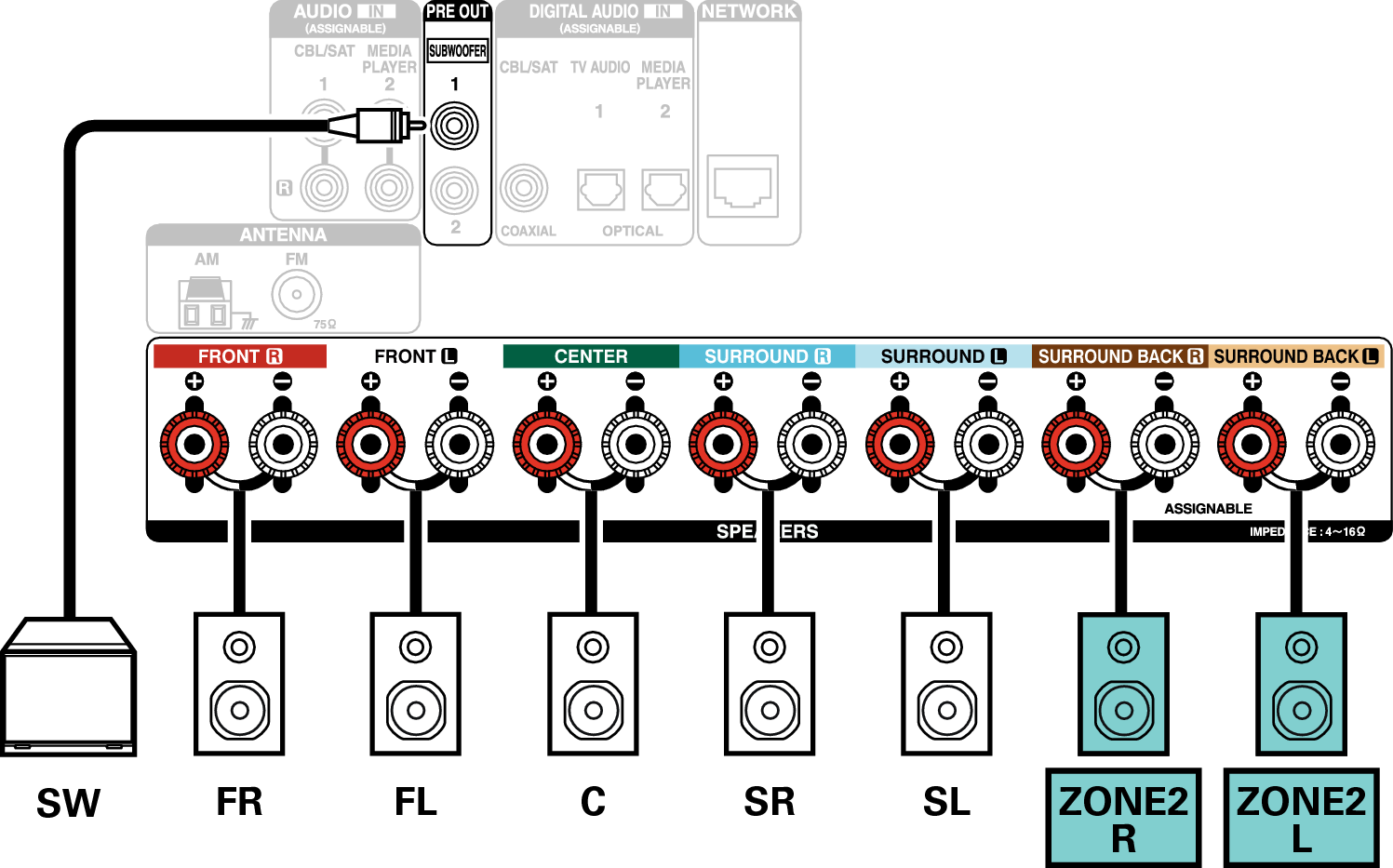

5.1-channel (MAIN ZONE) + 2-channel (ZONE2)
This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.
MAIN ZONE |
![]() |
ZONE2 |
![]() |
![Conne SP 5.1 ZONE2 S710WE3](fig/Conne SP 5.1 ZONE2 S710WE3_DRDZILarjtlzop.png)
