Sound mode that can be selected for each input signal
The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons.
Adjust the sound field effect with the menu “Surr.Parameter” to enjoy surround sound the way you like it. link

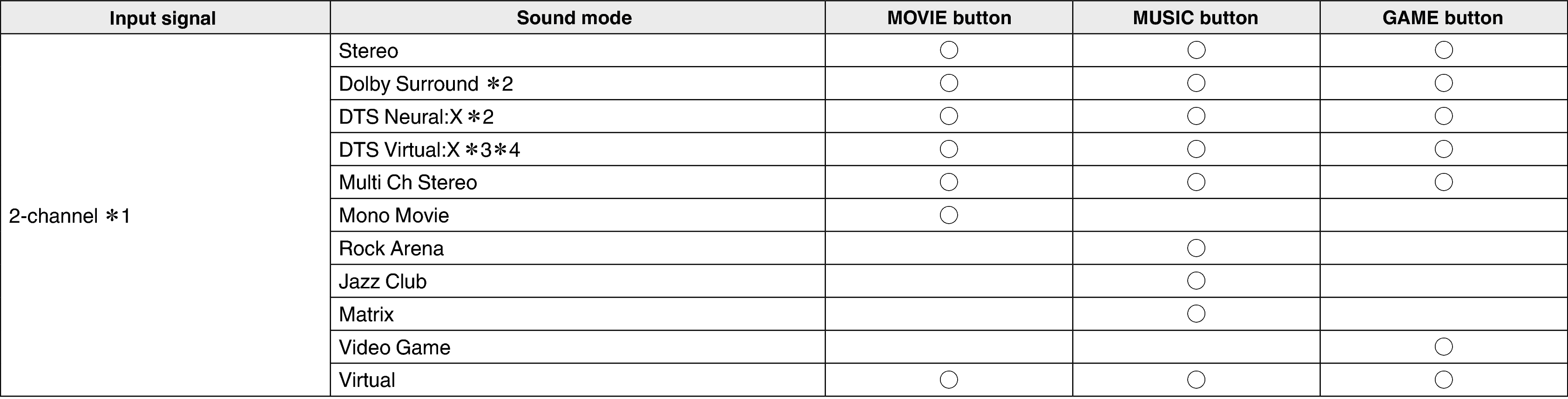

![Pict Soundmode1 X34](fig/Pict Soundmode1 X34_ENUS_RQIFILgtwllrnq.png)
2-channel also includes analog input.
This mode plays back 2-channel sources in 5.1 or 7.1-channel playback. It cannot be selected when headphones are used or when the speaker configuration is front speakers only.
It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
It cannot be selected when the input signal is Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos.

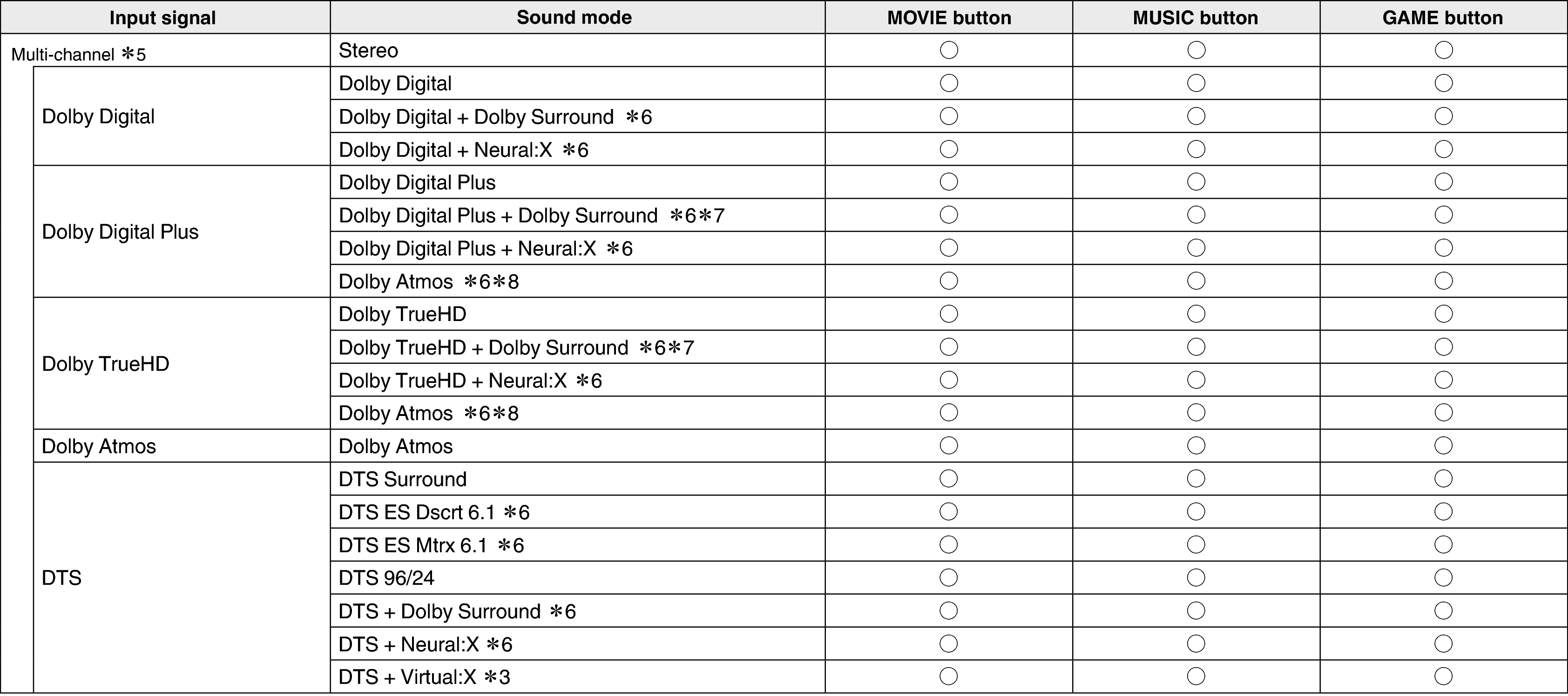

![Pict Soundmode2 X34](fig/Pict Soundmode2 X34_ENUS_RQIFILpbyqcavi.png)
It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.
This cannot be selected when headphones are used.
This can be selected when the input signal does not contain Dolby Atmos.
This can be selected when the input signal contains Dolby Atmos.

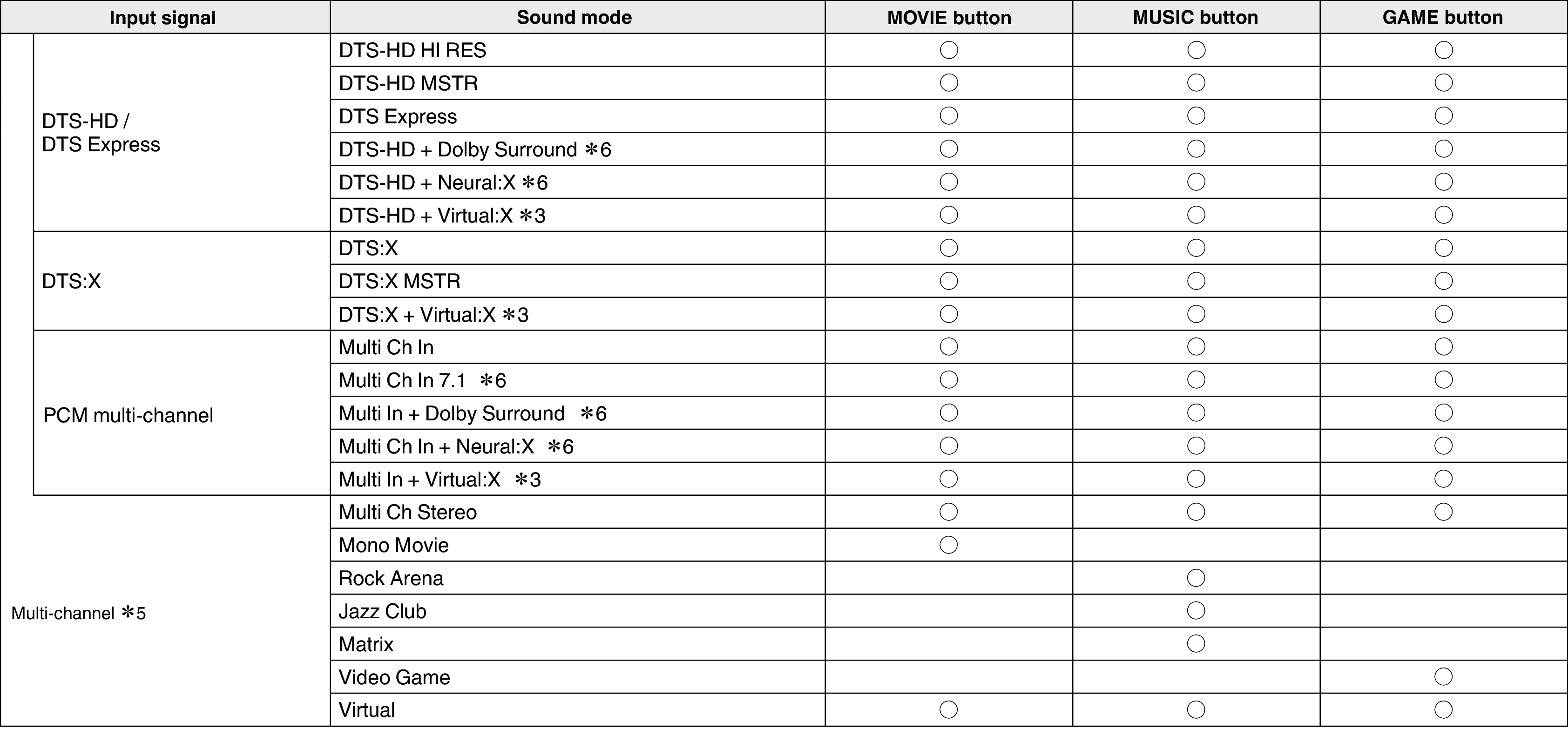

![Pict Soundmode3 X34](fig/Pict Soundmode3 X34_ENUS_RQIFILghhygzmj.png)
It cannot be selected when headphones are used, or when a speaker configuration with any height speakers is used.
The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see Types of input signals, and corresponding sound modeslink.
This cannot be selected when headphones are used.
Views on the display
![Disp DOLBY DIGITAL X2200](fig/Disp DOLBY DIGITAL X2200_DRDZILhmsduxhq.png)
Shows a decoder to be used.
In the case of the Dolby Digital Plus decoder, “ ” is displayed.
Shows a decoder that creates sound output.
“ ” indicates that the Dolby Surround decoder is being used.
