Connecting 7.1-channel speakers
System for 7.1-channel surround playback.
Example connections when using surround back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

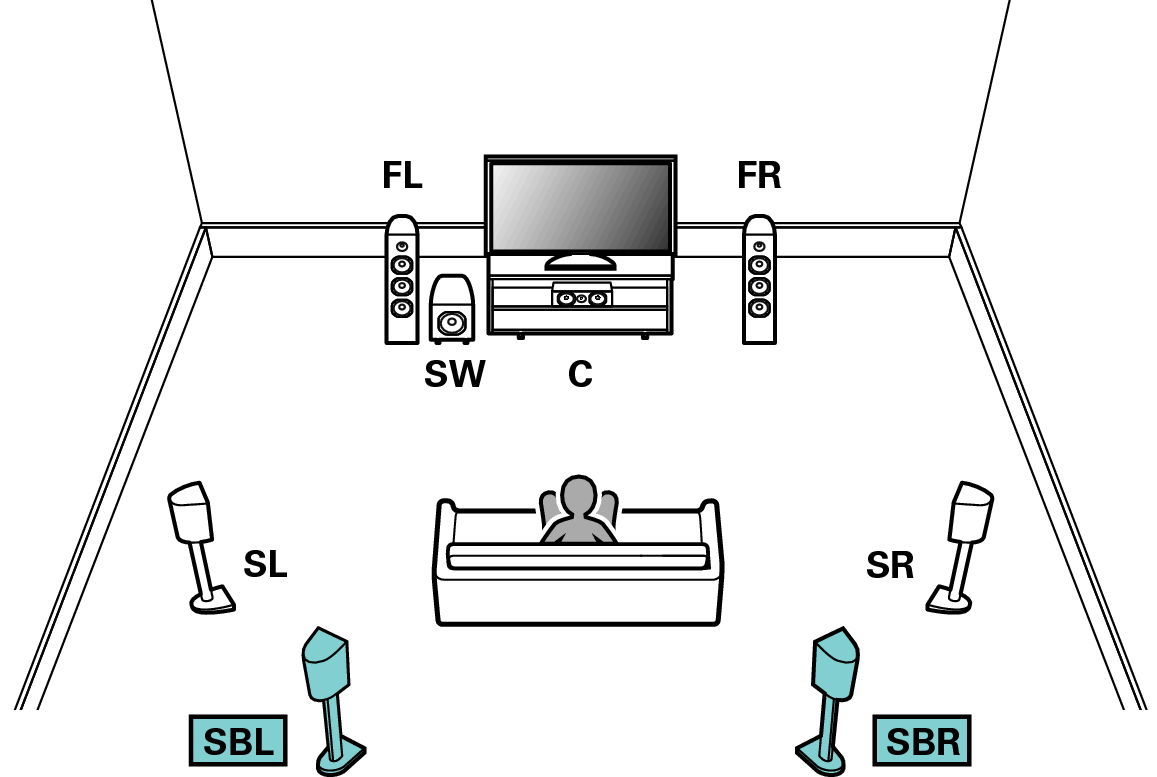

![Pict SurrBack SP Layout X2200](fig/Pict SurrBack SP Layout X2200_ZHOBILhdygfbof.png)
Set “Assign Mode” to “Surround Back” in the menu. link

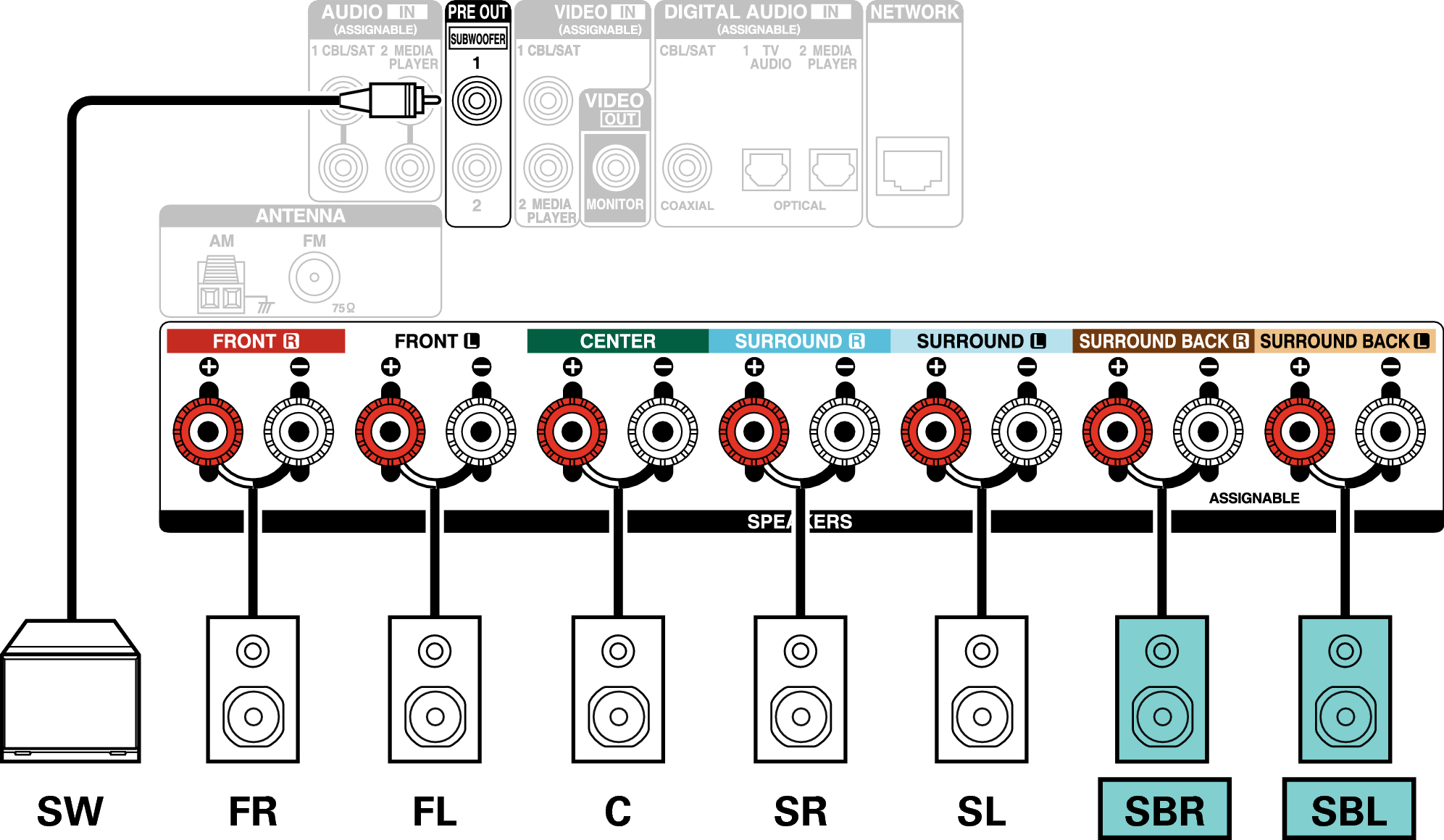

![Conne SP 7.1 SB S73](fig/Conne SP 7.1 SB S73_DRDZILzumemwbz.png)
When using a single surround back speaker, connect it to the SURROUND BACK L terminal.
Example connections when using front height speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers.

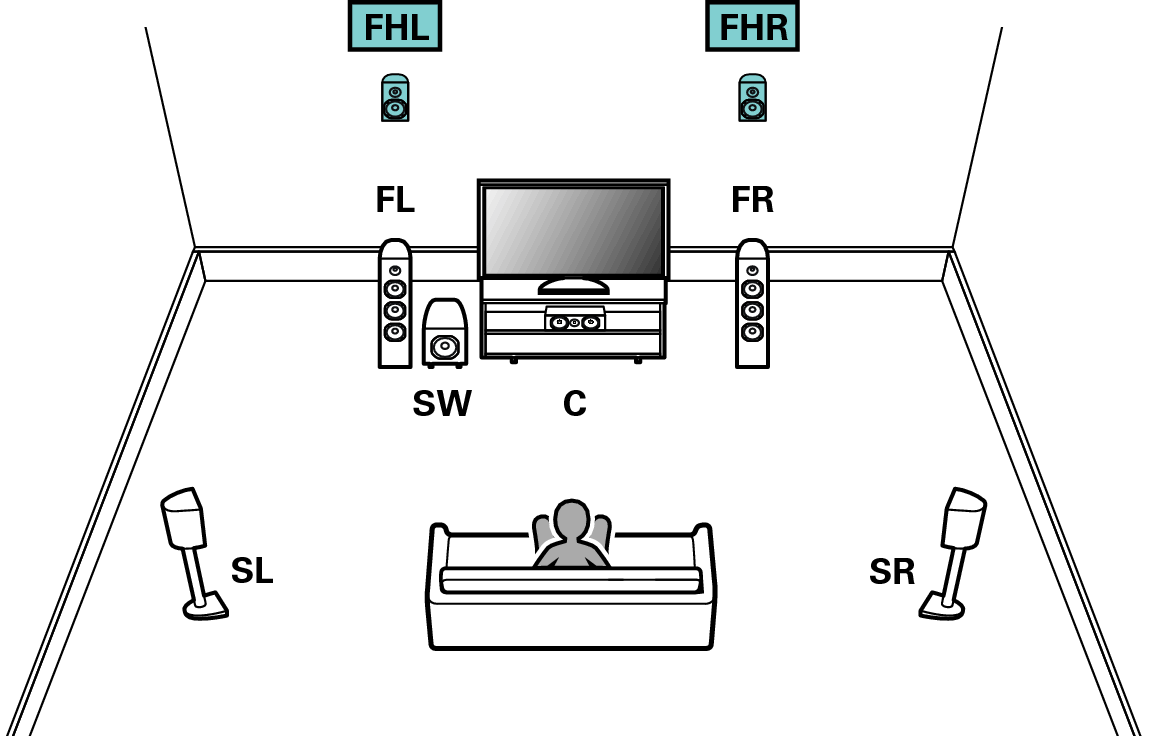

![Pict FrontHeight SP Layout X2200](fig/Pict FrontHeight SP Layout X~_ZHOBILpnupsqdk.png)
Set “Assign Mode” to “Front Height” in the menu. link

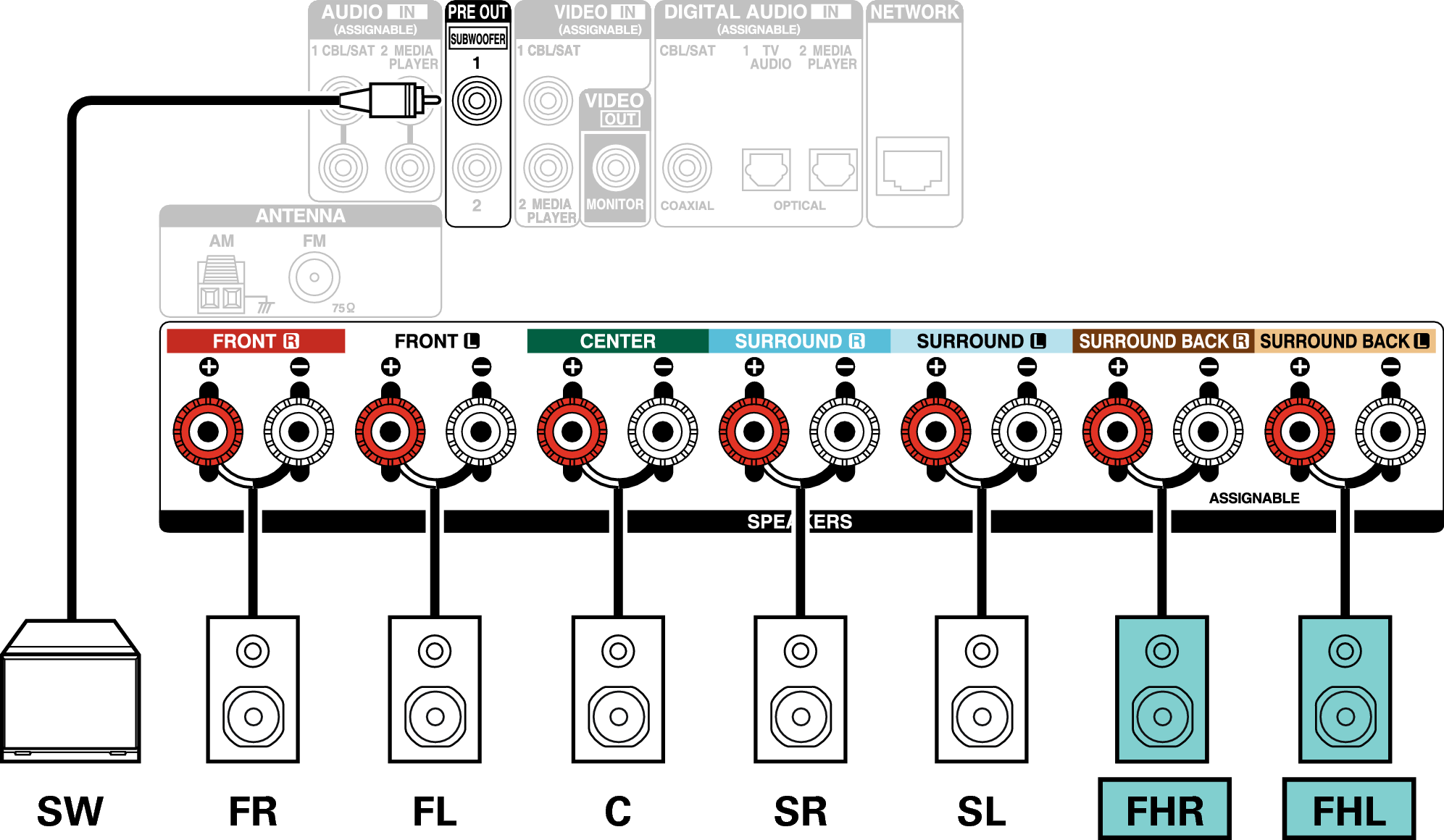

![Conne SP 7.1 FH S73](fig/Conne SP 7.1 FH S73_DRDZILzsitcueu.png)
Example connections when using top front speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with top front speakers.

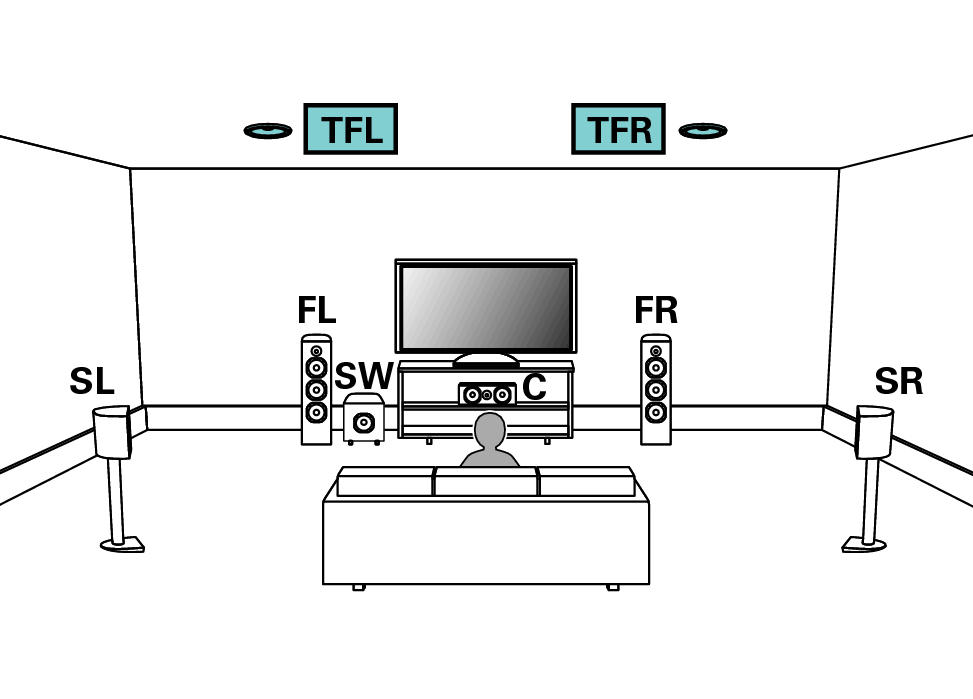

![Pict TopFront SP Layout X2200](fig/Pict TopFront SP Layout X2200_ZHOBILqbykmyvy.png)
Set “Assign Mode” to “Top Front” in the menu. link
![Conne SP 7.1 TF S73](fig/Conne SP 7.1 TF S73_DRDZILsfozhcrv.png)
Example connections when using top middle speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with top middle speakers.

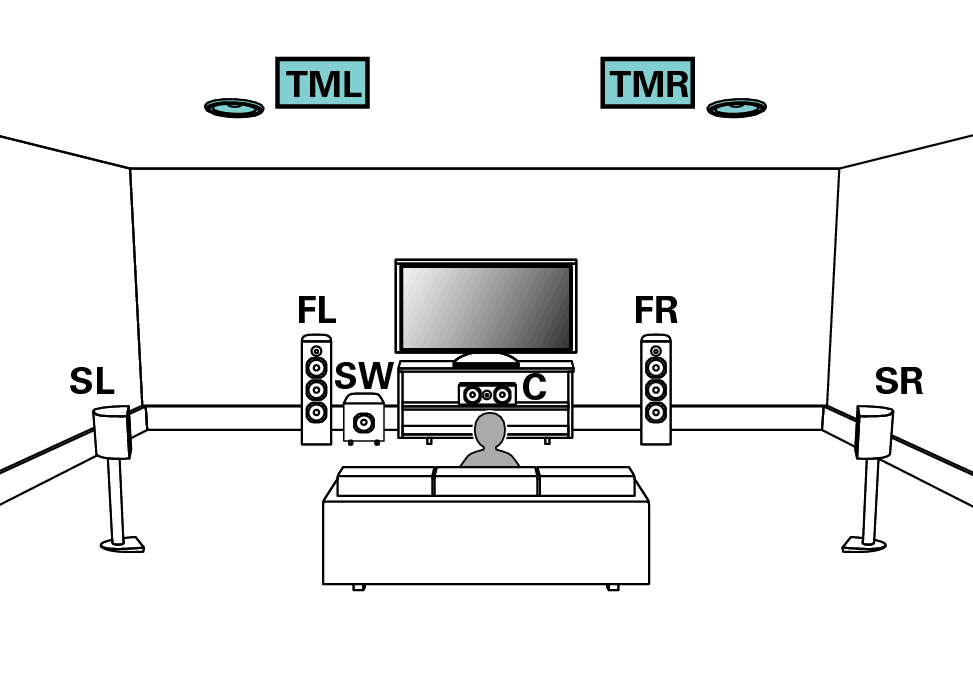

![Pict TopMiddle SP Layout X2200](fig/Pict TopMiddle SP Layout X22~_ZHOBILoxiedqie.png)
Set “Assign Mode” to “Top Middle” in the menu. link
![Conne SP 7.1 TM S73](fig/Conne SP 7.1 TM S73_DRDZILivnovmhe.png)
Example connections when using front Dolby Atmos Enabled speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby Atmos Enabled speakers.

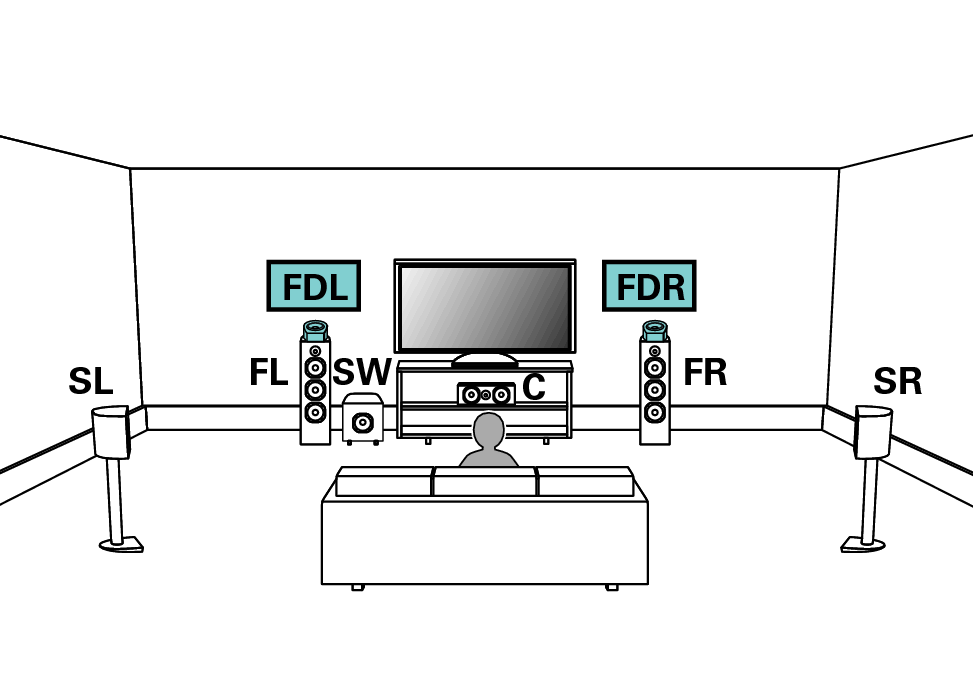

![Pict FrontDolby SP Layout X2200](fig/Pict FrontDolby SP Layout X2~_ZHOBILybeyhvxo.png)
Set “Assign Mode” to “Front Dolby” in the menu. link
![Conne SP 7.1 FD S73](fig/Conne SP 7.1 FD S73_DRDZILbzvuslpw.png)
Example connections when using surround Dolby Atmos Enabled speakers
This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround Dolby Atmos Enabled speakers.

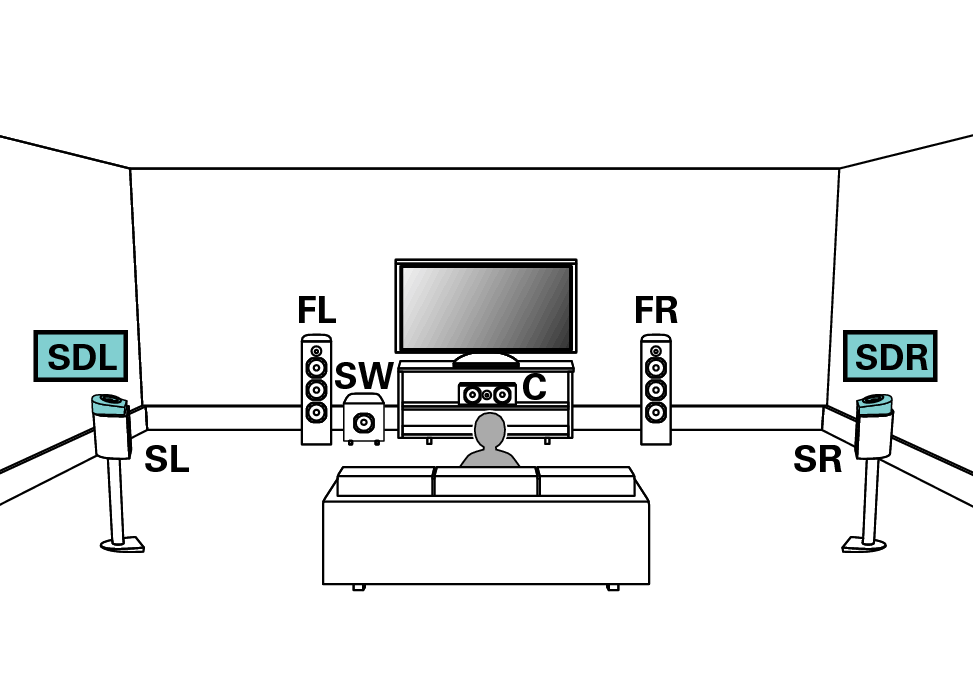

![Pict SurrDolby SP Layout X2200](fig/Pict SurrDolby SP Layout X22~_ZHOBILnzgiwqvo.png)
Set “Assign Mode” to “Surround Dolby” in the menu. link
![Conne SP 7.1 SD S73](fig/Conne SP 7.1 SD S73_DRDZILqjbfbhqt.png)
