Rear panel

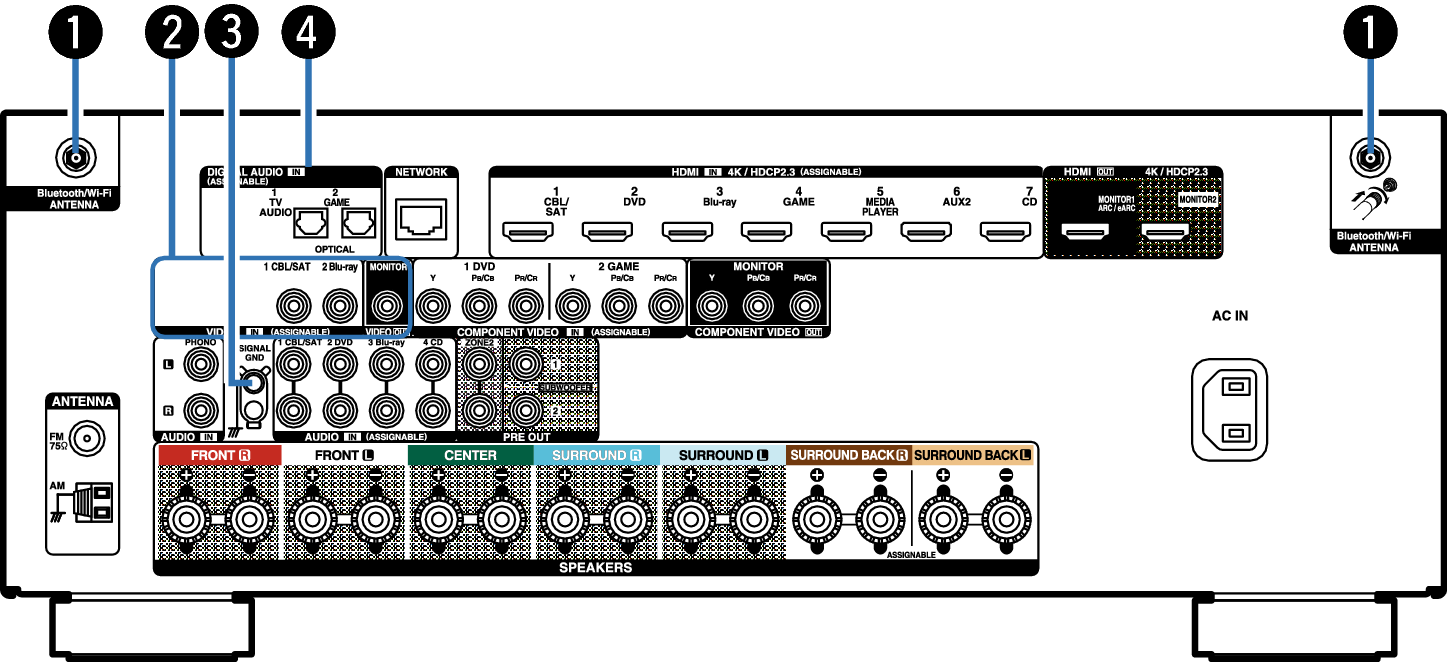

Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

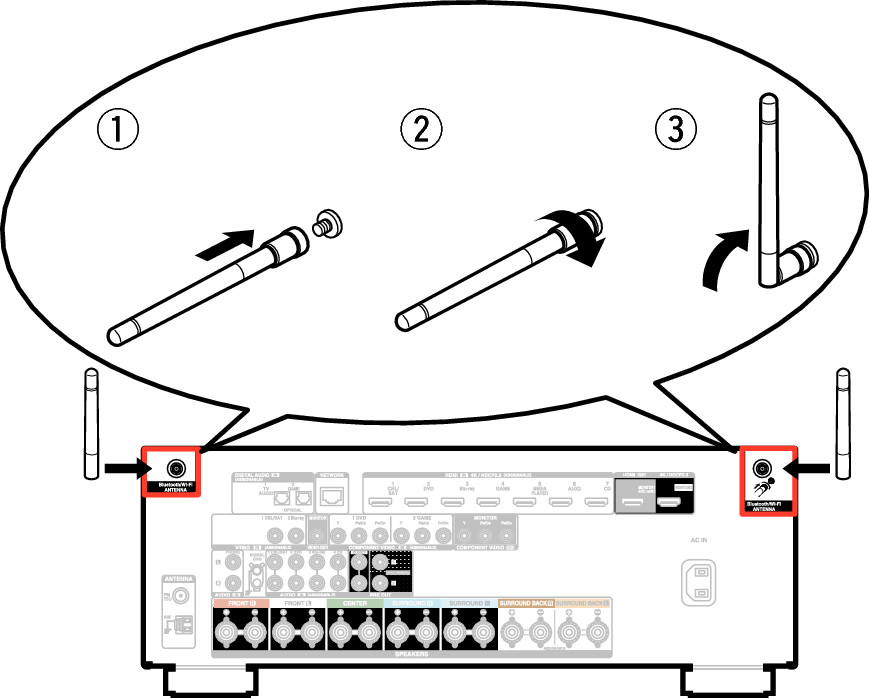

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
SIGNAL GND terminal
Used to connect a ground wire for the turntable. link
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.

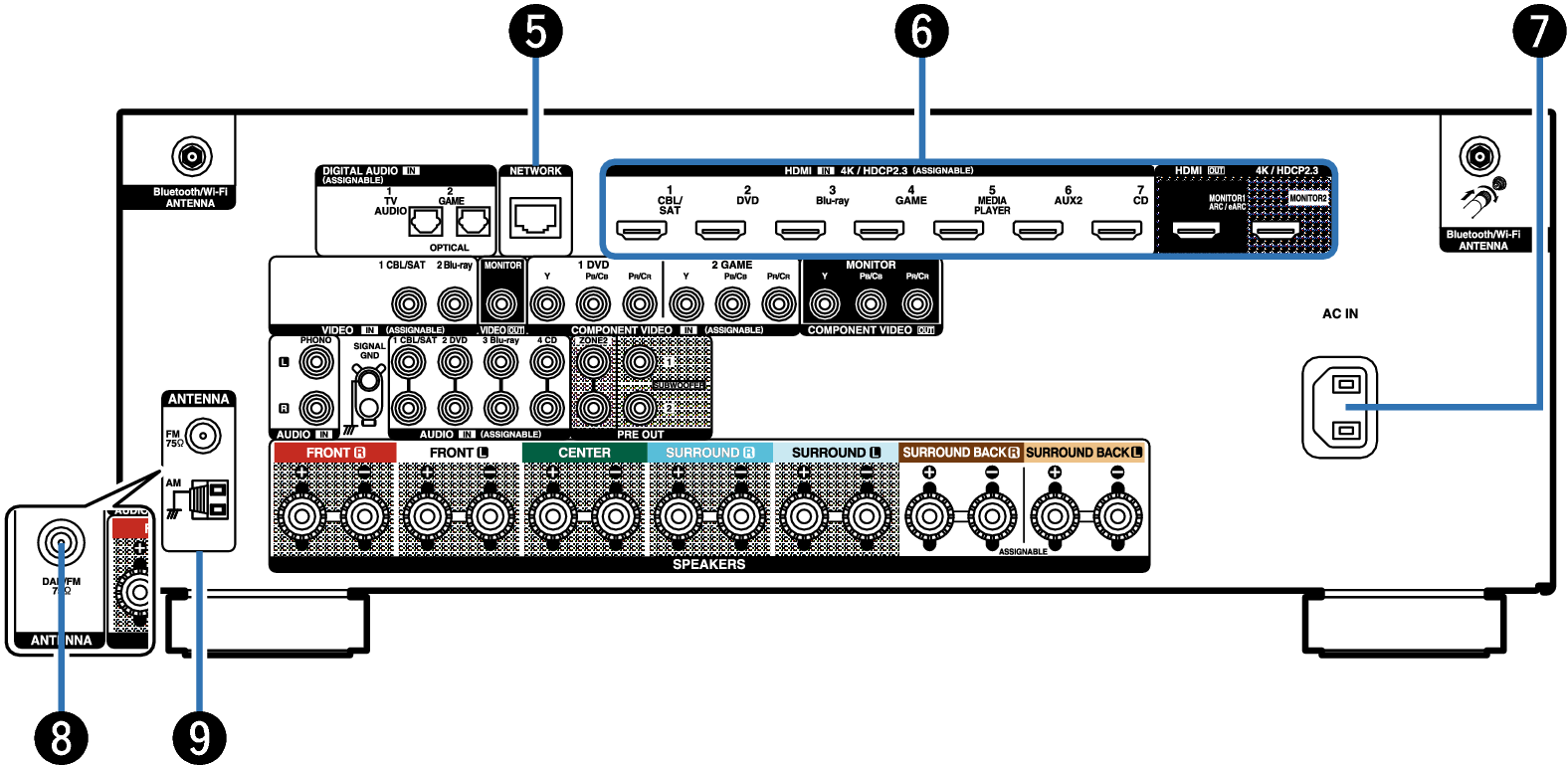

NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN network. link
HDMI connectors
Used to connect devices equipped with HDMI connectors.
AC inlet (AC IN)
Used to connect the power cord. link
DAB/FM antenna terminal (ANTENNA) (for FM/DAB model only)
Used to connect a DAB/FM antenna. link
FM/AM antenna terminals (ANTENNA) (for FM/AM model only)
Used to connect FM antennas and AM loop antennas. link

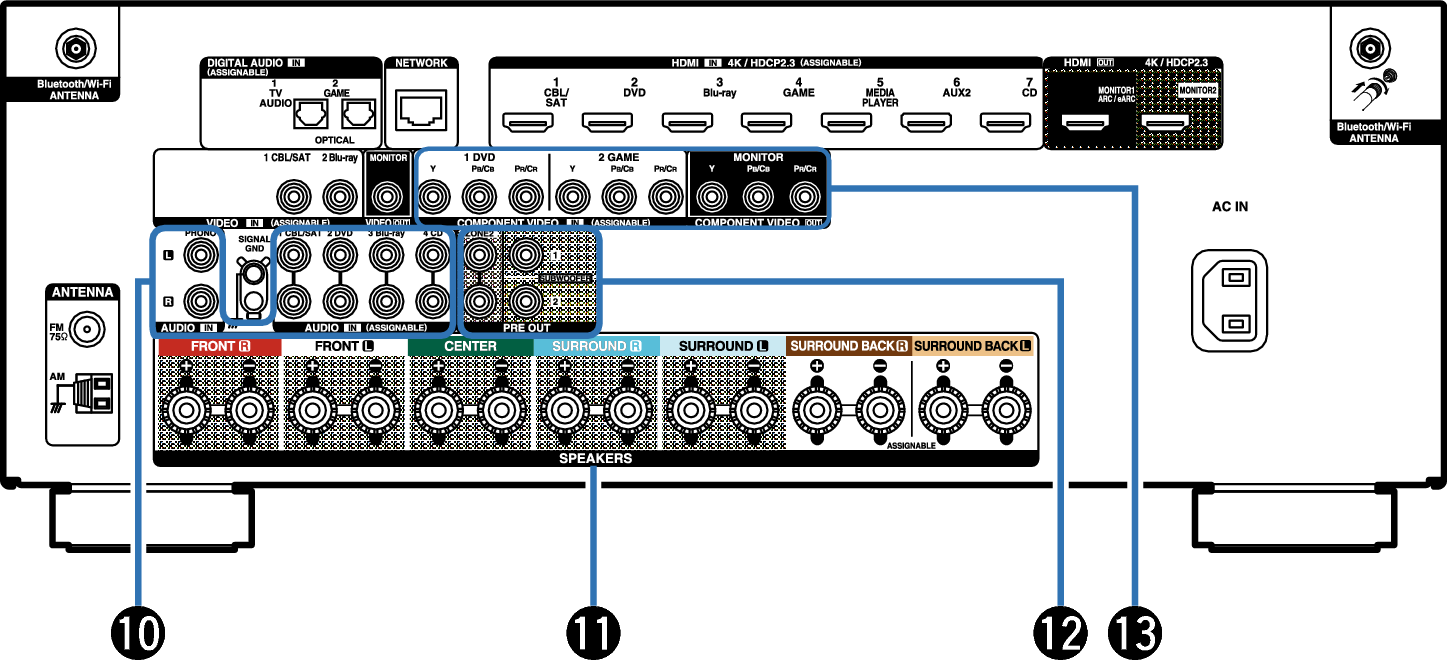

Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
Speaker terminals (SPEAKERS)
Used to connect speakers. link
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or a power amplifier for ZONE2.
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
NOTE
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
