Before using the remote control unit
The remote control unit has a built-in lithium battery.

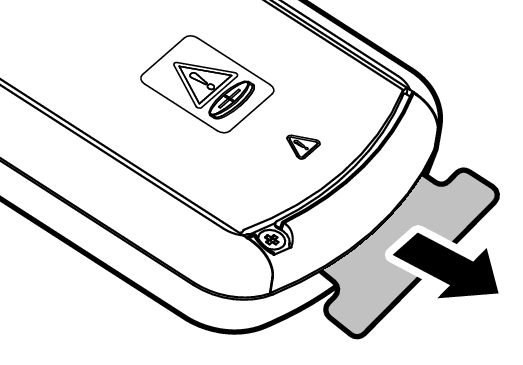

Pull out the insulation sheet before use.
![Input Battery 0 DHTS517](fig/Input Battery 0 DHTS517_FIQOILnyydetzs.png)
There are two types of remote control battery case mounting structures.
Replacing the battery (Screw fixing type)

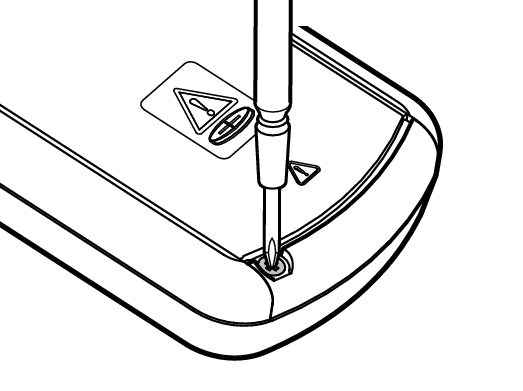

![Input Battery 1 DHTS517](fig/Input Battery 1 DHTS517_FIQOILjeyutmbu.png)

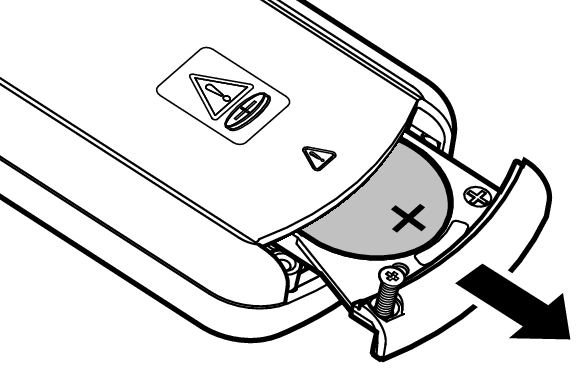

![Input Battery 2 DHTS517](fig/Input Battery 2 DHTS517_FIQOILqjubhata.png)
![Input Battery 3 DHTS517](fig/Input Battery 3 DHTS517_FIQOILgaeadgqc.png)
If the battery should have a leakage, immediately replace and dispose of the battery. In this case, there is a risk of burn when the liquid comes in contact with skins or clothes, so a great care should be taken. If the liquid accidentally comes in contact, wash with tap water and consult a doctor.
Remove the battery from the remote control unit if it will not be in use for long periods.
Replacing the battery (Snap-fit type)

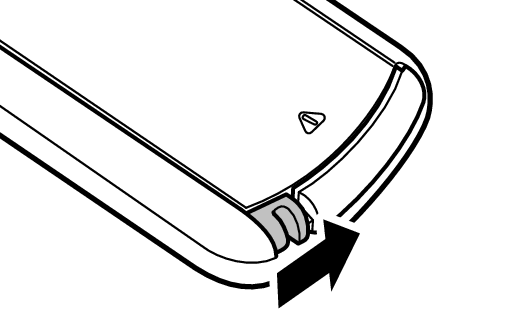

![Input Battery 1 SB550](fig/Input Battery 1 SB550_OBAOILdvqvlamh.png)

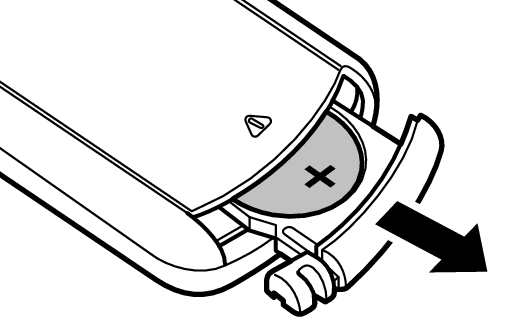

![Input Battery 2 SB550](fig/Input Battery 2 SB550_OBAOILhnvbztei.png)
![Input Battery 3 SB550](fig/Input Battery 3 SB550_OBAOILpfoweqvc.png)
If the battery should have a leakage, immediately replace and dispose of the battery. In this case, there is a risk of burn when the liquid comes in contact with skins or clothes, so a great care should be taken. If the liquid accidentally comes in contact, wash with tap water and consult a doctor.
Remove the battery from the remote control unit if it will not be in use for long periods.
