Sound bar

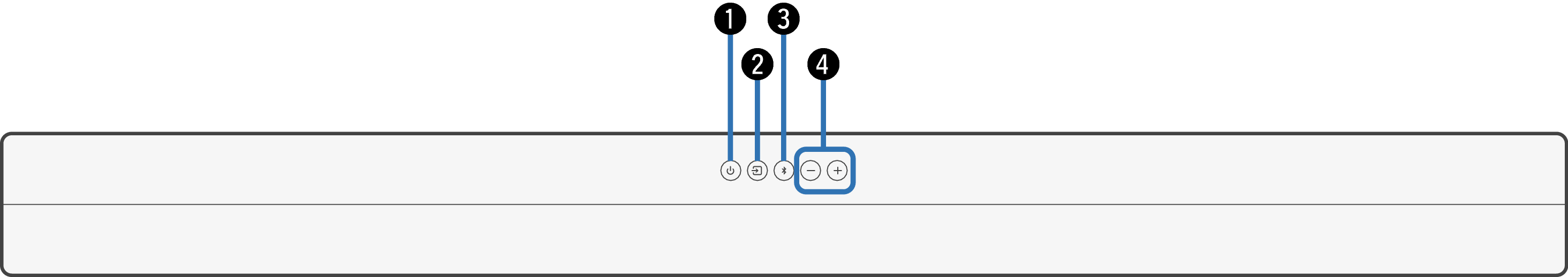

Top panel
![Name Bar Top S517](fig/Name Bar Top S517_DRDZILmdswcuin.png)
Power operation button (
)
Turns the sound bar power on/off (standby). link
Links to sound bar power and turns the subwoofer power on/off (standby).
Input source button (
)
This selects the input source. link
Switches the input source each time the button is pressed.
Bluetooth button (
)
Switches the input source to “Bluetooth”. link
Used to pair with Bluetooth devices. link
Volume buttons (+, –)
These adjust the volume level. link

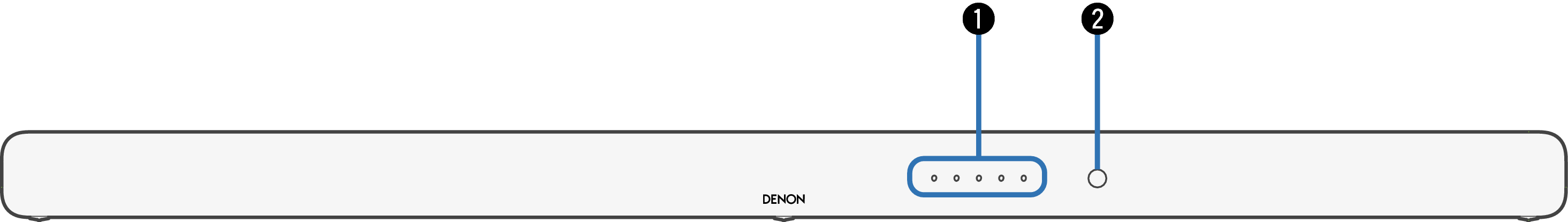

Front panel
![Name Bar Front S517](fig/Name Bar Front S517_DRDZILhssillno.png)
Status LED
The status, such as for the power, input source, audio format, or sound mode is displayed. link
Remote control sensor
This receives signals from the remote control unit. link

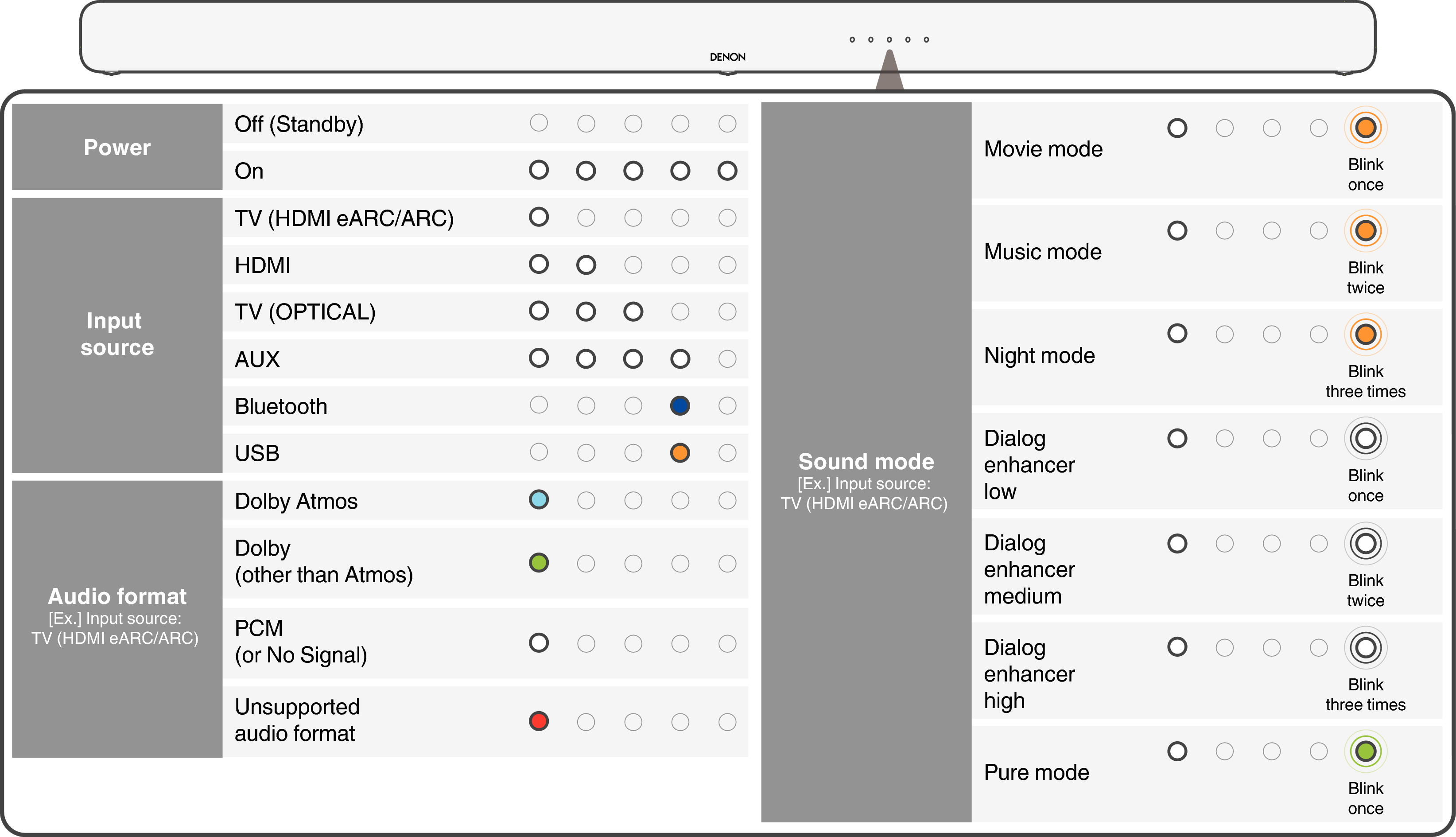

Status LED
![Name Status LED S517E3](fig/Name Status LED S517E3_OBAOILmunetmfn.png)

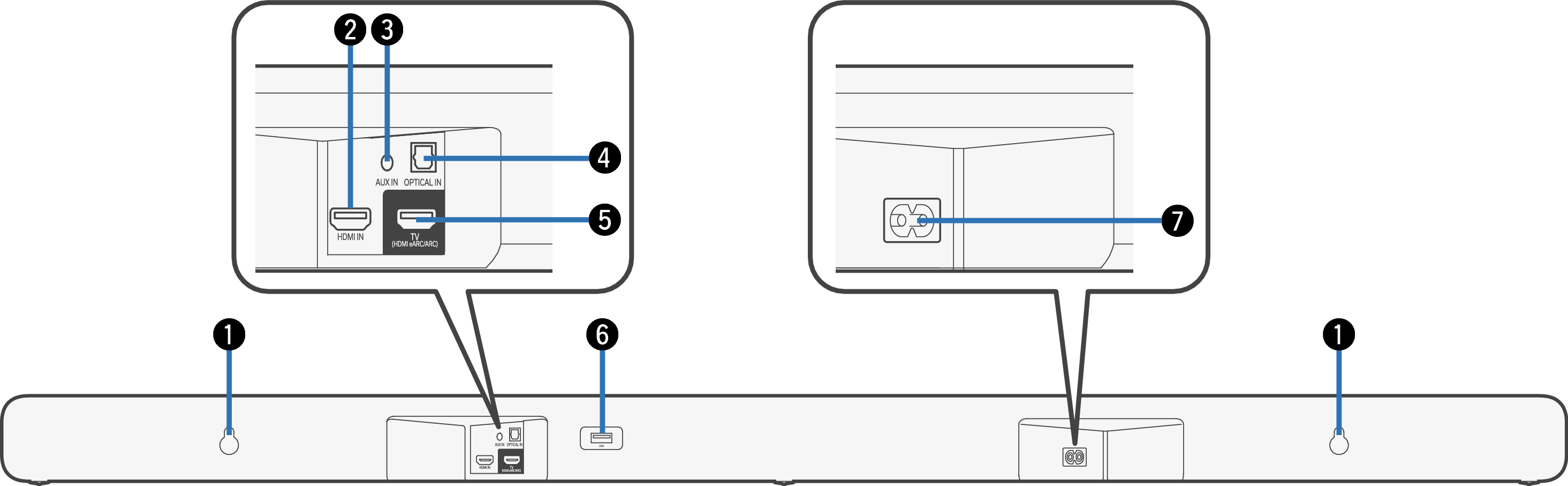

Rear panel
![Name Bar Rear S517E3](fig/Name Bar Rear S517E3_OBAOILqvleieqr.png)
Wall hook hole
Used to mount the sound bar on a wall. link
HDMI IN connector
Used to connect to the HDMI equipment with an HDMI cable. link
Analog audio input connector (AUX IN)
Use a commercially available 3.5 mm stereo audio cable to connect a TV with an AUX audio output connector. link
Optical digital input connector (OPTICAL IN)
Use the included optical digital cable to connect a TV with an optical digital terminal. link
HDMI connector (TV (HDMI eARC/ARC))
Use the included HDMI cable to connect an eARC or ARC function-compatible TV. link
USB port
USB playback is available.link
AC inlet
Used to connect the power cord. link
