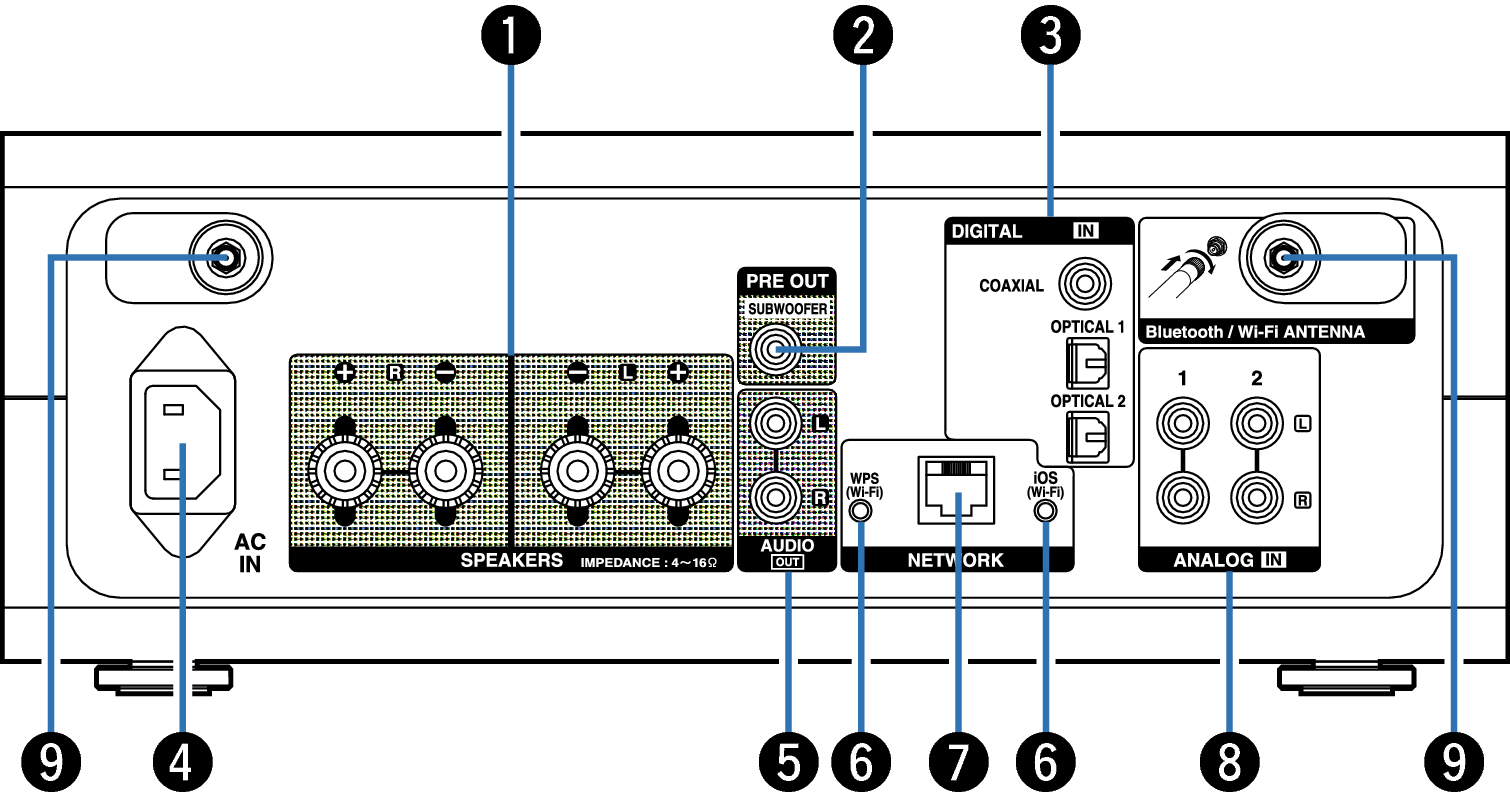

Rear panel
Speaker terminals (SPEAKERS)
Used to connect speakers. link
SUBWOOFER OUT connector
Used to connect a subwoofer with a built-in amplifier. link
DIGITAL IN connectors
Used to connect devices equipped with digital audio connectors.
AC inlet (AC IN)
Used to connect the supplied power cord. link
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors or an external pre-main amplifier. link
Wi-Fi connect buttons (iOS/WPS)
Used to connect to the wireless LAN.
(See the separate “Quick Setup Guide”.)
NETWORK connector
Used to connect this unit to the network. link
ANALOG IN connectors
Used to connect devices equipped with analog audio connectors. link
Bluetooth/wireless LAN antenna connectors
Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

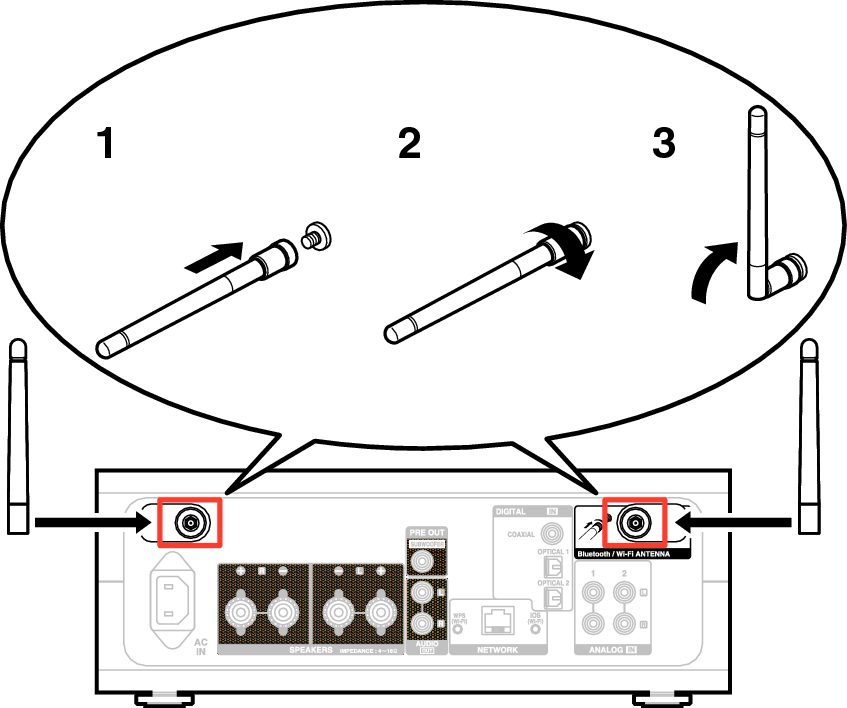

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
