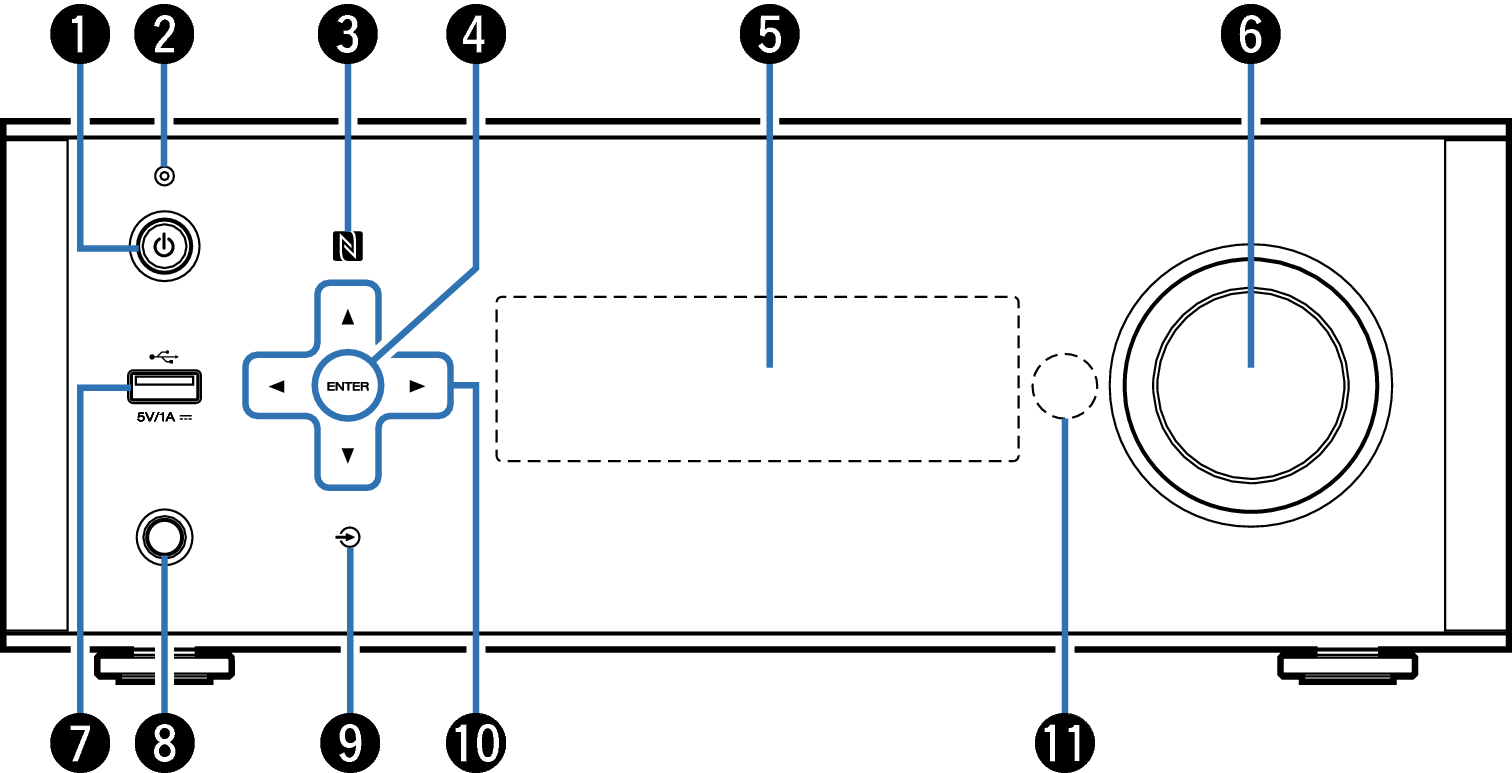

Front panel
Power operation button (
)
Turns power to this unit on and off (standby).
Power indicator
The power indicator changes as shown below according to the status of the unit.
Power on : Off
Normal standby : Off
When “Network Control” is set to “On” : Red link
iPod charge standby : Red link
N mark (
)
Touch this mark with a Bluetooth device that includes the NFC function when pairing (registering) with it.link
Playback/Pause/Enter button (ENTER)
Plays back and pauses tracks, and enters the selected content.
Display
Various information is displayed here.
Volume control knob
This adjusts the volume level.
USB port (
)
Used to connect iPod or USB memory devices. link
Headphones jack
Used to connect headphones.
When the headphones are plugged into this jack, audio will no longer be output from the speaker terminals, SUBWOOFER OUT connector and AUDIO OUT connectors.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
Input source select button (
)
Selects the input source.
Cursor buttons (
)
These select items.
Remote control sensor
This receives signals from the remote control unit. link
