Remote control unit

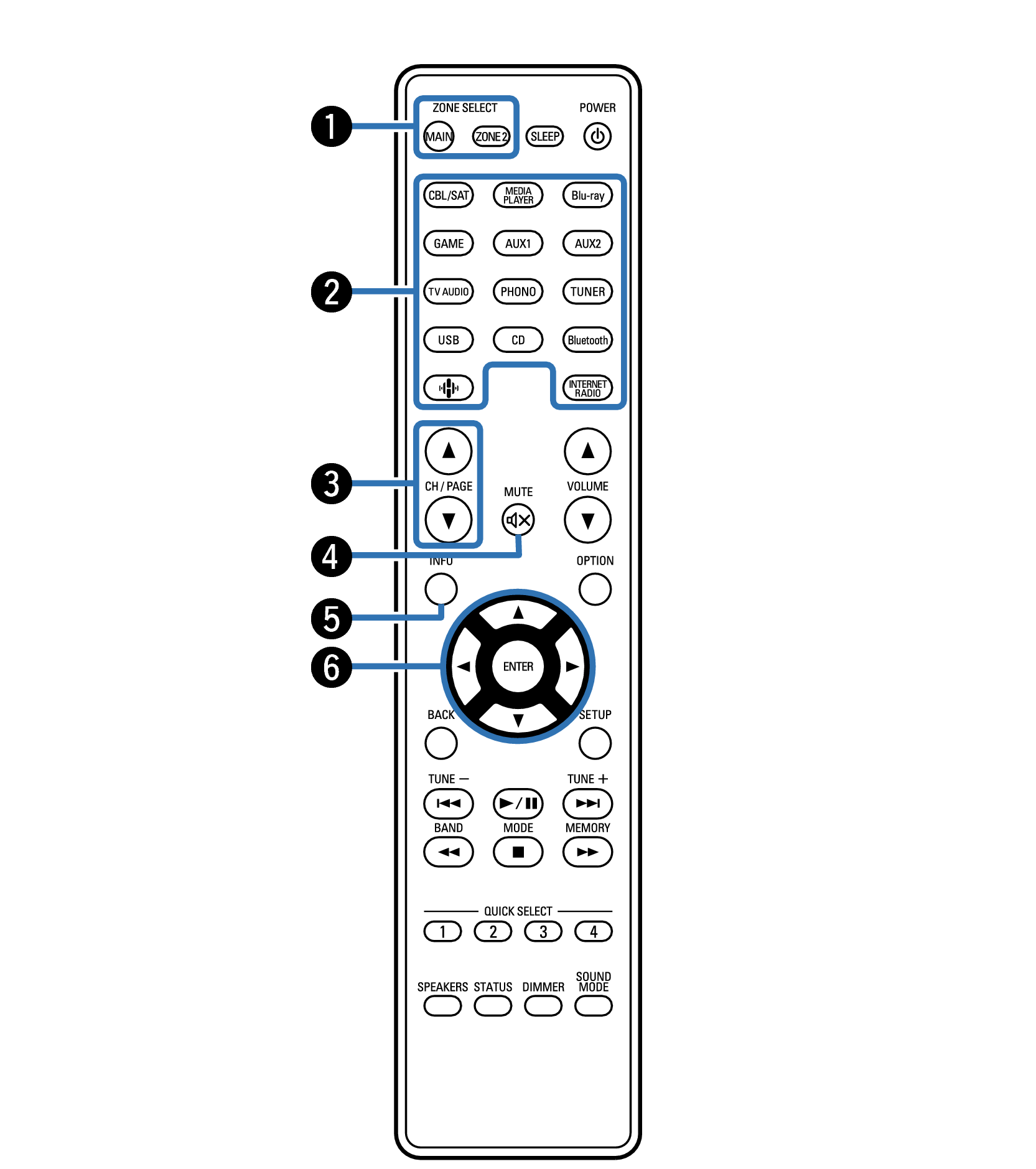

Name RC1259

ZONE SELECT buttons

These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit.

Playing different sources in MAIN ZONE and ZONE2link

Menu operationslink

Input source select buttons

These selects the input source.

Selecting the input sourcelink

Playing different sources in MAIN ZONE and ZONE2link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link

MUTE button ( Silent )

This mutes the output audio.

Turning off the sound temporarily (Muting)link

Turning off the sound temporarily (Muting)link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons

These select items.

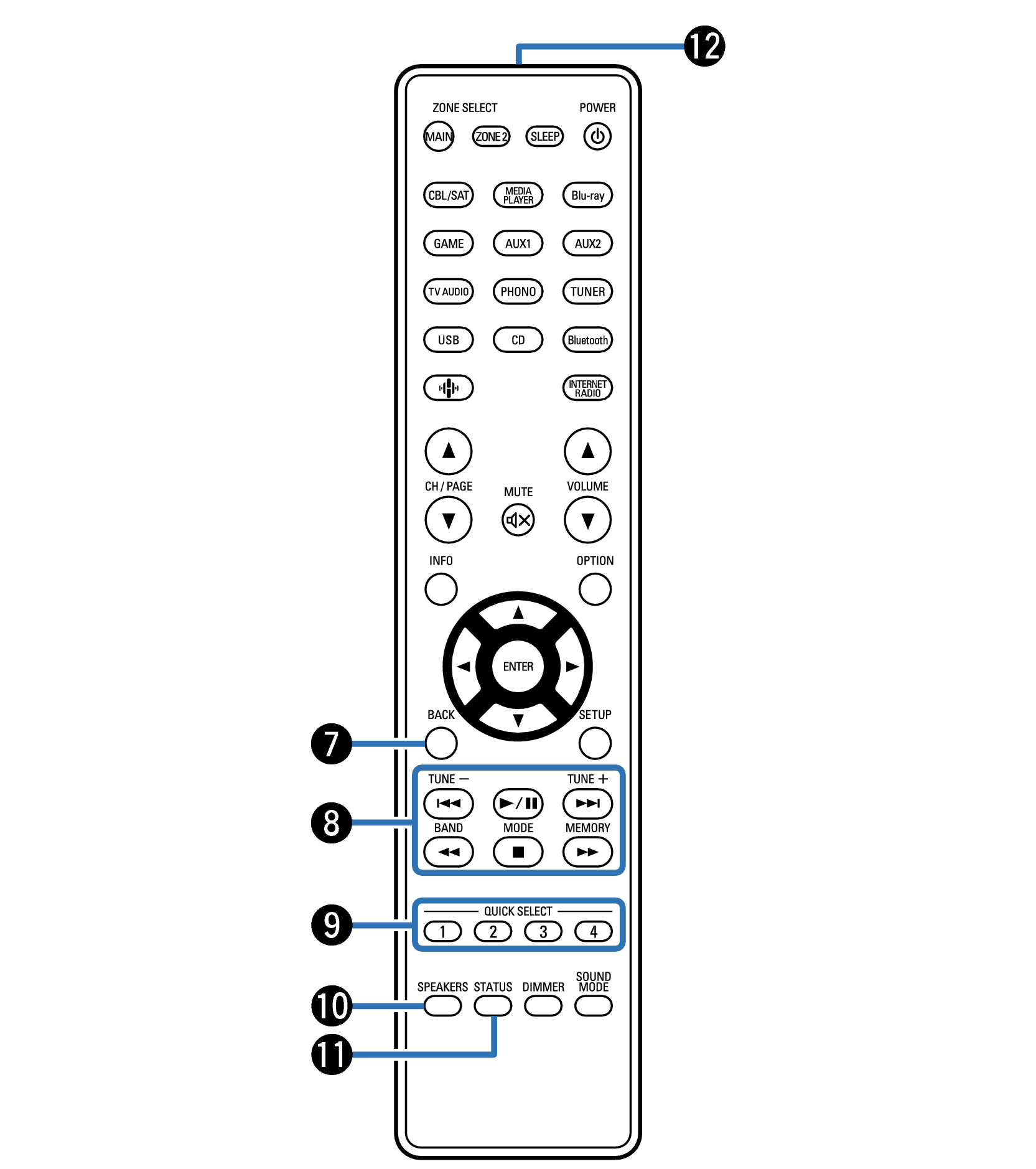

Name RC1259a

BACK button

This returns to the previous screen.

System buttons

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These operate the tuner. link

Reception band select button (BAND)

This switches the reception band. link, link)

Tune mode select button (MODE)

This switches the tuning mode. link, link)

Preset memory button (MEMORY)

The current broadcast station that is preset. link, link)

Operating CD player. link

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

Speaker switching button (SPEAKERS)

This selects the speaker for audio output.

STATUS button

Each press of this switches the status information that is shown on the display.

Remote control signal transmitter

This transmits signals from the remote control unit. link

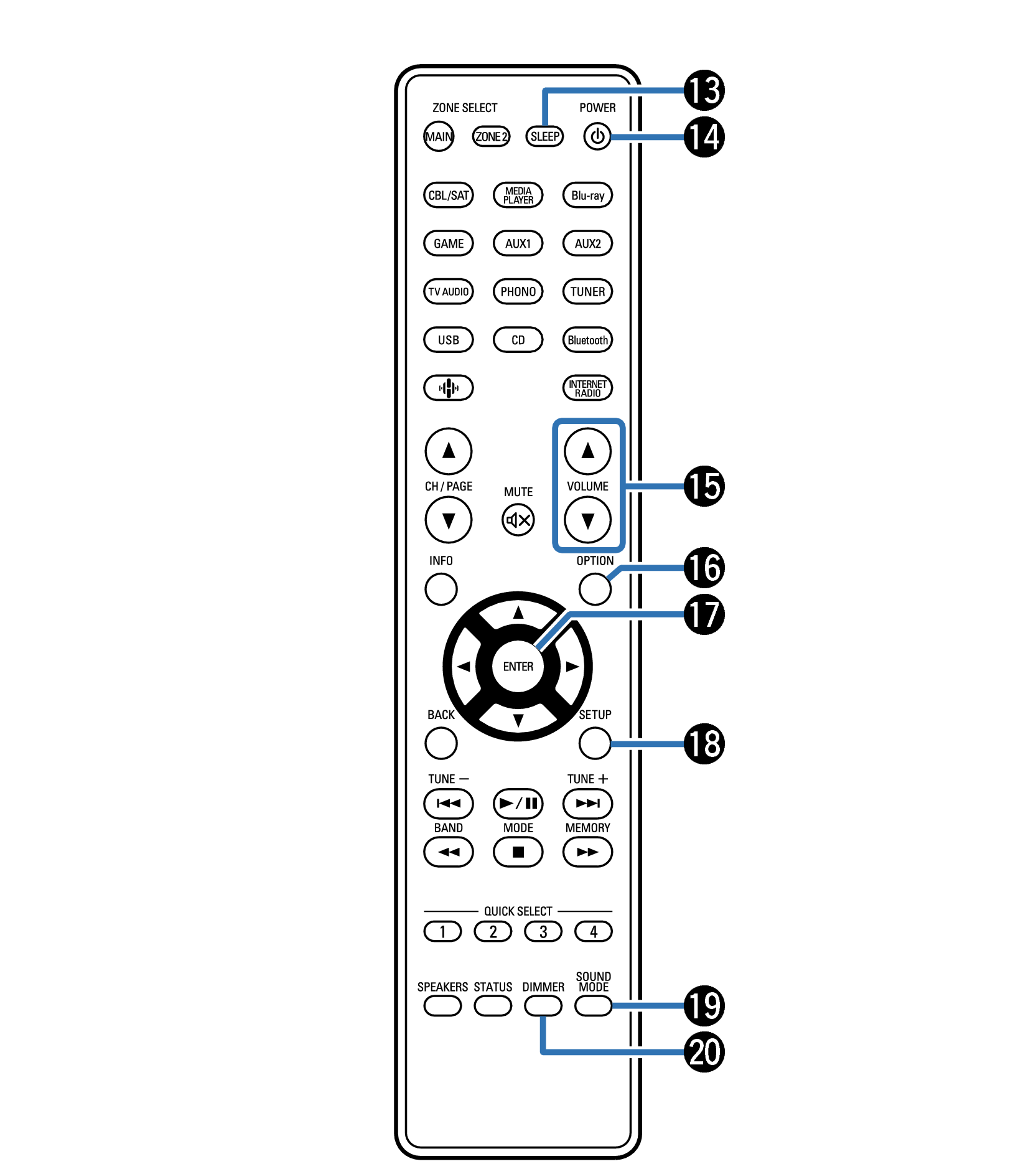

Name RC1259b

SLEEP button

This sets the sleep timer. link

POWER button ( Power Button )

This turns the power on/off.

Turning the power onlink

Playing different sources in MAIN ZONE and ZONE2link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjusts the volume level.

Adjusting the volumelink

Adjusting the Volume in ZONE2link

OPTION button

This displays the option menu on the TV screen.

ENTER button

This determines the selection.

SETUP button

This displays the menu on the TV screen. link

SOUND MODE button

These select the sound mode. link

DIMMER button

Each press of this switches the brightness of the display. link
