Rear panel

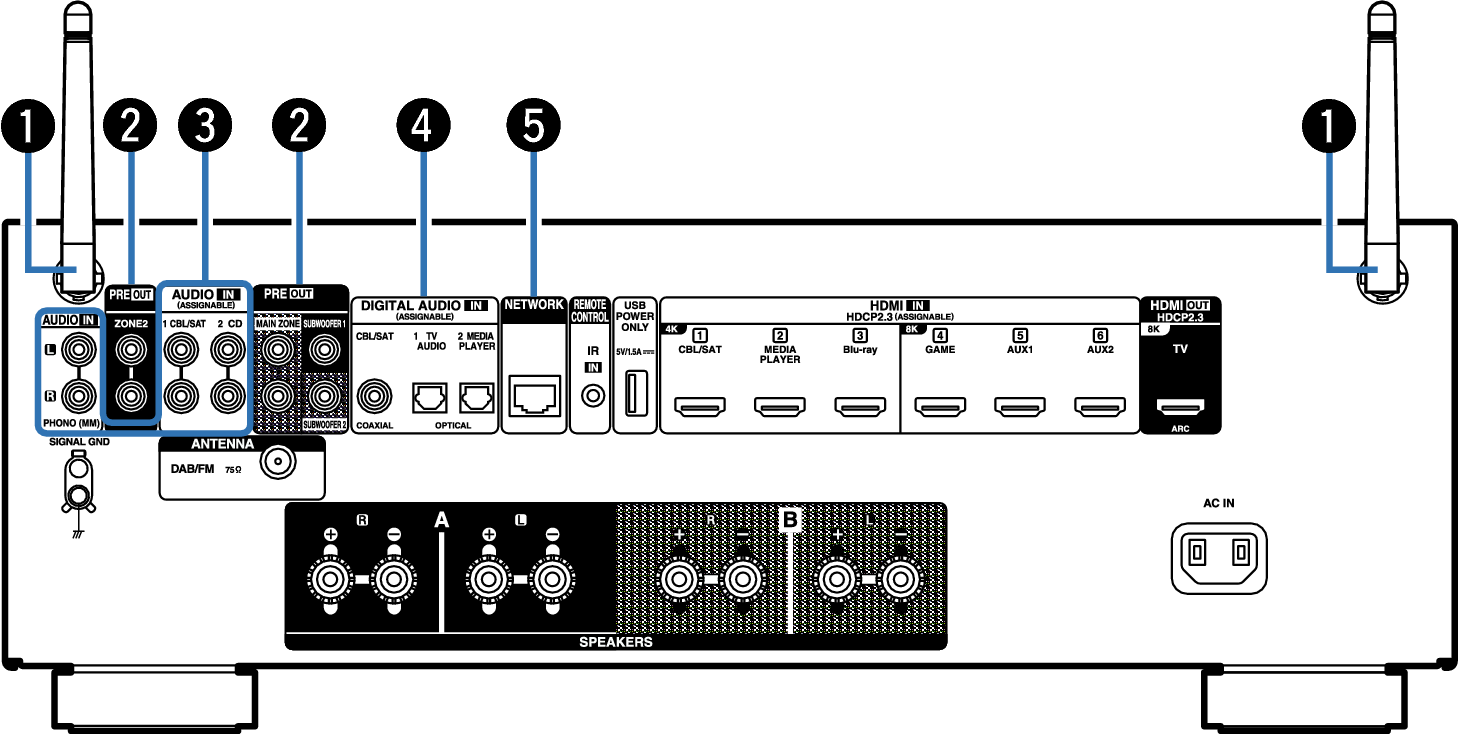

Rod antennas for Bluetooth/wireless LAN

Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

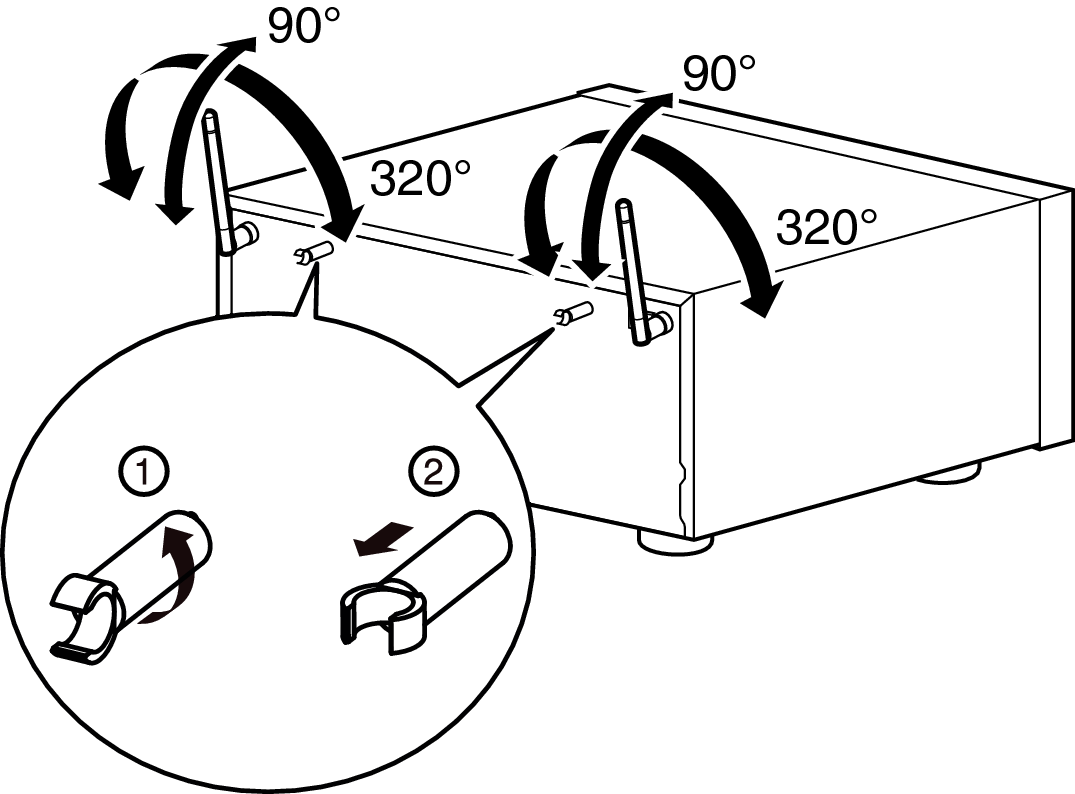

The antenna clip can be removed from the rear panel.

Rotate the antenna clip 90 degrees to the left.

Pull the antenna clip out towards yourself.

The antenna clip is needed when transporting this unit. Keep it in a safe place.

Attach the antenna clip by following the steps for removing it in reverse.

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or power amplifier.

Connecting the subwooferlink

Connecting speakers that uses a power amplifierlink

Connecting ZONE2link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a turntablelink

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)link

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

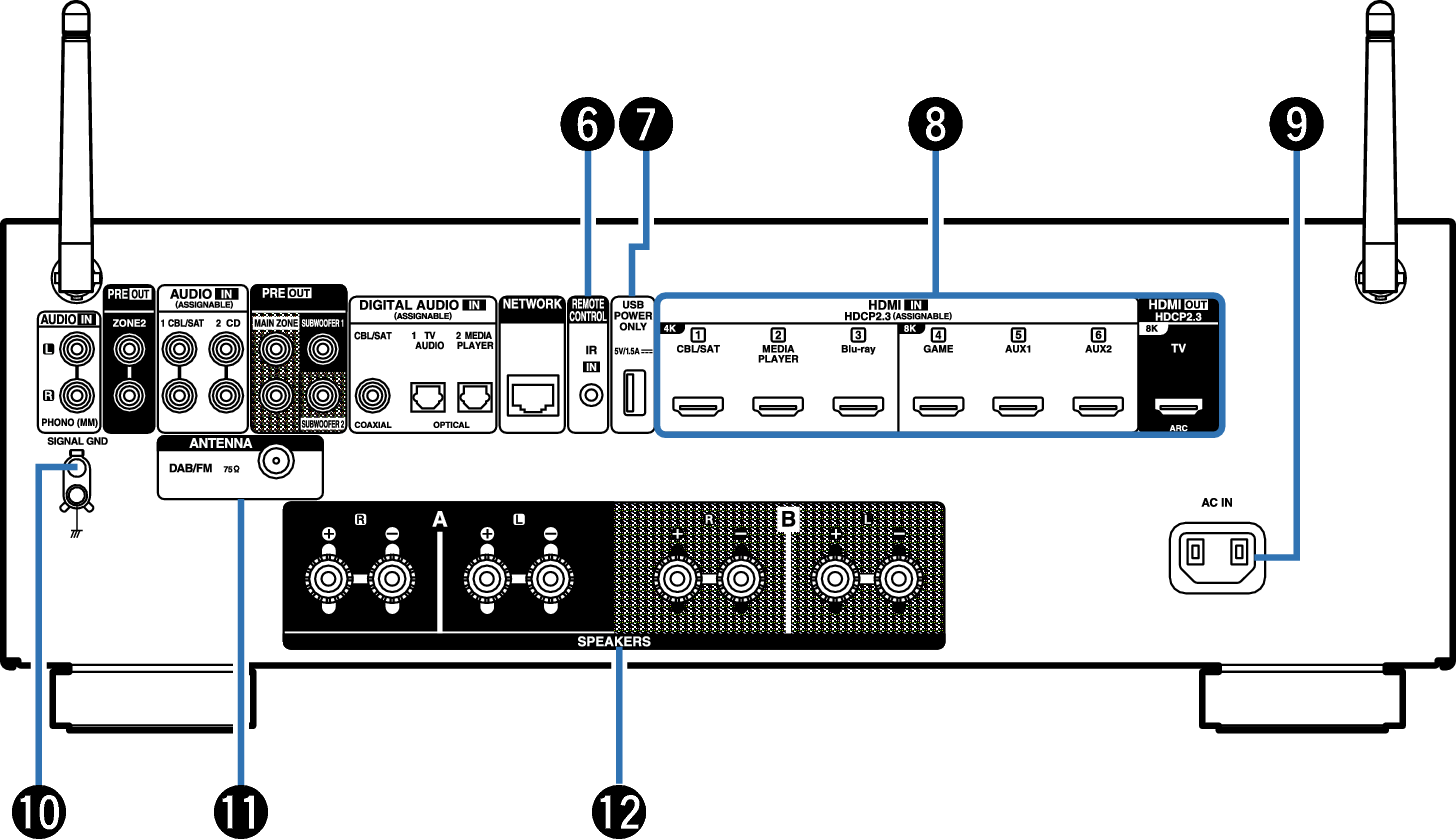

REMOTE CONTROL jack

Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. link

USB port (POWER SUPPLY)

Can be used to power streaming media players, etc.

Use a device’s supplied AC adapter when a power supply of 5 V/1.5 A or more is required.

Connect to the USB port on the front panel to play content from a USB memory device.

HDMI connectors

Used to connect devices equipped with HDMI connectors.

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel)link

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel)link

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

Connecting a Blu-ray Disc player or DVD playerlink

Connecting a game console or player device compatible with 8Klink

AC inlet (AC IN)

Used to connect the power cord. link

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

DAB/FM antenna terminal (ANTENNA)

Used to connect a DAB/FM antenna. link

Speaker terminals (SPEAKERS)

Used to connect speakers.

Connecting 2.1-channel speakerslink

Second pair of speakerlink

Bi-wiring connectionlink

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
