Speaker configuration and “Amp Assign” settings
This unit has a built-in 15-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Speaker Layout” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. link

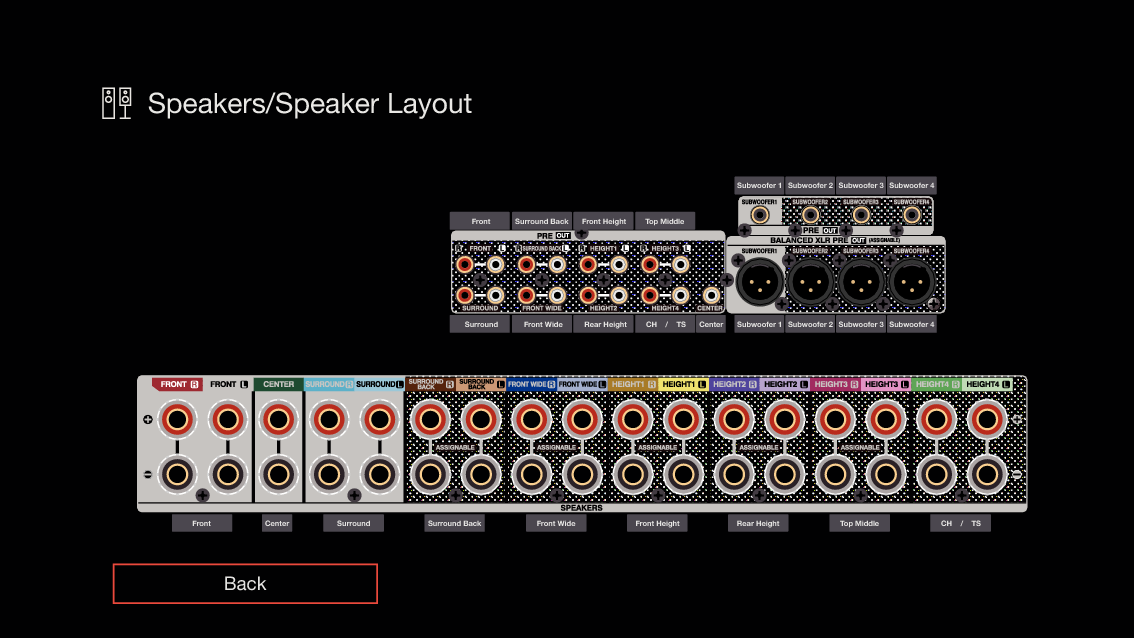

Perform “Speaker Layout” settings to suit the number of rooms and speaker configuration to be installed. link
Playback speaker in each zone |
“Amp Assign” settings |
Connection page |
||
---|---|---|---|---|
MAIN ZONE |
ZONE2 |
ZONE3 |
||
5.1-channel playback |
2-channel (Pre-out) |
2-channel (Pre-out) |
Can be set in all “Amp Assign” settings. |
|
7.1-channel playback |
||||
9.1-channel playback |
13.1ch + ZONE2 |
|||
11.1-channel playback |
13.1ch + ZONE2 |
|||
13.1-channel playback (Dolby Atmos and Auro-3D) |
15.1ch (Default) |
|||
15.1-channel playback for Dolby Atmos |
15.1ch (Default) |
|||
15.1-channel for Dolby Atmos and 13.1ch for Auro-3D |
15.1ch (Default) |
|||
13.1-channel playback (bi-amp connection of front speakers) |
13.1ch (Bi-Amp) |
|||
7.1-channel playback (bi-amp connection of all channels) |
7.1ch Full Bi-Amp |
|||
Second front speakers |
13.1ch + Front B |
|||
13.1-channel playback |
2-channel |
2-channel (Pre-out) |
13.1ch + ZONE2 |
|
13.1-channel playback |
2-channel (Pre-out) |
2-channel |
13.1ch + ZONE3 |
|
11.1-channel playback (bi-amp connection of front speakers) |
2-channel |
2-channel (Pre-out) |
11.1ch (Bi-Amp) + ZONE2 |
|
11.1-channel playback |
2-channel |
2-channel |
11.1ch + ZONE2/3 |
|
13.1-channel playback |
1-channel |
1-channel |
13.1ch + ZONE2/3-MONO |
|
15.1-channel playback (using this unit as a preamplifier) |
2-channel (Pre-out) |
2-channel (Pre-out) |
Preamplifier |
The sound mode that can be selected varies according to the speaker configuration.
The following pages provide basic connection examples.
Refer to the example connection for Example layout for Auro-3D 11.1 channel systemlink when playing Auro-3D with a 11.1-channel system using the basic 5.1-channel system and the front height, surround height, Top Surround and Center Height speakers.
Also refer to the connection example for Example layout for Auro-3D 13.1 channel systemlink when playing Auro-3D with a 13.1-channel system by adding the surround back, top surround and center height speakers.
