Sleep timer function

You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep.

The sleep timer can be set by pressing SLEEP on the main unit.

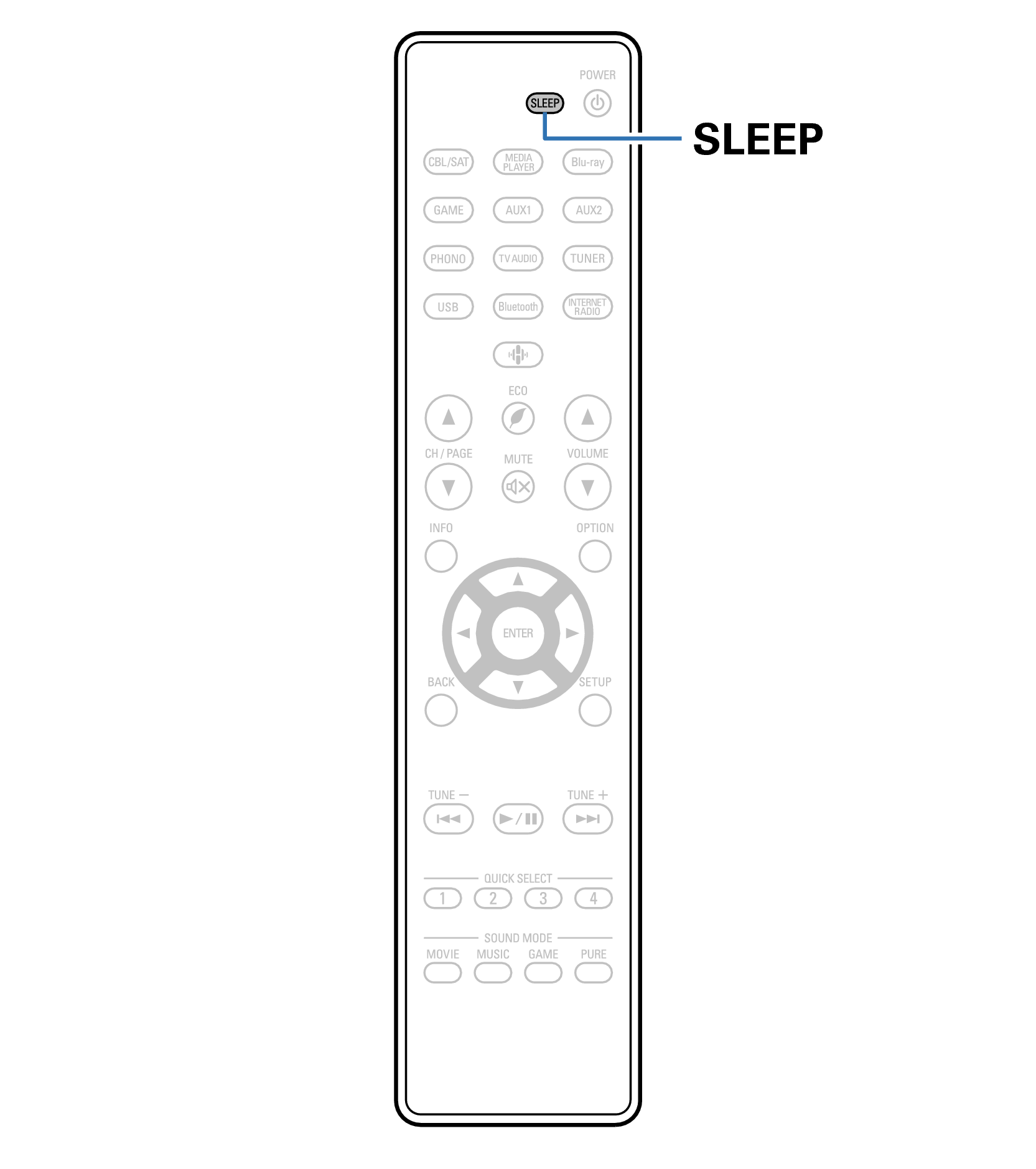

Remote control unit illustration

Ope Sleep RC1243
