Resetting factory settings

Perform this procedure if the display is abnormal or if operations cannot be performed.

Various settings are reset to the factory default values. Make settings again.

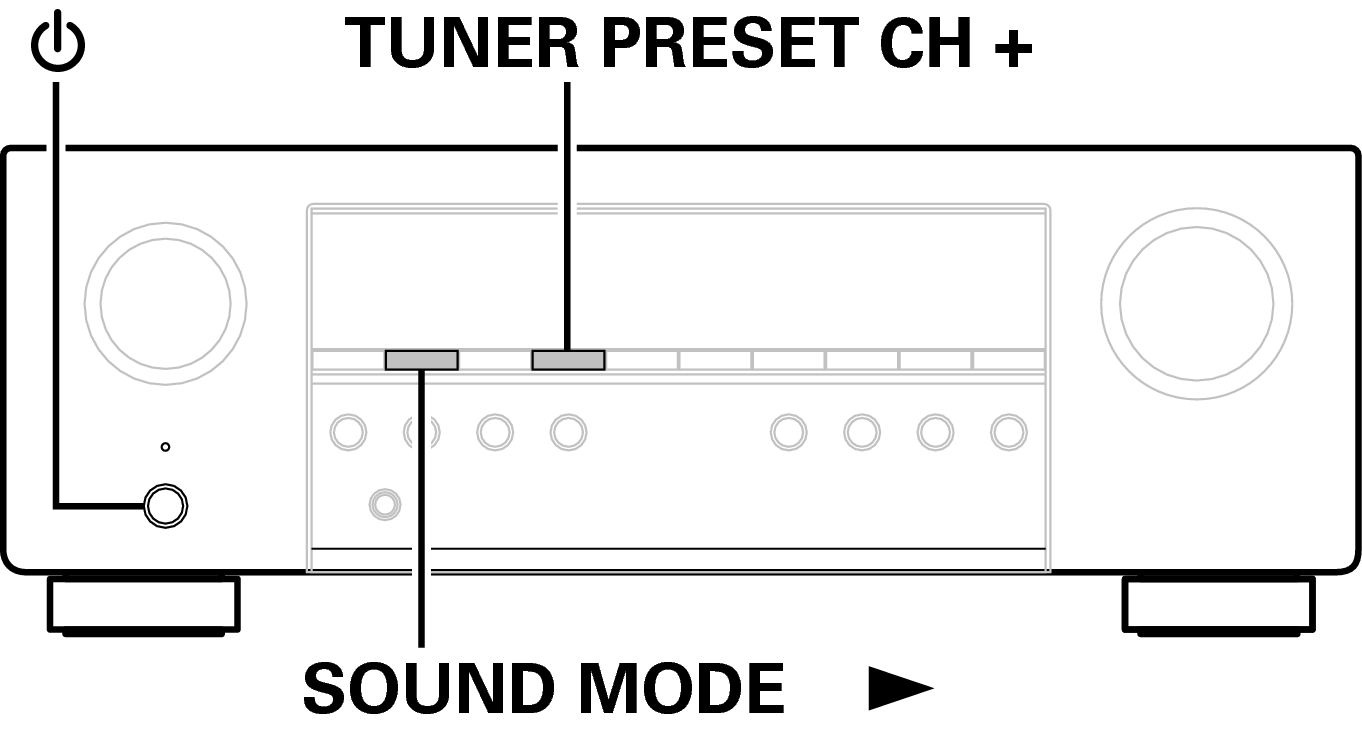

Ope Reset S270
Turn off the power using Power Button .
Press Power Button while simultaneously pressing SOUND MODE  Triangle Right and TUNER PRESET CH +.
Release the two buttons when the display starts flashing at intervals of about 1 second.

You can also reset all settings to the factory defaults using “Reset” in the menu.link
