Speaker installation

Determine the speaker system depending on the number of speakers you are using and install each speaker and subwoofer in the room.
Speaker installation is explained using this example of a typical installation.

Pict SP Position N58

FL/FR
(Front speaker left/right):

Place the FRONT left and right speakers an equal distance from the main listening position. The distance between each speaker and your TV should also be the same.

C
(Center speaker):

Place the CENTER speaker in between the front speakers and above or below your TV.

SL/SR
(Surround speaker left/right):

Place the SURROUND left and right speakers an equal distance to the left and right sides of the main listening position.

SW 1/2
(Subwoofer):

Place the SUBWOOFER at a convenient location near the front speakers. If you have two subwoofers, place them asymmetrically across the front of your room.

Use the illustration below as a guide for how high each speaker should be installed. The height does not need to be exactly the same.

Pict SP Layout N59N

When 5.1-channel speakers are installed

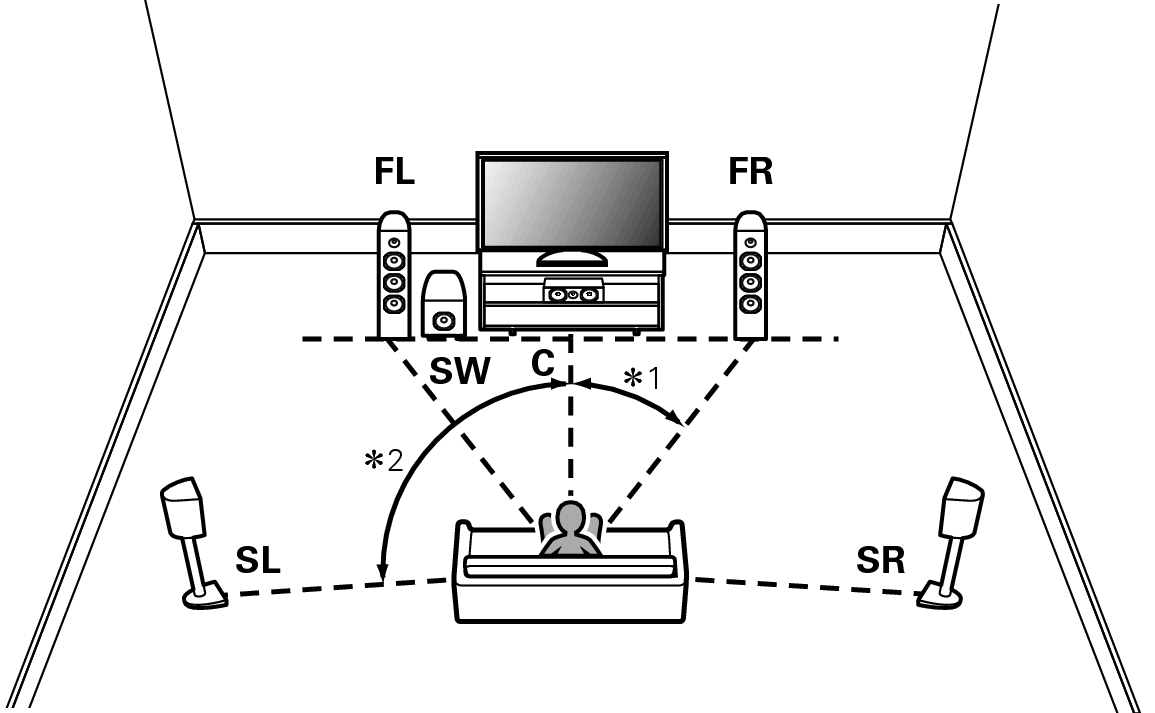

Pict SP Layout 5.1

Flower Mark 1 22° - 30°   Flower Mark 2 120°
