Types of input signals, and corresponding sound modes

Kuromaru-Large This indicates the default sound mode.

Circle-Large This indicates the selectable sound mode.

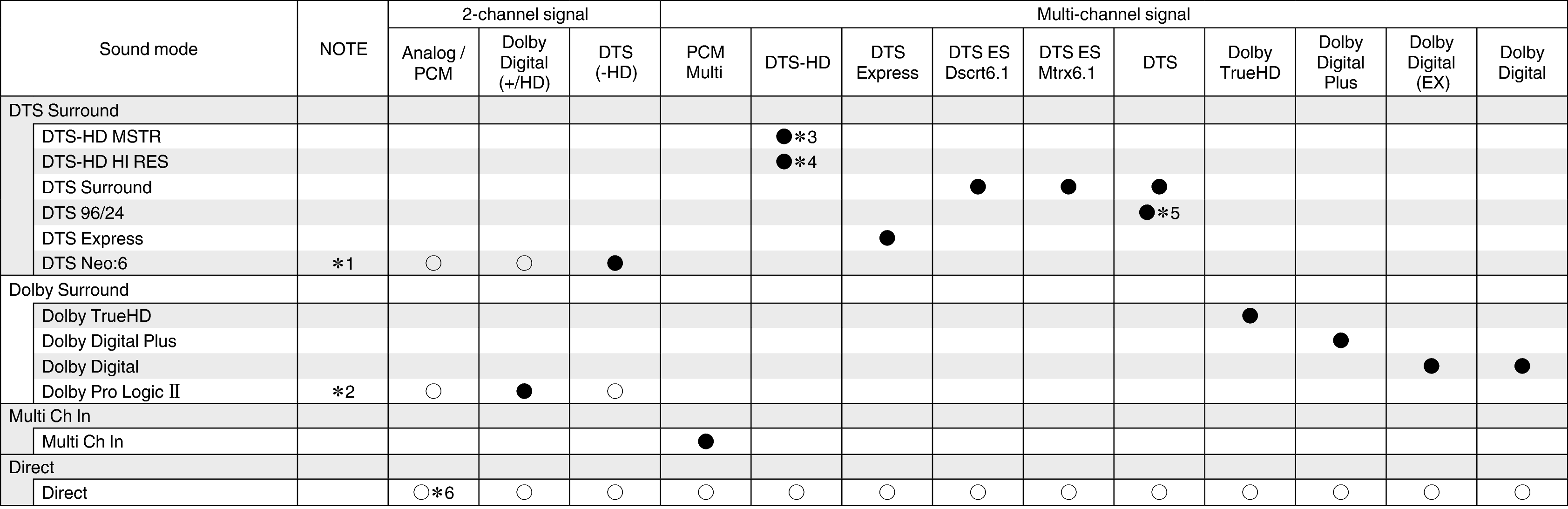

Tsignal & Csound1 S64

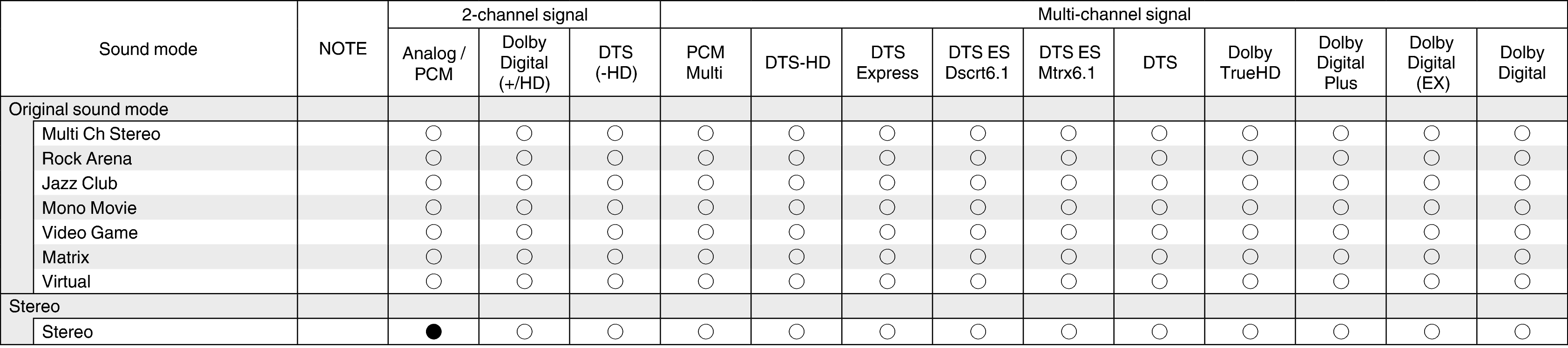

Tsignal & Csound2 S64

The “Cinema” mode or “Music” mode can be selected.

The “Movie” mode, “Music” mode or “Game” mode can be selected.

This item can be selected when the input signal is DTS-HD Master Audio.

This item can be selected when the input signal is DTS-HD Hi Resolution.

This item can be selected when the input signal is DTS 96/24.

The default sound mode for the AirPlay playback is “Direct”.
