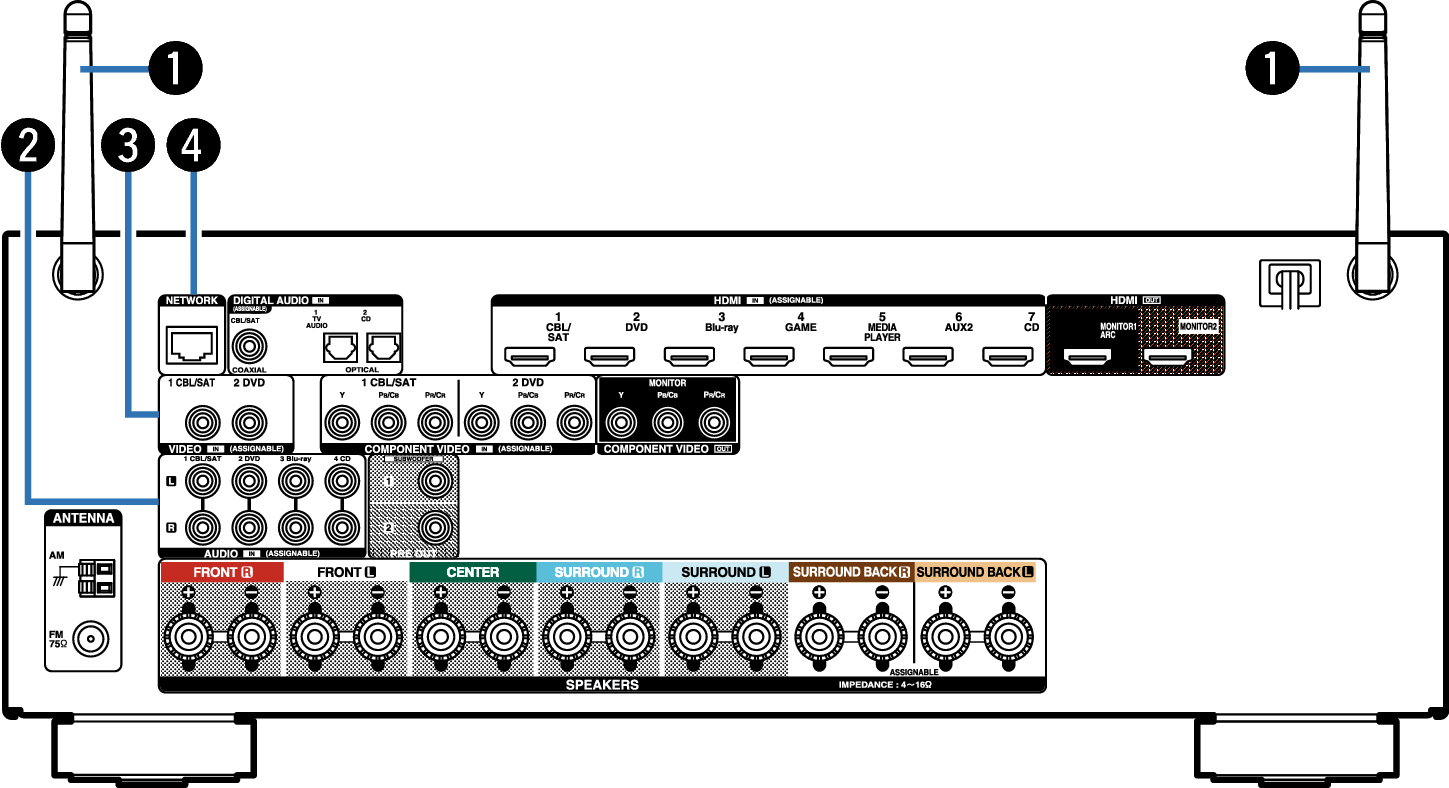

Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

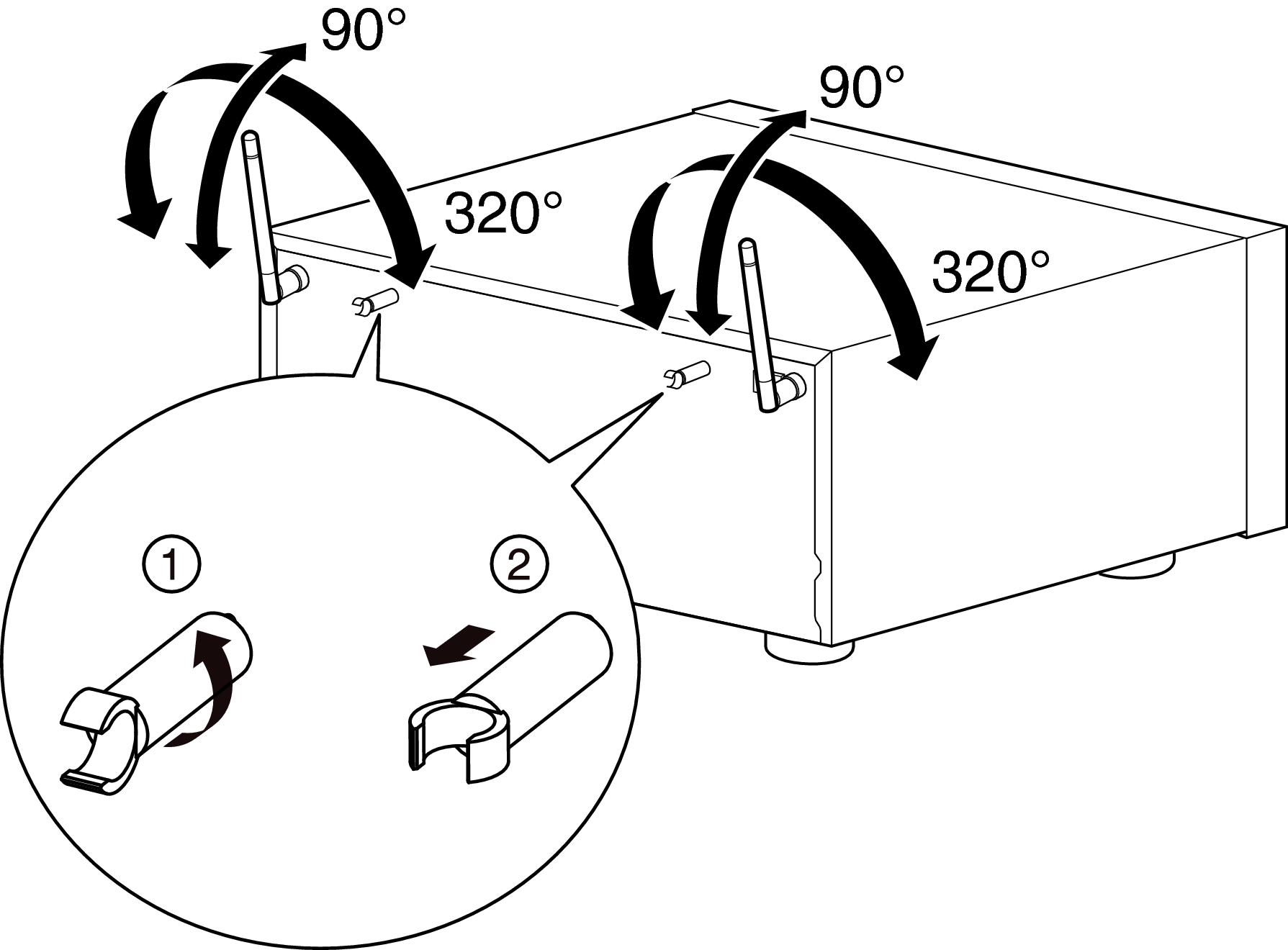

The antenna clip can be removed from the rear panel.
The antenna clip is needed when transporting this unit. Keep it in a safe place.
Attach the antenna clip by following the steps for removing it in reverse.
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
Used to connect to a LAN cable when connecting to a wired LAN network. link

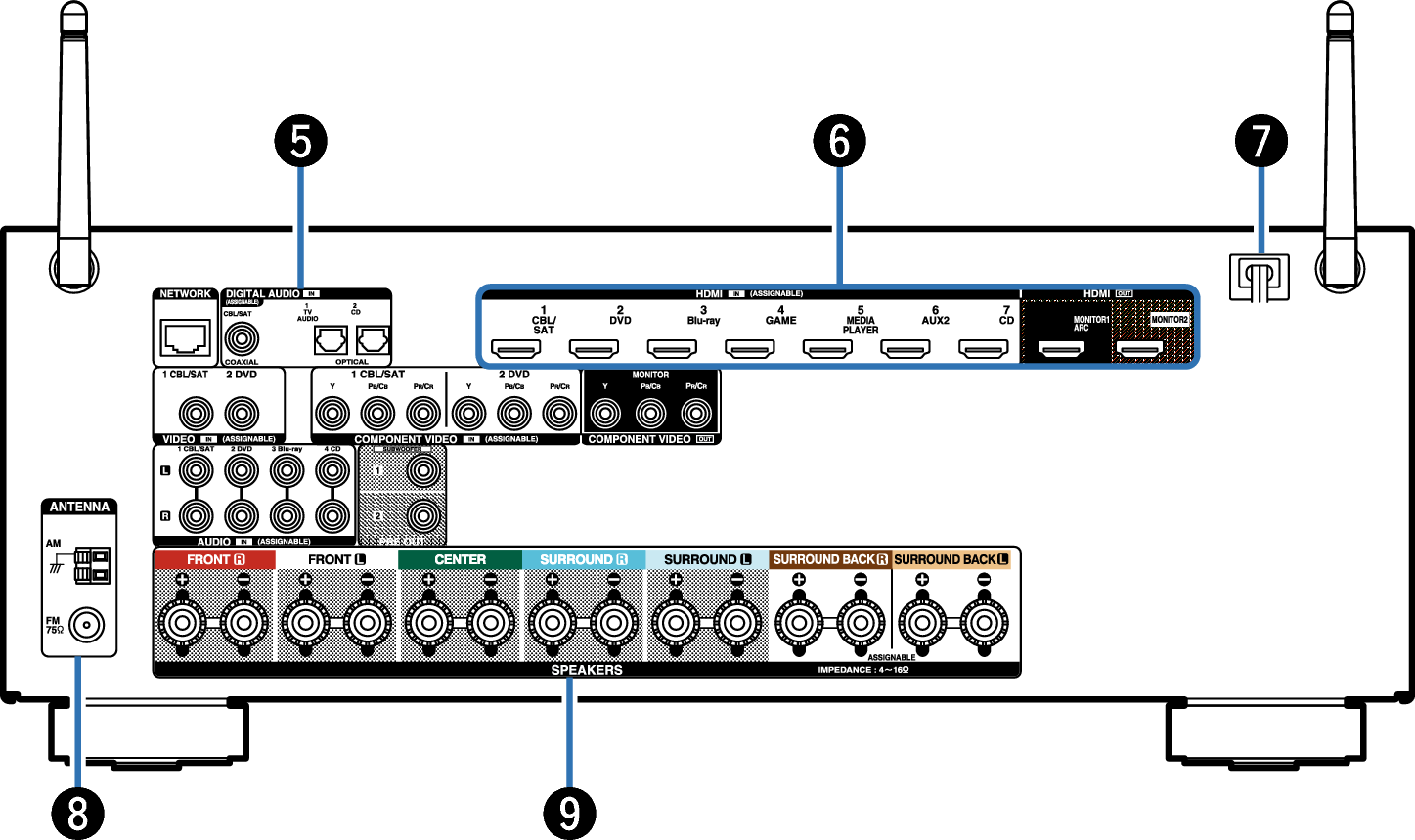

Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
Used to connect devices equipped with HDMI connectors.
Power cord link
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
Speaker terminals (SPEAKERS)
Used to connect speakers. link

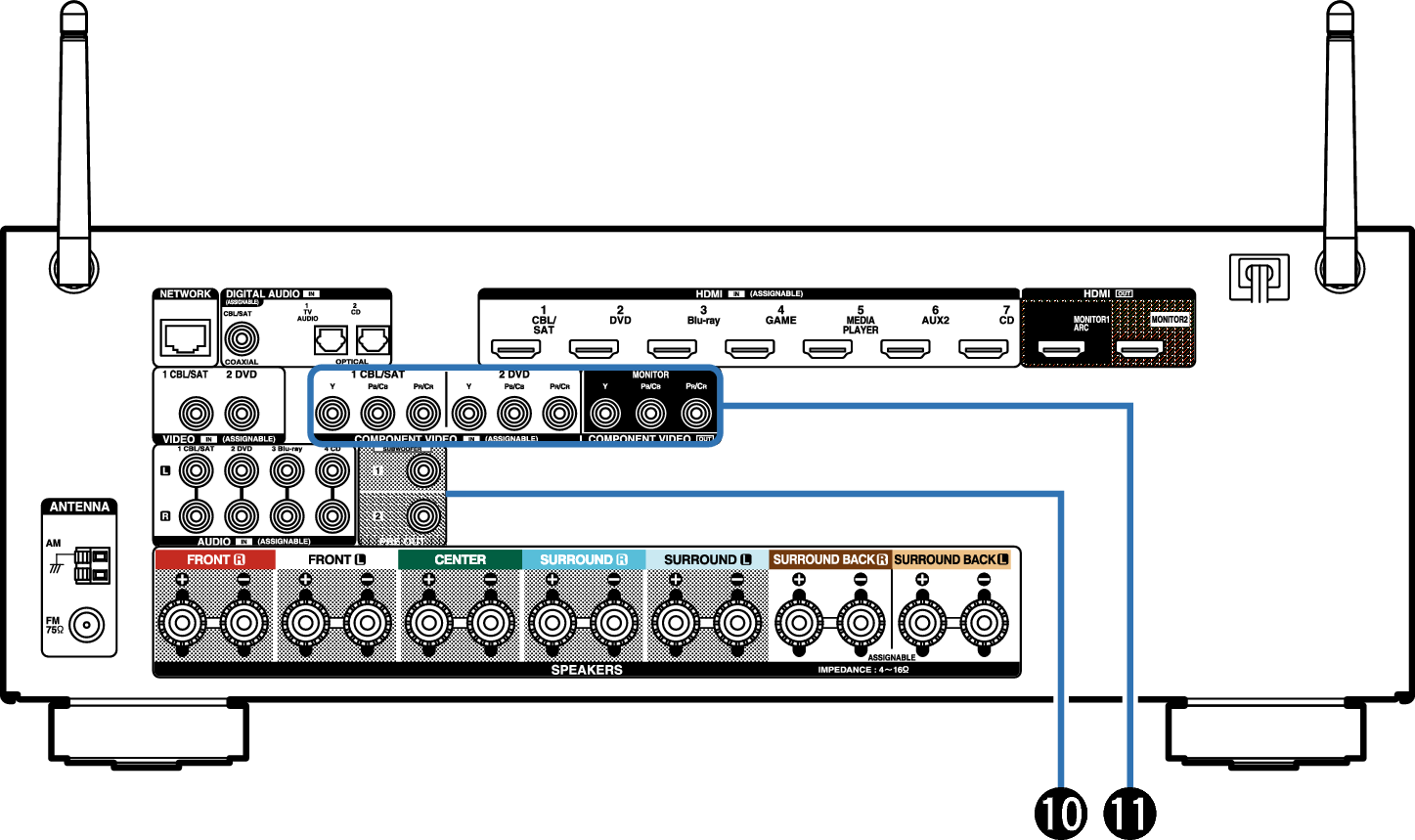

PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. link
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
