Front panel

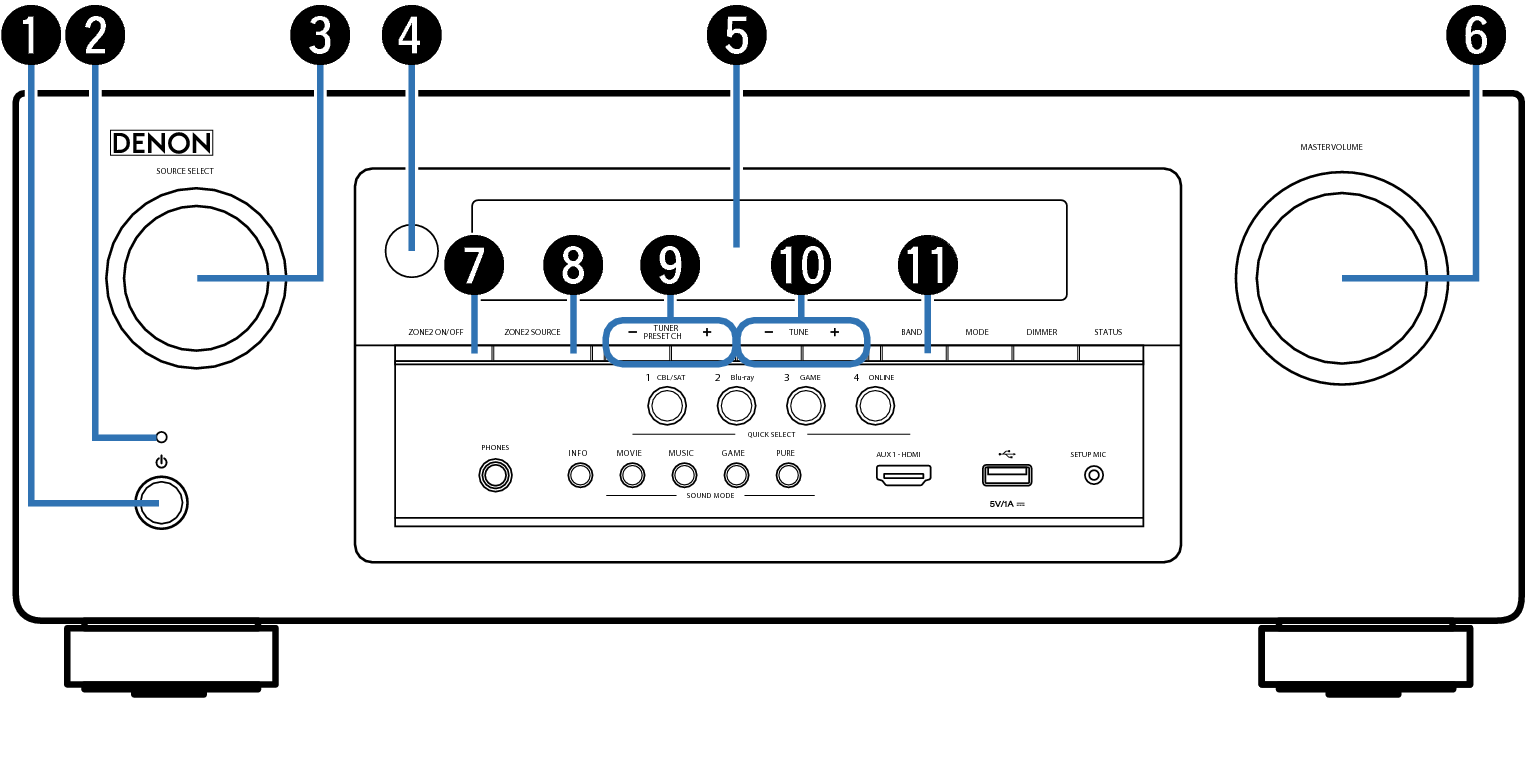

Name Front_Small1 S910E3

Power operation button ( Power Button )

Used to turn the power of the MAIN ZONE (room where this unit is located) on/off (standby). link

Power indicator

This is lit as follows according to the power status:

Green: Power on

Off: Normal standby

Red:

When “HDMI Control” is set to “On”link

When “HDMI Pass Through” is set to “On”link

When “Network Control” is set to “Always On” link

SOURCE SELECT knob

This selects the input source. link

Remote control sensor

This receives signals from the remote control unit. link

Display

This displays various pieces of information. link

MASTER VOLUME knob

This adjusts the volume level. link

ZONE2 ON/OFF button

This turns the power of ZONE2 (separate room) on/off. link

ZONE2 SOURCE button

This selects the input source for ZONE2. link

Tuner preset channel buttons
(TUNER PRESET CH +, –)

These select preset broadcast stations. link

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

Reception band select button (BAND)

This switches the reception band. link

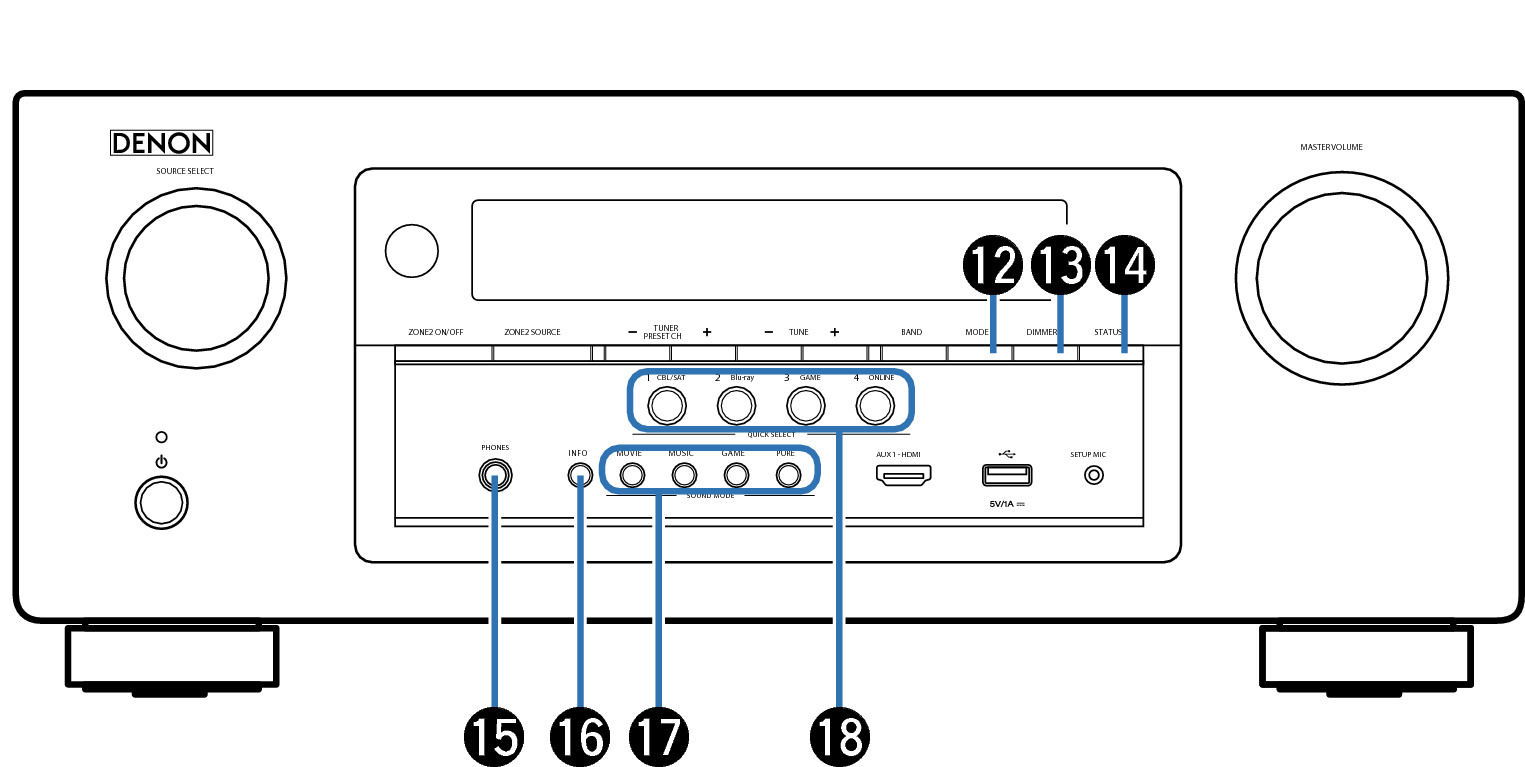

Name Front_Small2 S910E3

Tune mode select button (MODE)

This switches the tuning mode. link

DIMMER button

Each press of this switches the brightness of the display. link

STATUS button

Each press of this switches the status information that is shown on the display.

Headphones jack (PHONES)

This is used to connect headphones.

When the headphones are plugged into this jack, audio will no longer be output from the connected speakers or from the SUBWOOFER connectors.

NOTE

To prevent hearing loss, do not raise the volume level excessively when using headphones.

Information button (INFO)

This displays the status information on the TV screen. link

SOUND MODE buttons

These select the sound mode. link

QUICK SELECT buttons

With a single press of any of these buttons, you can call up various settings you’ve registered to each button such as the input source, volume level and sound mode settings. link

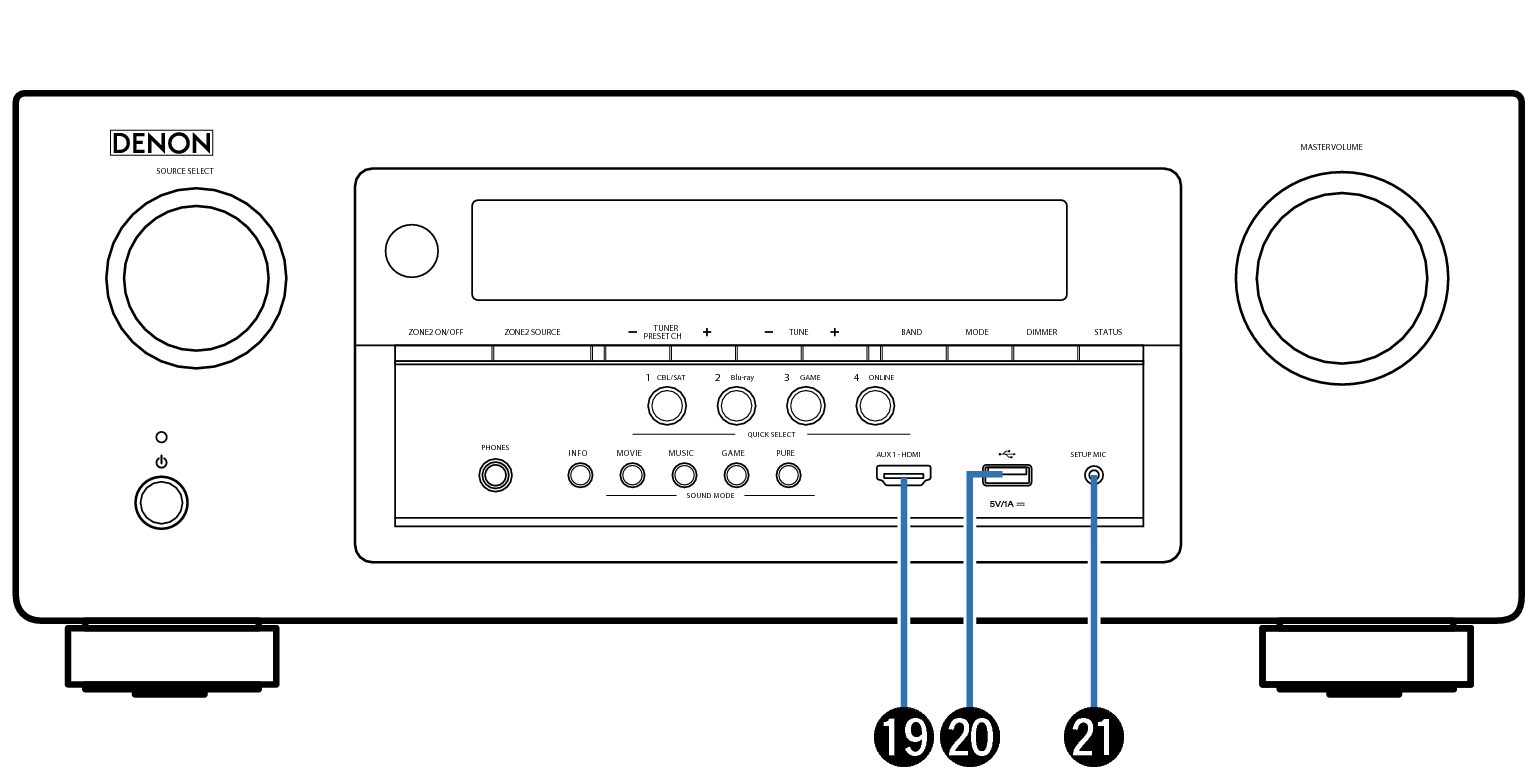

Name Front_Small3 S910E3

AUX1-HDMI connector

This is used to connect HDMI output compatible devices such as video camcorders and game consoles. link

USB port ( Icon USB )

This is used to connect USB storages (such as USB memory devices) and the USB cable supplied with iPod. link

SETUP MIC jack

This is used to connect the supplied Sound calibration microphone. link
