Remote control unit

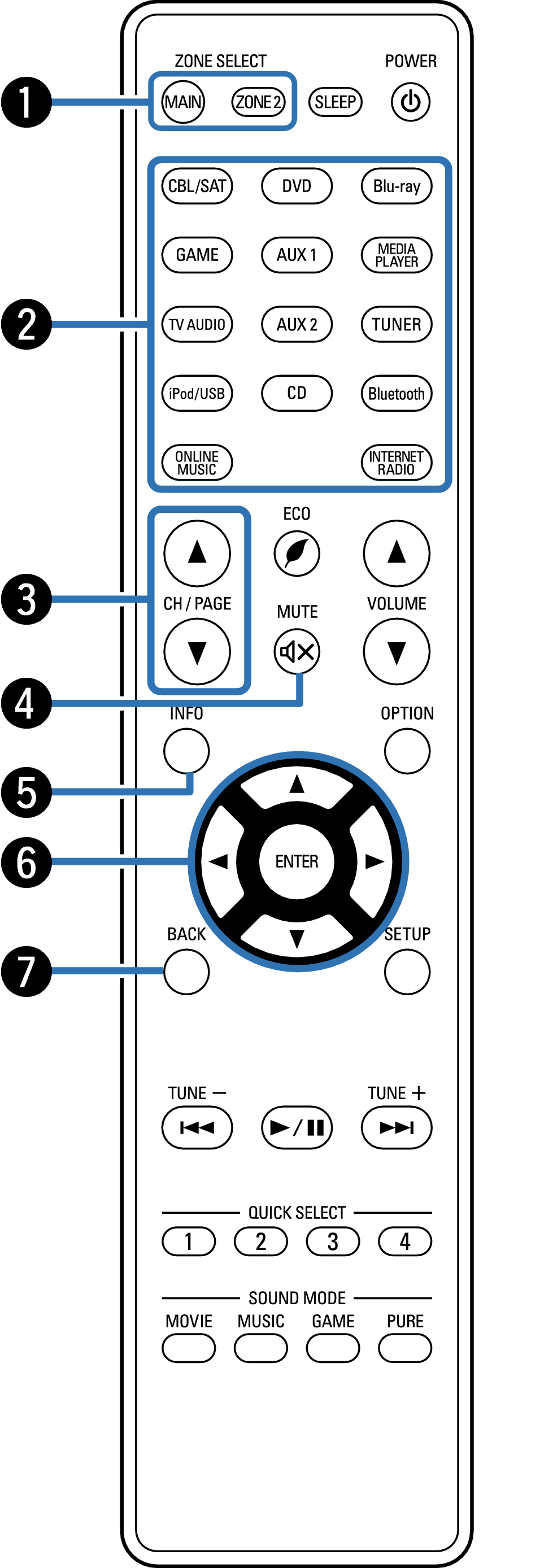

Name RC1192

ZONE SELECT buttons (MAIN, ZONE2)

These switch the zone (MAIN ZONE, ZONE2) that is operated through the remote control unit. link, link

Input source select buttons

These selects the input source. link, link

Channel/page select buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link, link

MUTE button ( Silent )

This mutes the output audio. link, link

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items. link

BACK button

This returns to the previous screen. link

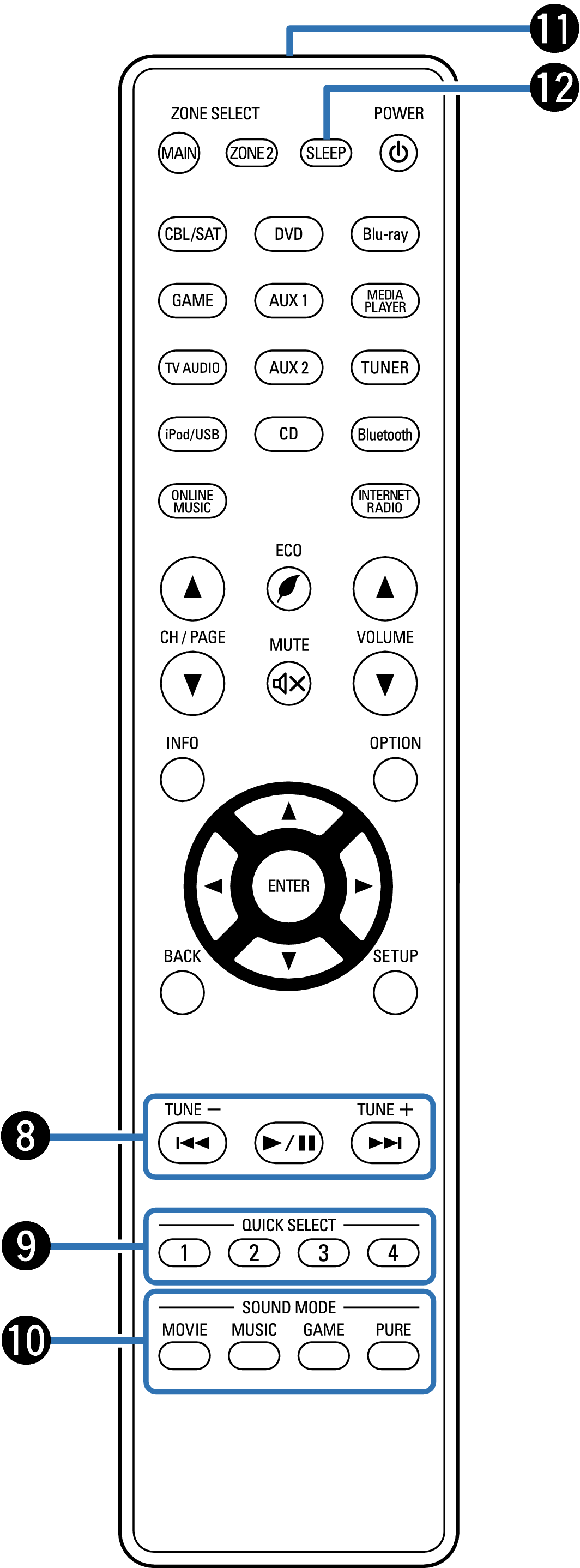

Name RC1192a

System buttons

These perform playback related operations. link

Skip buttons ( Skip-Left , Skip-Right )

Play/pause button ( Triangle Right / Pause )

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

SOUND MODE buttons

These select the sound mode. link

MOVIE button

MUSIC button

GAME button

PURE button

Remote control signal transmitter

This transmits signals from the remote control unit. link

SLEEP button

This sets the sleep timer. link

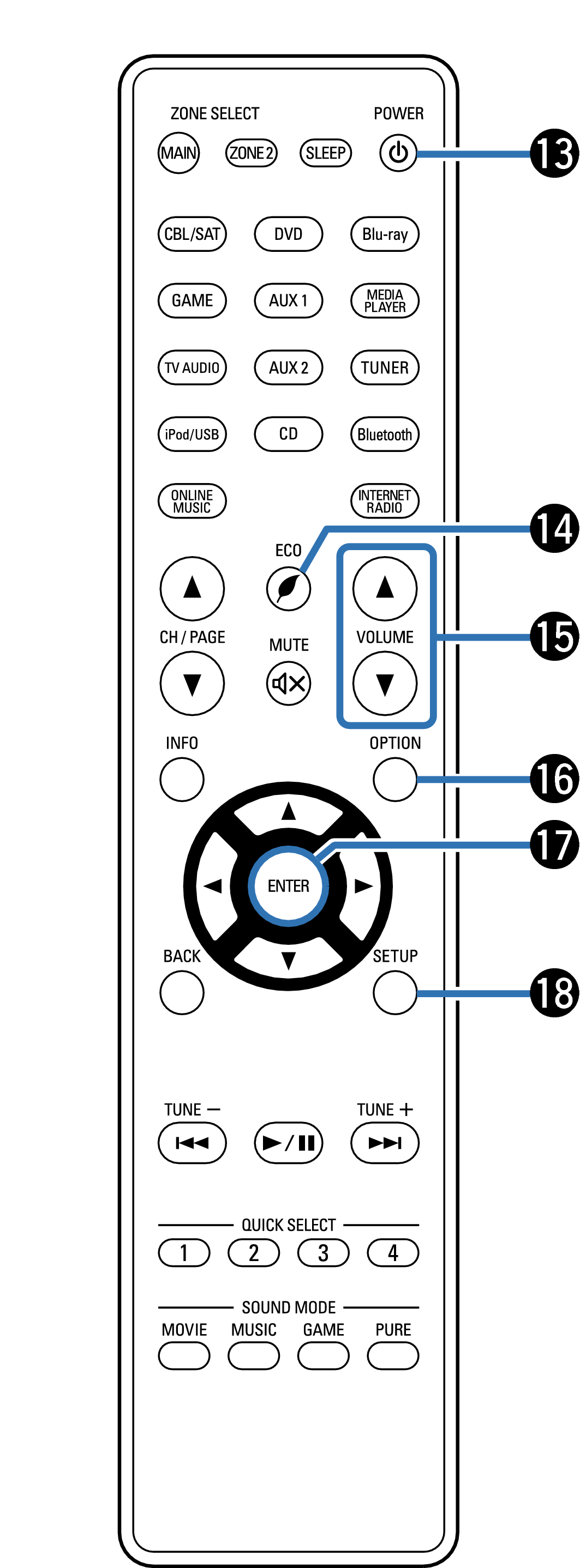

Name RC1192b

POWER button ( Power Button )

This turns the power on/off. link, link

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjusts the volume level. link, link

OPTION button

This displays the option menu on the TV screen. link

ENTER button

This determines the selection. link

SETUP button

This displays the menu on the TV screen. link
