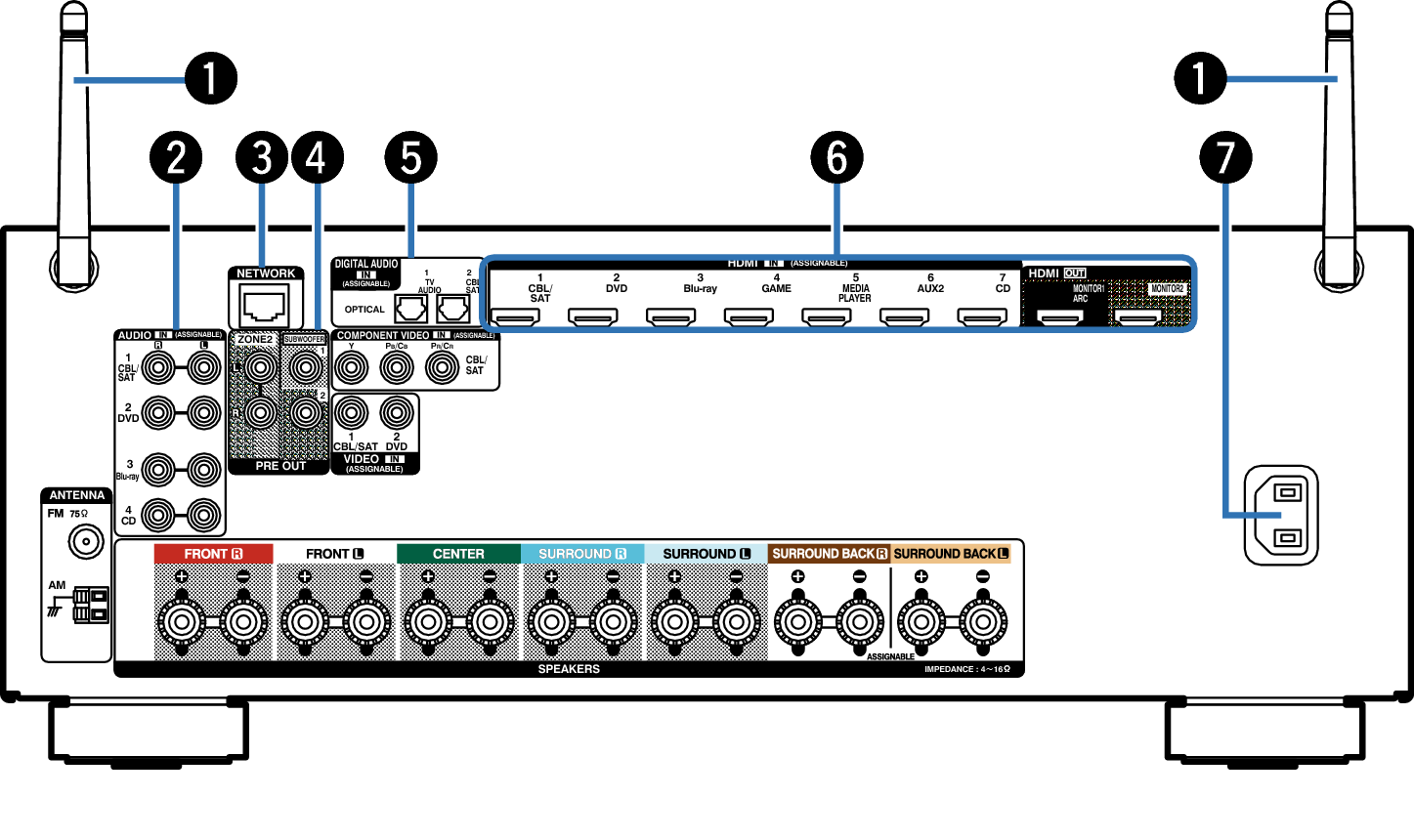

Rear panel
Rod antennas for Bluetooth/wireless LAN
Stand this antenna upright when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

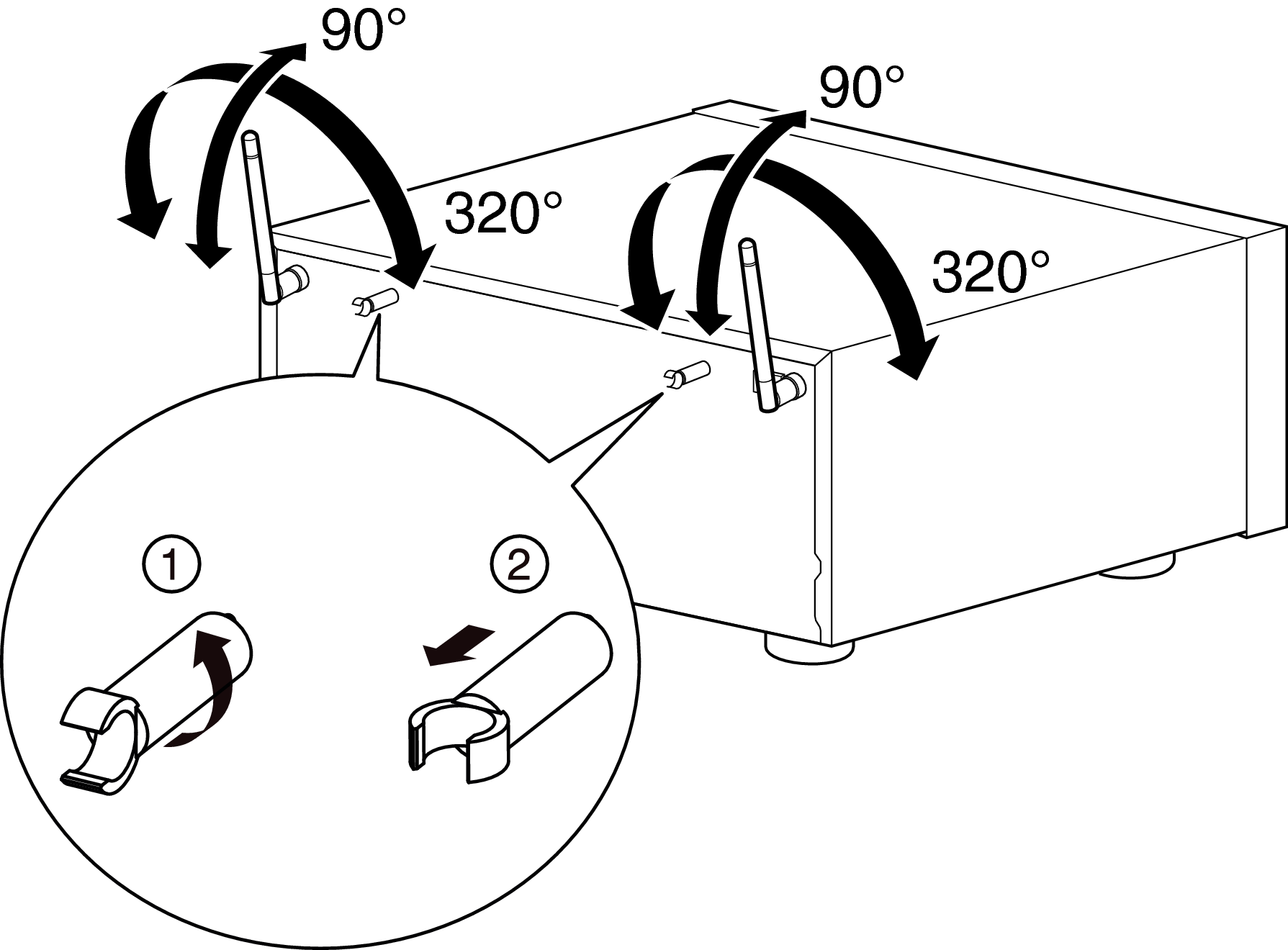

The antenna clip can be removed from the rear panel.
Rotate the antenna clip 90 degrees to the left.
Pull the antenna clip out towards yourself.
The antenna clip is needed when transporting this unit. Keep it in a safe place.
Attach the antenna clip by following the steps for removing it in reverse.
Analog audio connectors (AUDIO)
NETWORK connector
Used to connect to a LAN cable when connecting to a wired LAN network. link
PRE OUT connectors
Digital audio connectors (DIGITAL AUDIO)
HDMI connectors
AC inlet (AC IN)
Used to connect the power cord. link

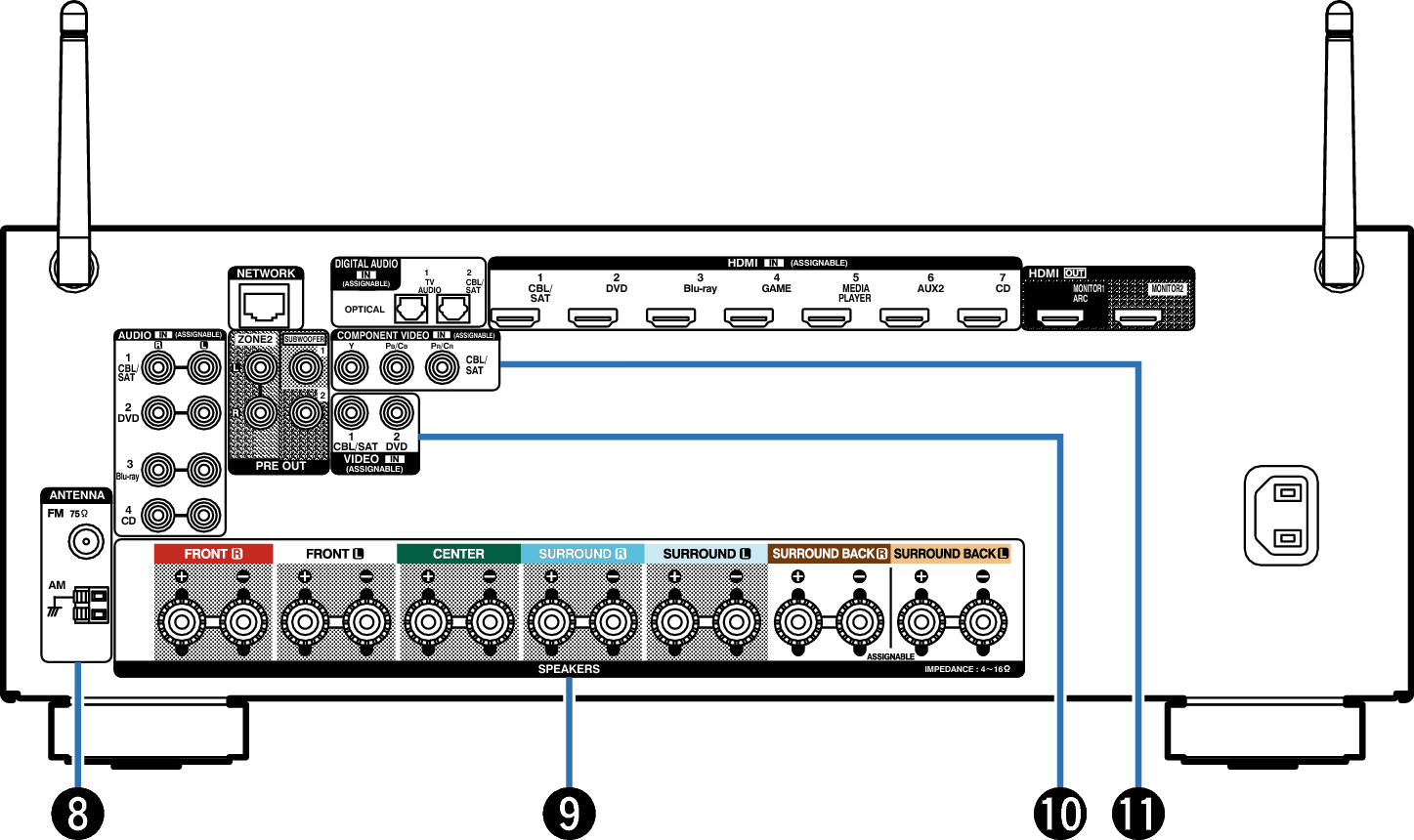

FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. link
Speaker terminals (SPEAKERS)
Used to connect speakers. link
Video connectors (VIDEO)
Component video connectors (COMPONENT VIDEO)
NOTE
Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
