Connecting ZONE2



Connection 1: Connecting using a speaker output terminal

When “Amp Assign” is set to “5.1ch + ZONE2” in the menu, ZONE2 audio is output from the SURROUND BACK speaker terminal. link

Pict ZONE Audio1 X28

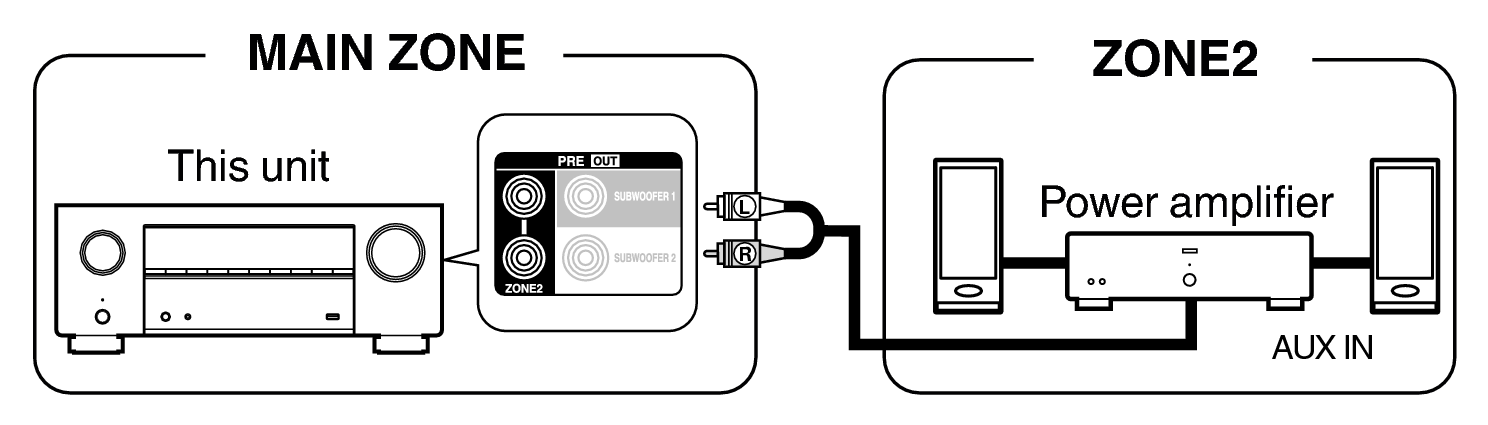

Connection 2 : Connection using an external amplifier (ZONE2)

The audio signals of this unit’s ZONE2 audio output connectors are output to the ZONE2 amplifiers and played on these amplifiers.

Pict ZONE Audio2 X28
