Rear panel

Name Rear Small1 X28E2

Bluetooth/wireless LAN antenna connectors

Used to connect the included external antennas for Bluetooth/wireless connectivity when connecting to a network via wireless LAN, or when connecting to a handheld device via Bluetooth. link

Place the external antennas for Bluetooth/wireless connectivity evenly over the screw terminal of rear.
Turn clockwise until the antennas is fully connected.
Rotate the antenna upwards for best reception.
Pict AntennaAngle X28E2

SIGNAL GND terminal

Used to connect a ground wire for the turntable. link

Digital audio connectors (DIGITAL AUDIO)

Used to connect devices equipped with digital audio connectors.

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARClink

NETWORK connector

Used to connect to a LAN cable when connecting to a wired LAN network. link

HDMI connectors

Used to connect devices equipped with HDMI connectors.

Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARClink

Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARClink

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

Connecting a Blu-ray Disc player or DVD playerlink

Connecting a game console or player device compatible with 8Klink

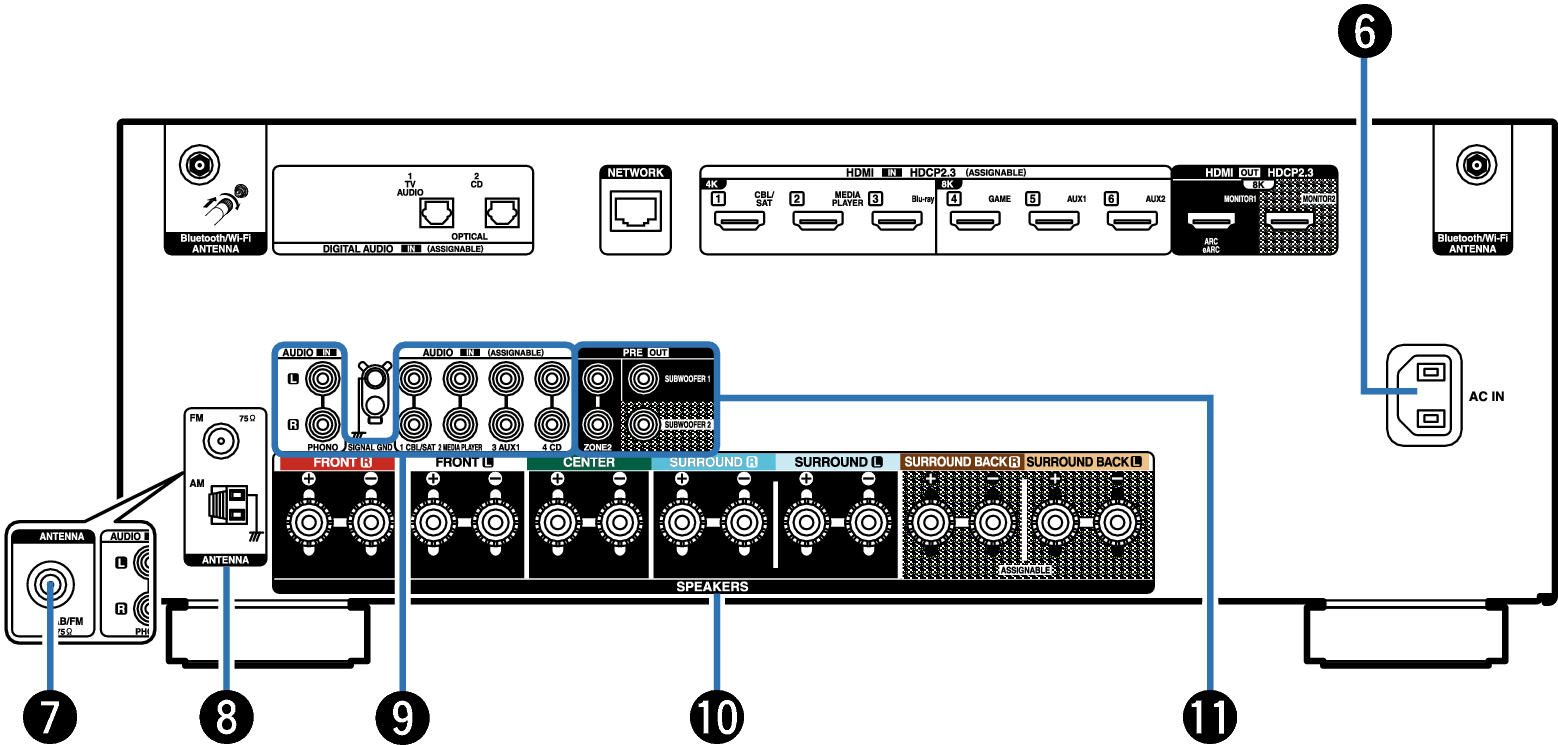

Name Rear Small2 X28E2

AC inlet (AC IN)

Used to connect the power cord. link

DAB/FM antenna terminal (ANTENNA) (for FM/DAB model only)

Used to connect a DAB/FM antenna. link

FM/AM antenna terminals (ANTENNA) (for FM/AM model only)

Used to connect FM antennas and AM loop antennas. link

Analog audio connectors (AUDIO)

Used to connect devices equipped with analog audio connectors.

Connecting a set-top box (Satellite tuner/cable TV)link

Connecting a media playerlink

Connecting a turntablelink

Speaker terminals (SPEAKERS)

Used to connect speakers. link

PRE OUT connectors

Used to connect a subwoofer with built-in amplifier or a power amplifier for ZONE2.

Connecting the subwooferlink

Connection 2 : Connection using an external amplifier (ZONE2)link

NOTE

Do not touch the inner pins of the connectors on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
