Connecting multi-zone speakers

5.1-channel (MAIN ZONE) + 2-channel (ZONE2) speaker connection

This connection method constructs a 5.1-channel speaker system in the MAIN ZONE and a 2-channel system in ZONE2.

MAIN ZONE

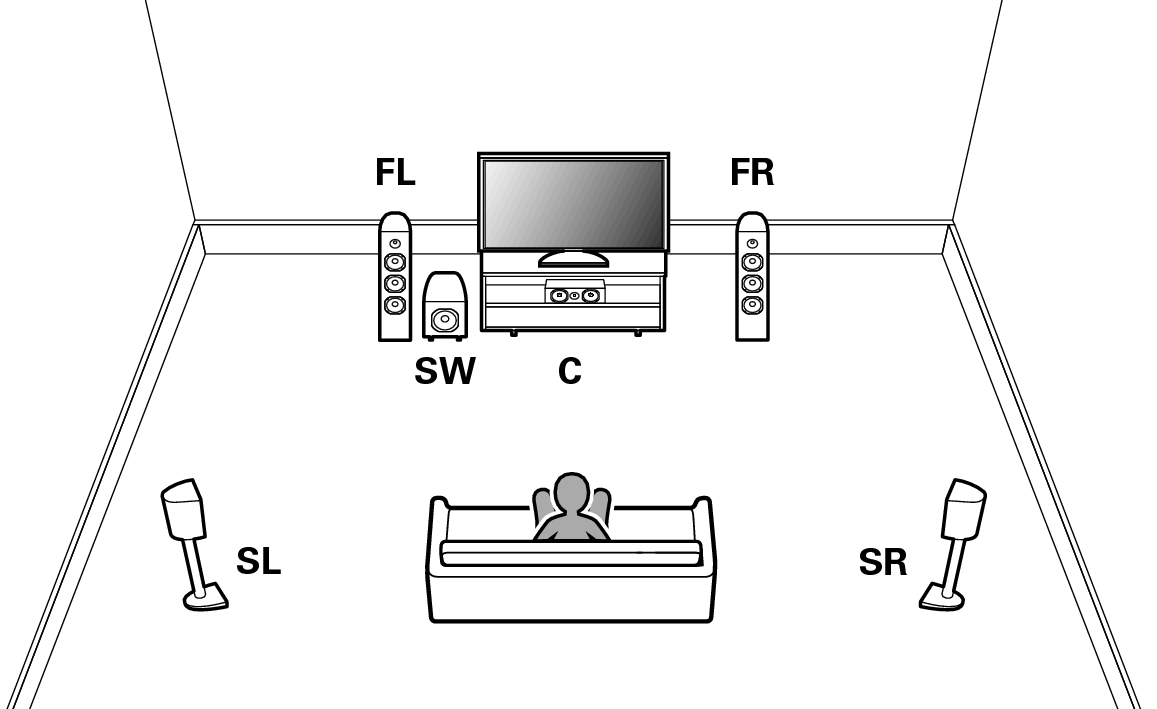

Pict AmpAssign 5.1 Main

ZONE2

Pict AmpAssign ZONE2

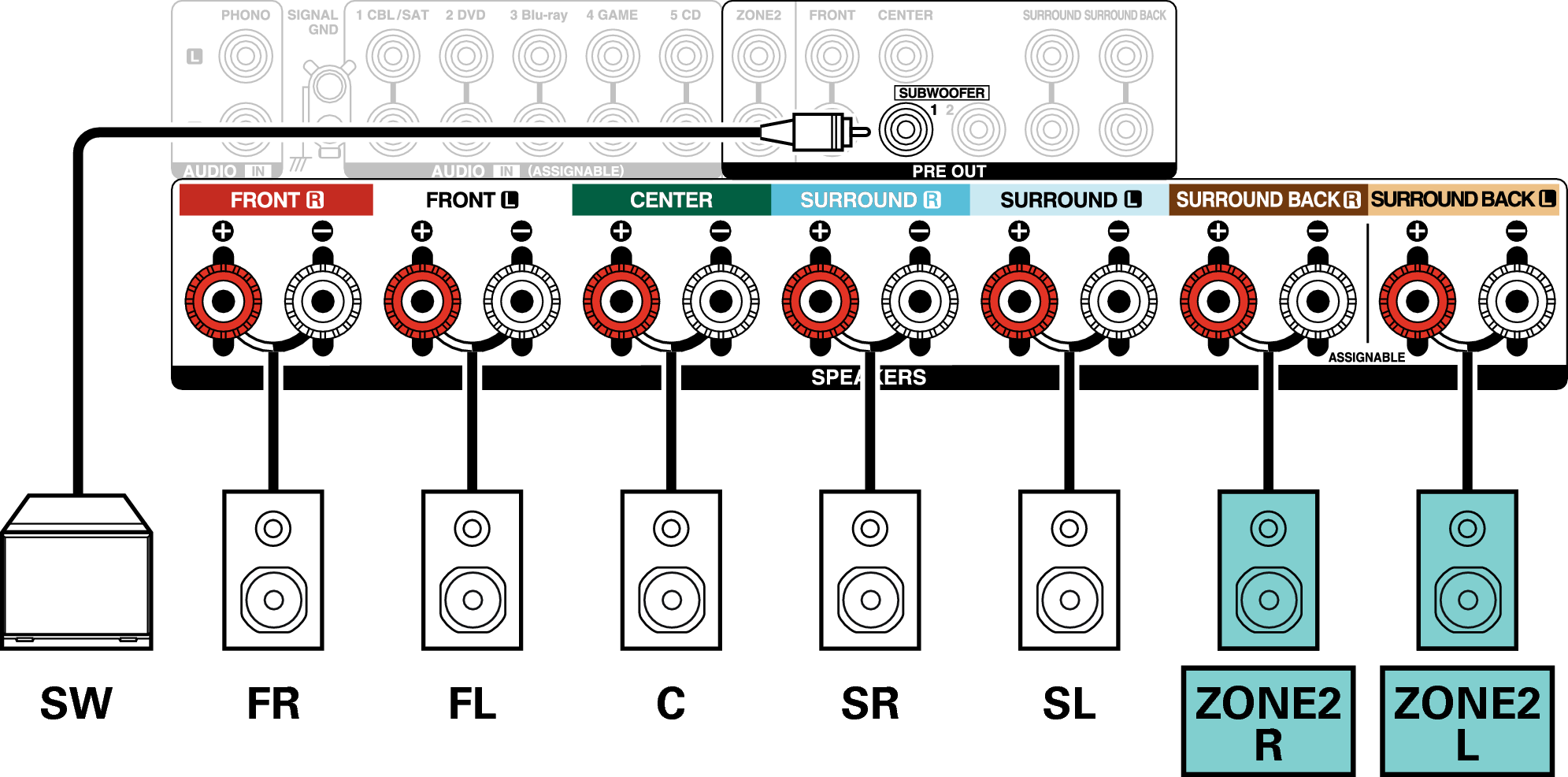

Conne SP 5.1 ZONE2 X35E3

Set “Assign Mode” to “ZONE2” in the menu. link

Connecting an external power amplifier

You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.

Select the terminal to use and connect the device.

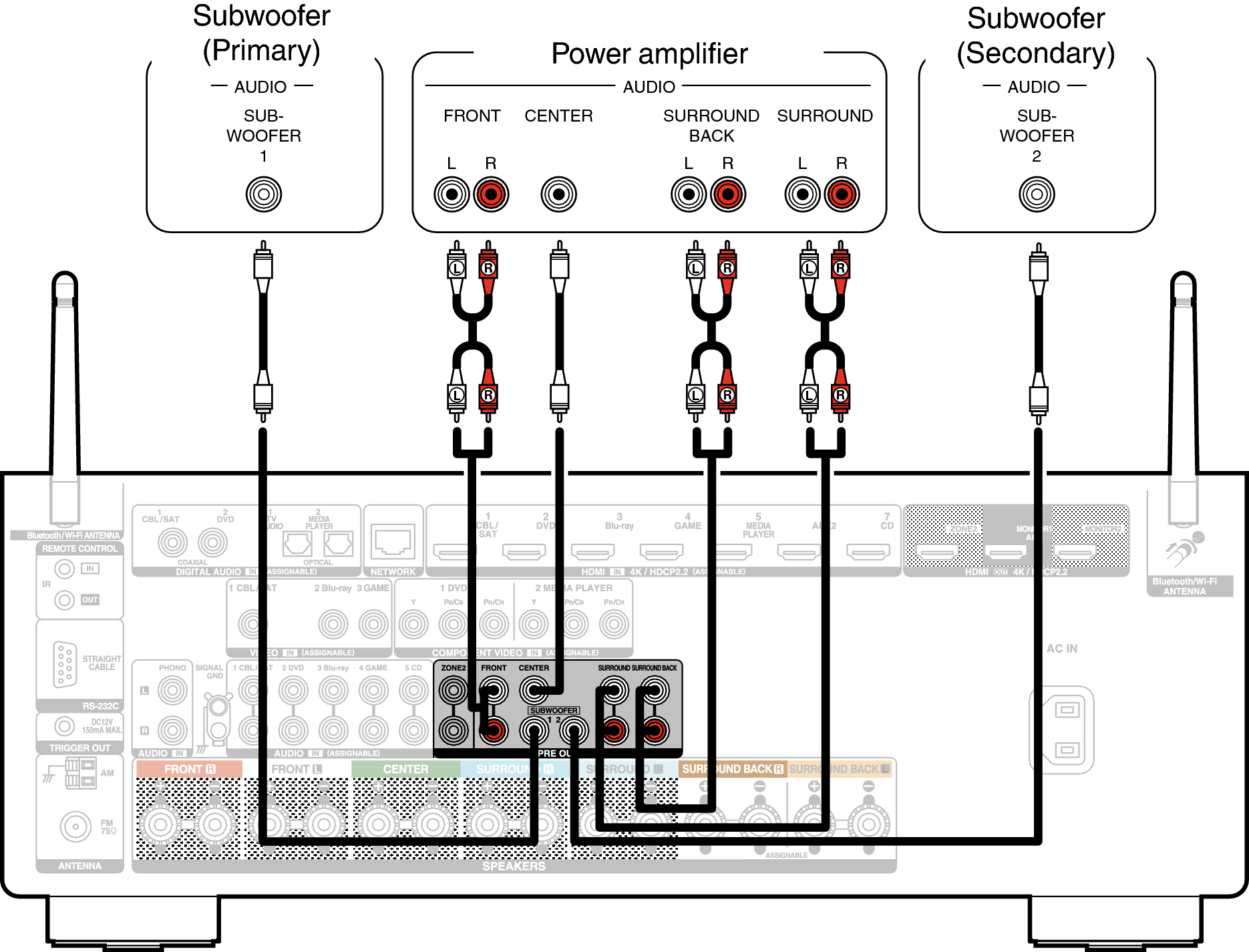

Conne PRE OUT X35E2

When using just one surround back speaker, connect it to the left channel (L) terminal.
