TRIGGER OUT jacks

When a device with TRIGGER IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit.

The TRIGGER OUT jack outputs a maximum 12 V DC/150 mA electrical signal.

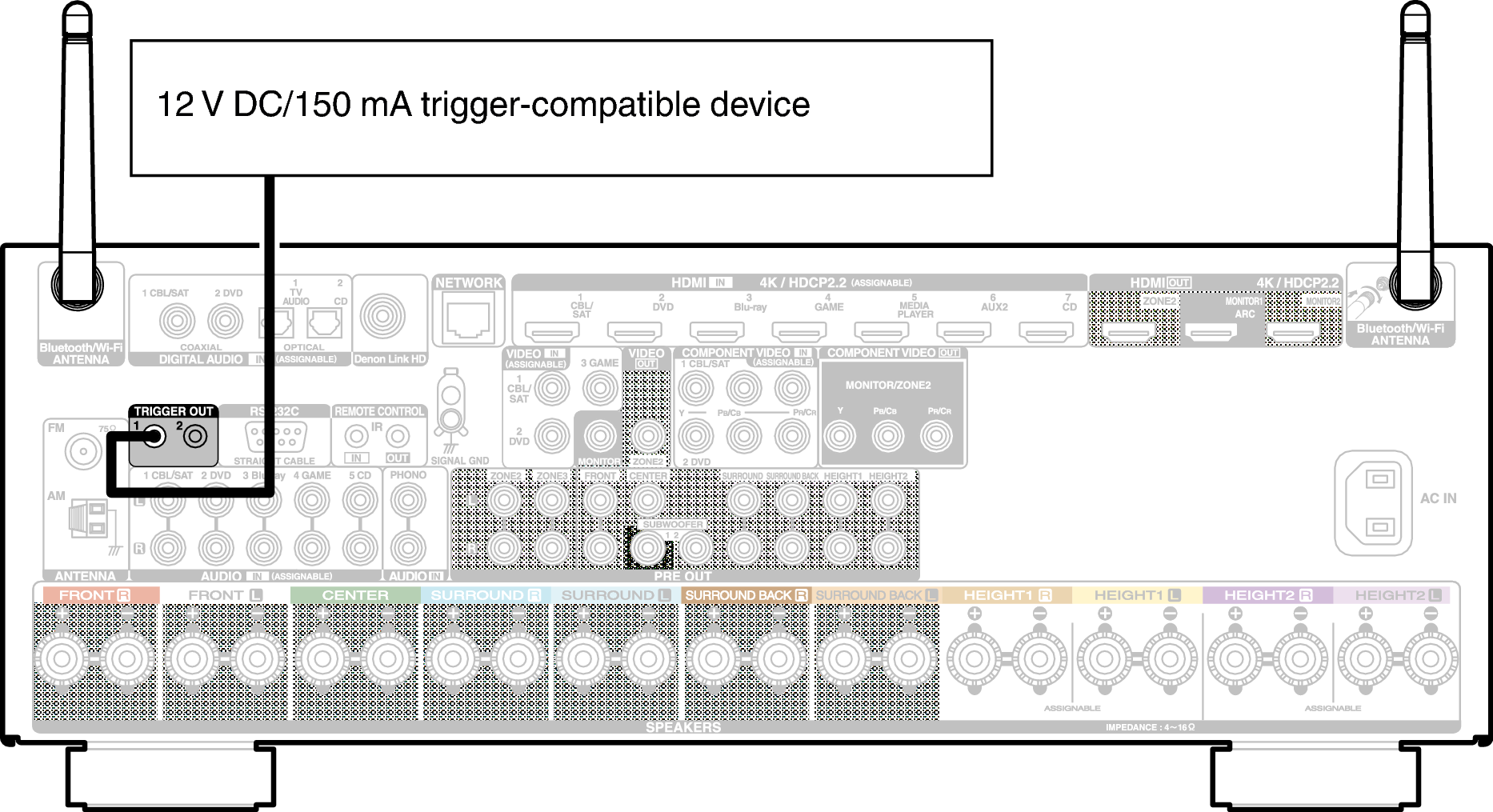

Conne TRIGGER X4E3
NOTE

Use a monaural mini-plug cable for connecting the TRIGGER OUT jacks. Do not use a stereo mini-plug cable.

If the permissible trigger input level for the connected device is larger than 12 V DC/150 mA, or has shorted, the TRIGGER OUT jack cannot be used. In this case, turn off the power to the unit, and disconnect it.
