Speaker configuration and “Amp Assign” settings

This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign”link settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback.

Perform “Amp Assign” settings to suit the number of rooms and speaker configuration to be installed. link

Playback speaker in each zone

“Amp Assign” settings

Connection page

MAIN ZONE

ZONE2

ZONE3

5.1-channel playback

Not used

Not used

7.1ch + ZONE2 (Default)

7.1-channel playback (surround back)

Not used

Not used

7.1ch + ZONE2 (Default)

9.1-channel playback

Not used

Not used

9.1ch

11.1-channel playback

Not used

Not used

11.1ch

7.1-channel playback (bi-amp connection of front speakers)

Not used

Not used

7.1ch (Bi-Amp)

9.1-channel playback + 2-channel speakers for stereo playback

Not used

Not used

9.1ch/2ch Front

7.1-channel playback + 2-channel bi-amp speakers for stereo playback

Not used

Not used

7.1ch/2ch Front (Bi-Amp)

7.1-channel playback + front speakers of second unit

Not used

Not used

7.1ch + Front B

7.1-channel playback

2-channel

Not used

7.1ch + ZONE2 (Default)

7.1-channel playback

Not used

2-channel

7.1ch + ZONE3

5.1-channel playback (bi-amp connection of front speakers)

2-channel

Not used

5.1ch (Bi-Amp) + ZONE2

5.1-channel playback

2-channel

2-channel

5.1ch + ZONE2/3

7.1-channel playback

1-channel

1-channel

7.1ch + ZONE2/3-MONO

Dolby Atmos playback

Not used

Not used

Dolby Atmos

Upgrade (Auro-3D)

Playback speaker in each zone

“Amp Assign” settings

Connection page

MAIN ZONE

ZONE2

ZONE3

Auro-3D

Not used

Not used

Auro-3D

The sound mode that can be selected varies according to the speaker configuration. See “Relationship between sound modes and channel output” link for the sound modes that are supported.

The following pages provide basic connection examples.

In addition to the connections described in link - link, this unit allows for various speaker connections with the “Amp Assign” setting.

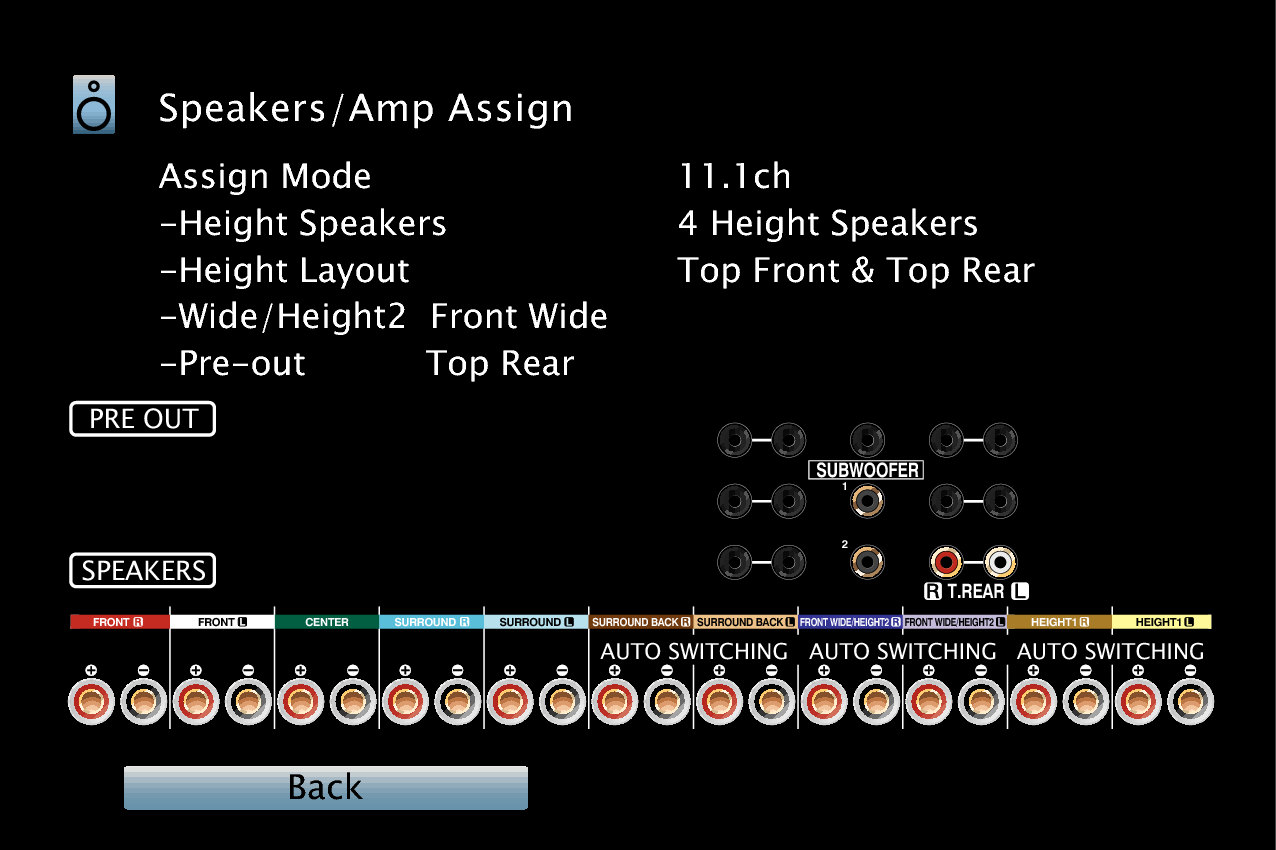

Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign” setting screen, which shows how to make connections in your environment.

GUI ViewTerminalConfig AVRX5200WE3

Standard configuration and connection

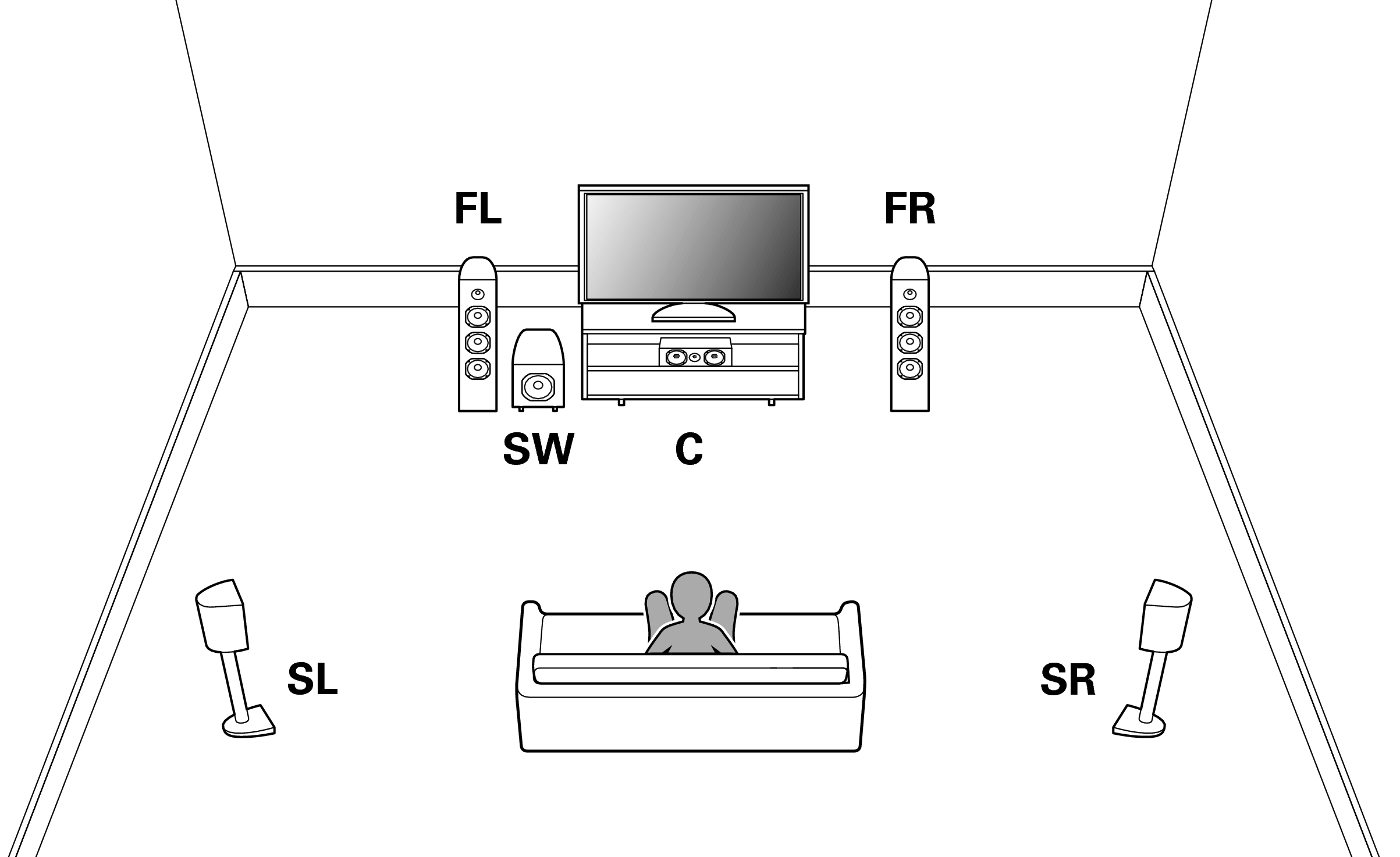

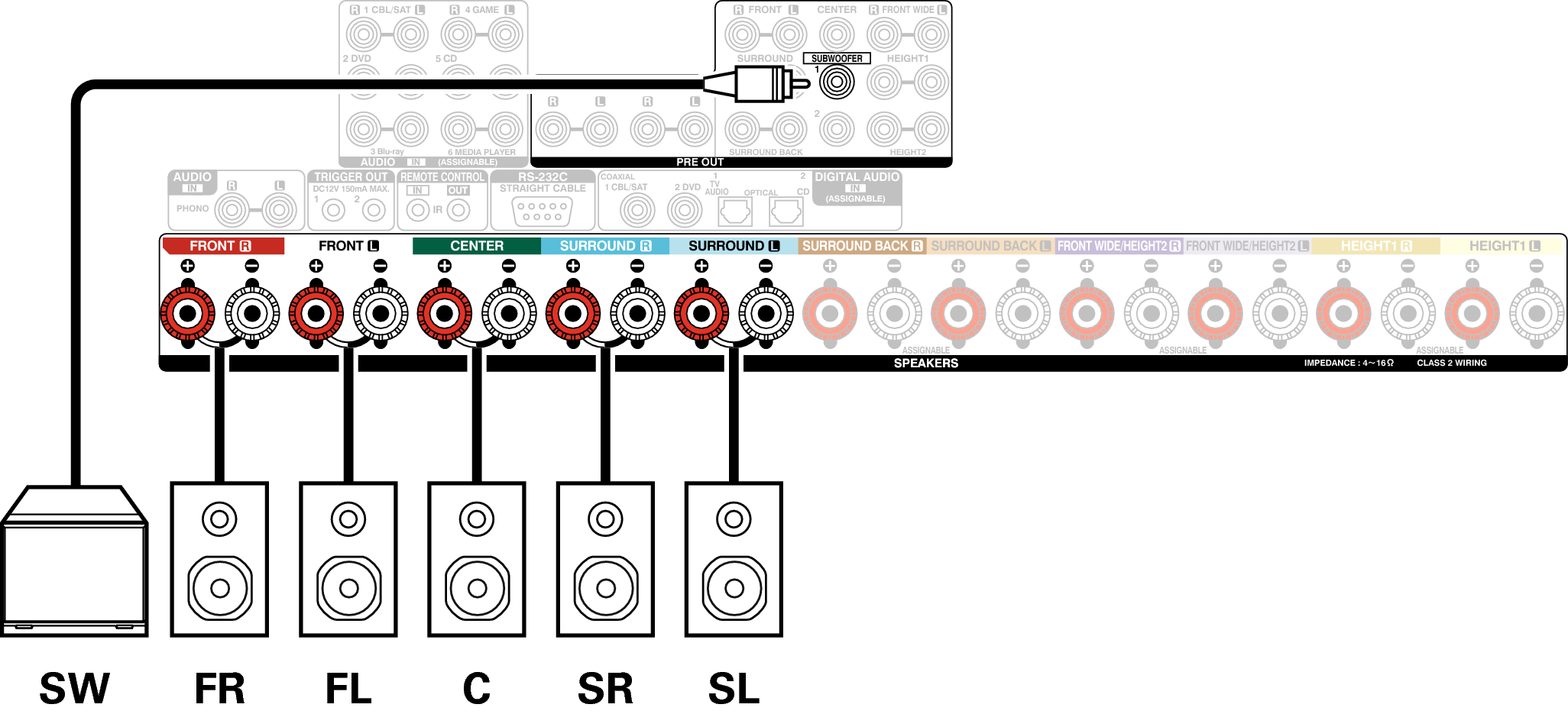

5.1-channel playback

This serves as a basic 5.1-channel surround system.

Pict AmpAssign 5.1
Conne SP 5.1 AVRX5200WE3

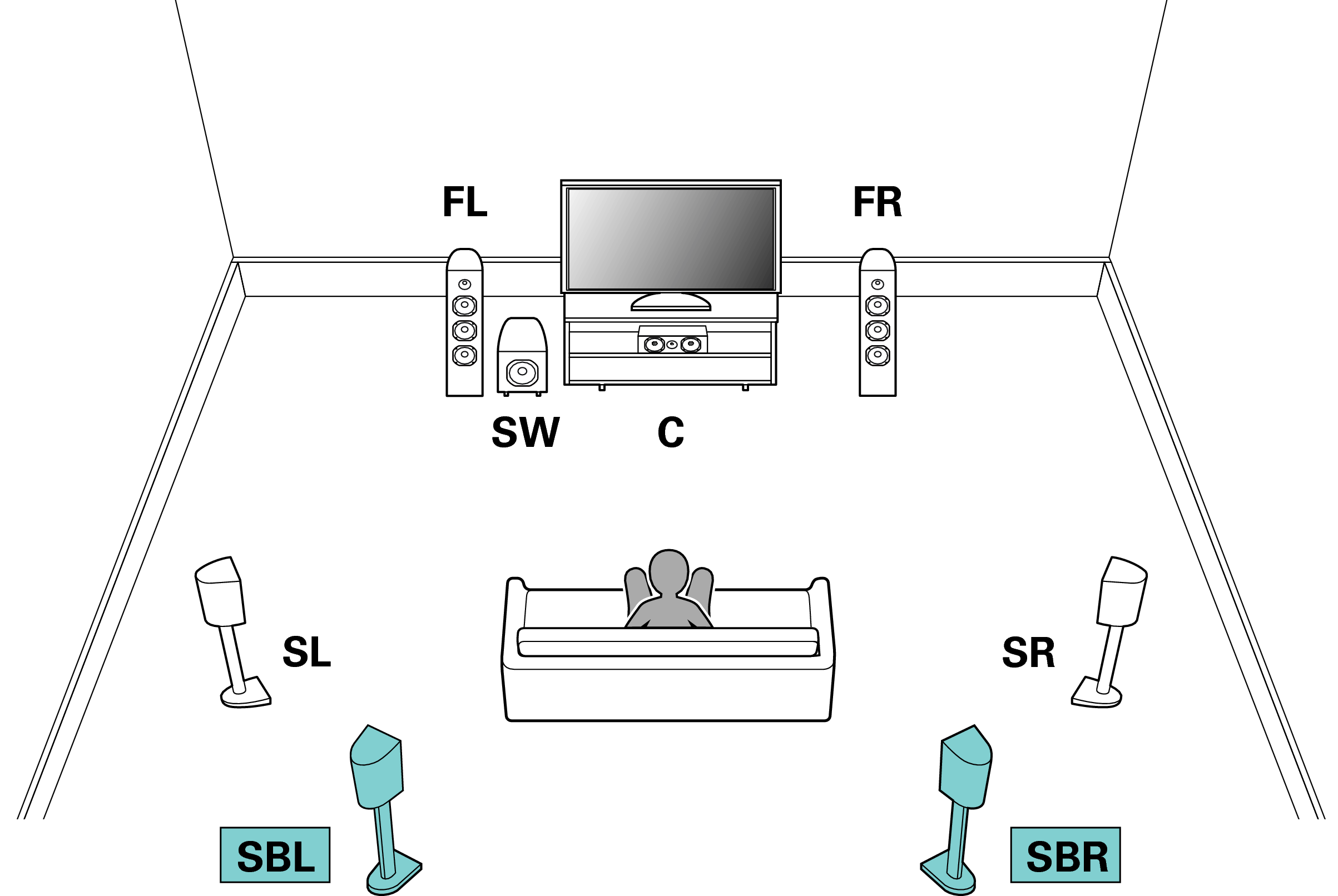

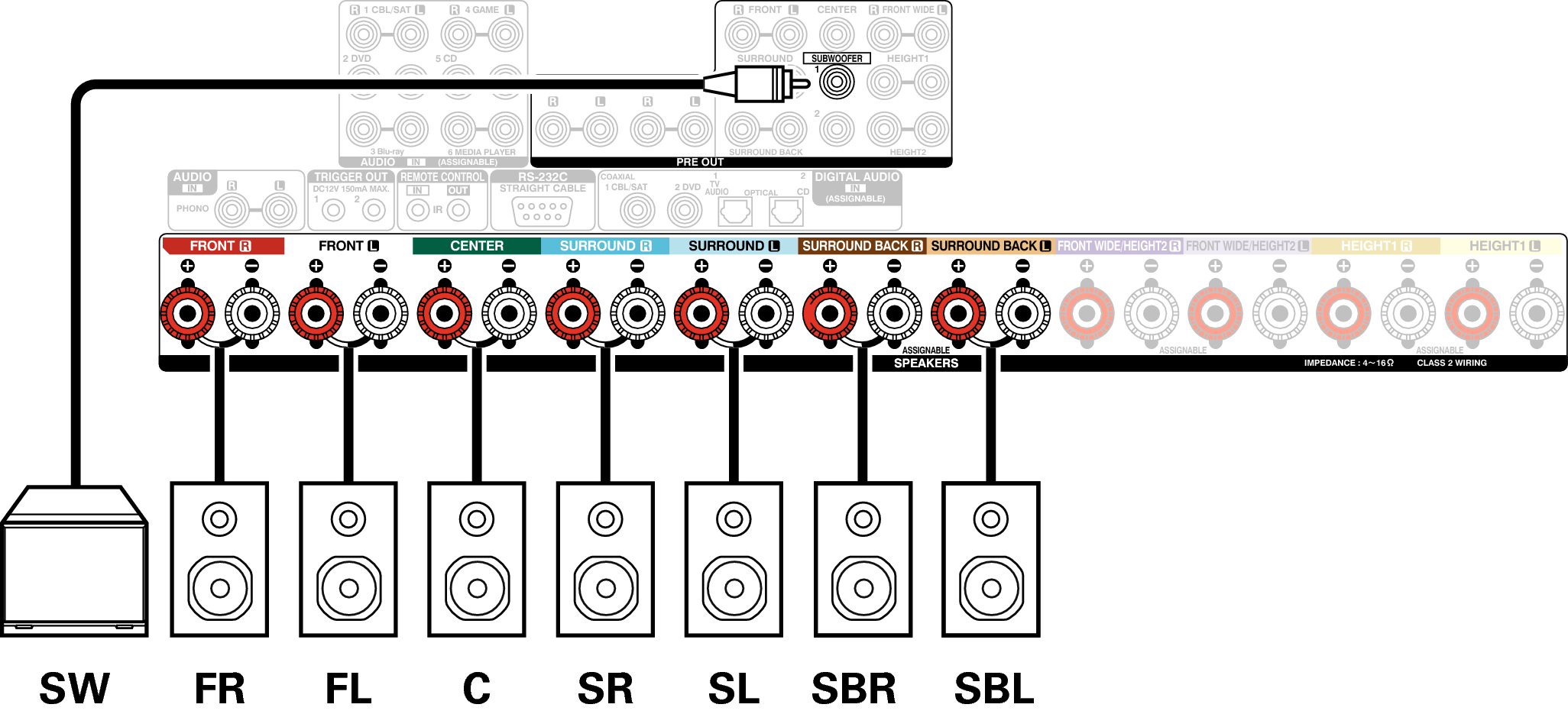

7.1-channel playback (surround back)

This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers.

Pict AmpAssign 7.1 SB
Conne SP 7.1 SB AVRX5200WE3

When using a single surround back speaker, connect it to the SURROUND BACK L connector.

Advanced connections

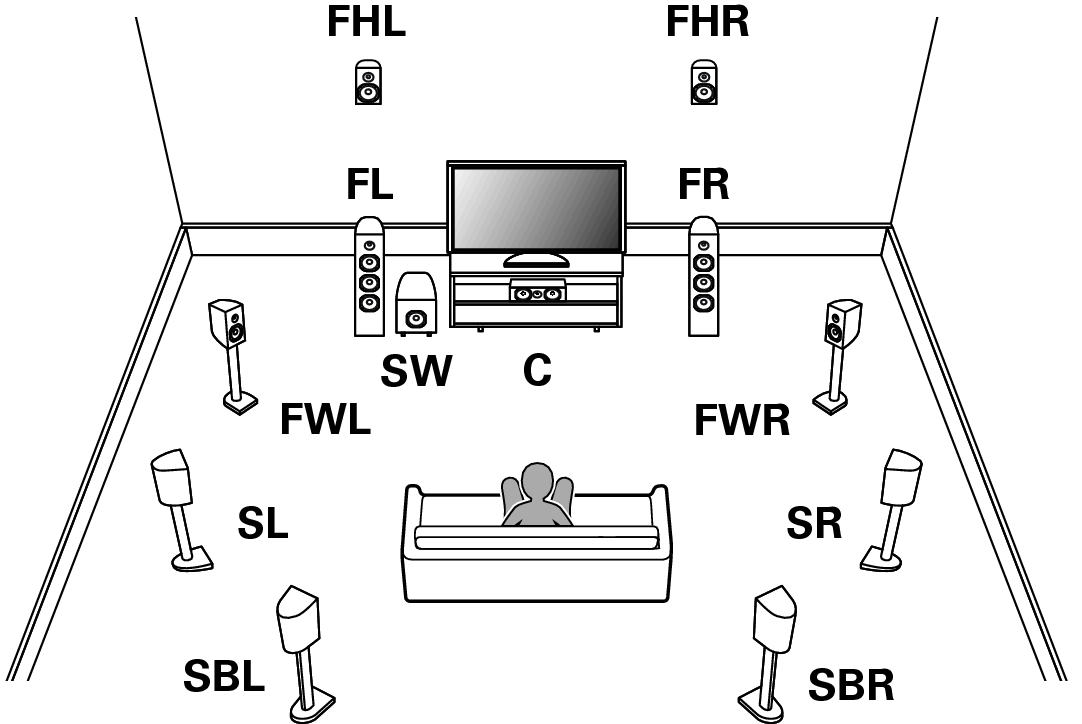

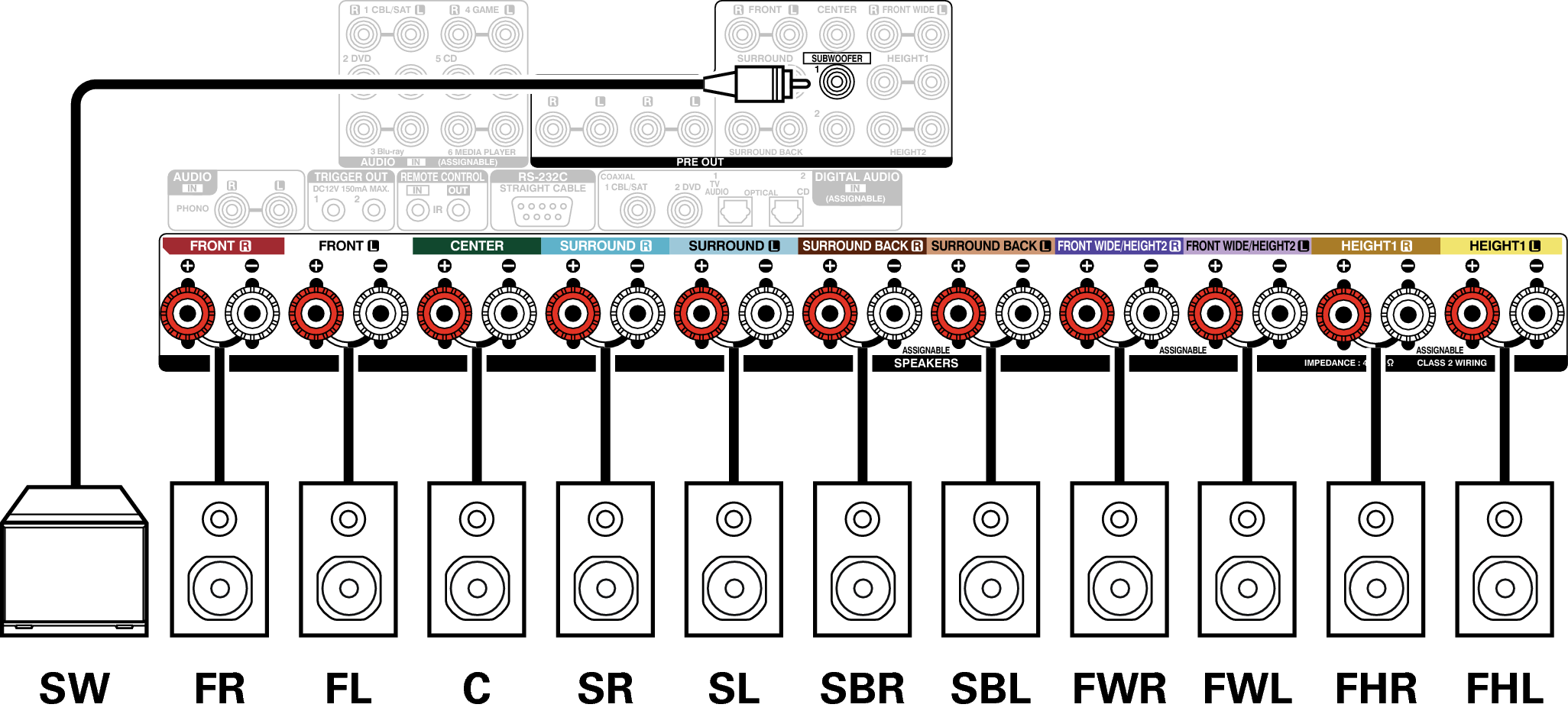

9.1-channel playback

This system, which is based on a 5.1-channel system, plays back up to 9.1-channels at the same time.

You can connect speakers for up to 11-channels for MAIN ZONE. When you connect speakers for 10 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 9.1
Conne SP 9.1 AVRX5200WE3

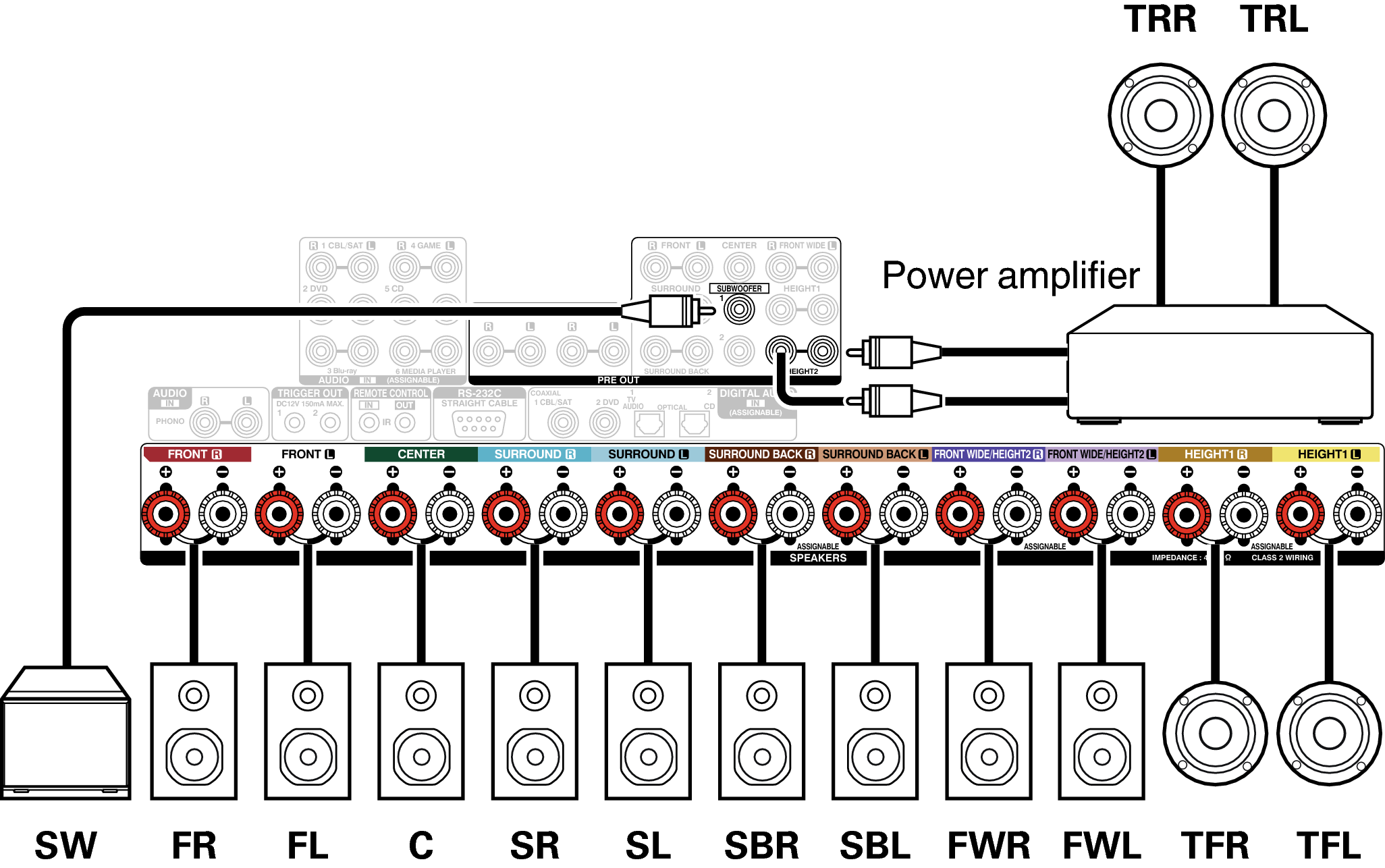

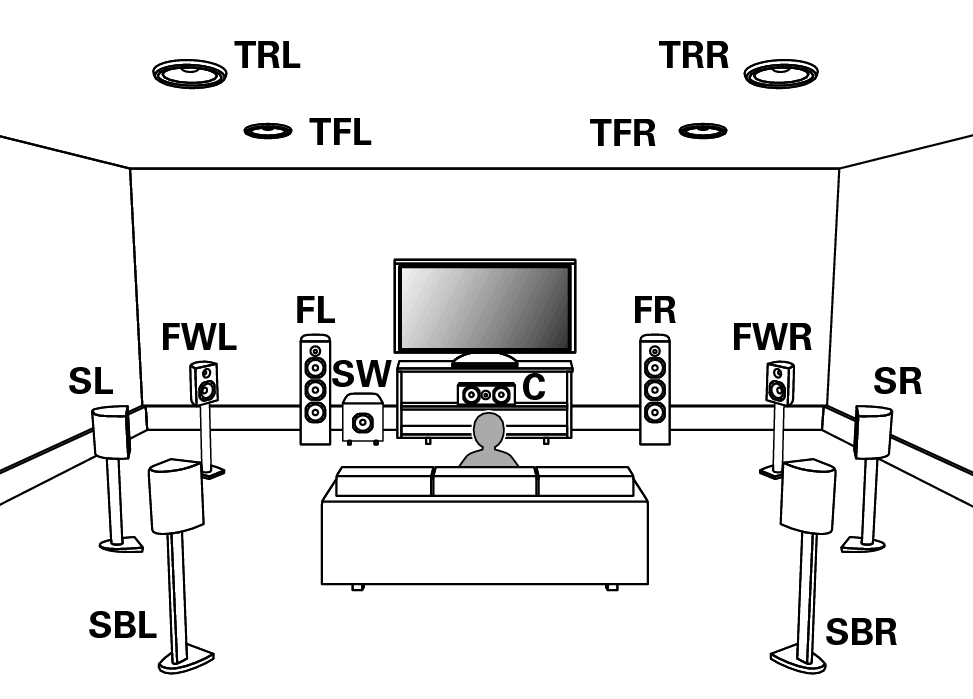

11.1-channel playback

This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time.

You can connect speakers for up to 13-channels for MAIN ZONE by using an external power amplifier. When you connect speakers for 12 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 11.1
Conne SP 11.1 AVRX5200WE3

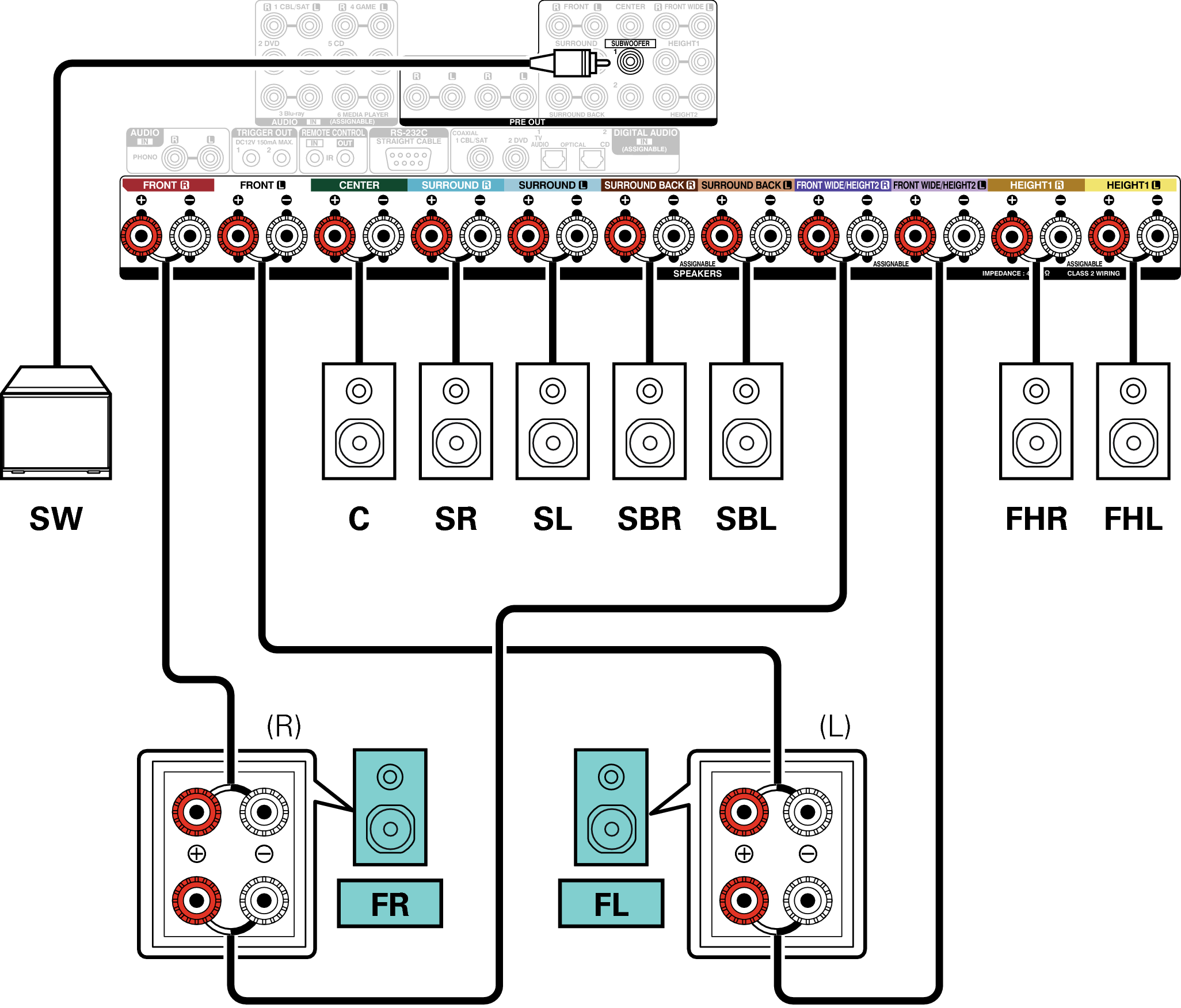

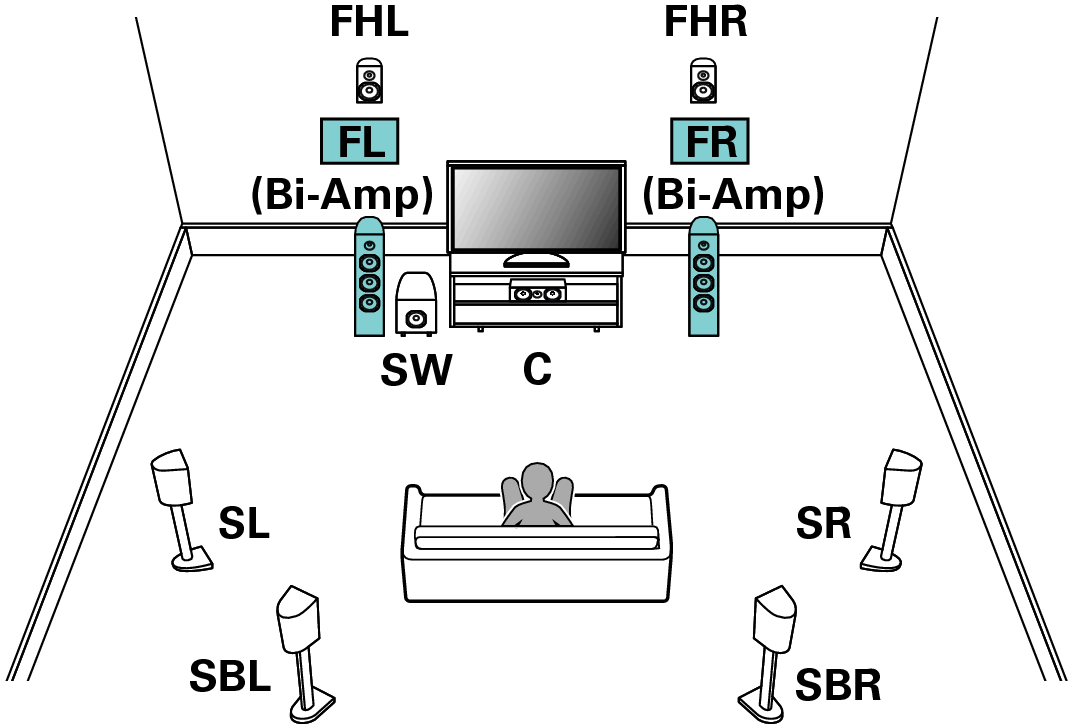

7.1-channel playback (bi-amp connection of front speakers)

This system plays back 7.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.

You can connect speakers for up to 9 channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 7.1 BiAmp
Conne SP 7.1 BiAmp AVRX5200WE3
NOTE

When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter terminals.

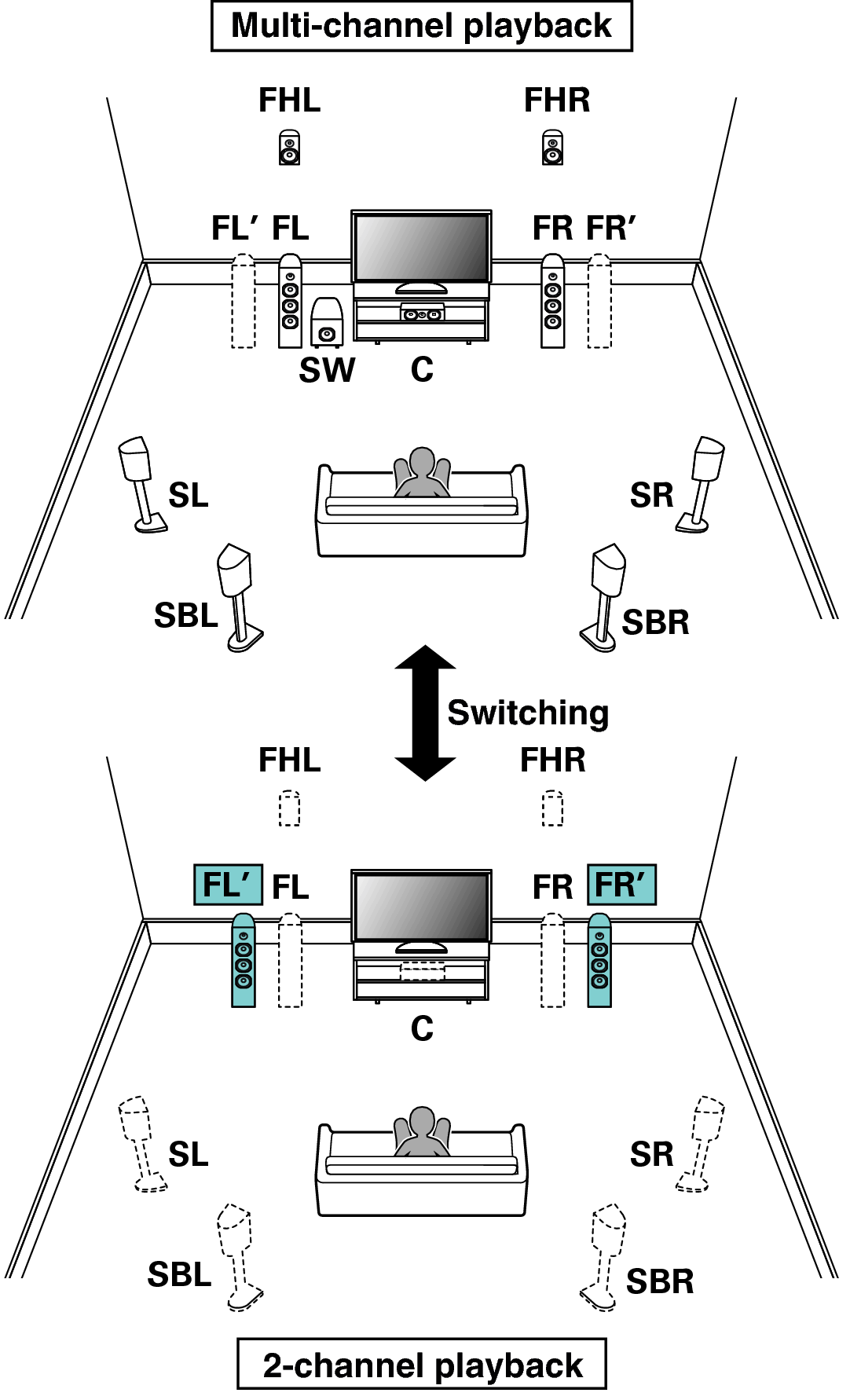

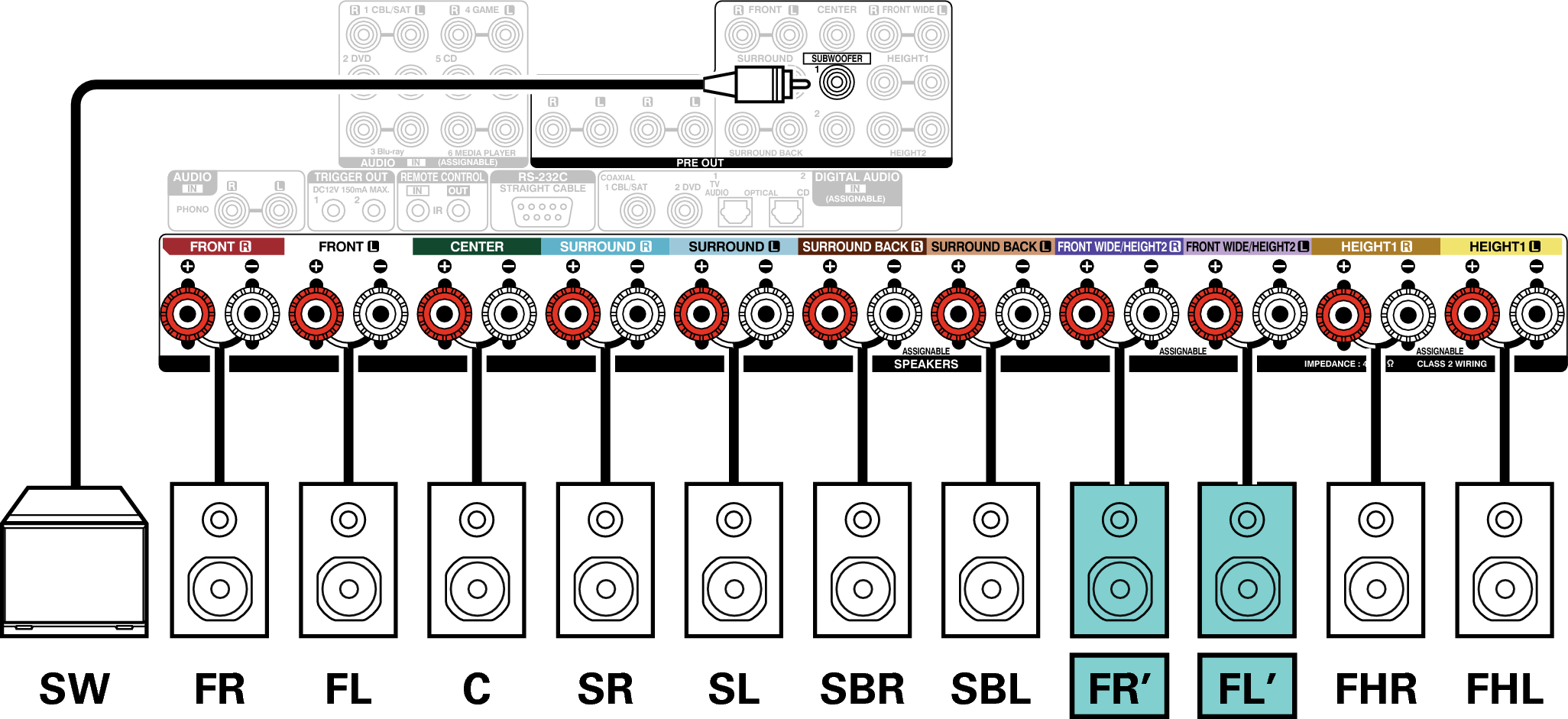

Exclusive 9.1-channel playback + 2-channel playback speakers

You can connect speakers used exclusively for 2-channel playback, which are used for the direct and stereo modes, and speakers used exclusively for 9.1 multi-channel playback. The speakers used exclusively for multi-channel playback and the speakers used exclusively for 2-channel playback are automatically switched for playback in accordance with the sound mode.

Pict SP Layout 9.1 2CH
Conne SP 9.1 2ch AVRX5200WE3

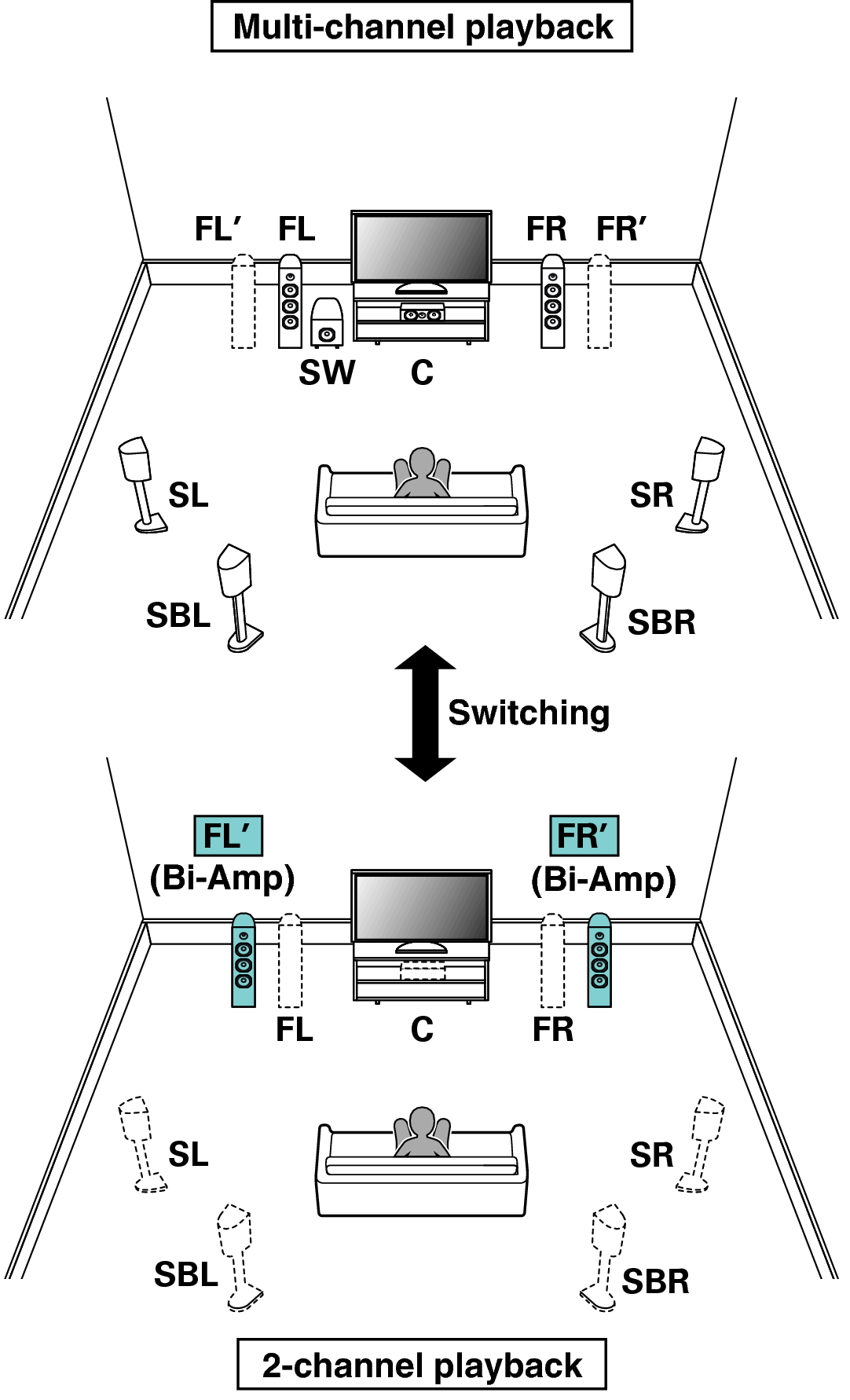

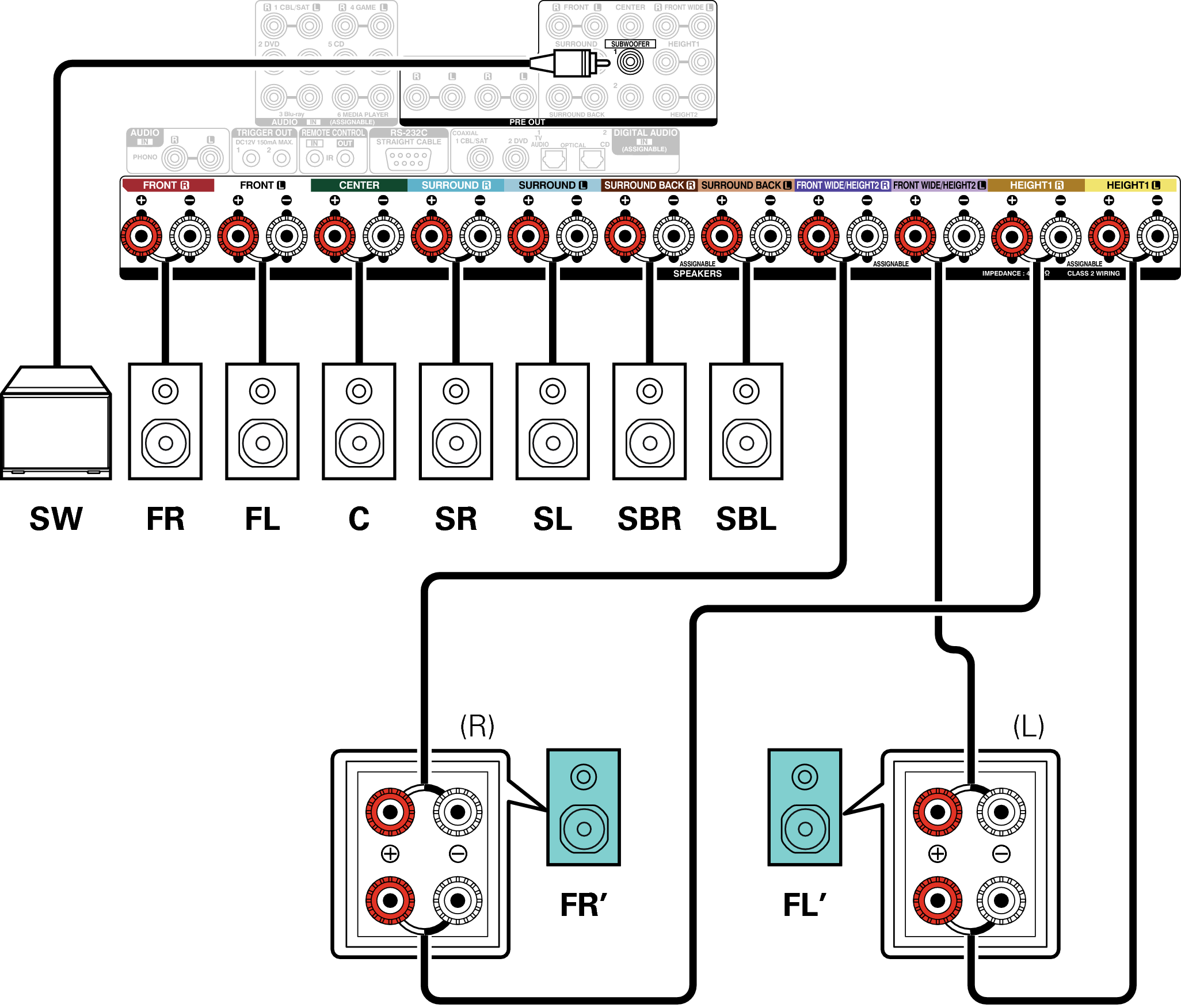

Exclusive 7.1-channel playback + 2-channel playback (bi-amp connection) speakers

You can connect speakers used exclusively for 2-channel playback, which are used for the direct and stereo modes, and speakers used exclusively for 7.1 multi-channel playback. You can use the bi-amp connection for the speakers exclusively used for 2-channel playback. The speakers used exclusively for multi-channel playback and the speakers used exclusively for 2-channel playback are automatically switched for playback in accordance with the sound mode.

Pict SP Layout 7.1 2CH BiAmp
Conne SP 7.1 2ch BiAmp AVRX5200WE3

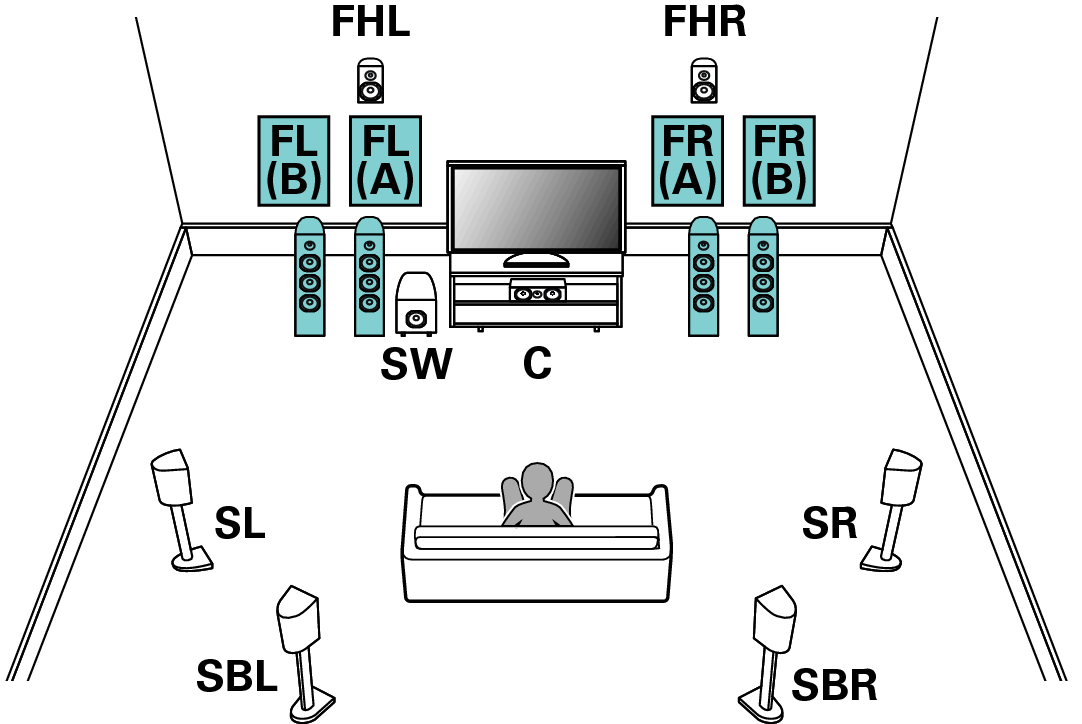

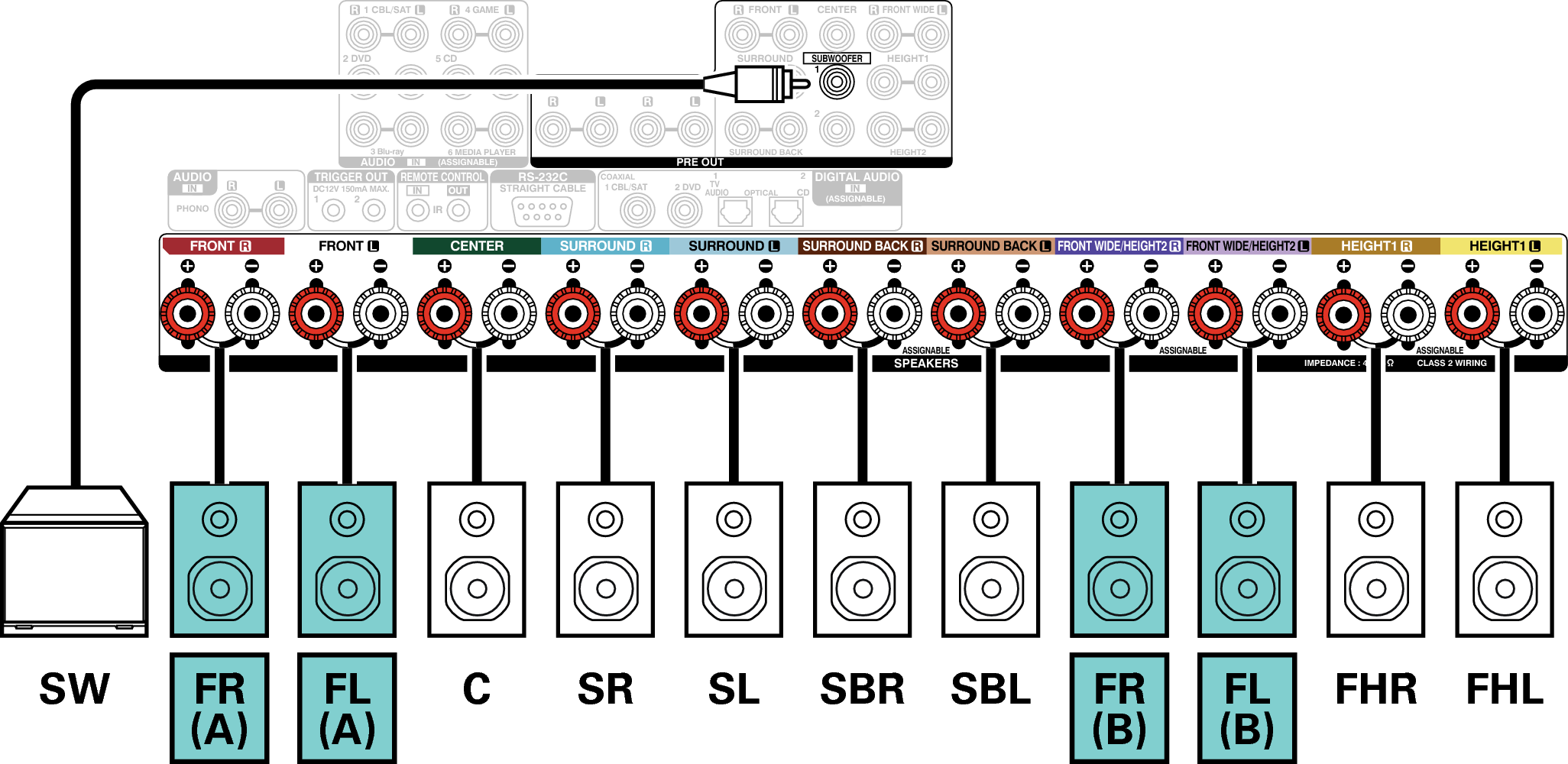

7.1-channel playback + front speakers of second unit

This system enables switching playback between front speakers A and B as desired.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 7.1 FB
Conne SP 7.1 FB AVRX5200WE3

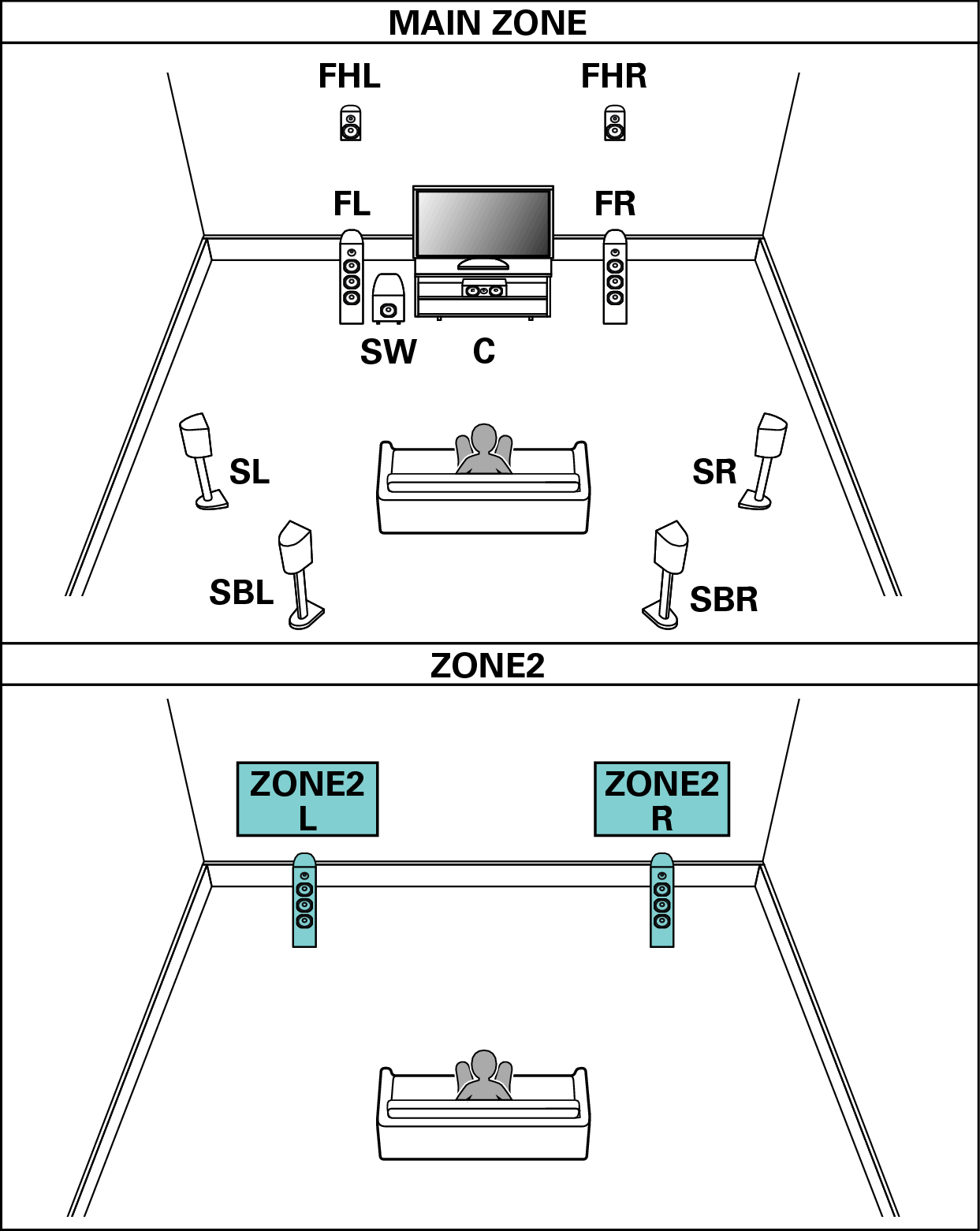

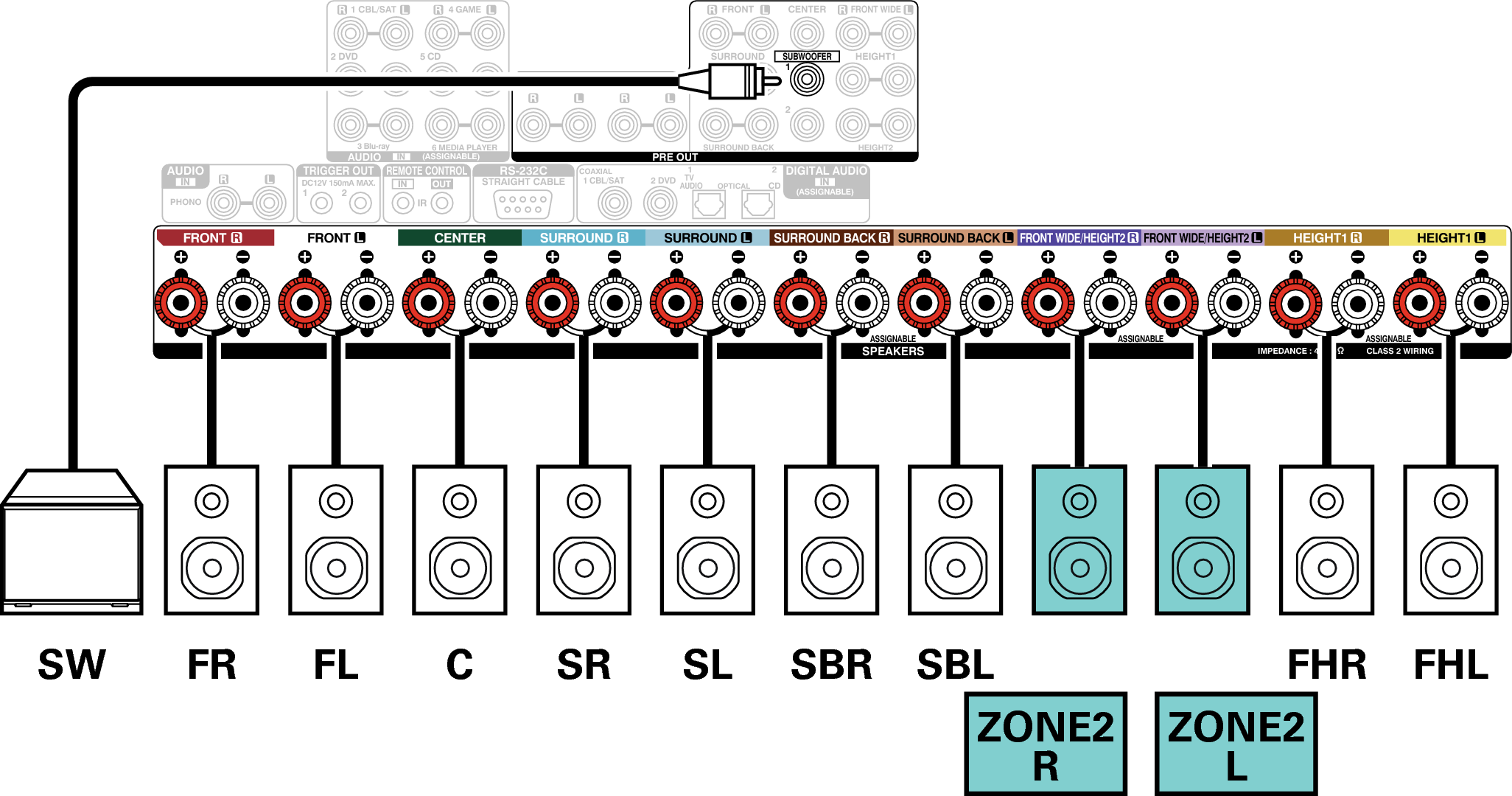

7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3)

This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2.
(Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 7.1ch + ZONE3)).

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 7.1 2ch
Conne SP 7.1 2ch AVRX5200WE3

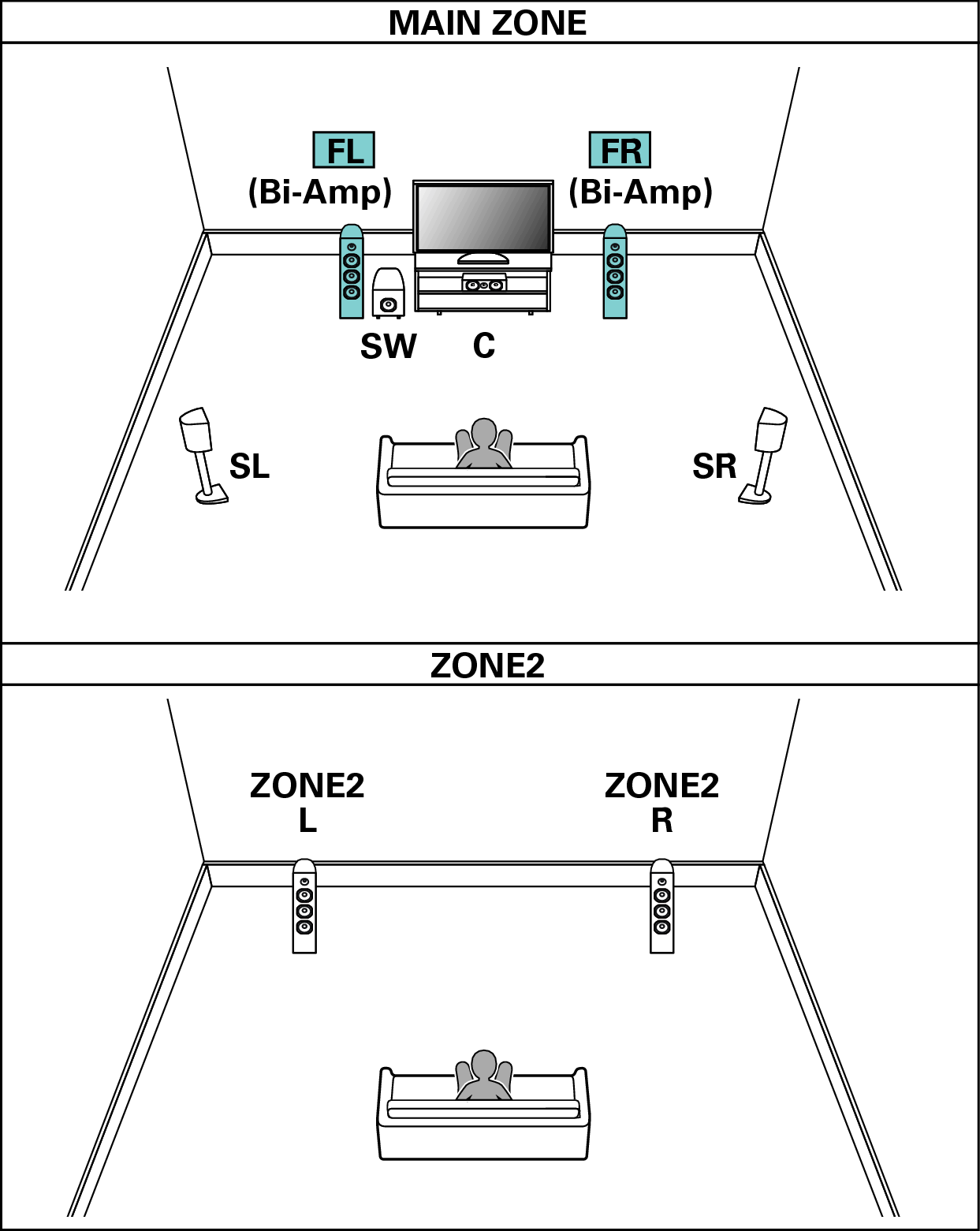

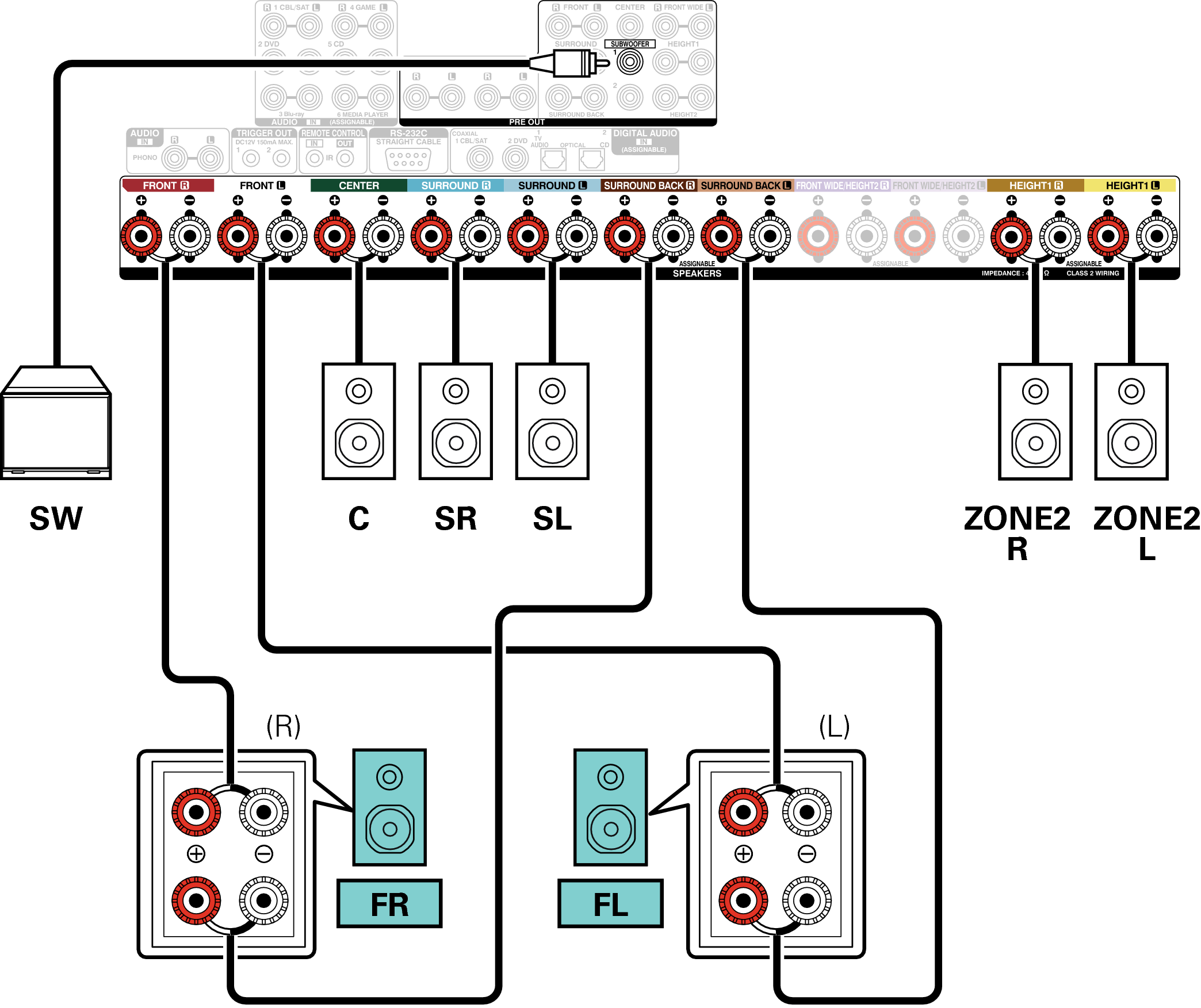

5.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2)

This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.

Pict SP Layout 5.1 BiAmp 2ch
Conne SP 5.1 BiAmp 2ch AVRX5200WE3

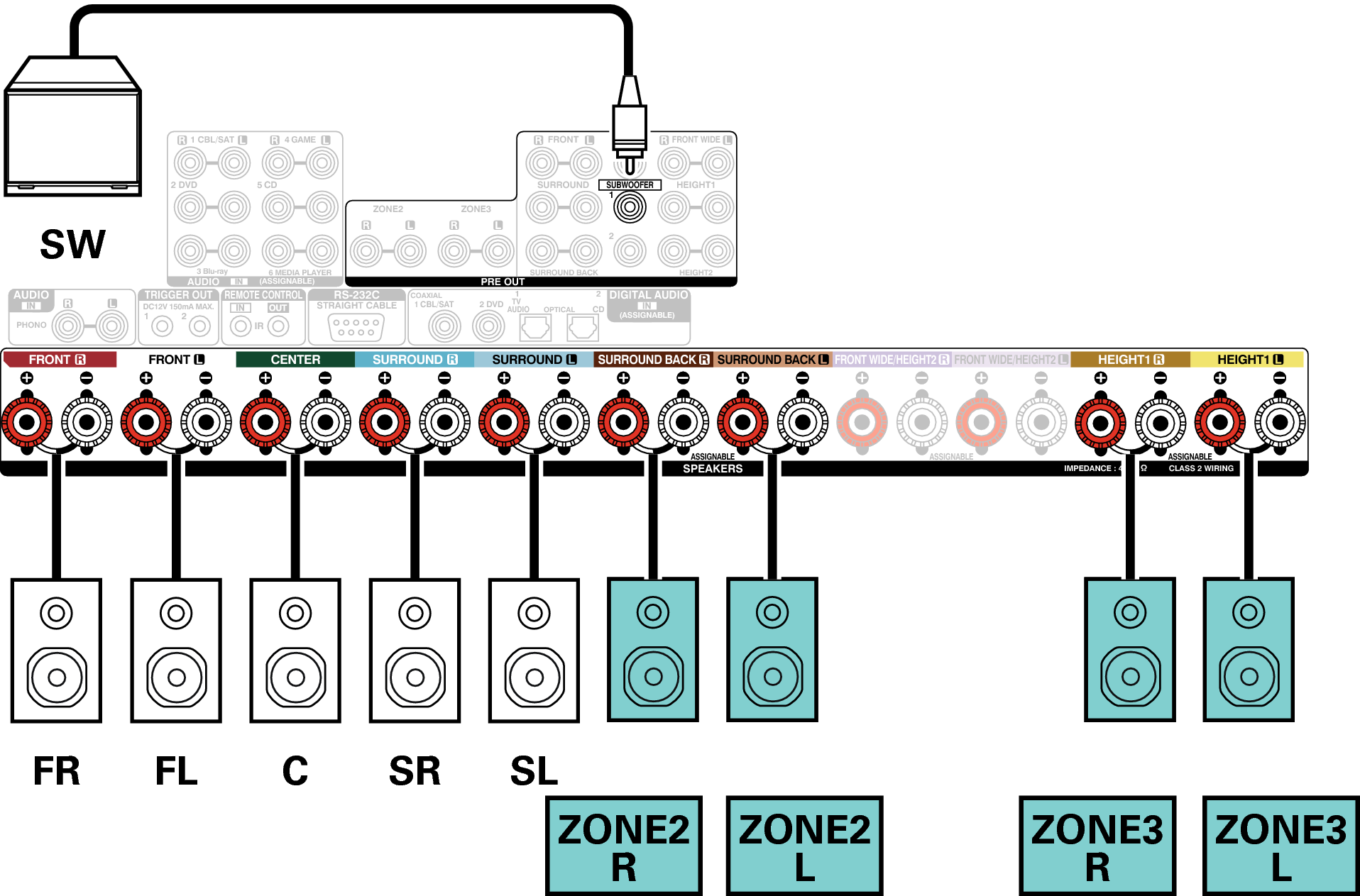

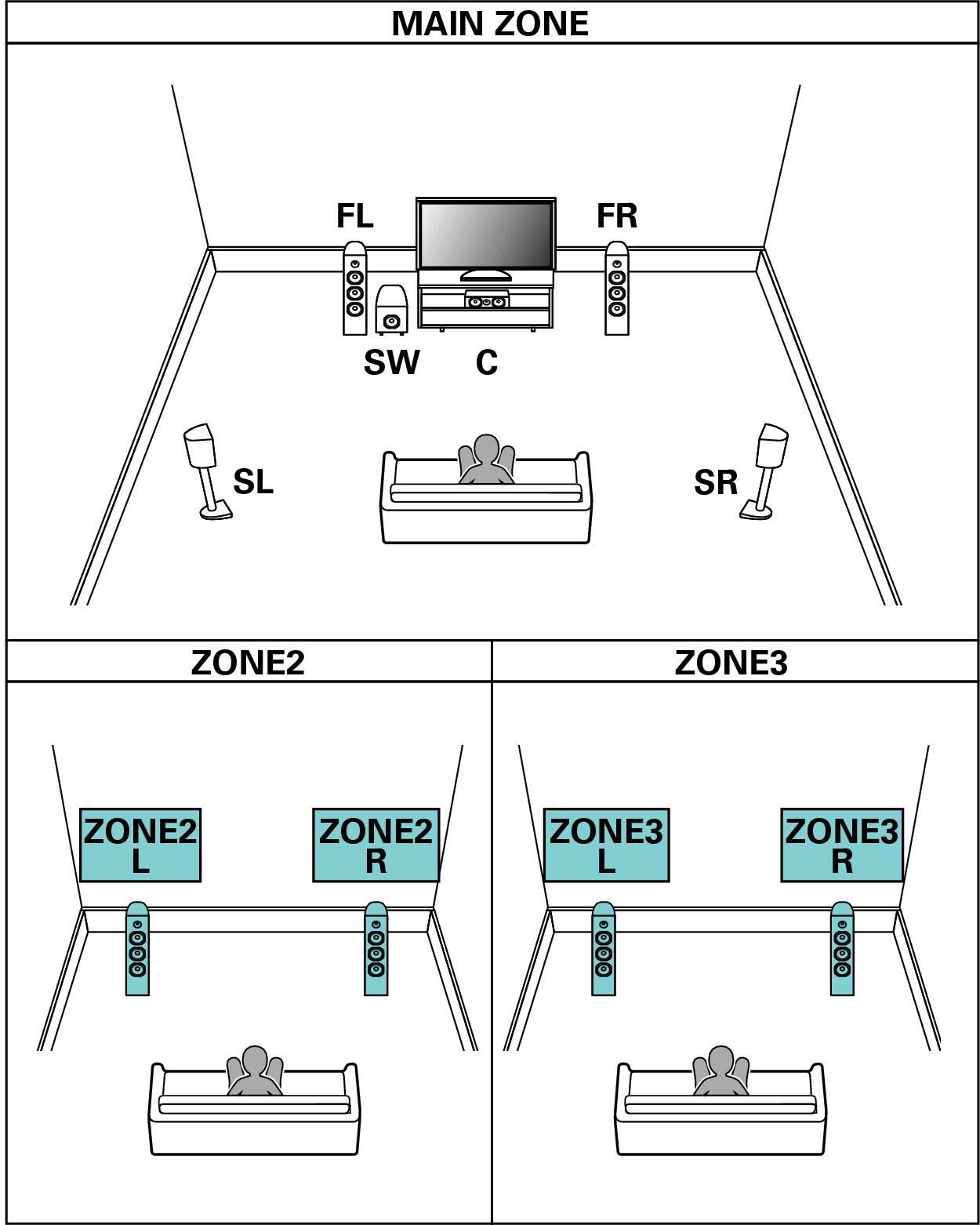

5.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3)

This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3.

Pict SP Layout 5.1 2ch
Conne SP 5.1 2ch AVRX5200WE3

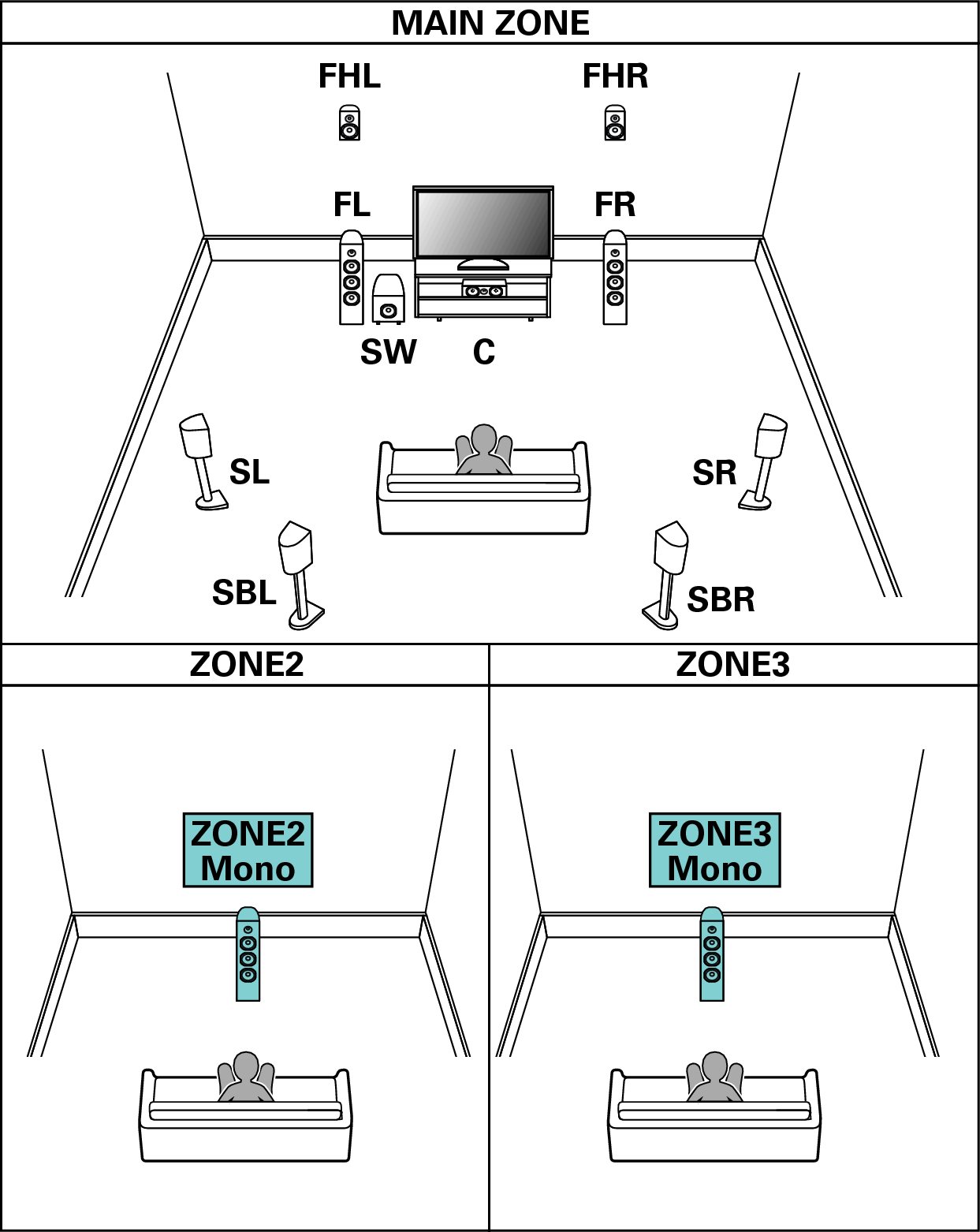

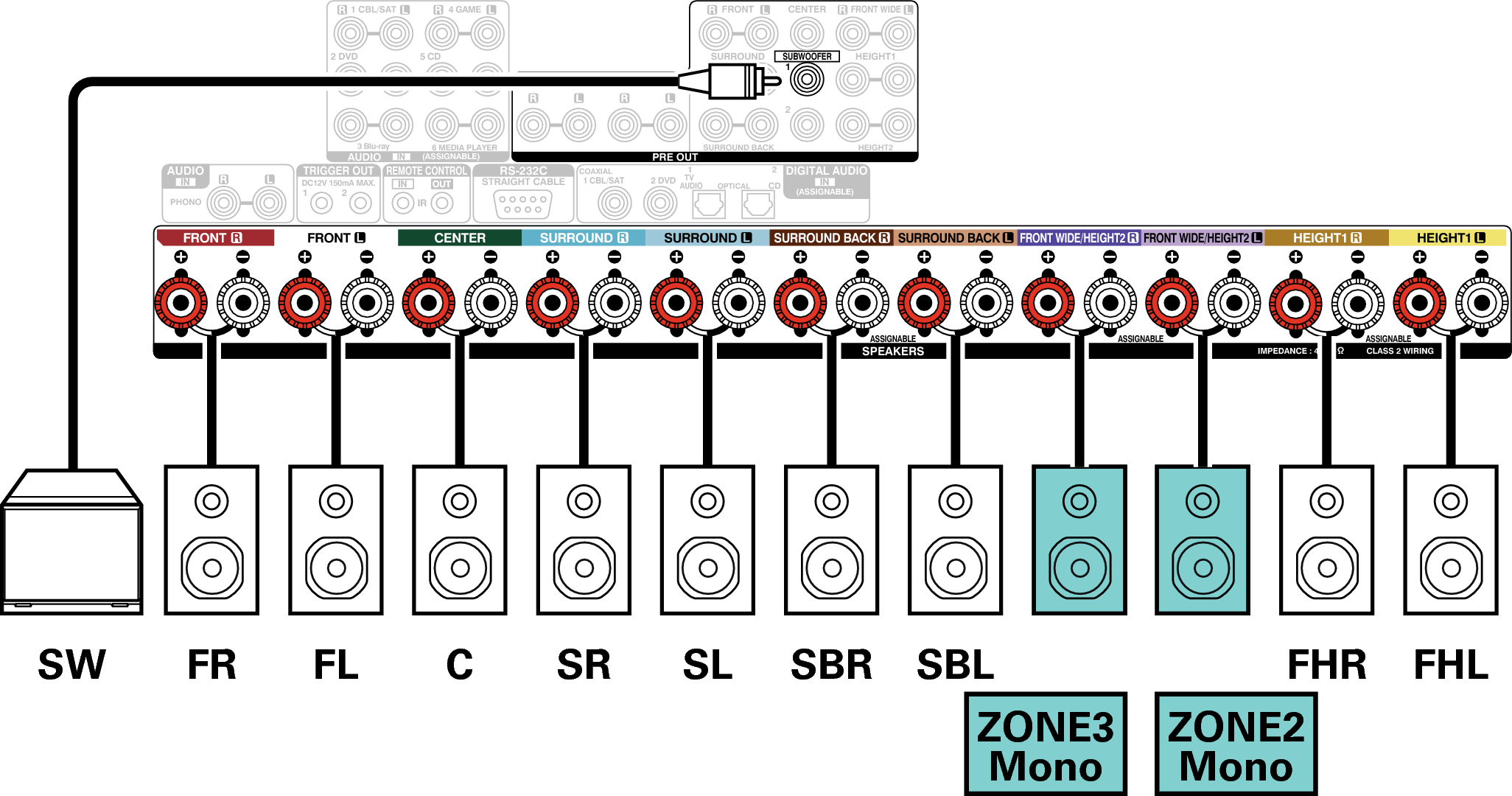

7.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3)

This type of configuration plays back 7.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3.

You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.

Pict SP Layout 7.1 1ch
Conne SP 7.1 1ch AVRX5200WE3

Dolby Atmos

This speaker configuration is optimized for Dolby Atmos playback.

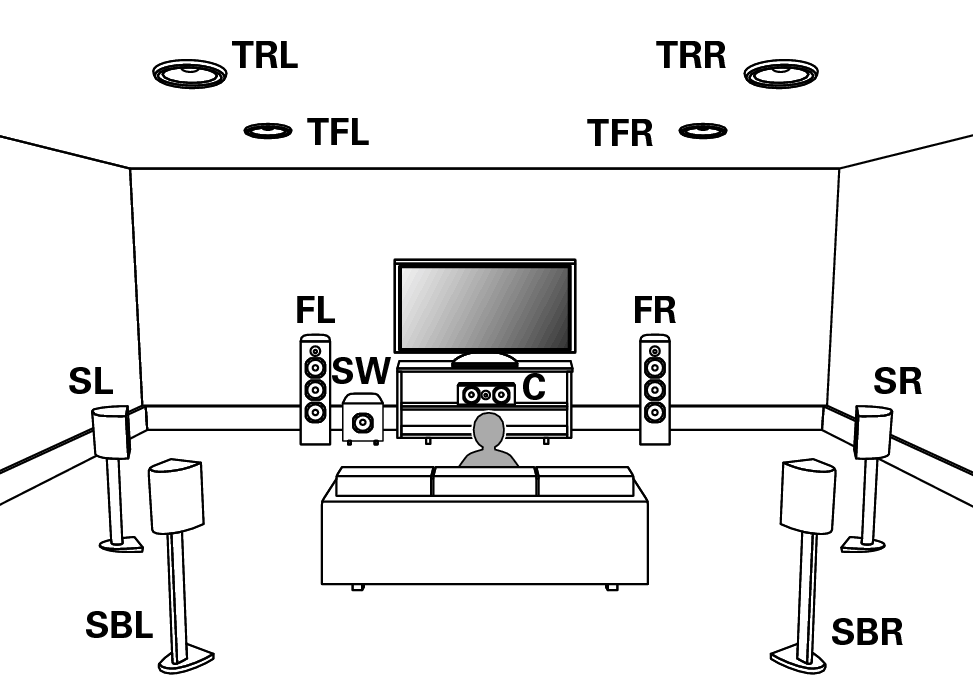

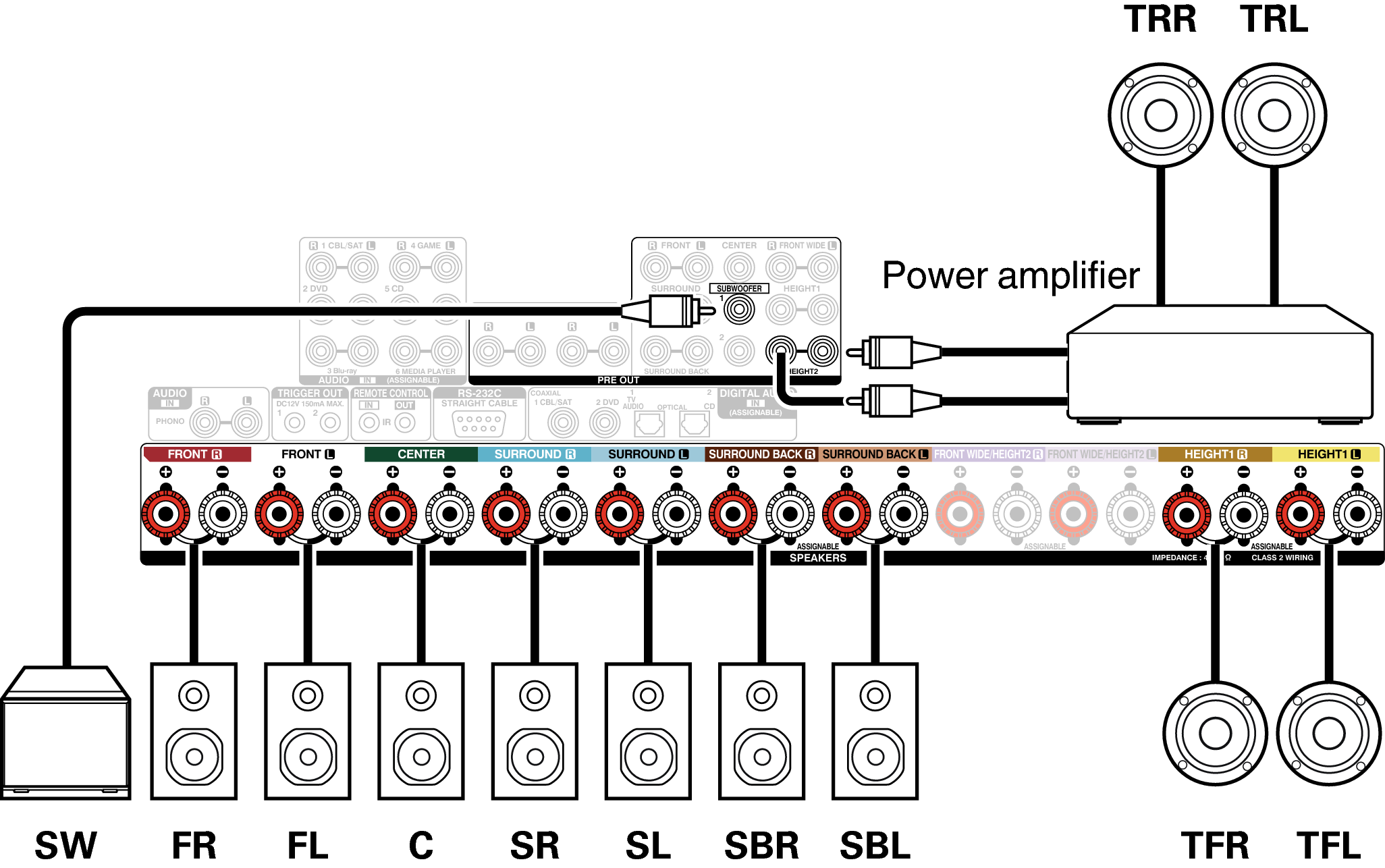

11.1-channel system

This system configuration plays back 11.1-channels by using an external power amplifier.

Pict SP Layout Dolby Atmos 11CH
Conne SP Dolby Atmos 11CH AVRX5200WE3

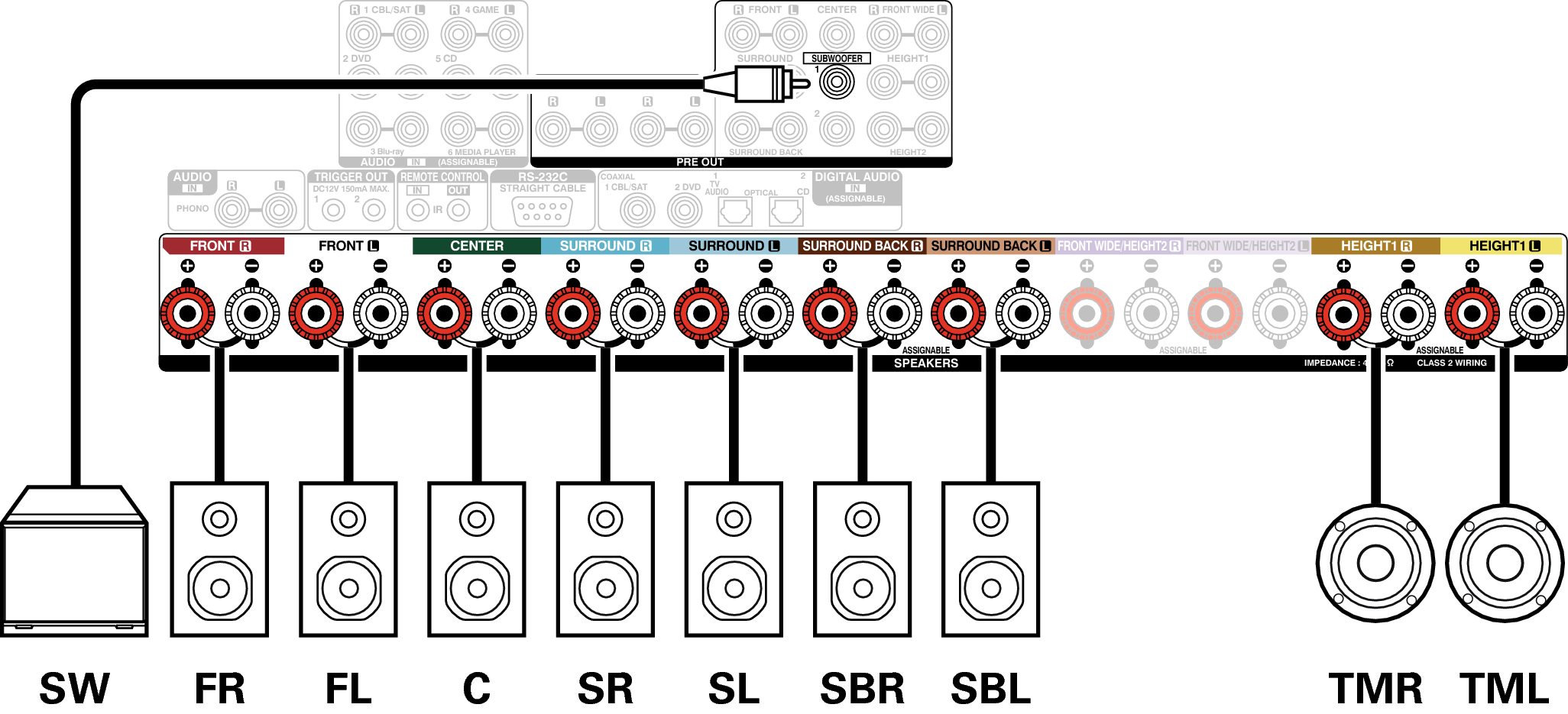

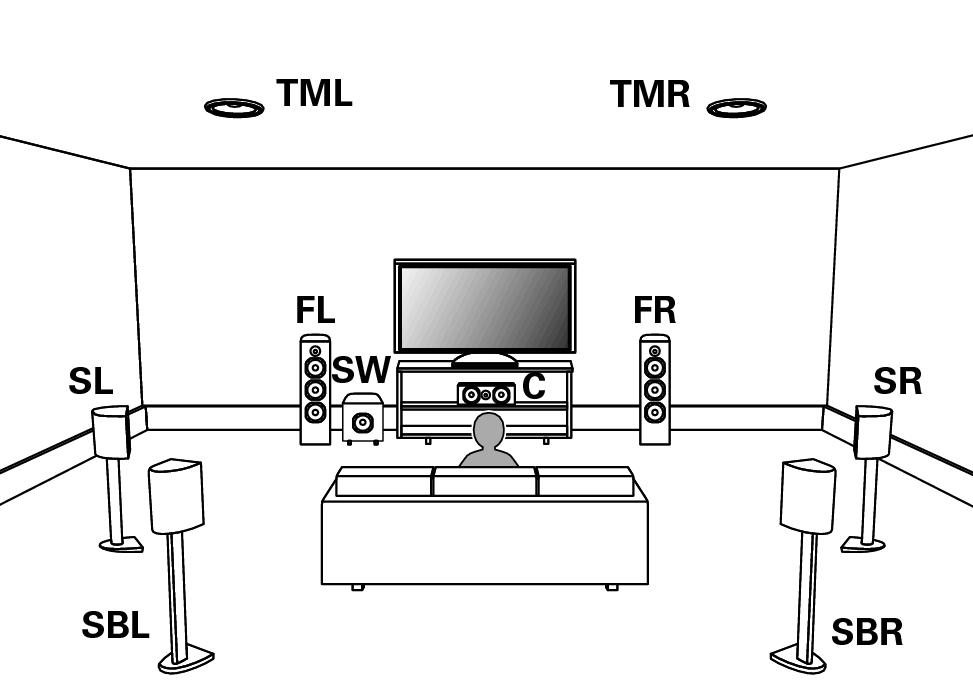

9.1-channel system

This configuration uses only this unit for Dolby Atmos playback.

Pict SP Layout Dolby Atmos 9CH
Conne SP Dolby Atmos 9CH AVRX5200WE3

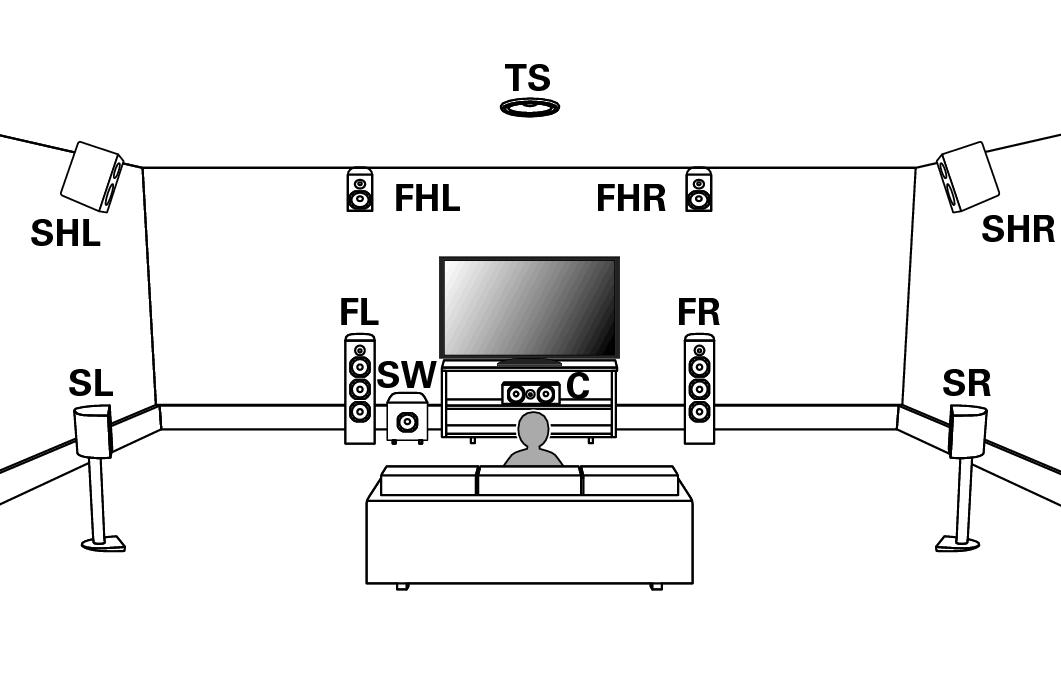

Upgrade (Auro-3D)

Auro-3D

This speaker configuration is optimized for Auro-3D playback.

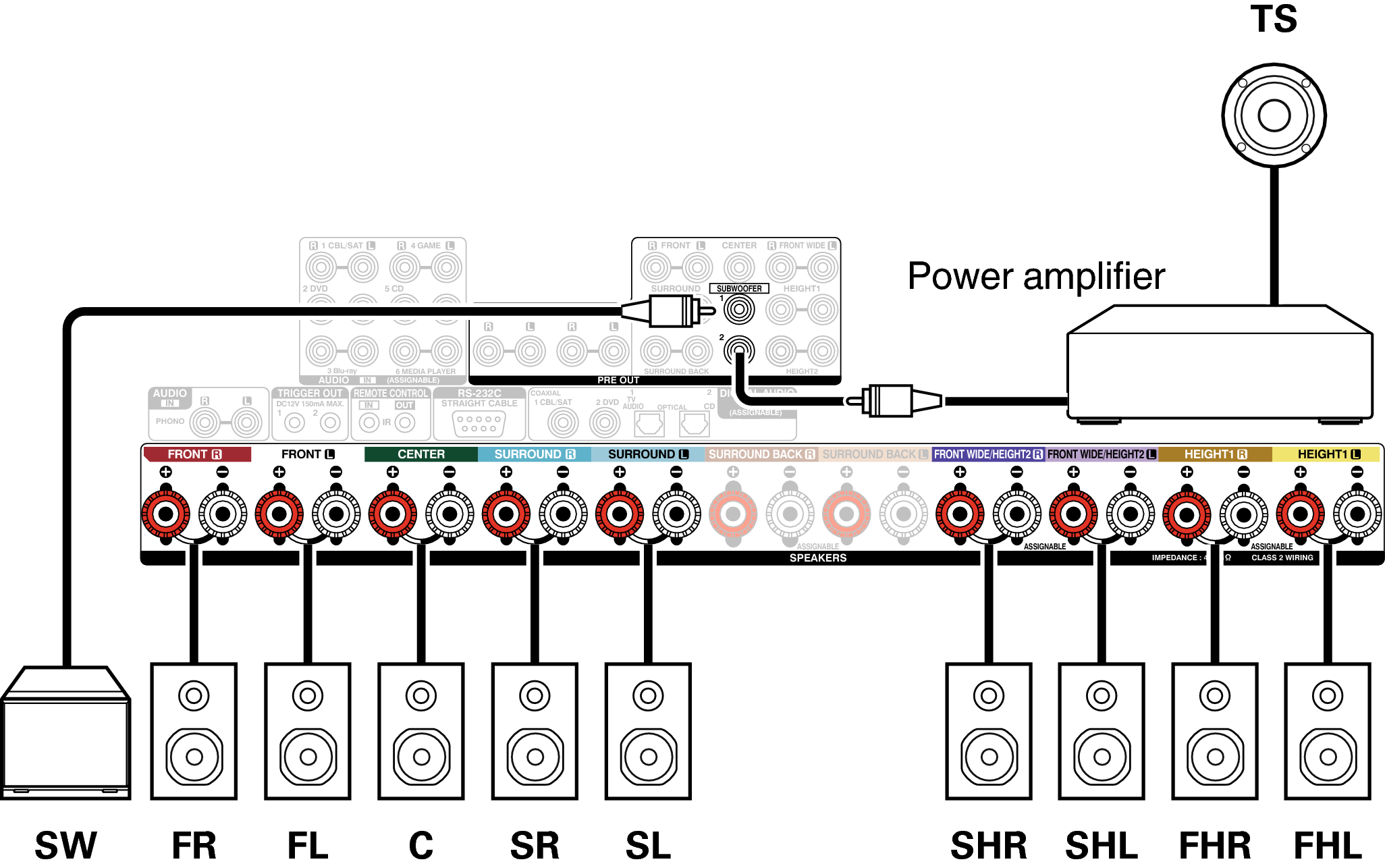

9.1/10.1-channel system

Top surround speaker is optional for Auro-3D. Connect an external amplifier to Subwoofer 2 pre out, to enjoy 10.1 channels of Auro-3D.

Pict SP Position Auro3D
Conne SP 9.1_10.1 AVRX5200WE3

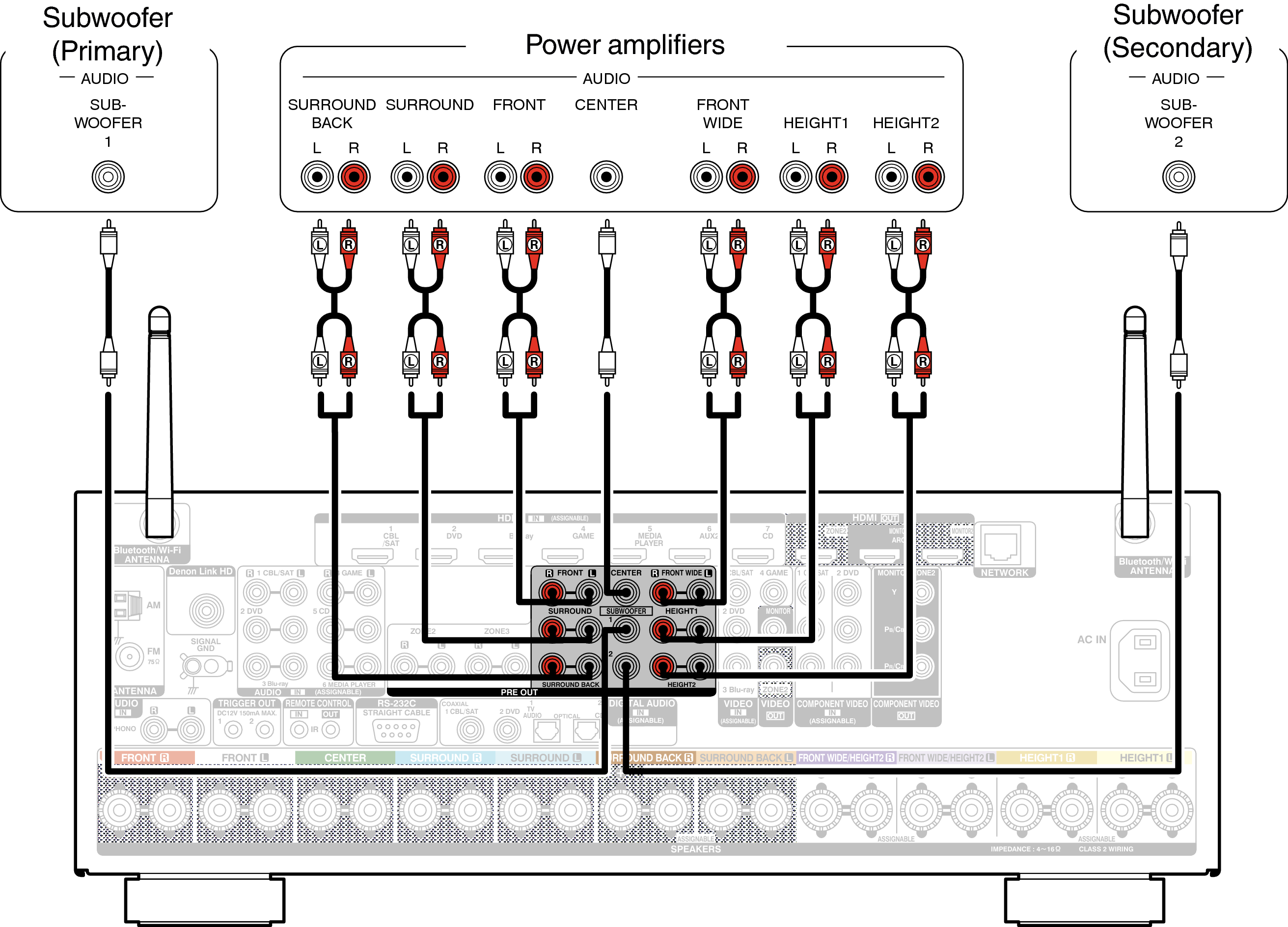

Connecting an external power amplifier

You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced.

Select the terminal to use and connect the device.

Conne ExtIn AVRX5200WE3

When using just one surround back speaker, connect it to the left channel (L) terminal.
