Remote control unit

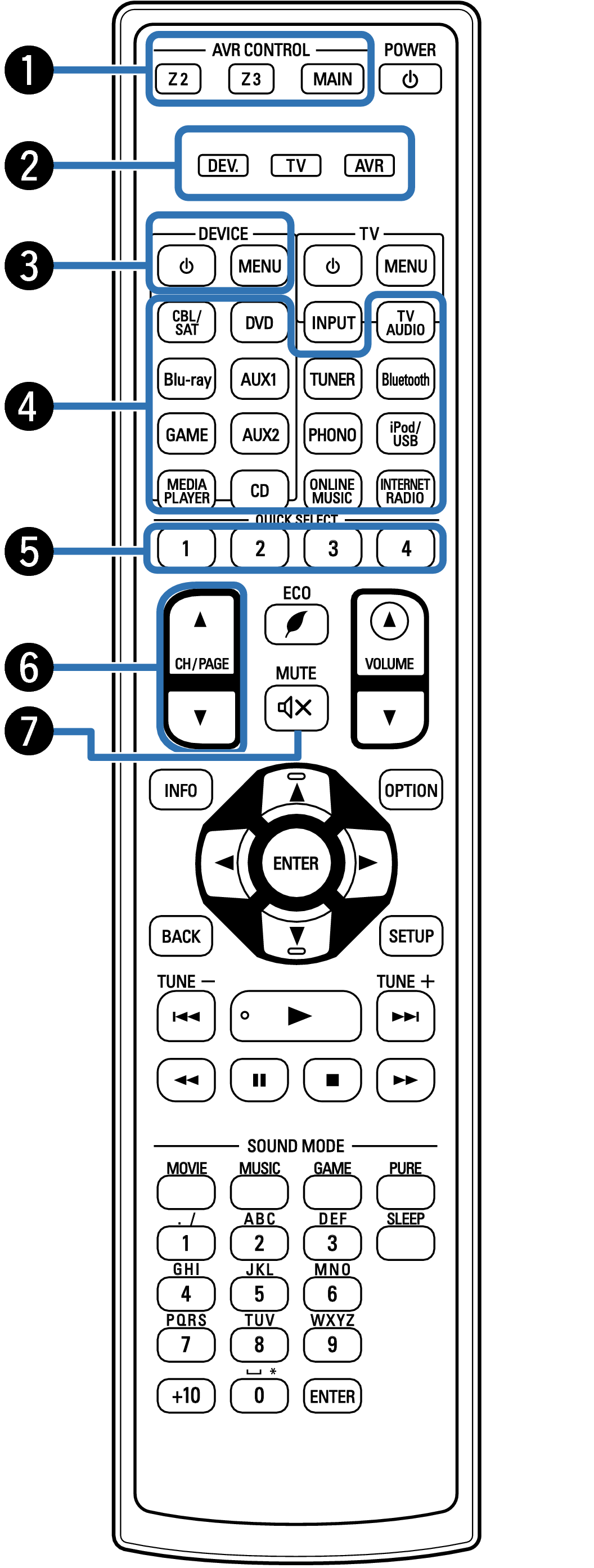

Name RC1193

AVR operation buttons (AVR CONTROL MAIN, Z2, Z3)

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. link, link

Operation mode indicators

The “AVR” operation mode indicator lights when the unit is being operated.
The “DEV.” indicator lights when an external device is being operated.
The “TV” indicator lights when the TV is being operated.

Device operation buttons (DEVICE  Power Button  / DEVICE MENU)

These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link

Input source select buttons

These select the input source. link, link

QUICK SELECT buttons (1 – 4)

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

Channel/page search buttons (CH/PAGE  kurosankaku Sankaku-Reverse )

These select radio stations registered to presets or switch pages. link, link

MUTE button ( Silent )

This mutes the output audio. link, link

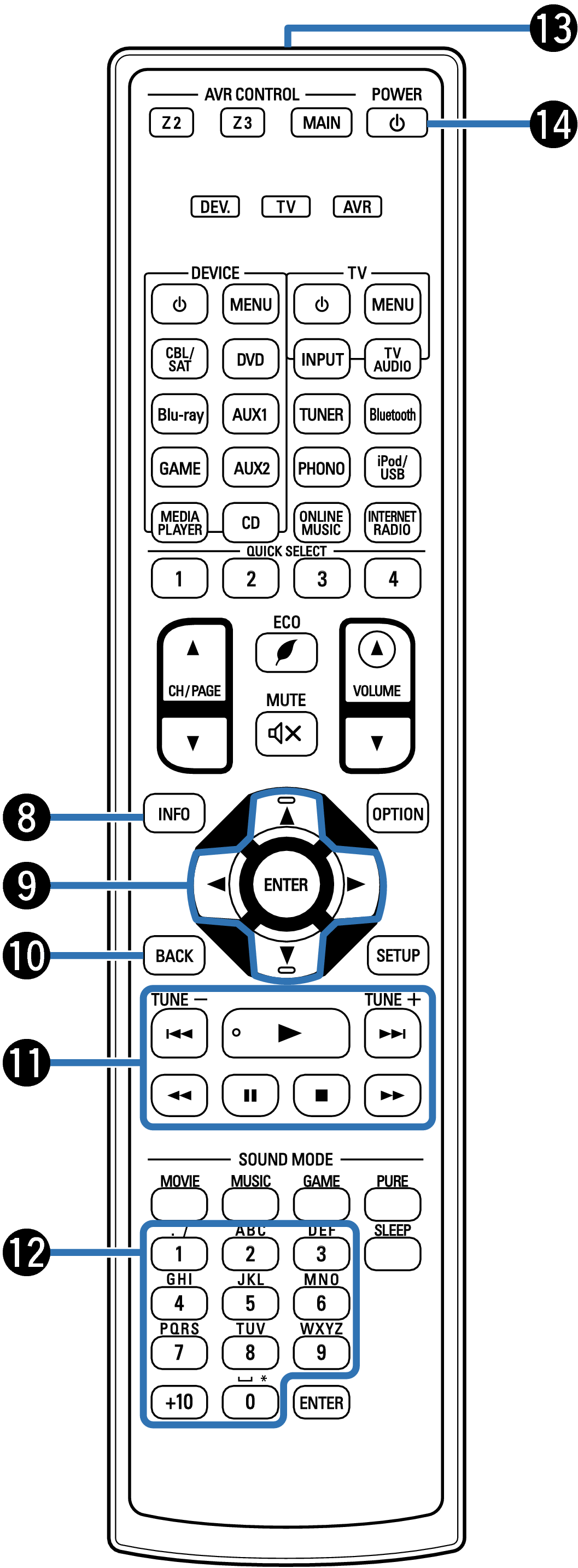

Name RC1193-2

Information button (INFO)

This displays the status information on the TV screen. link

Cursor buttons ( shirosankaku shirosankaku-Reverse White-Arrow-Left White-Arrow-Right )

These select items. link

BACK button

This returns to the previous screen. link

System buttons

These perform playback related operations. link

Skip buttons ( Skip-Left , Skip-Right )

Play button ( Triangle Right )

Search buttons ( Rewind , Forward )

Pause button ( Pause )

Stop button ( Square Black )

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

Number / Character buttons

These enter letters or numbers into the unit. link, link

Remote control signal transmitter

This transmits signals from the remote control unit. link

POWER button ( Power Button )

This turns the power on/off. link, link

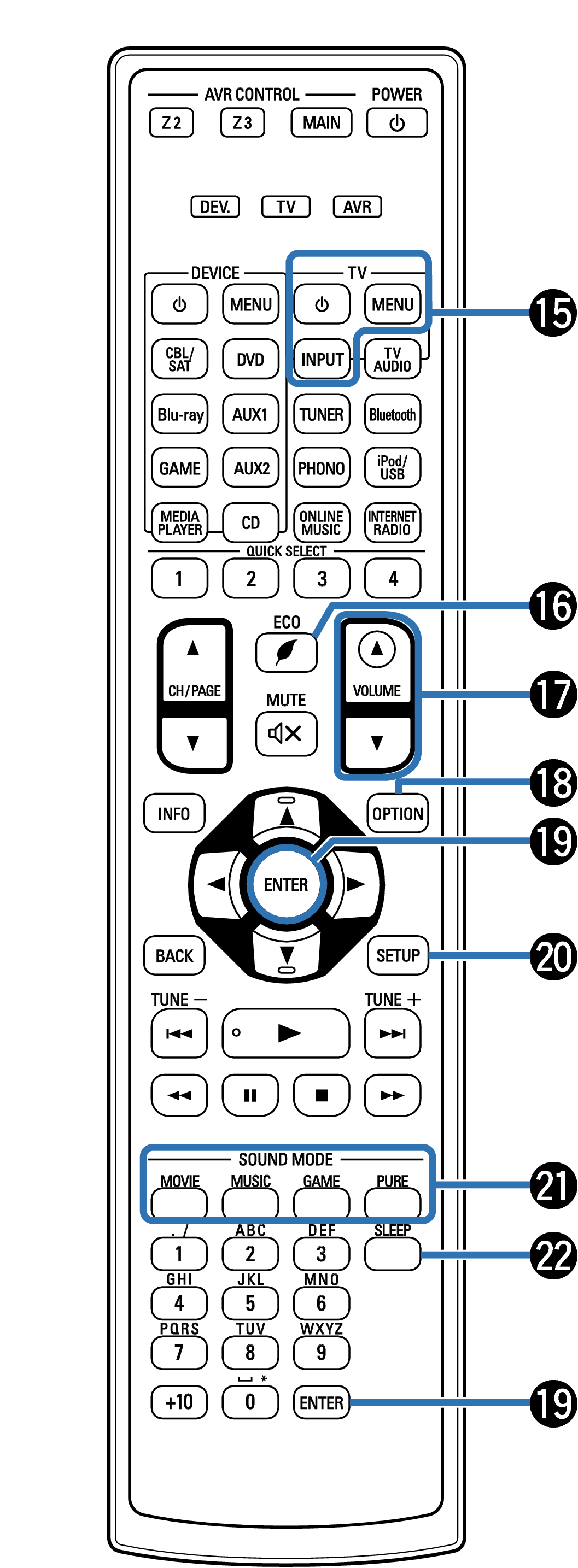

Name RC1193-3

TV operation buttons (TV  Power Button  / TV MENU / TV INPUT)

These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link

ECO Mode button ( Icon Eco )

This switches to ECO Mode. link

VOLUME buttons ( kurosankaku Sankaku-Reverse )

These adjust the volume level. link, link

OPTION button

This displays the option menu on the TV screen. link

ENTER button

This determines the selection. link

SETUP button

This displays the menu on the TV screen. link

SOUND MODE buttons

These select the sound mode. link

MOVIE button

MUSIC button

GAME button

PURE button

SLEEP button

This sets the sleep timer. link
