Remote control unit

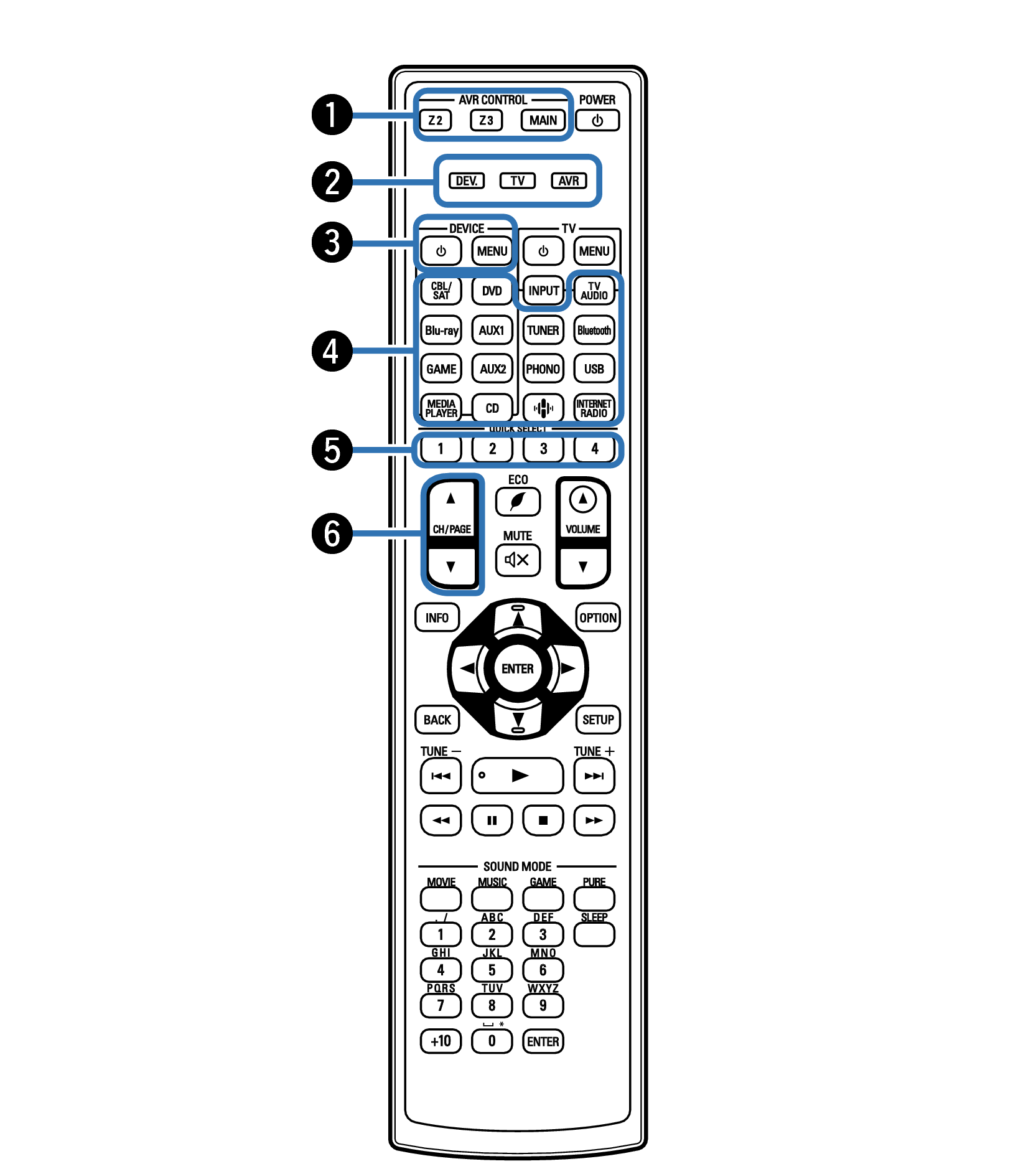

These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit.

The “AVR” operation mode indicator lights when the unit is being operated.
The “DEV.” indicator lights when an external device is being operated.
The “TV” indicator lights when the TV is being operated.

These turn the power of external devices on/off and call up menus. Preset codes need to be registered in order to use these buttons. link

These select the input source.

These call up settings registered to each button, such as input source, volume level and sound mode settings. link

These select radio stations registered to presets or switch pages. link

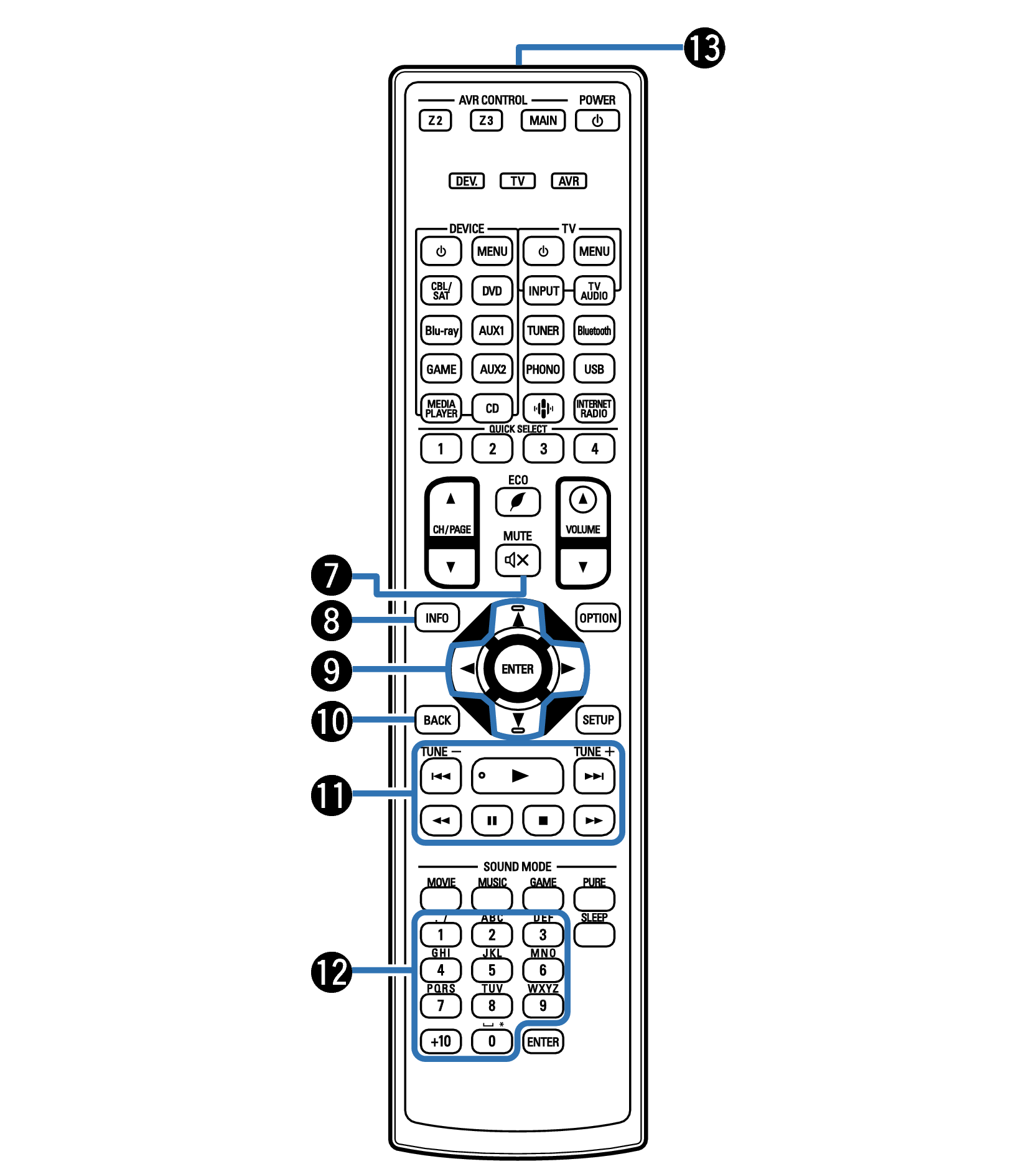

This mutes the output audio.

This displays the status information on the TV screen. link

These select items.

This returns to the previous screen.

These perform playback related operations.

Tuning up / Tuning down buttons (TUNE +, –)

These select either FM broadcast or AM broadcast. link

These enter letters or numbers into the unit.

This transmits signals from the remote control unit. link

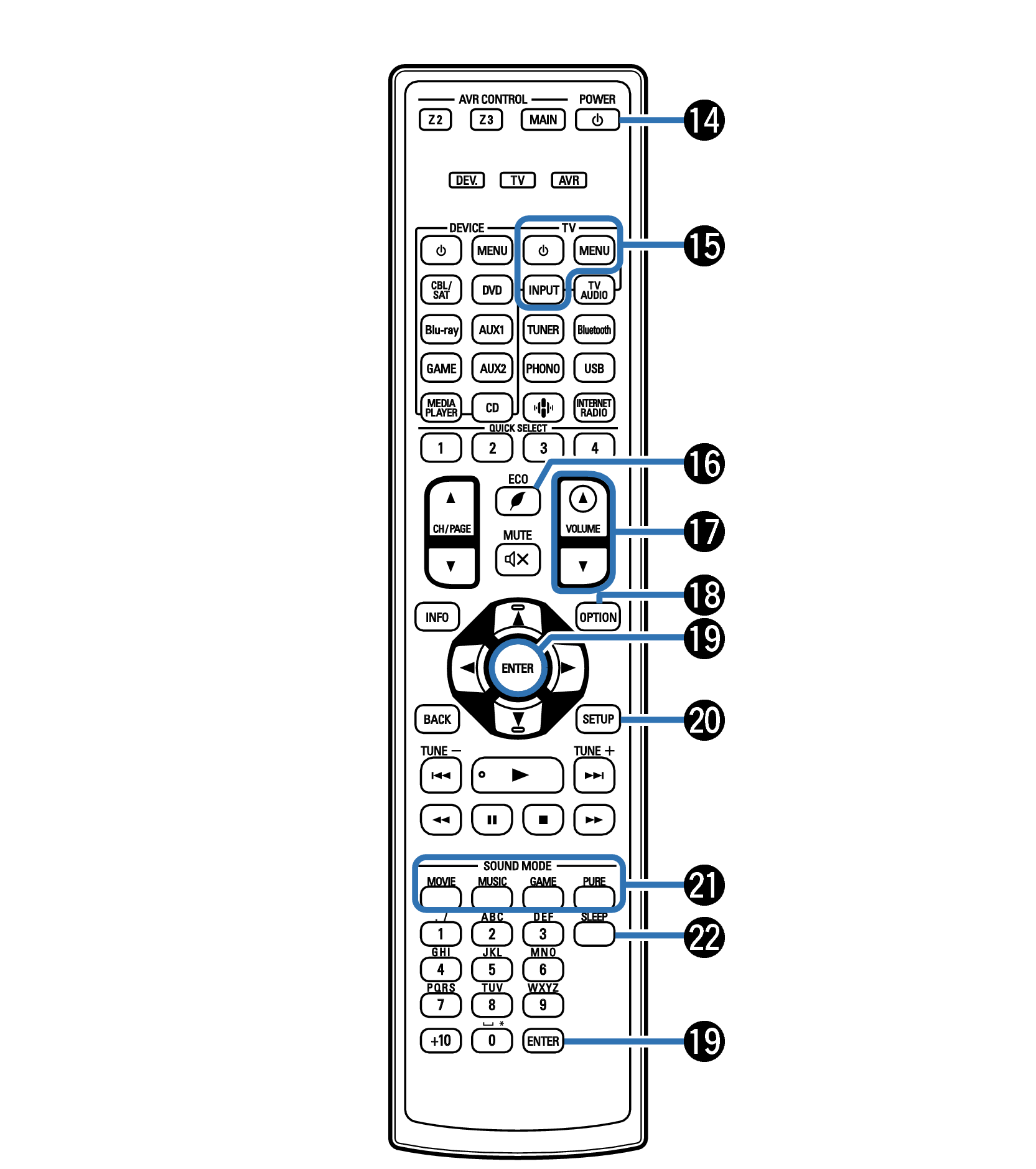

This turns the power on/off.

These turn the TV power on/off, switch the TV input and call up menus. Preset codes need to be registered in order to use these buttons. link

This switches to ECO Mode. link

These adjust the volume level.

This displays the option menu on the TV screen.

This determines the selection.

This displays the menu on the TV screen. link

These select the sound mode. link

This sets the sleep timer. link
