Remote control unit

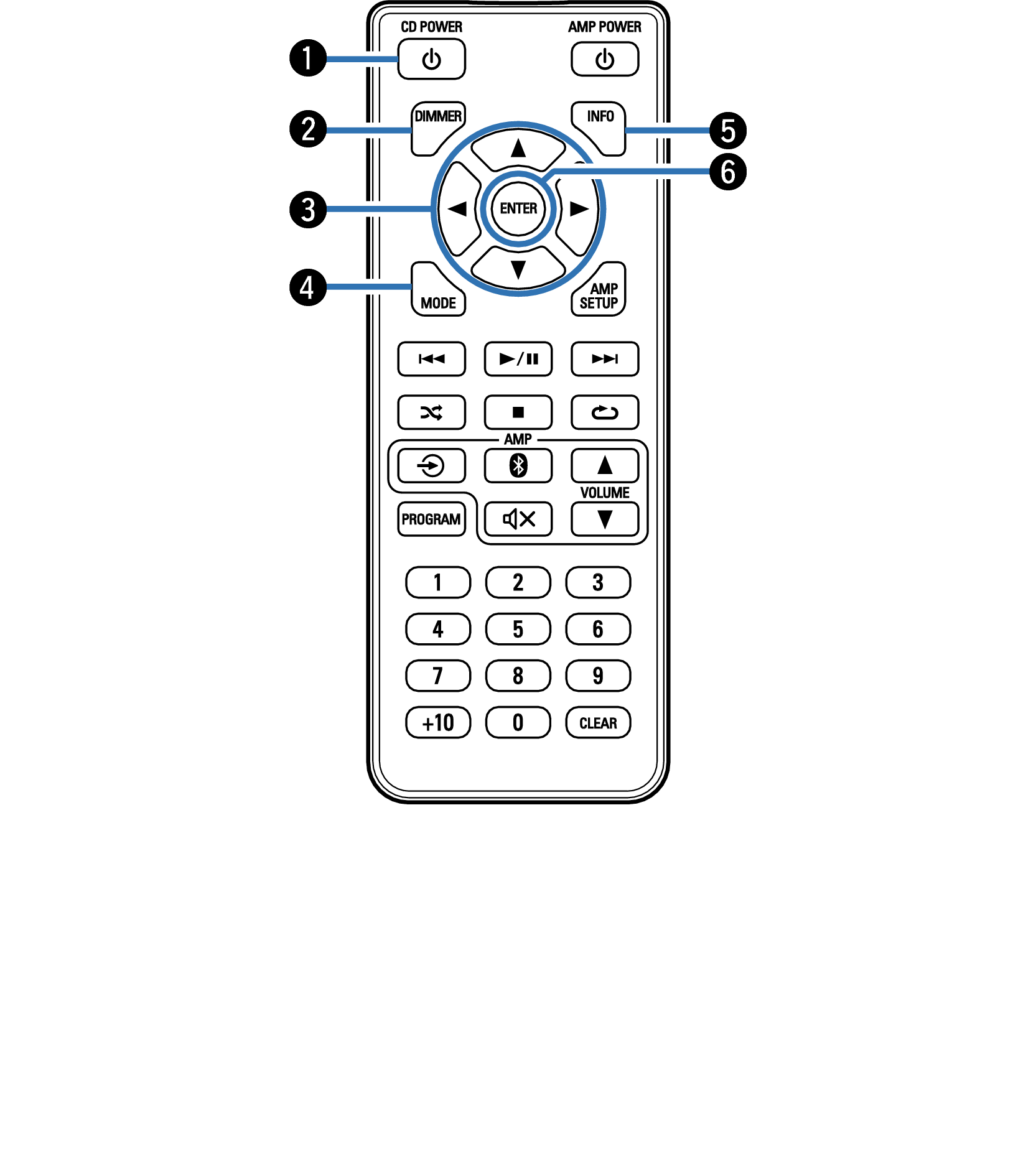

Operating this unit
Power operation button (
)
This turns the power on/to standby.
DIMMER button
Adjust the display brightness of this unit. link
Cursor buttons (
)
These select folders or files on a data CD.
MODE button
This switches the playback mode. link
INFO button
This switches the track information shown in the display during playback. This switches the playback time display.
ENTER button
This determines the selection.
The DIMMER button also controls the Denon's Integrated Amplifier PMA-50, so the PMA-50 can be operated simultaneously with the DCD-50. When the two units have different settings, press and hold in the button for lease 2 seconds to reset them both to the default setting, then make the desired setting.
The display brightness is set to “Normal” by default.

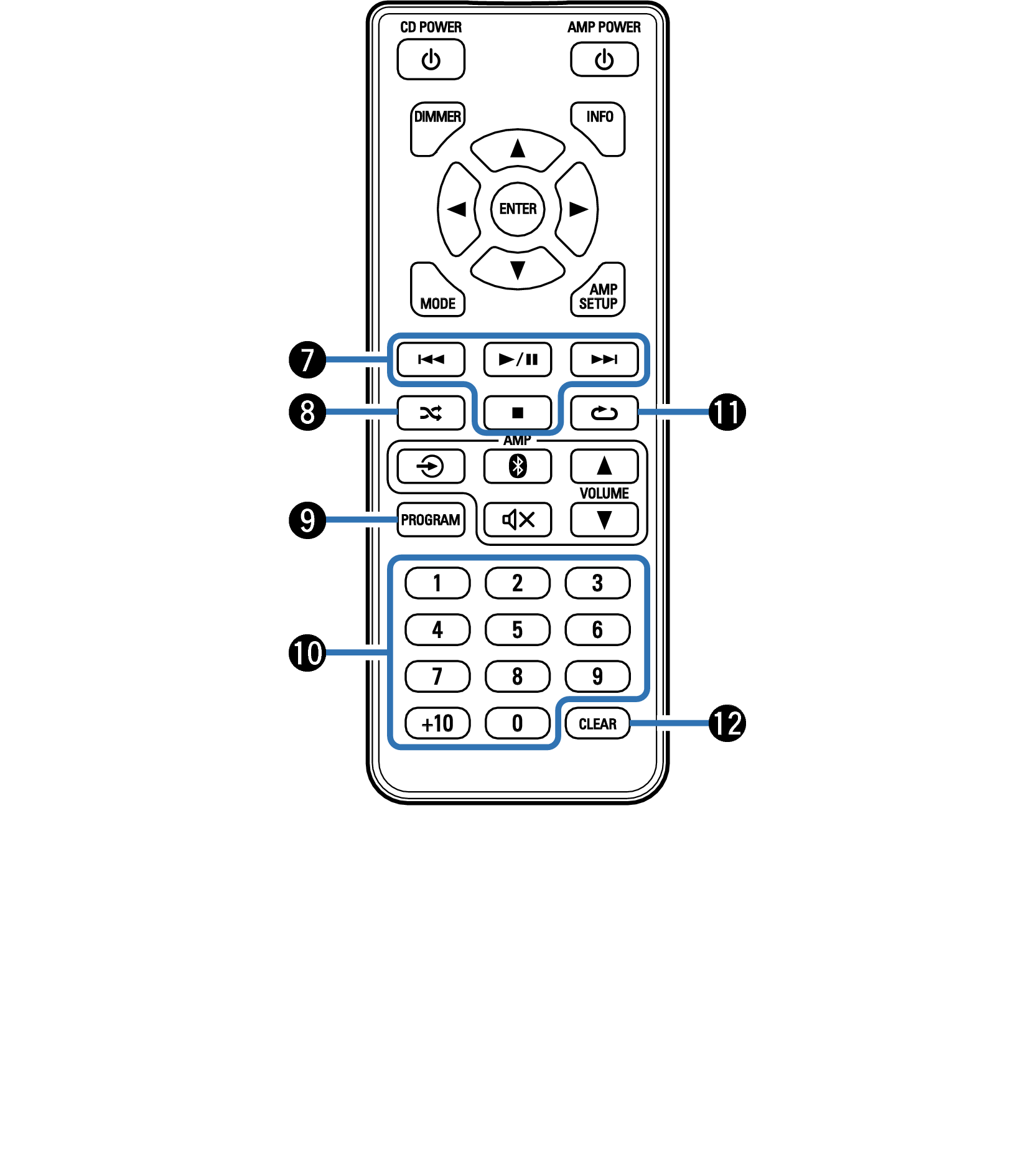

System buttons
These perform playback related operations.
Skip buttons (
/
)
Play/pause button ( /
)
Stop button (
)
Random button (
)
Switches the random playback.
PROGRAM button
This sets program playback. link
Number buttons (0～9, +10)
These enter numbers into the unit.
Repeat button (
)
Switches the repeat playback.
CLEAR button
This clears the program registration.

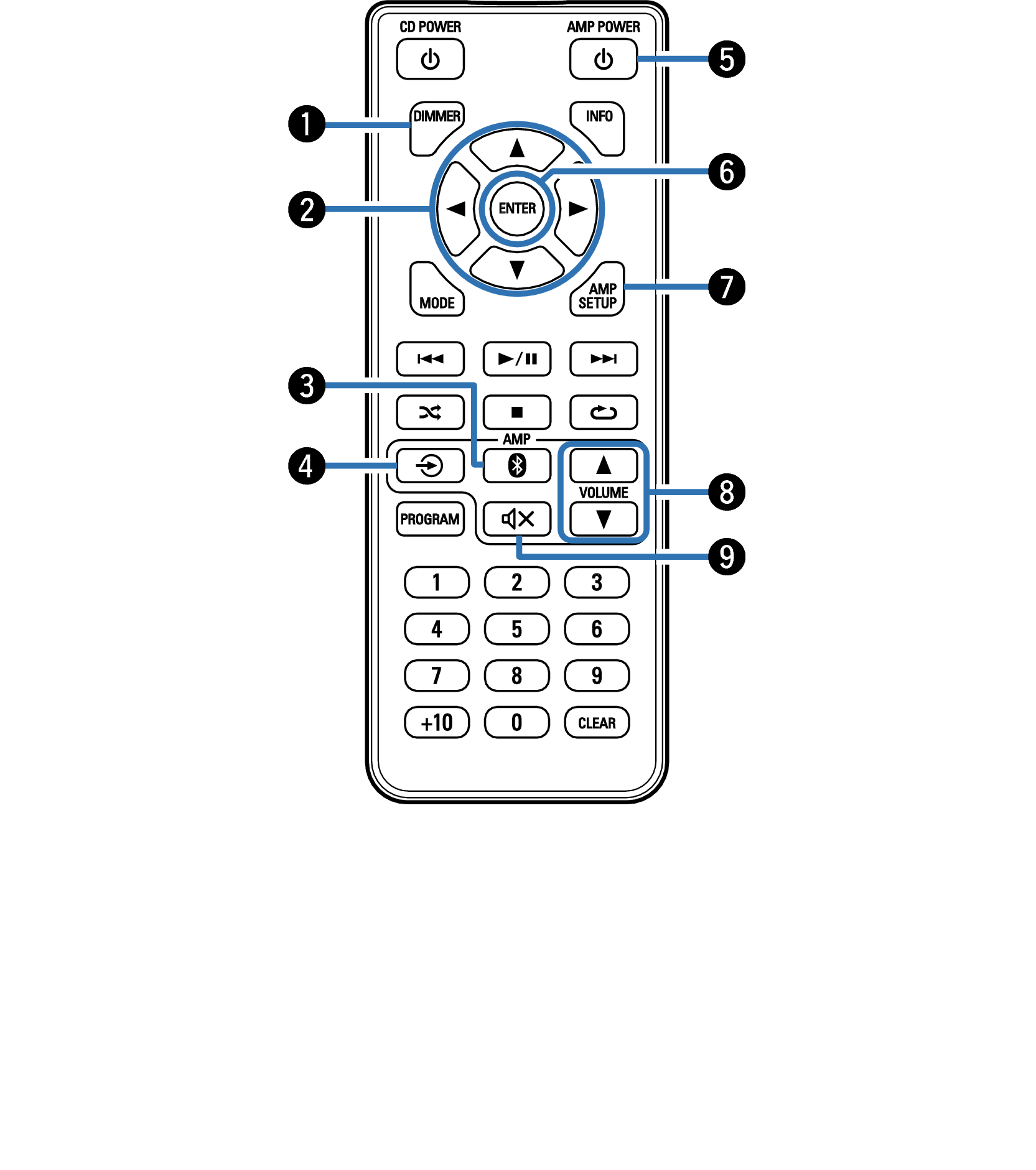

Amplifier operations
DIMMER button
Adjust the display brightness.
Cursor buttons ( )
These select menu items.
Bluetooth button (
)
This switches the input to Bluetooth of PMA-50. This is also pressed during the pairing operation.
Input source switching button (
)
This switches input sources of PMA-50.
AMP POWER button ( )
This turns the power of PMA-50 on/to standby.
ENTER button
This determines the selection.
AMP SETUP button
The setting menu is displayed on the display of PMA-50.
VOLUME button ( )
These adjusts the volume level.
Mute button (
)
This mutes the output audio of PMA-50.
