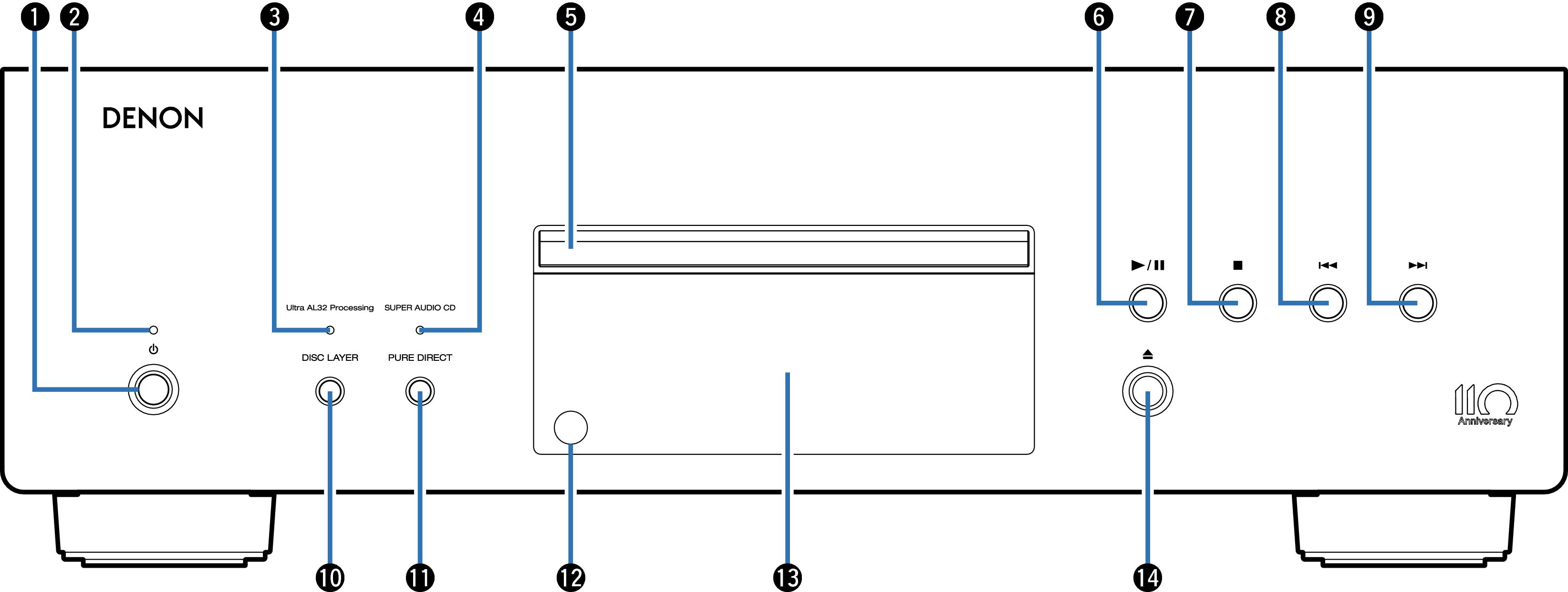

Front panel
Power operation button (
)
This turns the power on/off. link
Power indicator
This is lit as follows according to the power status:
Power on : White
Standby : Off
Power off : Off
Ultra AL32 Processing indicator
When this unit is used in the following ways, Ultra AL32 Processing is activated and this light turns on.
When a CD is inserted
When a data disc is inserted
When “CD” is set as the layer mode of a Super Audio CD
When a DSD file is played, Ultra AL32 Processing stops and this light turns off.
SUPER AUDIO CD indicator
This light turns on when this unit is used in the following ways.
When a Super Audio CD is inserted
When “STEREO” or “MULTI” is set as the layer mode of a Super Audio CD
Disc tray
Used to insert a disc.
Play/Pause button (
/
)
Plays the track/Pauses the track.
Stop button (
)
Stops playback.
Reverse-skip button (
)
Returns to the start of the currently playing track.
Forward-skip button (
)
Plays the next track.
DISC LAYER button
This switches the Super Audio CD layer.link
PURE DIRECT button
This switches the Pure Direct mode.link
Remote control sensor
This receives signals from the remote control unit. link
Display
Various information is displayed here. link
Disc tray open/close button (
)
Used to open/close the disc tray.
