Remote control unit

This section mainly explains remote control operations.

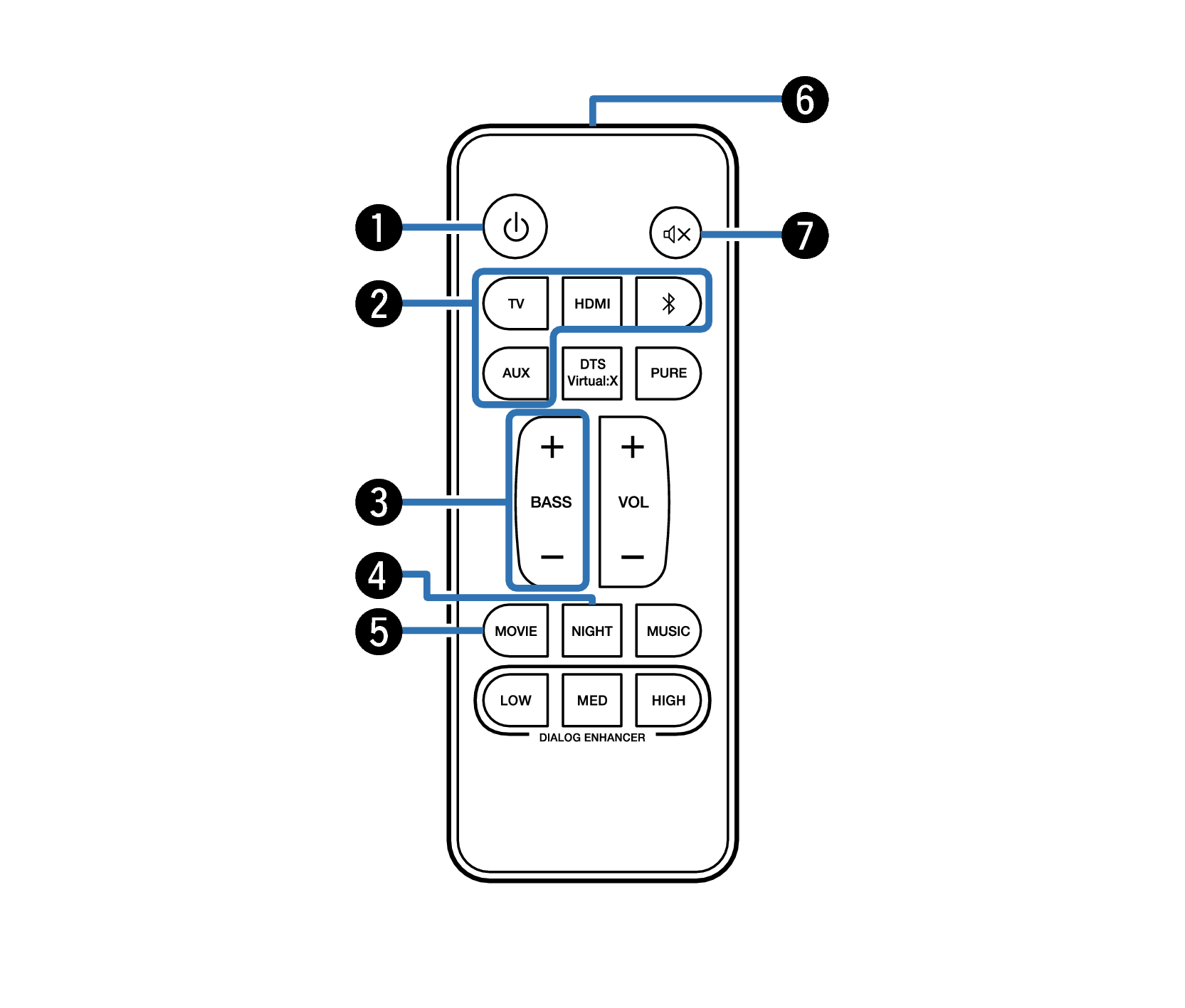

Name RC1236

Power button ( Icon Power )

Turns the sound bar power on/off. link

Input source buttons (TV, HDMI, Icon Bluetooth , AUX)

This selects the input source. link

Button to adjust subwoofer (BASS +, -)

Adjusts the volume level for the subwoofer. link

Night mode button (NIGHT)

Compresses the dynamic range (difference between loud and soft sounds) to make audio easier to hear at low volumes. link

Movie mode button (MOVIE)

Enjoy movie theater-like surround sound. link

Remote control signal transmitter

This transmits signals from the remote control unit. link

Mute button ( Icon Mute )

This mutes the output audio. Press again to unmute. link

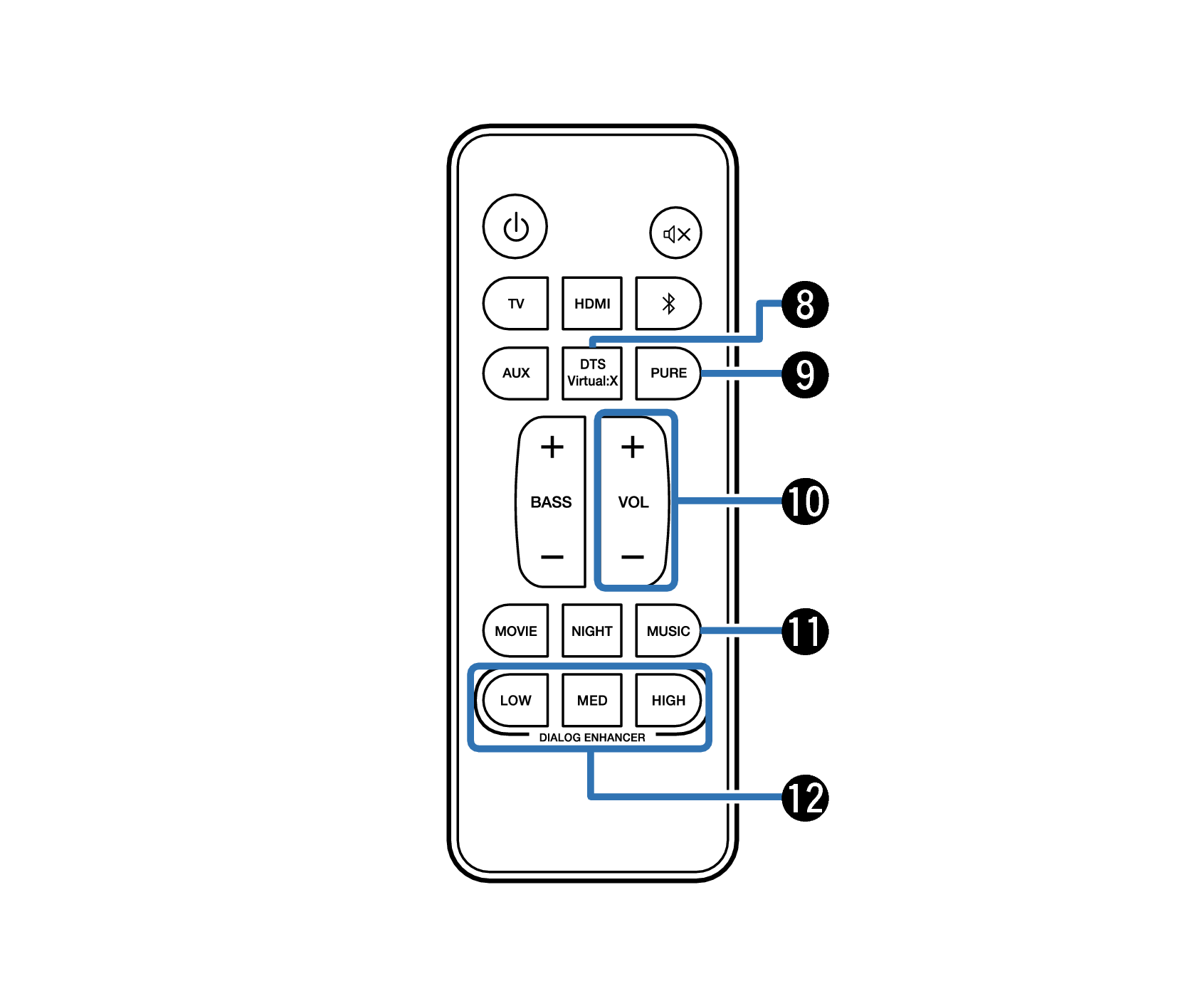

Name RC1236_2

DTS Virtual:X button

This turns the DTS Virtual:X function on and off. link

DTS Virtual:X function is disabled when listening mode is set to “PURE”.

Pure mode button (PURE)

Enjoy high quality sound that is faithful to the original source. link

Volume buttons (VOL +, –)

These adjusts the volume level. link

Music mode button (MUSIC)

Enjoy the natural and realistic surround sound of a concert hall. link

Dialog enhancer buttons
(DIALOG ENHANCER LOW, MED, HIGH)

Adjust the volume of dialog in movies, vocals in music, etc. so these can be heard more easily. link

Can be set to 3 levels. Set this to the desired value.
