TV equipped with an HDMI connector and incompatible with the eARC or ARC / TV equipped with an optical digital connector

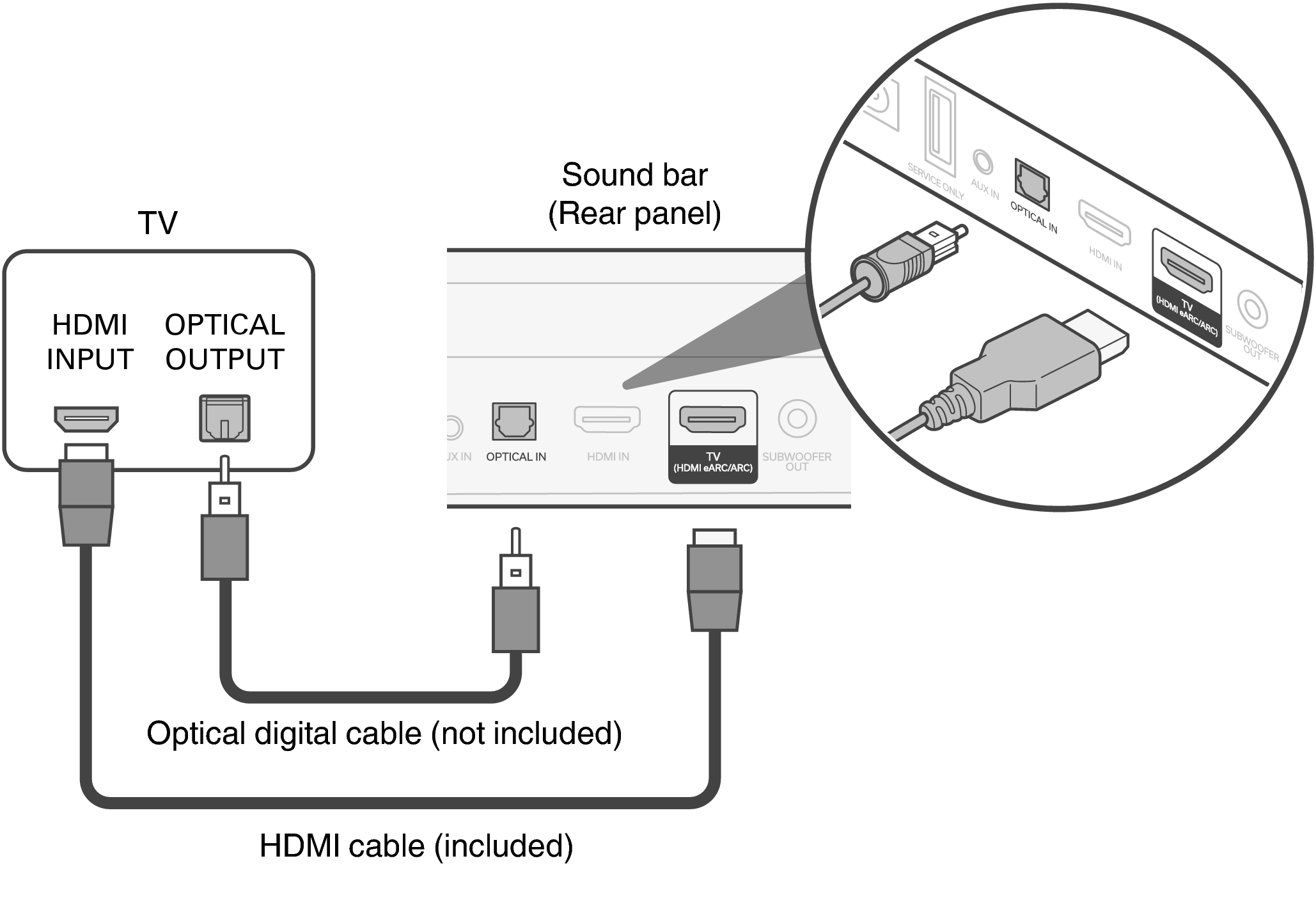

Use the included HDMI cable and a commercially available optical digital cable to connect this unit to a TV.

Connect Bar OPT S218E2EA

When inserting optical digital cables, ensure that the orientation of the plugs are correct by checking the shape of the optical digital cable plugs, the OPTICAL IN connector on this unit and the optical digital connector on the unit you are connecting to. Forcible insertion in the incorrect orientation may damage the connectors and plugs.
