Front panel

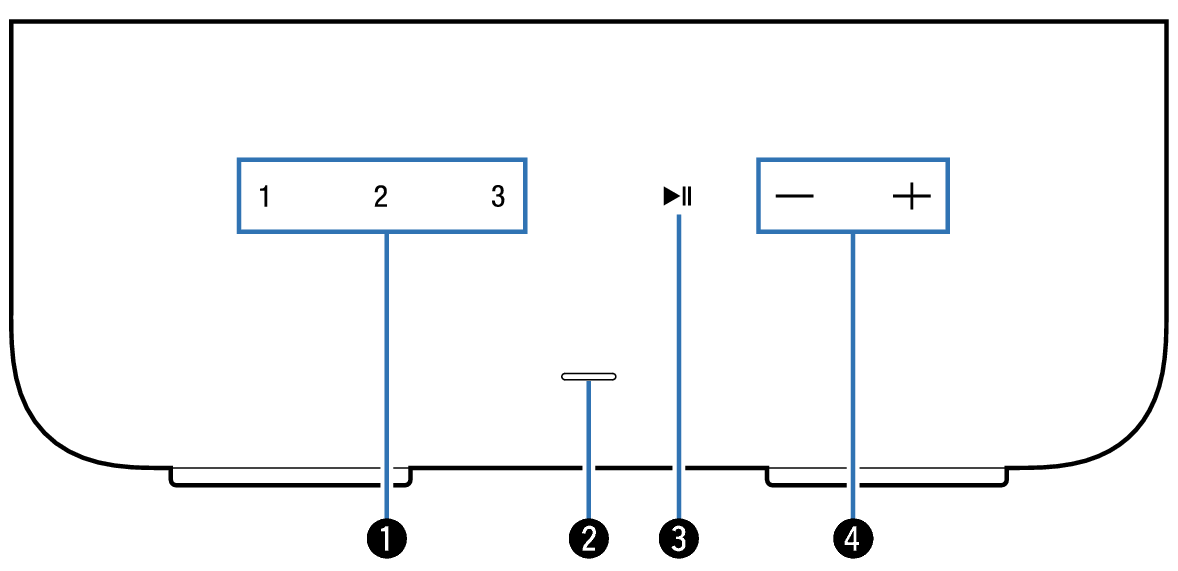

Name Front DHAMP

Quick select buttons (1 - 3)

Register input source, volume and other settings to these buttons or recall those settings. link

Status LED

Please refer to the Status LED tablelink for LED color and state meaning. link

Play/Pause key ( Triangle Right / Pause )

Press this key to pause during playback. If pressed while paused or stopped, resumes playback from the last track played.

Double-tap the key to play the next track.

Triple-tap the key to restart the current track or play the previous track.

Press and hold the key for about 5 seconds to enter Deep Standby mode. link

Volume keys (+, –)

These adjusts the volume level.
