Status LED table

The LEDs on the front panel and rear panel change to indicate the current status.

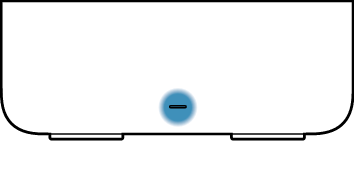

Status	Front LED action	Rear LED action	Description

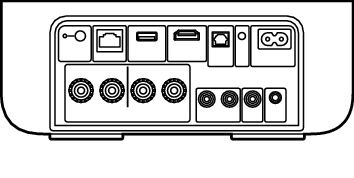

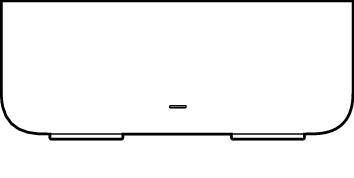

Deep Standby mode	(off)	(off)	Power is off, or this unit is in Deep Standby mode. link
Network Standby mode	(dimmed solid)	(off)	This unit is in Network Standby mode (Connected to your network). link
Network Standby mode	(dimmed solid)	(dimmed solid)	This unit is in Network Standby mode (Not connected to your network). link

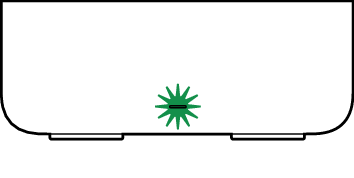

Power on	(blink)	(off)	This unit is starting up or connecting to the network.

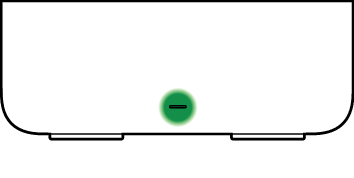

	(solid)	(off)	This unit is connected to the network.

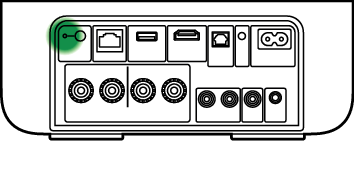

	(solid)	(solid)	This unit is unable to connect to the network. Try to connect this unit again.

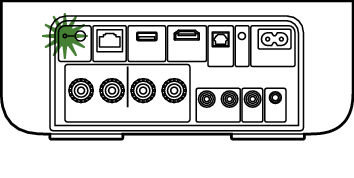

WPS	(fast blink)	(fast blink)	This unit is connecting to the network via WPS.
	(for 3 sec. solid)	(solid)	This unit is connected to the network via WPS.
	(for 3 sec. solid)	(solid)	WPS has timed out.
Bluetooth	(two blinks)	(two blinks)	This unit is pairing via Bluetooth.
	(one blink)	(off)	This unit is paired via Bluetooth.
	(for 3 sec. solid)	(for 3 sec. solid)	This unit failed to pair to the Bluetooth device. Try to pair again. link
Volume setting	(quick blink)	(off)	Volume is being adjusted.
Volume setting	(slow blink)	(off)	This unit is muted.

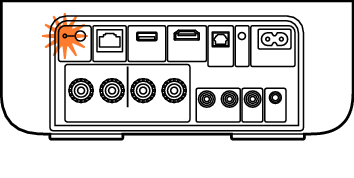

Firmware update	(blink)	(blink)	Firmware is being updated.
Firmware update	(slow blink (Not fade))	(off)	There is a firmware error. Check your Internet connection quality, relaunch the app, then try to update the firmware again.

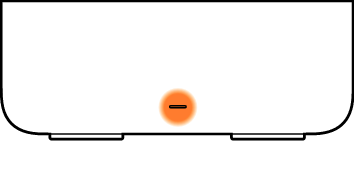

Error	(solid)	(solid)	There was a setup error. Check your usage environment, then follow the correct procedure to try setup again. If the error occurs again, restore factory settings and try setup again. link

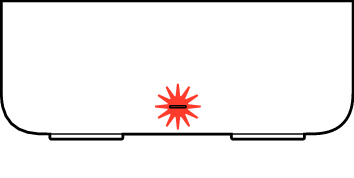

Error	(fast blink)	(off)	There is a hardware error. Unplug the power cord, wait about 30 seconds, then plug the power cord back in.
Reset	(fast blink)	(solid)	Factory settings have been restored.
