Playing music from the AUX input

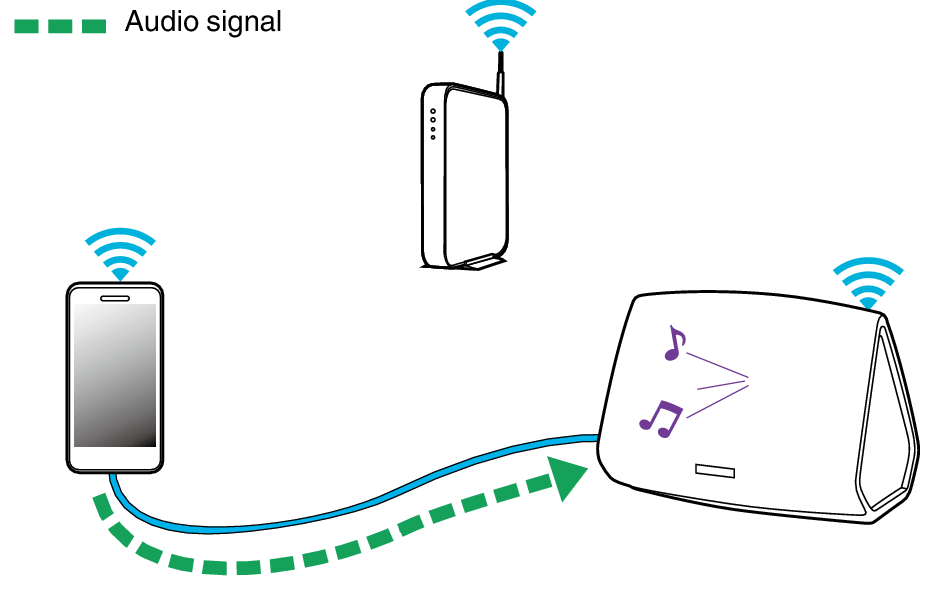

Connect an audio device with a 3.5 mm stereo audio output to the AUX input on your speaker using the included 3.5 mm stereo audio cable.
When a stereo audio cable is connected to AUX IN, the source automatically switches to Inputs.
NOTE
When there is a cable connected to AUX IN, select “Inputs” from the “Music” tab.
Initiate playback on the audio device.
The sound from the audio device can be played directly on the selected speaker or digitized and sent over your network to other speakers.
NOTE
The analog output signals from some sources can be fairly strong. If the input level of the source device is turned up high, it could overload the inputs of the HEOS device.
This is unlikely to cause damage, but can cause distorted sound. Initially, set the volume of the source to a medium – low level, then turn it up as needed. If you hear distortion, turn down the device's volume control.
