HEOS 7
Wireless LAN
|
Network type: |
Conforming to IEEE 802.11a/b/g/n/ac |
|
Used frequency range: |
2.4 GHz, 5 GHz |
General
|
Operating temperature: |
41 °F - 95 °F (5 °C - 35 °C) |
|
Power supply: |
AC 100 – 240 V, 50/60 Hz |
|
Power consumption: |
20 W |
|
Power consumption in Quick Start Mode: * |
5.6 W (Wi-Fi) |
|
Power consumption in Deep Standby Mode: * |
0.3 W |
|
Max Analog Input: |
1 Vrms |
*Cable to AUX IN must be disconnected to enter Quick Start Mode and Deep Standby Mode.

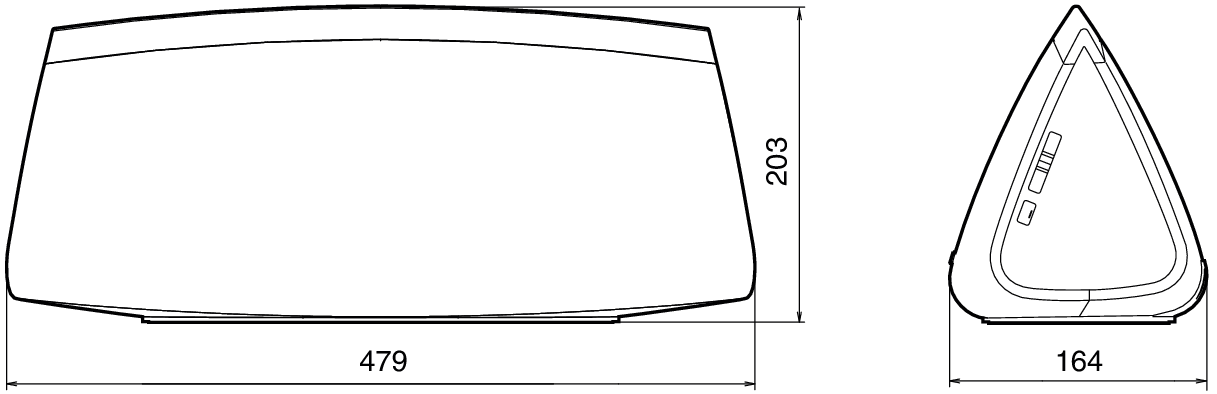

Dimensions
Unit : in. (mm)
Weight: 10 lbs 2 oz (4.6 Kg)
For the purpose of improvement, the specifications and design are subject to change without notice.
