Specifications

Wireless LAN section

Network type:

Conforming to IEEE 802.11a/b/g/n/ac

Used frequency range:

2.4 GHz, 5 GHz

General

Operating temperature:

41 °F - 95 °F (5 °C - 35 °C)

Power supply:

AC 120 V, 60 Hz (for North America)
AC 220 - 240 V, 50/60 Hz (for Europe)

Power consumption:

70 W

Power consumption in Quick Start Mode:

4.5 W

Power consumption in Deep Standby Mode:

0.3 W

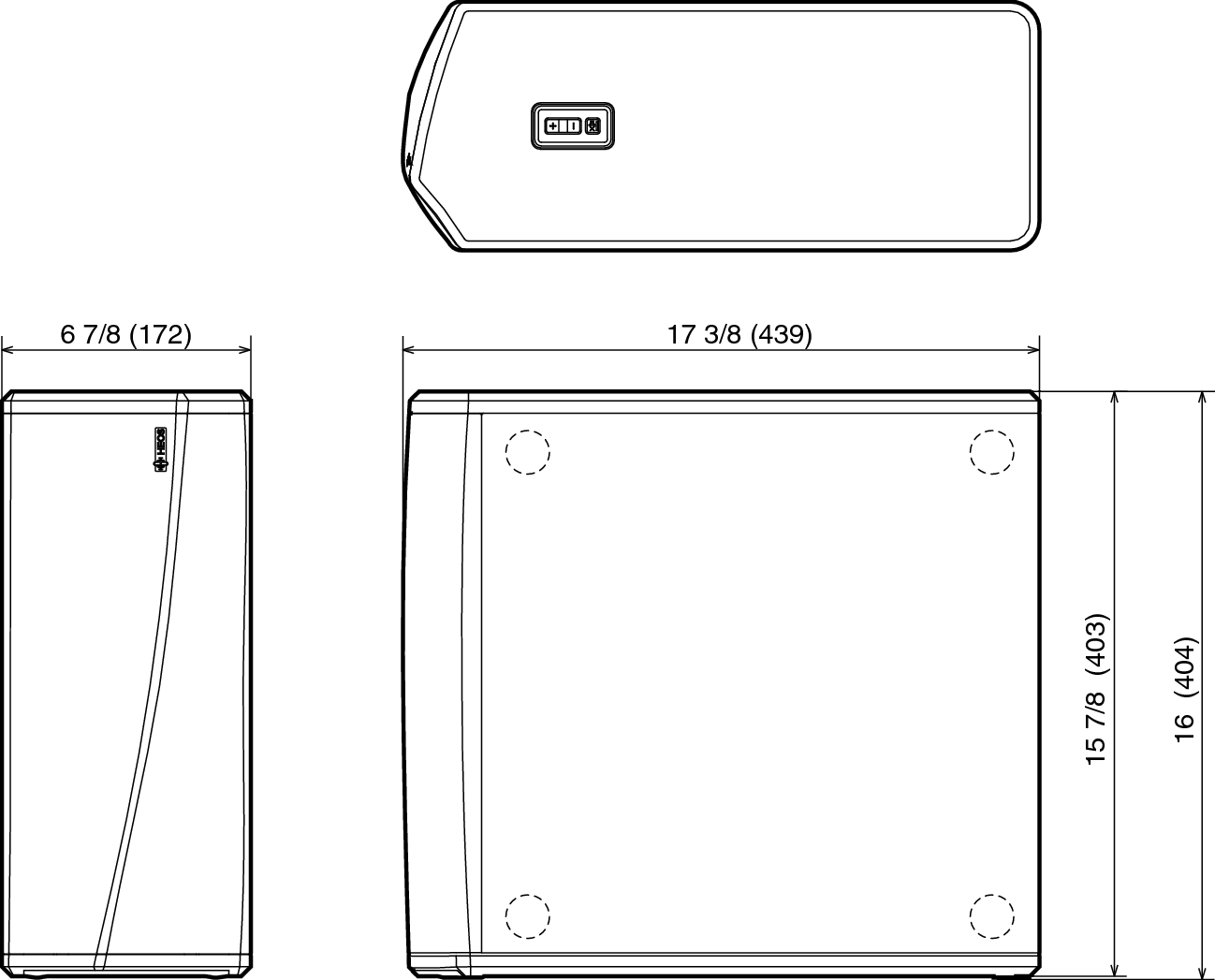

Dimensions (Unit : in. (mm))

Size HEOS Sub

Weight : 22 lbs 4 oz (10.1 kg)

For the purpose of improvement, the specifications and design are subject to change without notice.
