Status LED table
|
Device Operation |
Description |
Front LED Action |
Rear LED Action |
|---|---|---|---|
|
Off |
No AC power or Deep Standby |
 (off) |
 (off) |
|
Plug in |
Booting |

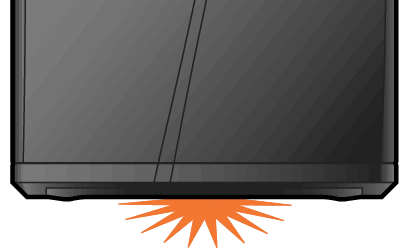

 (blink) |
(off) |
|
On |
Ready-Configured and connected to your network |
 (solid) |
(off) |
|
Not Connected to your network |
 (solid) |
 (solid) |
|
|
Change Network |
Connecting to your network |
(blink) |
(off) |
|
Setup |
Not connected |
(solid) |
(solid) |
|
Connect button was pressed |
 (blink) |
 (blink) |
|
|
Cable connection is OK |
 (solid) |
 (solid) |
|
|
Connecting to your network |
(blink) |
(off) |
|
|
Configured and connected to your network |
(solid) |
(off) |
|
|
Error |
 (solid) |
 (solid) |
|
|
Update |
Updating |
 (blink) |
 (blink) |
|
Rebooting |
(blink) |
(off) |
|
|
Ready-Configured and connected to your network |
(solid) |
(off) |
|
|
Reset |
Soft reset - Clear user settings |
(fast blink) |
(solid) |
|
Hard reset - Factory restore |
(blink) |
(solid) |
|
|
Rebooting |
(blink) |
(off) |
|
|
Ready-Not Configured |
(solid) |
(solid) |
|
|
Errors |
Firmware Error |
 (slow blink (NOT fade)) |
(off) |
|
Hardware Error |
(fast blink) |
(off) |
|
|
Network Error |
(solid) |
(solid) |
|
|
WPS |
a WPS session is active |
(fast blink) |
(fast blink) |
|
WPS connected |
(for 3 sec. solid) |
(solid) |
|
|
WPS time-out |
(for 3 sec. solid) |
(solid) |
|
|
Power Management |
Quick Start Mode |
(dimmed solid) |
(off) |
|
Deep Standby |
(off) |
(off) |
