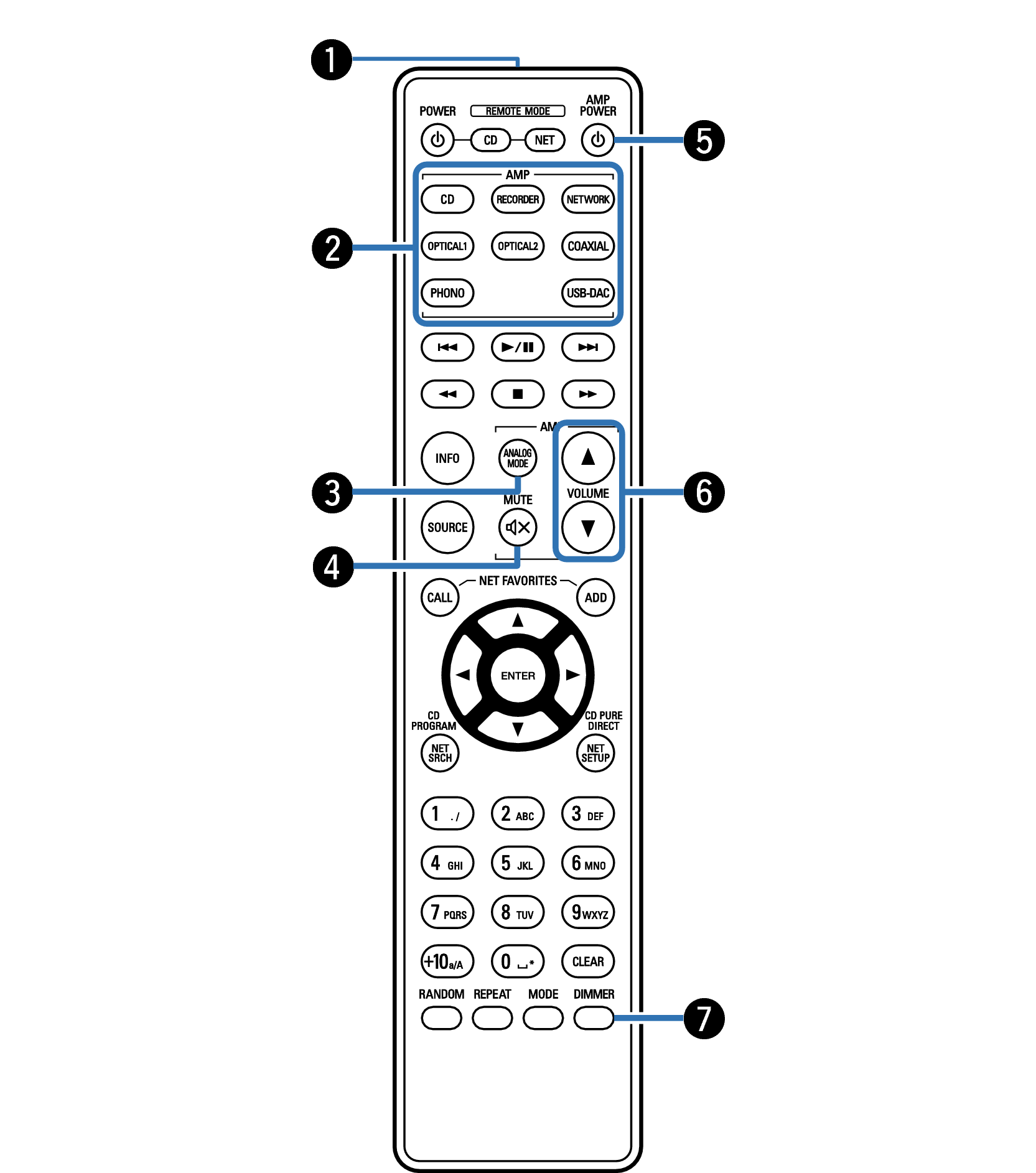

Remote control unit
Operating this unit
Signal transmitter
This transmits signals from the remote control unit.link
Input source select buttons
This selects the input source. link
ANALOG MODE button
This switches the ANALOG MODE. link
MUTE button (
)
This mutes the output audio. link
Power operation button (AMP POWER
)
This turns the power on/off (standby). link
VOLUME buttons (
)
These adjust the volume level. link
DIMMER button
This switches the brightness of the display.link

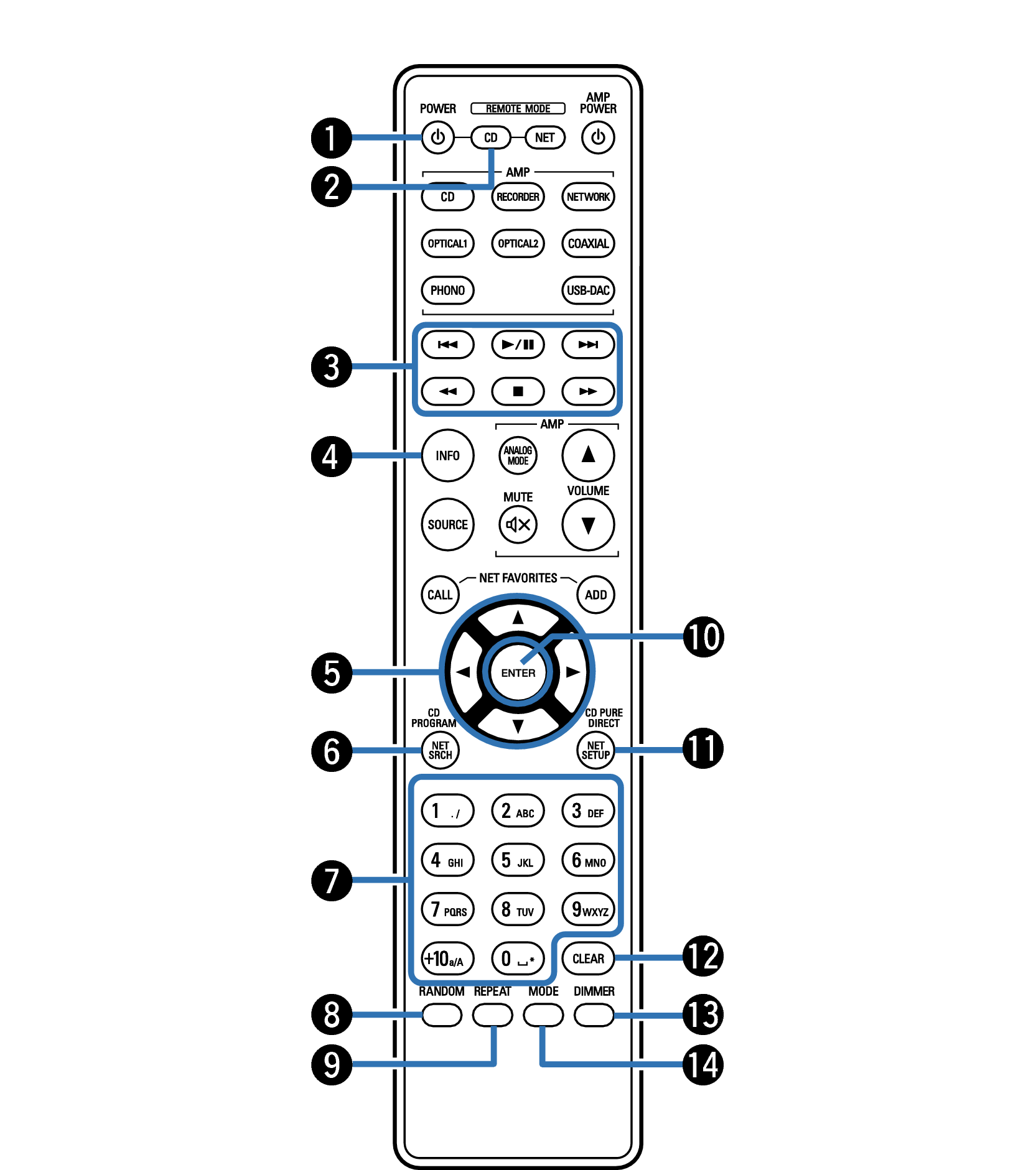

CD player operations
A Denon CD player can be operated.
Power operation button (POWER )
Remote mode select button (REMOTE MODE CD)
System buttons
Skip buttons (
/
)
Play/pause button (
/
)
Fast-reverse/Fast-forward buttons (
/
)
Stop button (
)
Information button (INFO)
Cursor buttons (
)
CD PROGRAM button
Number buttons (0 – 9, +10)
RANDOM button
REPEAT button
ENTER button
CD PURE DIRECT button
CLEAR button
DIMMER button
MODE button
The remote control may not operate some products.

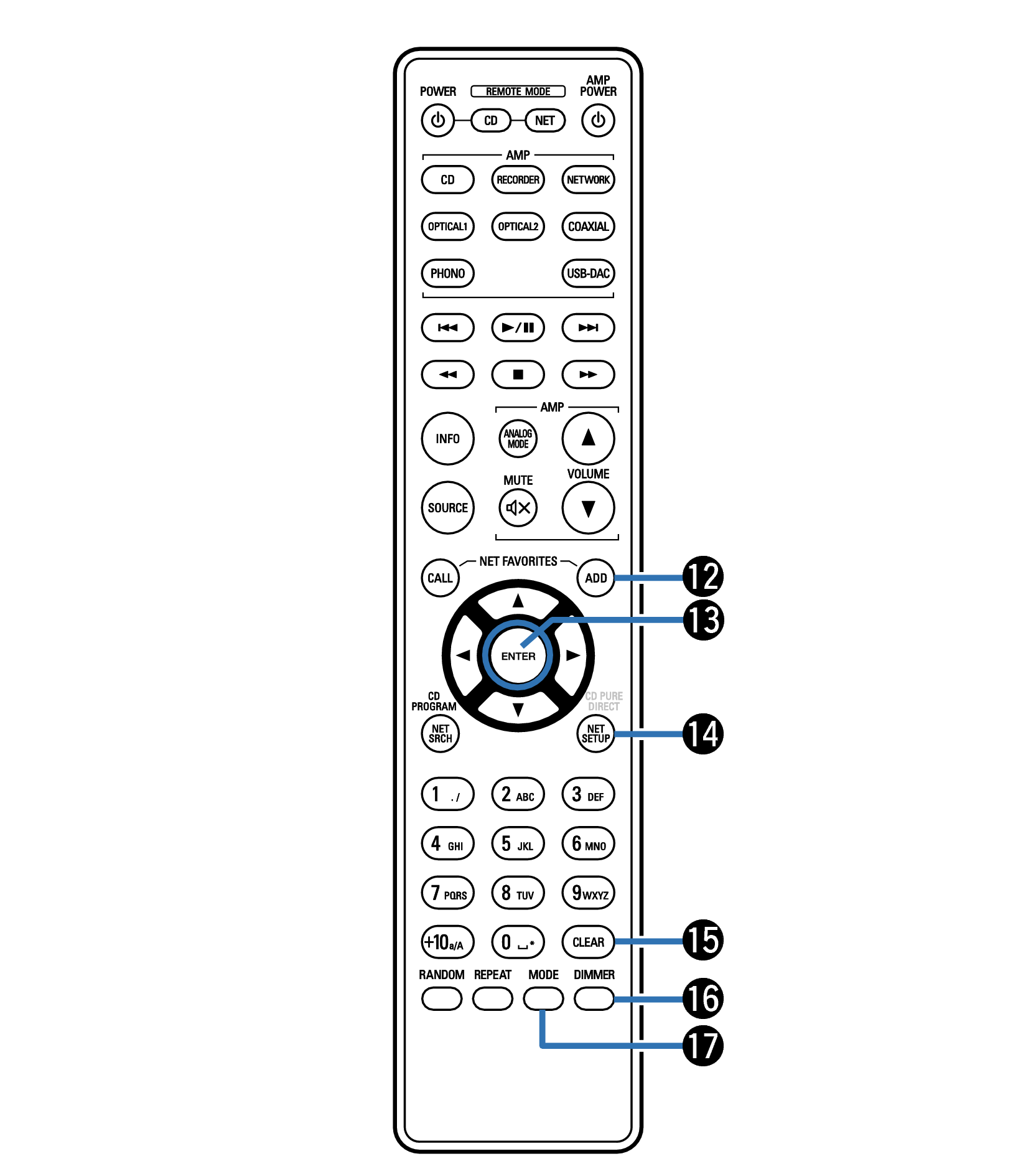

Network audio player operations
To operate a Denon network audio player, press the REMOTE MODE NET button to switch the remote control to the network audio player operation mode.
Power operation button (POWER )
Remote mode select button (REMOTE MODE NET)
System buttons
Skip buttons ( / )
Play/pause button ( / )
Fast-reverse/Fast-forward buttons ( / )
Stop button ( )
Information button (INFO)
SOURCE button
NET FAVORITES CALL button
Cursor buttons ( )
NET SRCH button
Number buttons (0 – 9, +10)
RANDOM button
REPEAT button
NET FAVORITES ADD button
ENTER button
NET SETUP button
CLEAR button
DIMMER button
MODE button
The amp can be operated with the amp operation buttons even when the remote control mode is “NET”.
When using it, also refer to the operating instructions of the other devices.
The remote control may not operate some products.
