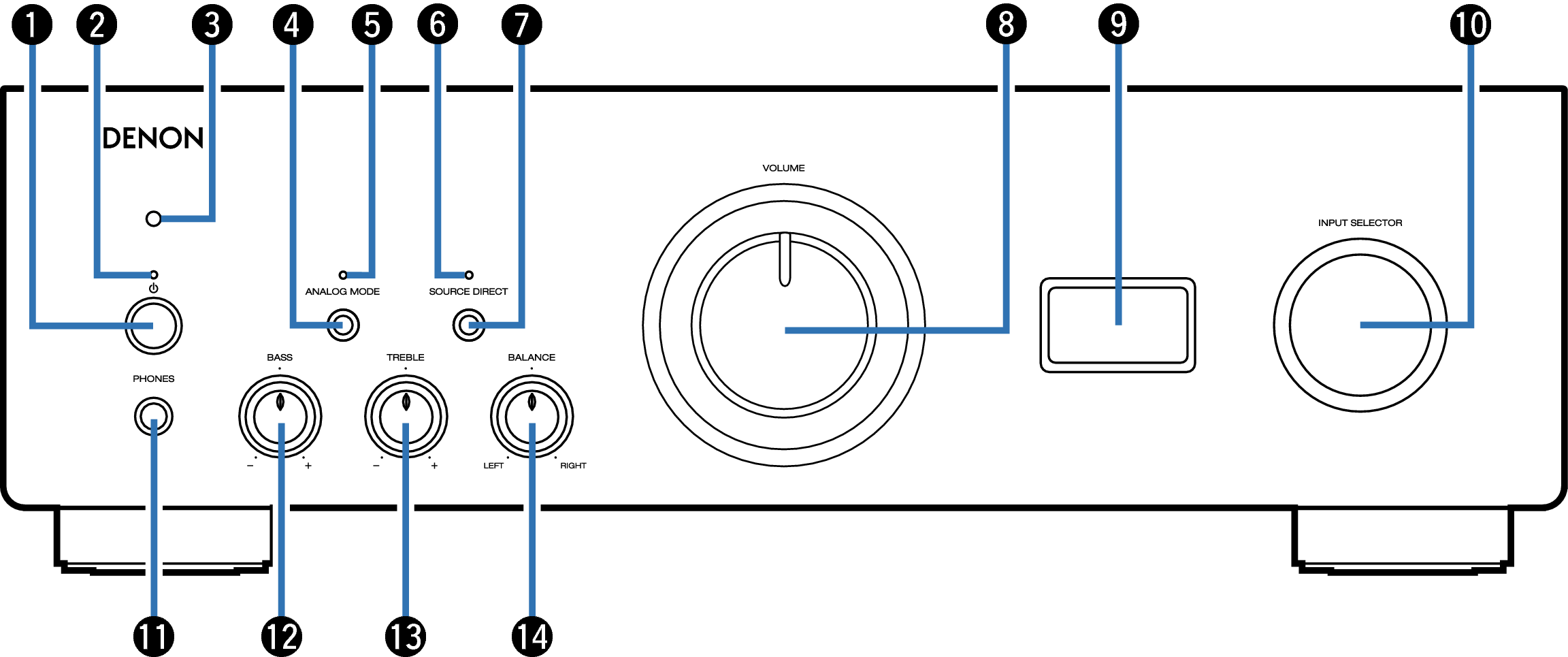

Front panel
Power operation button (
)
This turns the power on/off. link
Power indicator
This is lit as follows according to the power status:
Power on : Green
Standby : Off
Power off : Off
When the protection circuit is activated : Red (blinking)
Remote control sensor
This receives signals from the remote control unit. link
ANALOG MODE button
This switches the ANALOG MODE. link
ANALOG MODE indicator
This is lit as follows according to the ANALOG MODE status:
ANALOG MODE 1/2: Green
ANALOG MODE off: Off
SOURCE DIRECT indicator
This is lit as follows according to the SOURCE DIRECT status:
SOURCE DIRECT mode on: Green
SOURCE DIRECT mode off: Off
SOURCE DIRECT button
This turns SOURCE DIRECT mode on/off.link
VOLUME knob
These adjust the volume level. link
Display
This displays information such as the input source name, type of digital audio signal and sampling frequency.
Input source select knob (INPUT SELECTOR)
This selects the input source. link
Headphones jack (PHONES)
Used to connect headphones.
Turn off speaker output when using headphones.
NOTE
To prevent hearing loss, do not raise the volume level excessively when using headphones.
BASS control knob
This setting adjusts the volume level for the bass. link
TREBLE control knob
This setting adjusts the volume level for the treble. link
BALANCE control knob
This adjusts the balance of the volume output from the left and right speakers. link
,
and
can be adjusted when
is off (SOURCE DIRECT mode is off).
